◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10948 - LV123/423-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#35016) — 426 parça
çizim 176943
16 448 251 264 175 166 164 16 208 206 194 171 49 48 321 237 264 231 194 225 48 16 194 16 163 470 218 162 48 170
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0404- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) L=140 		5-09707-031-1 01 1 0404- ● ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (C) ID=11X2 H=35 L=20 		1-09700-847-0 02 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (D) ID=50 		1-09709-175-0 08 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (B) L=140 		5-09707-031-1 06 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=16 		9-09535-025-0 10 1 0404-0606 ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=16 		0-95325-025-0 10 1 0607- ●
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 02 1 0404- ●
16 CLIP; HARNESS
(T) ID=5-12 L=18 		1-09709-287-0 03 1 0404- ●
16 CLIP; HARNESS
(G) ID=18 L=25 H=50 		1-09701-096-0 01 1 0404- ● ●
16 CLIP; HARNESS
(A) ID=18 L=38 H=23 		1-09701-147-0 01 1 0404- ● ●
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 0404- ● ●
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0404- ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 0404- ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 0404- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 08 1 0404- ● ●
16 CLIP; HARNESS
(L) L=36 		8-94224-891-1 01 1 0404- ● ●
16 CLIP; HARNESS
(M) ID=16 L=20 		9-09525-535-0 01 1 0404-0606 ● ●
16 CLIP; HARNESS
(M) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 0404- ● ●
16 CLIP; HARNESS
(O) ID=20 L=50 		9-09917-430-0 02 1 0404- ● ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (P) ID=11 H=30 L=17 		1-09700-113-0 02 1 0404- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (D) ID=50 		1-09709-175-0 04 1 0404- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (R) ID=11 L=16 		9-09525-025-0 10 1 0404-0606 ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (R) ID=11 L=16 		0-95235-025-0 10 1 0607- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (Q) OD=9 H=9.5 		1-09709-179-0 02 1 0404- ●
16 CLIP; HARNESS
(Q) OD=9 H=9.5 		1-09709-179-0 02 1 0404- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (U) ID=33 L=63 		1-09700-807-0 02 1 0404- ●
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 07 1 0404- ●
16 CLIP; HARNESS
(U) ID=33 L=63 		1-09700-807-0 01 1 0404- ●
16 CLIP; HARNESS
(R) ID=11 L=16 		9-09525-025-0 02 1 0404-0606 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (S) ID=28 L=58 		1-09700-400-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) ID=28 L=78 		1-09700-858-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ANTI SKID BRK SYSTEM<SFL> (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ANTI SKID BRK SYSTEM<SFL> (N) L=180 		1-09707-162-1 01 1 0404- ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (J) L=140 		5-09707-031-1 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=18 L=48 		9-09917-429-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 13 1 0404- ●
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0404- ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 08 1 0404- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 04 1 0404- ● ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 0404- ● ●
48 CLIP; FRAME HARNESS
(Q) ID=40 L=90 		1-09701-290-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(G) L=350 		1-09707-183-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (P) ID=22 L=52 		9-09917-431-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0404- ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 19 1 0404- ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(M) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(R) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 04 1 0404- ●
48 CLIP; FRAME HARNESS
(G) L=350 		1-09707-183-0 09 1 0404- ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0404- ●
49 CLIP; GEN HARNESS
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=140 		5-09707-031-1 01 1 0404- ● ●
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1203- ● ●
162 CLIP; SW HARNESS
(A) L=350 		1-09707-183-0 01 1 0404- ● ●
162 CLIP; SW HARNESS
EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (A) L=350 		1-09707-183-0 01 1 0404- ● ●
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0404-1202 ● ●
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 1203- ● ●
162 CLIP; SW HARNESS
(C) ID=32 L=35 		1-09701-244-0 01 1 0404- ● ●
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0404- ● ●
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0404- ● ●
164 CLIP; BAND METER HARNESS
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) L=250 		5-09707-030-1 01 1 0404- ● ●
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0404- ● ●
166 CLIP; HARNESS CLU SW
(B) L=250 		5-09707-030-1 01 1 0404- ● ●
170 CLIP; ELEC HARNESS
ANTI SKID BRK SYSTEM<SFL> (A) ID=20 L=50 		9-09917-430-0 01 1 0404- ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 0404- ● ●
170 CLIP; ELEC HARNESS
(E) L=350 		1-09707-183-0 04 1 0404- ● ●
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
170 CLIP; ELEC HARNESS
(C) ID=18 L=48 		9-09917-429-0 03 1 0404- ● ●
171 CLIP; STARTER HARNESS
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 0404- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 05 1 0404- ● ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 0404-0606 ● ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 0607- ● ●
175 CLIP; AIR TANK
L=250 		5-09707-030-1 05 1 0404- ●
175 CLIP; AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		5-09707-030-1 05 1 0404- ●
175 CLIP; AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		5-09707-030-1 04 1 0404- ●
194 CLIP; BAND
(C) ID=24 L=24 		1-09701-001-1 01 1 0404-1202 ● ●
194 CLIP; BAND
(D) L=300 		1-09707-001-1 02 1 1203- ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 05 1 0404- ● ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0404- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0404- ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 0404- ● ●
208 CLIP; HARNESS,MAG VLV
(A) L=140 		5-09707-031-1 01 1 0404- ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=14 L=44 		9-09917-427-0 03 1 0404- ● ●
218 CLIP; BAND,RR COMB
L=350 		1-09707-183-0 02 1 0404- ● ●
225 CLIP; AIR TANK HARNESS
TRANSMISSION OIL COOLER<C2C> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0404- ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 02 1 0404- ● ●
225 CLIP; AIR TANK HARNESS
(C) ID=12-16 & 12-16 		1-09709-191-0 01 1 0404- ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0404- ● ●
237 CLIP; BAND,ACL
L=180 		1-09707-162-1 01 1 0404- ● ●
251 CLIP; WATER LEVEL HARNESS
(A) L=250 		5-09707-030-1 01 1 0404- ● ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		9-09525-085-0 02 1 0404-0606 ● ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		0-95235-085-0 02 1 0607- ● ●
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0404- ● ●
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0404- ● ●
321 CLIP; HARNESS LOW PRESS SW
L=180 		1-09707-162-1 01 1 0404- ● ●
448 CLIP; AIR SUSP HARNESS
L=250 		5-09707-030-1 05 1 0404- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 01 1 0404- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0404- ● ●
çizim 176947
185 178 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
(A) ID=18 OD=23 T=12 		1-09332-035-0 02 1 0404- ● ●
178 GROMMET; HARNESS
(C) 		1-82699-219-0 01 1 0404- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=12 		9-09956-093-1 02 1 0404- ● ●
185 SLEEVE; RUBBER
ANTI SKID BRK SYSTEM<SFL> ID=10 OD=14 L=30 		9-09956-682-0 08 1 0404- ●
185 SLEEVE; RUBBER
EXC. ANTI SKID BRK SYSTEM<SFL> ID=10 OD=14 L=30 		9-09956-682-0 04 1 0404- ●

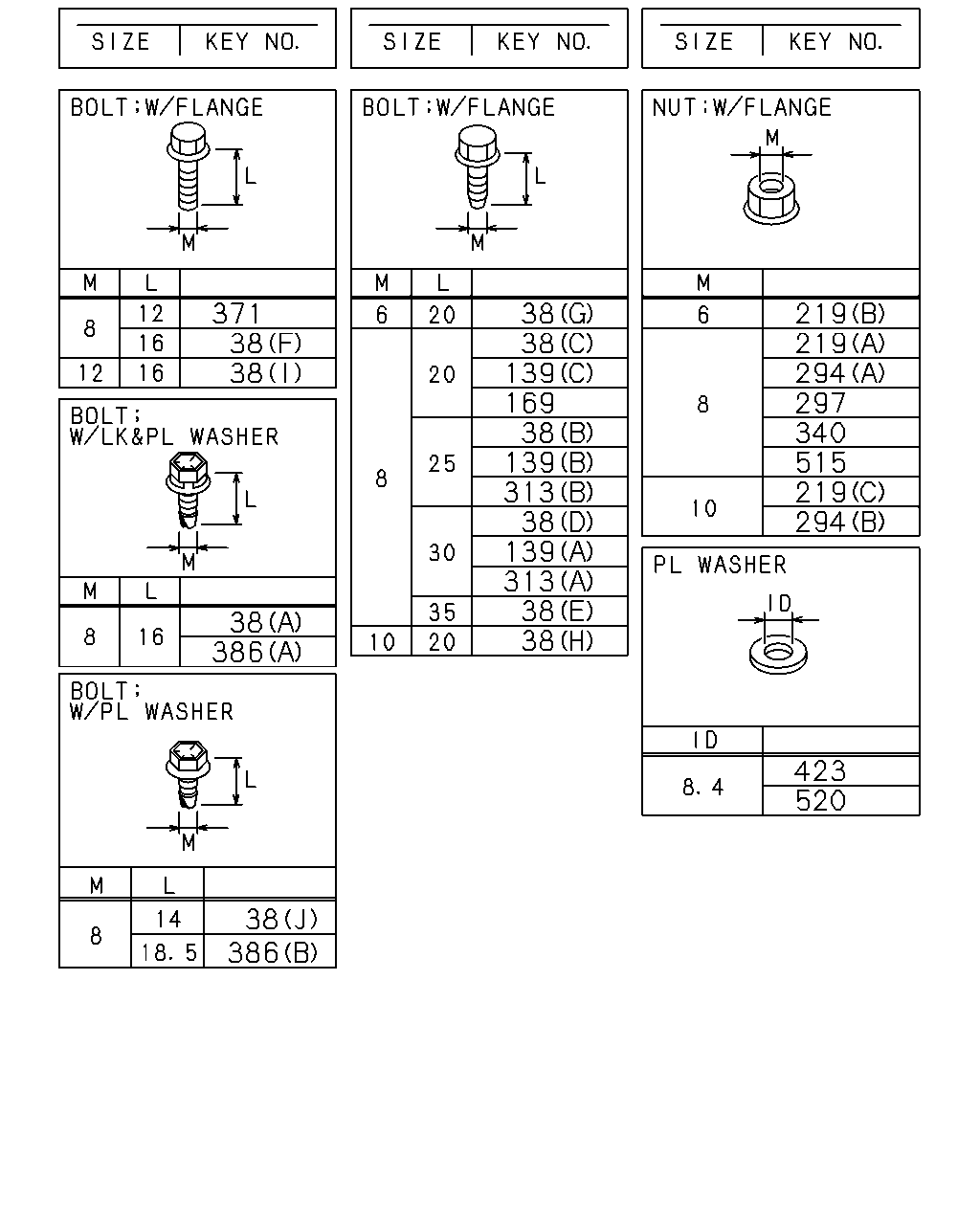

çizim 176956
371 38 38 38 38 139 169 38 139 313 38 139 313 38 38 219 219 294 297 340 515 219 294 38 386 423 520 38 386
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 10 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 10 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 16 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 16 1 0601- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(E) M8X35 FLANGE 		0-28680-835-0 10 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(E) M8X35 FLANGE 		0-28650-835-0 10 1 0601- ●
38 BOLT; CLIP,HARNESS
(F) M8X16 FLANGE 		0-28080-816-0 03 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(G) M6X20 FLANGE 		0-28680-620-0 02 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(G) M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 03 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 05 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X35 FLANGE 		0-28680-835-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(H) M10X20 FLANGE 		0-28781-020-0 01 1 0404-0512 ● ●
38 BOLT; CLIP,HARNESS
(H) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(I) M12X16 FLANGE 		1-09044-079-0 01 1 0404-1105 ● ●
38 BOLT; CLIP,HARNESS
(I) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0404-1201 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(E) M8X35 FLANGE 		0-28680-835-0 05 1 0404-0512 ●
38 BOLT; CLIP,HARNESS
(E) M8X35 FLANGE 		0-28650-835-0 05 1 0601- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 05 1 0404-0512 ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 0601- ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28690-820-0 04 1 0404-0512 ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28660-820-0 04 1 0601- ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28690-825-0 02 1 0404-0512 ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28660-825-0 02 1 0601- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0404-0512 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512 ● ●
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
219 NUT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
219 NUT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 20 1 0404-0602 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 20 1 0603- ●
219 NUT
(B) M6 FLANGE 		0-91150-106-0 02 1 0404-0602 ● ●
219 NUT
(B) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0404-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0404-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 05 1 0404-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 08 1 0404-0602 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
219 NUT
(C) M10 FLANGE 		0-91150-210-0 01 1 0404-0602 ● ●
219 NUT
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0404-0602 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0603- ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 15 1 0404-0602 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
294 NUT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0602 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0404-0602 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0404-0602 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91150-108-0 01 1 0404-0602 ● ●
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 10 1 0404-0512 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 10 1 0601- ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0404-0512 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0404-0602 ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
371 BOLT; GEN HARNESS
M8X12 FLANGE 		0-28080-812-0 01 1 0404-0512 ● ●
371 BOLT; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X12 FLANGE 		0-28080-812-0 01 1 0404-0512 ● ●
371 BOLT; GEN HARNESS
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
371 BOLT; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
386 BOLT; GRAND HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0404-1201 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0404- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0404-0602 ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0404- ● ●

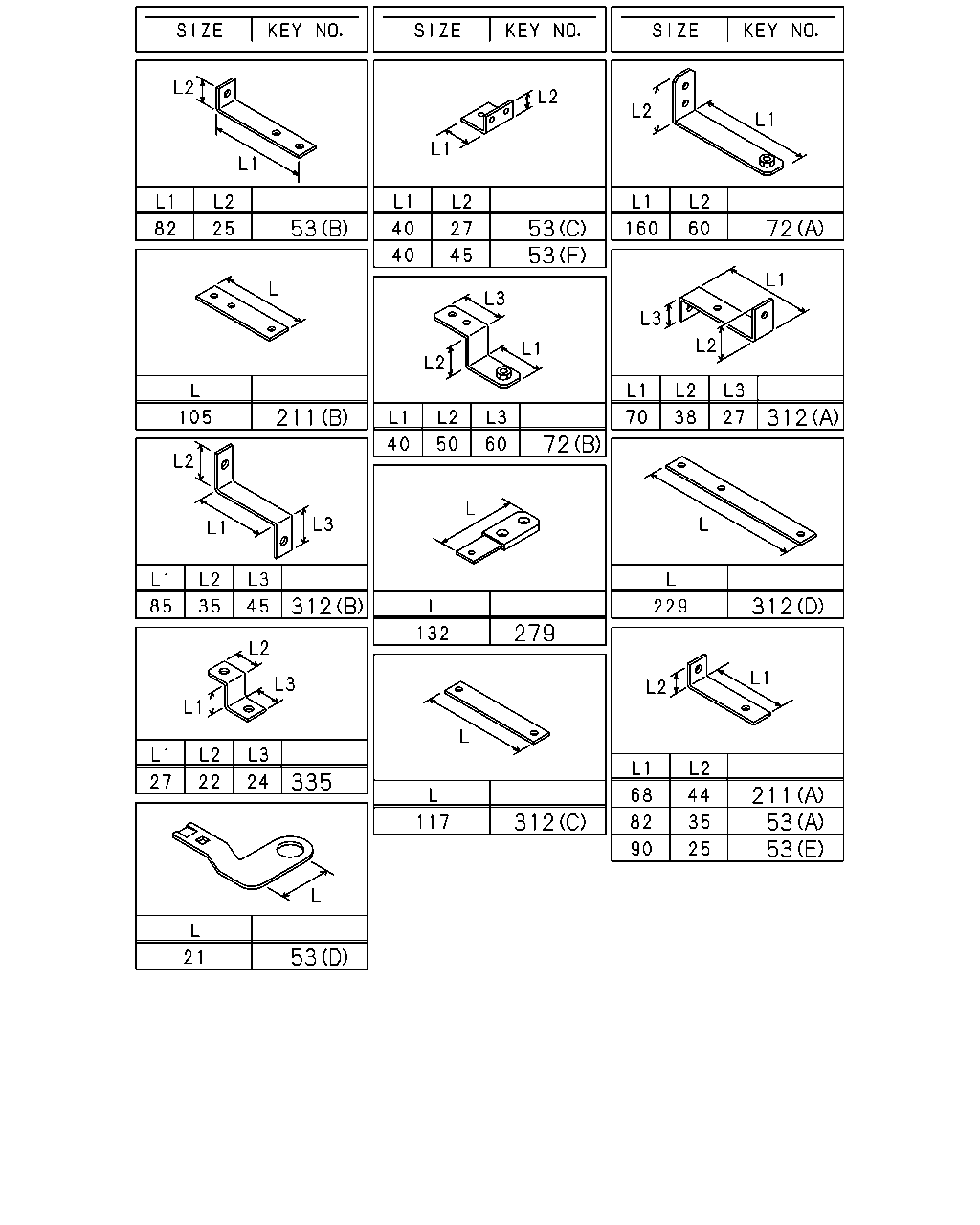

çizim 176962
53 53 53 72 211 312 72 312 312 279 335 211 53 53 312 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(E) L=90 B=25 		1-47475-530-0 01 1 0404- ● ●
53 BRACKET; HARNESS
(F) 		1-47478-919-0 02 1 0404- ●
53 BRACKET; HARNESS
(A) 		1-82699-104-0 01 1 0404- ●
53 BRACKET; HARNESS
(E) L=90 B=25 		1-47475-530-0 02 1 0404- ● ●
53 BRACKET; HARNESS
(B) L=82 B=20 		1-47478-420-0 01 1 0404-1404 ● ●
53 BRACKET; HARNESS
(B) L=82 B=20 		8-98259-390-0 01 1 1405- ● ●
53 BRACKET; HARNESS
(C) 		1-47478-422-0 01 1 0404- ● ●
53 BRACKET; HARNESS
(D) 		1-82699-356-1 01 1 0404- ● ●
72 BRACKET; CLIP,POWER WINDOW HARNESS
(A) 		1-52171-251-1 02 1 0404- ●
72 BRACKET; CLIP,POWER WINDOW HARNESS
(B) 		1-52171-252-0 01 1 0404- ●
211 BRACKET; AXLE HARNESS
(B) L=105 		1-47477-409-0 03 1 0404- ●
211 BRACKET; AXLE HARNESS
(A) L=68 		1-47475-525-0 02 1 0404- ●
279 STAY; HARNESS 1-82699-873-0 02 1 0404- ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-47478-992-0 02 1 0404- ●
312 BRACKET; CLIP HARNESS
(D) L=229 		1-47478-993-0 02 1 0404- ●
312 BRACKET; CLIP HARNESS
(A) 		1-38329-071-0 01 1 0404- ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-47477-954-0 01 1 0404- ● ●
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0404- ● ●

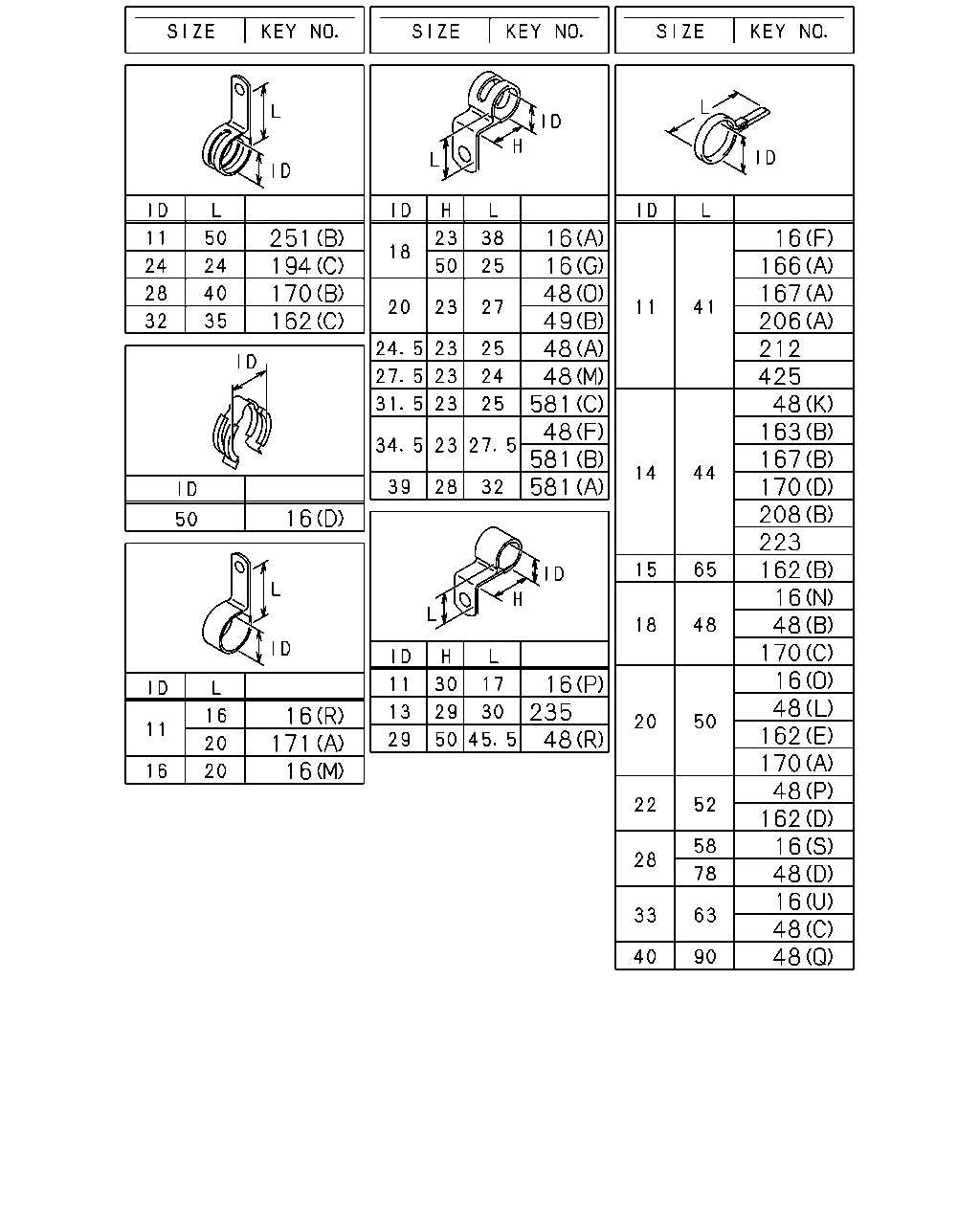

çizim 176963
251 170 194 162 16 16 171 16 48 16 235 581 581 48 581 48 48 49 48 16 16 16 167 166 206 425 163 48 170 167 208 162 223 48 48 16 48 16 162 170 16 48 170 16 48 162 48 212
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0404- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) L=140 		5-09707-031-1 01 1 0404- ● ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (C) ID=11X2 H=35 L=20 		1-09700-847-0 02 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (D) ID=50 		1-09709-175-0 08 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (B) L=140 		5-09707-031-1 06 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=16 		9-09535-025-0 10 1 0404-0606 ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=16 		0-95325-025-0 10 1 0607- ●
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 02 1 0404- ●
16 CLIP; HARNESS
(T) ID=5-12 L=18 		1-09709-287-0 03 1 0404- ●
16 CLIP; HARNESS
(G) ID=18 L=25 H=50 		1-09701-096-0 01 1 0404- ● ●
16 CLIP; HARNESS
(A) ID=18 L=38 H=23 		1-09701-147-0 01 1 0404- ● ●
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 0404- ● ●
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0404- ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 0404- ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 0404- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 08 1 0404- ● ●
16 CLIP; HARNESS
(L) L=36 		8-94224-891-1 01 1 0404- ● ●
16 CLIP; HARNESS
(M) ID=16 L=20 		9-09525-535-0 01 1 0404-0606 ● ●
16 CLIP; HARNESS
(M) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 0404- ● ●
16 CLIP; HARNESS
(O) ID=20 L=50 		9-09917-430-0 02 1 0404- ● ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (P) ID=11 H=30 L=17 		1-09700-113-0 02 1 0404- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (D) ID=50 		1-09709-175-0 04 1 0404- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (R) ID=11 L=16 		9-09525-025-0 10 1 0404-0606 ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (R) ID=11 L=16 		0-95235-025-0 10 1 0607- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (Q) OD=9 H=9.5 		1-09709-179-0 02 1 0404- ●
16 CLIP; HARNESS
(Q) OD=9 H=9.5 		1-09709-179-0 02 1 0404- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (U) ID=33 L=63 		1-09700-807-0 02 1 0404- ●
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 07 1 0404- ●
16 CLIP; HARNESS
(U) ID=33 L=63 		1-09700-807-0 01 1 0404- ●
16 CLIP; HARNESS
(R) ID=11 L=16 		9-09525-025-0 02 1 0404-0606 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (S) ID=28 L=58 		1-09700-400-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) ID=28 L=78 		1-09700-858-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ANTI SKID BRK SYSTEM<SFL> (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ANTI SKID BRK SYSTEM<SFL> (N) L=180 		1-09707-162-1 01 1 0404- ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (J) L=140 		5-09707-031-1 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=18 L=48 		9-09917-429-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 13 1 0404- ●
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0404- ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 08 1 0404- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 04 1 0404- ● ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 0404- ● ●
48 CLIP; FRAME HARNESS
(Q) ID=40 L=90 		1-09701-290-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(G) L=350 		1-09707-183-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (P) ID=22 L=52 		9-09917-431-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0404- ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 19 1 0404- ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(M) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(R) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 04 1 0404- ●
48 CLIP; FRAME HARNESS
(G) L=350 		1-09707-183-0 09 1 0404- ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0404- ●
49 CLIP; GEN HARNESS
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
49 CLIP; GEN HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) L=140 		5-09707-031-1 01 1 0404- ● ●
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1203- ● ●
162 CLIP; SW HARNESS
(A) L=350 		1-09707-183-0 01 1 0404- ● ●
162 CLIP; SW HARNESS
EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (A) L=350 		1-09707-183-0 01 1 0404- ● ●
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0404-1202 ● ●
162 CLIP; SW HARNESS
(E) ID=20 L=50 		9-09917-430-0 03 1 1203- ● ●
162 CLIP; SW HARNESS
(C) ID=32 L=35 		1-09701-244-0 01 1 0404- ● ●
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0404- ● ●
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0404- ● ●
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0404- ● ●
166 CLIP; HARNESS CLU SW
(B) L=250 		5-09707-030-1 01 1 0404- ● ●
167 CLIP; HARNESS ACCEL & STOP
(A) ID=11 L=41 		1-09700-403-0 01 1 0404- ● ●
167 CLIP; HARNESS ACCEL & STOP
(B) ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
170 CLIP; ELEC HARNESS
ANTI SKID BRK SYSTEM<SFL> (A) ID=20 L=50 		9-09917-430-0 01 1 0404- ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 0404- ● ●
170 CLIP; ELEC HARNESS
(E) L=350 		1-09707-183-0 04 1 0404- ● ●
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
170 CLIP; ELEC HARNESS
(C) ID=18 L=48 		9-09917-429-0 03 1 0404- ● ●
171 CLIP; STARTER HARNESS
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 0404- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 05 1 0404- ● ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 0404-0606 ● ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 0607- ● ●
194 CLIP; BAND
(C) ID=24 L=24 		1-09701-001-1 01 1 0404-1202 ● ●
194 CLIP; BAND
(D) L=300 		1-09707-001-1 02 1 1203- ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 05 1 0404- ● ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0404- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0404- ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 0404- ● ●
208 CLIP; HARNESS,MAG VLV
(A) L=140 		5-09707-031-1 01 1 0404- ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=14 L=44 		9-09917-427-0 03 1 0404- ● ●
212 CLIP; HORN HARNESS
ID=11 L=41 		1-09700-403-0 02 1 0404- ● ●
223 CLIP; AIR TANK HARNESS
ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
223 CLIP; AIR TANK HARNESS
ID=14 L=44 		9-09917-427-0 04 1 0404- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 0404- ● ●
251 CLIP; WATER LEVEL HARNESS
(A) L=250 		5-09707-030-1 01 1 0404- ● ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		9-09525-085-0 02 1 0404-0606 ● ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		0-95235-085-0 02 1 0607- ● ●
425 CLIP; MODULATOR
ANTI SKID BRK SYSTEM<SFL> ID=11 L=41 		1-09700-403-0 08 1 0404- ●
581 CLIP; HARNESS,REAR SUSP
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> (A) ID=39 H=28 L=32 		1-09701-263-0 02 1 0404- ●
581 CLIP; HARNESS,REAR SUSP
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0404- ●
581 CLIP; HARNESS,REAR SUSP
ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0404- ●
581 CLIP; HARNESS,REAR SUSP
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> (C) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0404- ●

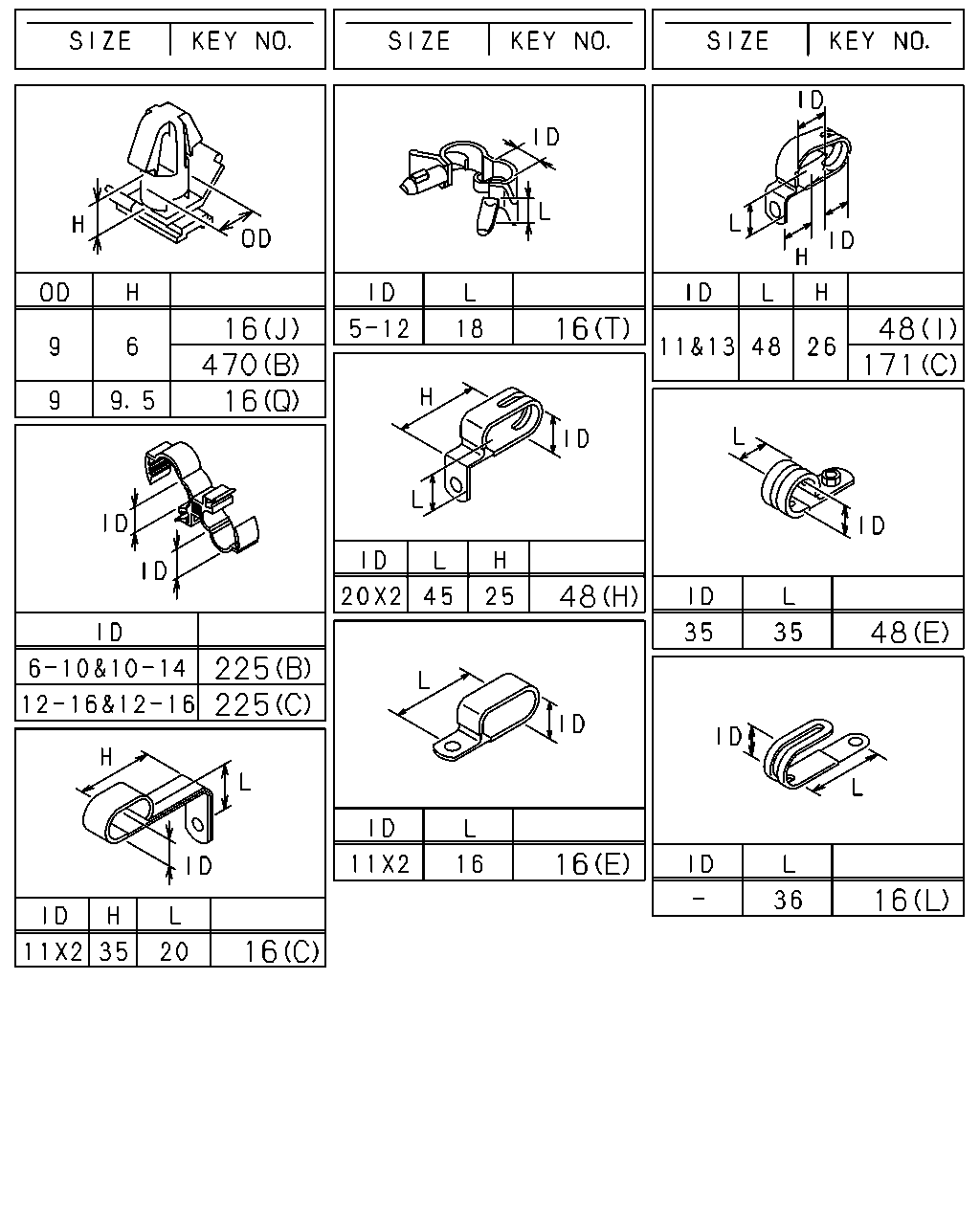

çizim 176969
16 470 16 16 48 171 48 48 225 225 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0404- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) L=140 		5-09707-031-1 01 1 0404- ● ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (C) ID=11X2 H=35 L=20 		1-09700-847-0 02 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (D) ID=50 		1-09709-175-0 08 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (B) L=140 		5-09707-031-1 06 1 0404- ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=16 		9-09535-025-0 10 1 0404-0606 ●
16 CLIP; HARNESS
ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=16 		0-95325-025-0 10 1 0607- ●
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 02 1 0404- ●
16 CLIP; HARNESS
(T) ID=5-12 L=18 		1-09709-287-0 03 1 0404- ●
16 CLIP; HARNESS
(G) ID=18 L=25 H=50 		1-09701-096-0 01 1 0404- ● ●
16 CLIP; HARNESS
(A) ID=18 L=38 H=23 		1-09701-147-0 01 1 0404- ● ●
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 0404- ● ●
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0404- ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 0404- ● ●
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 0404- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 08 1 0404- ● ●
16 CLIP; HARNESS
(L) L=36 		8-94224-891-1 01 1 0404- ● ●
16 CLIP; HARNESS
(M) ID=16 L=20 		9-09525-535-0 01 1 0404-0606 ● ●
16 CLIP; HARNESS
(M) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 0404- ● ●
16 CLIP; HARNESS
(O) ID=20 L=50 		9-09917-430-0 02 1 0404- ● ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (P) ID=11 H=30 L=17 		1-09700-113-0 02 1 0404- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (D) ID=50 		1-09709-175-0 04 1 0404- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (R) ID=11 L=16 		9-09525-025-0 10 1 0404-0606 ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (R) ID=11 L=16 		0-95235-025-0 10 1 0607- ●
16 CLIP; HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (Q) OD=9 H=9.5 		1-09709-179-0 02 1 0404- ●
16 CLIP; HARNESS
(Q) OD=9 H=9.5 		1-09709-179-0 02 1 0404- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (U) ID=33 L=63 		1-09700-807-0 02 1 0404- ●
16 CLIP; HARNESS
(F) ID=11 L=41 		1-09700-403-0 07 1 0404- ●
16 CLIP; HARNESS
(U) ID=33 L=63 		1-09700-807-0 01 1 0404- ●
16 CLIP; HARNESS
(R) ID=11 L=16 		9-09525-025-0 02 1 0404-0606 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (S) ID=28 L=58 		1-09700-400-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) ID=28 L=78 		1-09700-858-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (H) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ANTI SKID BRK SYSTEM<SFL> (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ANTI SKID BRK SYSTEM<SFL> (N) L=180 		1-09707-162-1 01 1 0404- ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0404- ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (J) L=140 		5-09707-031-1 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=18 L=48 		9-09917-429-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 13 1 0404- ●
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 13 1 0404- ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 08 1 0404- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=35 		1-09700-895-0 04 1 0404- ● ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 0404- ● ●
48 CLIP; FRAME HARNESS
(Q) ID=40 L=90 		1-09701-290-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(G) L=350 		1-09707-183-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (P) ID=22 L=52 		9-09917-431-0 02 1 0404- ● ●
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (M) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0404- ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 19 1 0404- ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(M) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(R) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0404- ●
48 CLIP; FRAME HARNESS
(I) ID=11 & 13 H=26 L=48 		1-09701-270-0 04 1 0404- ●
48 CLIP; FRAME HARNESS
(G) L=350 		1-09707-183-0 09 1 0404- ●
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0404- ●
171 CLIP; STARTER HARNESS
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 0404- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 05 1 0404- ● ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 0404-0606 ● ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=20 		0-95235-035-0 02 1 0607- ● ●
225 CLIP; AIR TANK HARNESS
TRANSMISSION OIL COOLER<C2C> (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0404- ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 02 1 0404- ● ●
225 CLIP; AIR TANK HARNESS
(C) ID=12-16 & 12-16 		1-09709-191-0 01 1 0404- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 01 1 0404- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
