Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#35015) — 174 parça

276 277 275 297 296 298 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
275	BOX ASM; FRAME HARNESS	1-82699-147-2	01	1	0404-	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-151-1	01	1	0404-	●	●
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28680-830-0	04	1	0404-0512	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING	1-09064-006-0	02	1	0404-	●	●
277	BOLT; BOX ASM FIX (E) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0404-	●	●
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
280	NUT; BOX ASM FIX M8	9-09110-408-0	02	1	0404-0512	●	●
280	NUT; BOX ASM FIX M8	0-91110-508-0	02	1	0601-	●	●
296	BRACKET; HARNESS BOX	1-82698-227-0	01	1	0404-	●	●
297	BOLT; BOX BRKT M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
297	BOLT; BOX BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
298	NUT; BOX BRKT M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
298	NUT; BOX BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

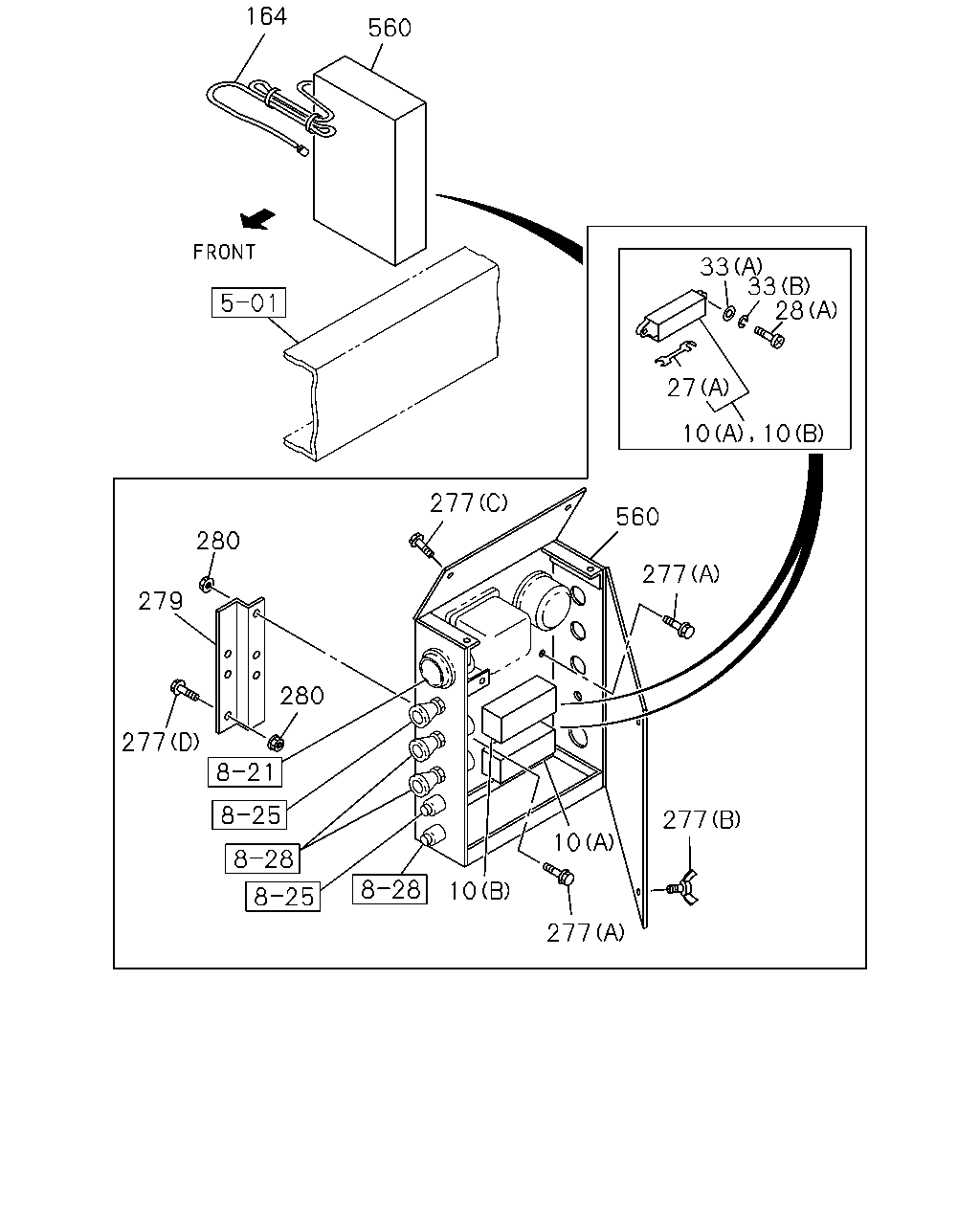

164 560 33 33 28 27 10 10 277 560 280 277 279 280 277 277 10 10 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	1-82510-234-2	01	1	0404-	●	●
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A	1-82510-235-2	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (E) 10AX1 25AX1	1-82510-579-0	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (C) 7.5AX2 15AX1	1-82510-584-0	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (D) 10AX14 15AX5 25AX2 30AX1	1-82510-596-0	01	1	0404-	●	●
27	FUSE UNIT ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 100A	9-82941-126-0	02	1	0404-	●	●
27	FUSE UNIT ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	9-82941-130-1	02	1	0404-	●	●
27	FUSE UNIT (B) 10A RED	5-82516-002-0	15	1	0404-	●	●
27	FUSE UNIT (C) 15A BLUE	5-82516-003-0	01	1	0404-	●	●
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	05	1	0404-	●	●
27	FUSE UNIT (B) 25A CLEAR	5-82516-005-0	03	1	0404-	●	●
27	FUSE UNIT (C) 7.5A BROWN	8-94159-007-0	02	1	0404-	●	●
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	01	1	0404-	●	●
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	9-03910-625-0	04	1	0404-0604	●	●
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-	●	●
28	SCREW; FUSE BOX (B) M6X42	8-97811-324-0	02	1	0404-	●	●
28	SCREW; FUSE BOX (C) M5X12	9-93490-512-0	02	1	0404-	●	●
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1	9-09150-506-0	04	1	0404-0603	●	●
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1	0-91510-506-0	04	1	0604-	●	●
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=6.4	9-09160-506-0	04	1	0404-	●	●
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	02	1	0404-0603	●	●
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	0-91510-506-0	02	1	0604-	●	●
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	02	1	0404-	●	●
164	HARNESS; ELEC ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82673-754-0	01	1	0404-	●	●
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
277	BOLT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28680-830-0	04	1	0404-0512	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
277	BOLT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING	1-09064-006-0	02	1	0404-	●	●
277	BOLT; BOX ASM FIX (E) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0404-	●	●
279	BRACKET; CONNECTOR BOX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-48495-200-2	02	1	0404-	●	●
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
280	NUT; BOX ASM FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
280	NUT; BOX ASM FIX GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
280	NUT; BOX ASM FIX M8	9-09110-408-0	02	1	0404-0512	●	●
280	NUT; BOX ASM FIX M8	0-91110-508-0	02	1	0601-	●	●
560	BOX; ELECTRIC ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82698-164-3	01	1	0404-	●	●

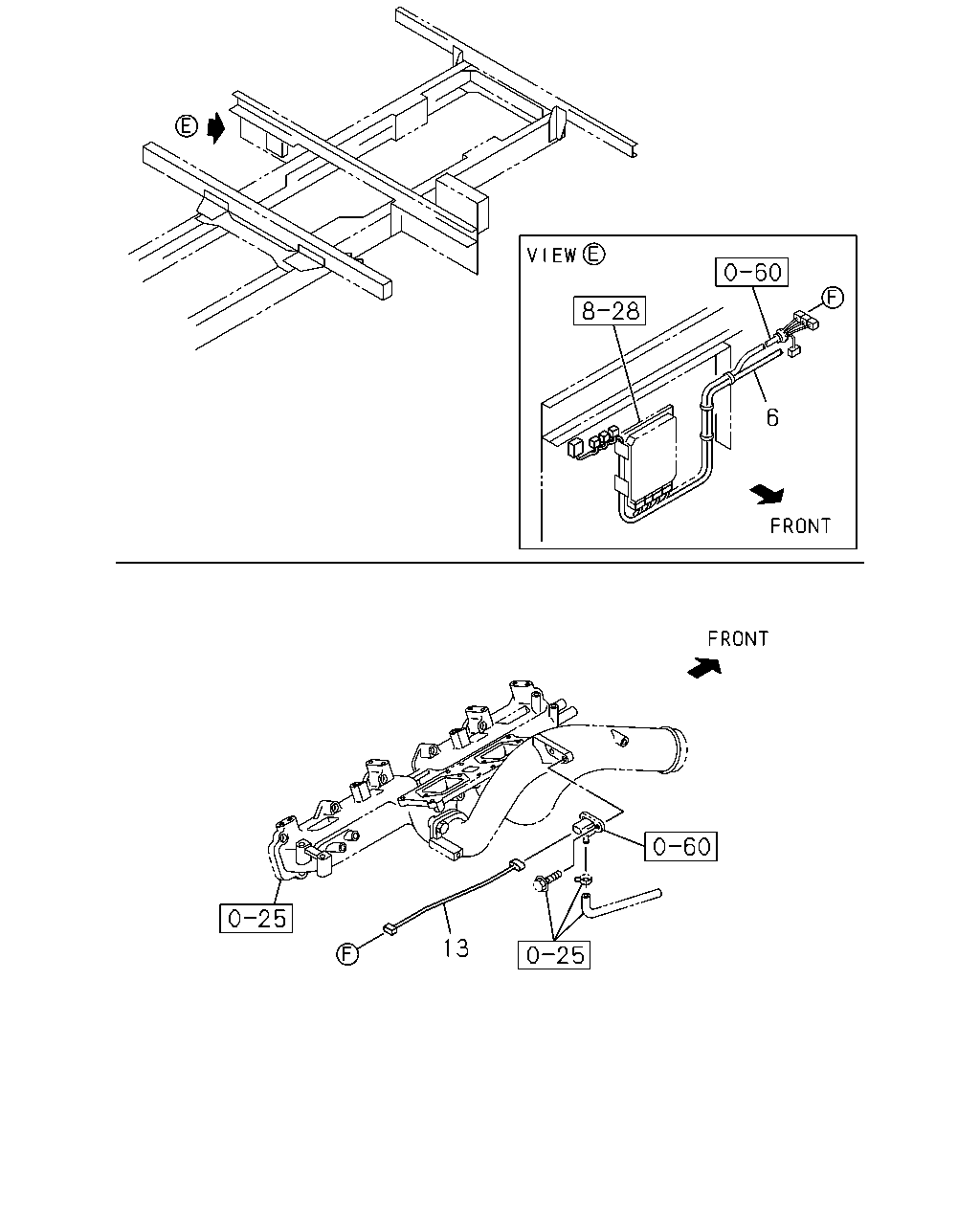

6 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL>	1-82674-435-1	01	1	0404-	●
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL>	1-82675-479-1	01	1	0404-	●
6	HARNESS; FRAME ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82675-478-1	01	1	0404-	●
6	HARNESS; FRAME EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL>	1-82675-477-1	01	1	0404-	●
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82675-476-1	01	1	0404-		●
6	HARNESS; FRAME EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82675-475-1	01	1	0404-		●
13	HARNESS; ENG	1-82641-184-0	01	1	0404-	●	●

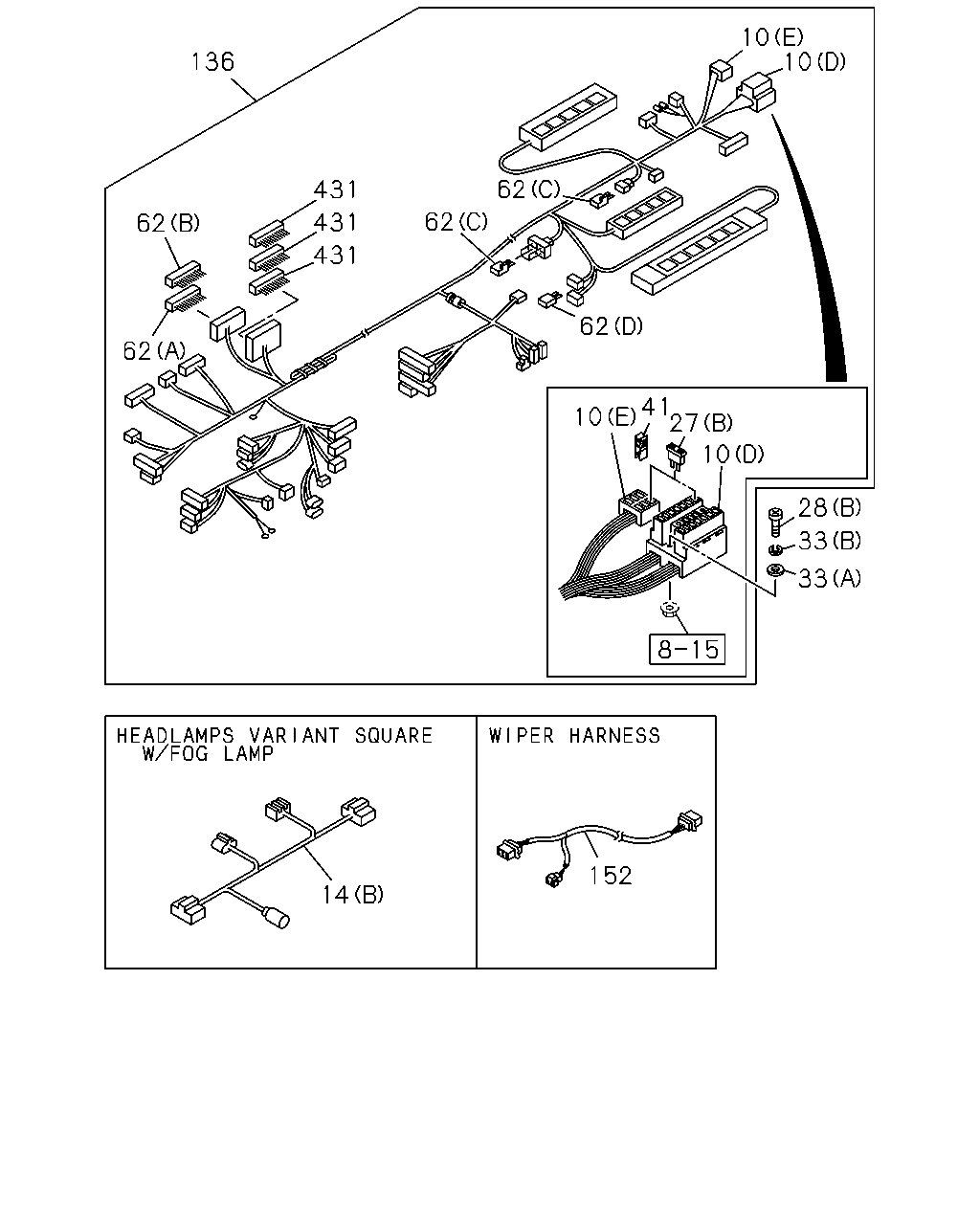

10 10 136 62 431 62 431 62 431 62 62 41 10 27 10 28 33 33 152 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	1-82510-234-2	01	1	0404-	●	●
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A	1-82510-235-2	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (E) 10AX1 25AX1	1-82510-579-0	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (C) 7.5AX2 15AX1	1-82510-584-0	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (D) 10AX14 15AX5 25AX2 30AX1	1-82510-596-0	01	1	0404-	●	●
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-071-2	02	1	0404-0407	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A)	1-82639-071-2	02	1	0404-0407	●	●
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-071-2	02	1	0408-0409	●	●
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82673-574-0	02	1	0404-	●	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-072-2	02	1	0404-0407	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-072-2	02	1	0408-0409	●	●
14	HARNESS; HEADLAMP (A)	1-82639-072-2	02	1	0410-	●	●
27	FUSE UNIT ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 100A	9-82941-126-0	02	1	0404-	●	●
27	FUSE UNIT ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	9-82941-130-1	02	1	0404-	●	●
27	FUSE UNIT (B) 10A RED	5-82516-002-0	15	1	0404-	●	●
27	FUSE UNIT (C) 15A BLUE	5-82516-003-0	01	1	0404-	●	●
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	05	1	0404-	●	●
27	FUSE UNIT (B) 25A CLEAR	5-82516-005-0	03	1	0404-	●	●
27	FUSE UNIT (C) 7.5A BROWN	8-94159-007-0	02	1	0404-	●	●
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	01	1	0404-	●	●
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	9-03910-625-0	04	1	0404-0604	●	●
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-	●	●
28	SCREW; FUSE BOX (B) M6X42	8-97811-324-0	02	1	0404-	●	●
28	SCREW; FUSE BOX (C) M5X12	9-93490-512-0	02	1	0404-	●	●
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1	9-09150-506-0	04	1	0404-0603	●	●
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1	0-91510-506-0	04	1	0604-	●	●
33	WASHER; LK,FUSE BOX FIX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=6.4	9-09160-506-0	04	1	0404-	●	●
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	02	1	0404-0603	●	●
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	0-91510-506-0	02	1	0604-	●	●
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	02	1	0404-	●	●
41	PULLER; FUSE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> L=25.3 B=11.5	8-94121-482-0	01	1	0404-	●
41	PULLER; FUSE GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 7.5A BROWN	8-94159-007-0	01	1	0404-	●
41	PULLER; FUSE EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 7.5A BROWN	8-94159-007-0	01	1	0404-	●
41	PULLER; FUSE 7.5A BROWN	8-94159-007-0	01	1	0404-		●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0404-	●	●
62	DIODE; HARNESS (B) BLACK 11P	1-82699-704-0	01	1	0404-	●	●
62	DIODE; HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	06	1	0404-	●	●
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0404-	●	●
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL>	1-82660-301-0	01	1	0404-	●
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL>	1-82660-772-0	01	1	0404-	●
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-772-0	01	1	0404-		●
136	HARNESS; DASH ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-771-0	01	1	0404-	●
136	HARNESS; DASH EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL>	1-82660-770-0	01	1	0404-	●
136	HARNESS; DASH EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-770-0	01	1	0404-		●
152	HARNESS; WIPER WIPER MOTOR KIT<ST7>	1-82625-630-0	01	1	0404-	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	03	1	0404-	●	●

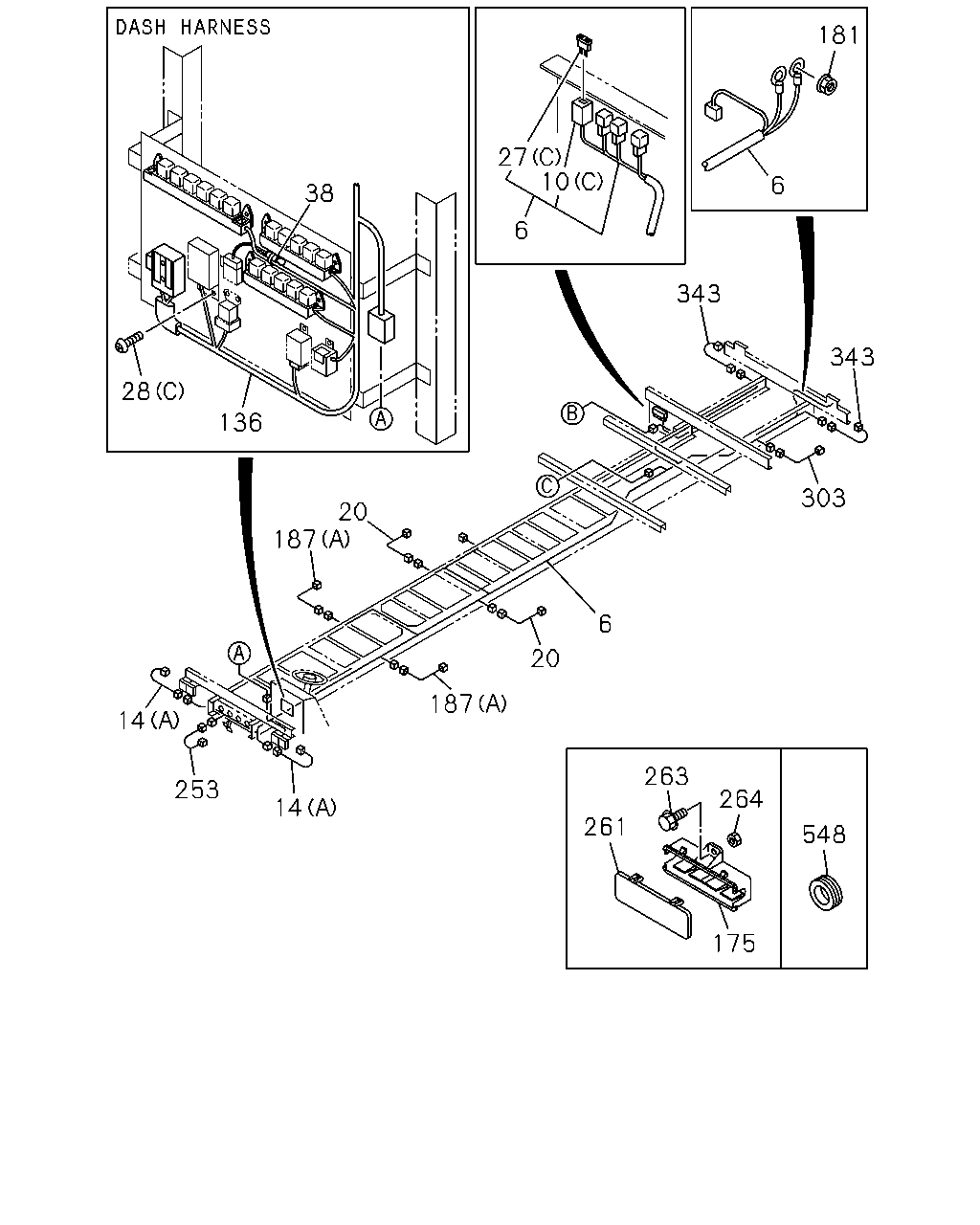

181 27 10 6 38 6 343 343 28 136 303 20 187 6 20 187 14 263 253 264 14 261 548 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL>	1-82674-435-1	01	1	0404-	●
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL>	1-82675-479-1	01	1	0404-	●
6	HARNESS; FRAME ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82675-478-1	01	1	0404-	●
6	HARNESS; FRAME EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL>	1-82675-477-1	01	1	0404-	●
6	HARNESS; FRAME GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82675-476-1	01	1	0404-		●
6	HARNESS; FRAME EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82675-475-1	01	1	0404-		●
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	1-82510-234-2	01	1	0404-	●	●
10	BOX; FUSE,HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A	1-82510-235-2	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (E) 10AX1 25AX1	1-82510-579-0	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (C) 7.5AX2 15AX1	1-82510-584-0	01	1	0404-	●	●
10	BOX; FUSE,HARNESS (D) 10AX14 15AX5 25AX2 30AX1	1-82510-596-0	01	1	0404-	●	●
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-071-2	02	1	0404-0407	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A)	1-82639-071-2	02	1	0404-0407	●	●
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-071-2	02	1	0408-0409	●	●
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82673-574-0	02	1	0404-	●	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-072-2	02	1	0404-0407	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82639-072-2	02	1	0408-0409	●	●
14	HARNESS; HEADLAMP (A)	1-82639-072-2	02	1	0410-	●	●
20	HARNESS; SIDE FLASHER TURN SIGNAL LAMP SIDE<TEL>	1-82638-388-1	02	1	0404-	●	●
27	FUSE UNIT ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 100A	9-82941-126-0	02	1	0404-	●	●
27	FUSE UNIT ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A	9-82941-130-1	02	1	0404-	●	●
27	FUSE UNIT (B) 10A RED	5-82516-002-0	15	1	0404-	●	●
27	FUSE UNIT (C) 15A BLUE	5-82516-003-0	01	1	0404-	●	●
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	05	1	0404-	●	●
27	FUSE UNIT (B) 25A CLEAR	5-82516-005-0	03	1	0404-	●	●
27	FUSE UNIT (C) 7.5A BROWN	8-94159-007-0	02	1	0404-	●	●
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	01	1	0404-	●	●
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	9-03910-625-0	04	1	0404-0604	●	●
28	SCREW; FUSE BOX ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-	●	●
28	SCREW; FUSE BOX (B) M6X42	8-97811-324-0	02	1	0404-	●	●
28	SCREW; FUSE BOX (C) M5X12	9-93490-512-0	02	1	0404-	●	●
38	HARNESS; CHAS ENGINE OVERRUN BUZZER<SK4>	1-82625-451-0	01	1	0404-	●	●
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL>	1-82660-301-0	01	1	0404-	●
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL>	1-82660-772-0	01	1	0404-	●
136	HARNESS; DASH GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-772-0	01	1	0404-		●
136	HARNESS; DASH ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-771-0	01	1	0404-	●
136	HARNESS; DASH EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL>	1-82660-770-0	01	1	0404-	●
136	HARNESS; DASH EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT)	1-82660-770-0	01	1	0404-		●
175	BOX; CONNECTOR ANTI SKID BRK SYSTEM<SFL>	1-82699-467-0	03	1	0404-	●
181	NUT; GLOW PLUG HARNESS GLOW PLUG<KM5> M4 FLANGE	5-09440-007-0	01	1	0404-	●	●
187	HARNESS; AXLE (A)	1-82674-936-0	02	1	0404-	●
187	HARNESS; AXLE (B)	1-82674-935-1	01	1	0404-	●
187	HARNESS; AXLE (A)	1-82674-557-0	02	1	0404-		●
187	HARNESS; AXLE (B)	1-82674-559-1	01	1	0404-		●
253	HARNESS; EXT,HORN AIR HORN(WB8)	1-82673-576-0	01	1	0404-	●	●
253	HARNESS; EXT,HORN EXC. AIR HORN(WB8)	1-82673-575-0	01	1	0404-	●	●
261	COVER; CONNECTOR BOX ANTI SKID BRK SYSTEM<SFL>	1-82699-320-0	03	1	0404-	●
263	BOLT; CONNECTOR BOX ANTI SKID BRK SYSTEM<SFL> M8X30 W/LK&PL WASHER	8-94279-144-0	03	1	0404-	●
264	NUT; CONNECTOR BOX ANTI SKID BRK SYSTEM<SFL> M8 FLANGE	0-91150-108-0	03	1	0404-0602	●
264	NUT; CONNECTOR BOX ANTI SKID BRK SYSTEM<SFL> M8 FLANGE	0-91180-108-0	03	1	0603-	●
303	HARNESS; WATER LEVEL	1-82670-567-0	01	1	0404-	●	●
343	HARNESS; EXT,RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81>	1-82673-577-0	02	1	0404-	●	●
548	GROMMET ID=18 OD=23 T=12	1-09332-035-0	02	1	0404-		●

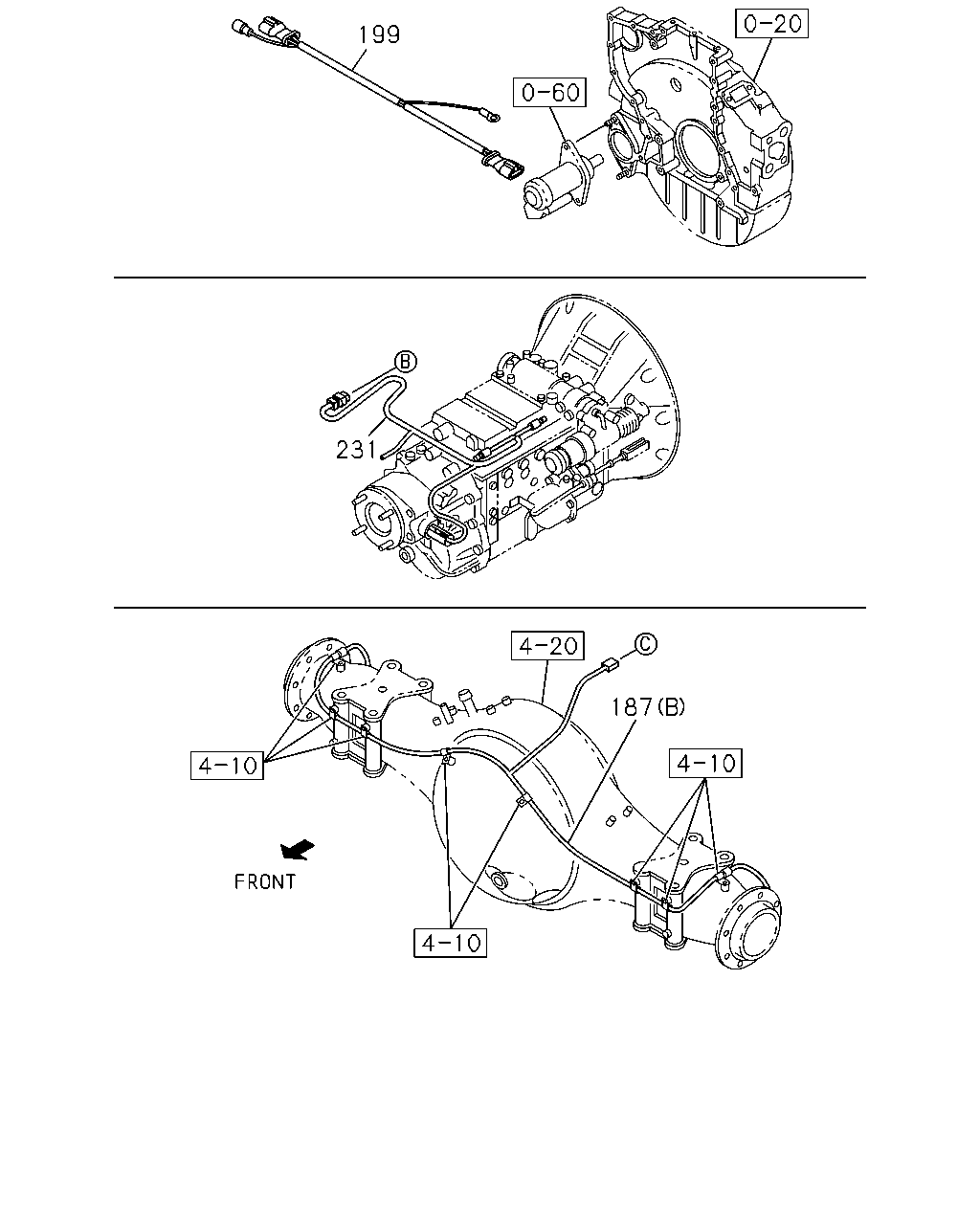

199 231 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
187	HARNESS; AXLE (A)	1-82674-936-0	02	1	0404-	●
187	HARNESS; AXLE (B)	1-82674-935-1	01	1	0404-	●
187	HARNESS; AXLE (A)	1-82674-557-0	02	1	0404-		●
187	HARNESS; AXLE (B)	1-82674-559-1	01	1	0404-		●
199	HARNESS; STARTER	1-82641-169-1	01	1	0404-	●	●
231	HARNESS; TRANS BRAKE SYSTEM RETARDER<RE2>	1-82673-573-0	01	1	0404-	●	●
231	HARNESS; TRANS EXC. BRAKE SYSTEM RETARDER<RE2>	1-82673-572-0	01	1	0404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
