7-10 — CAUTION PLATE AND LABEL (#35008) — 10 parça

çizim 176927

181 228

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	181	PLATE; CAUTION,AIR CLEANER	1-85886-796-1	01	1	0404-	●	●
	228	PLATE; CAUTION,AIR DRYER	1-85887-935-0	01	1	0404-1001	●

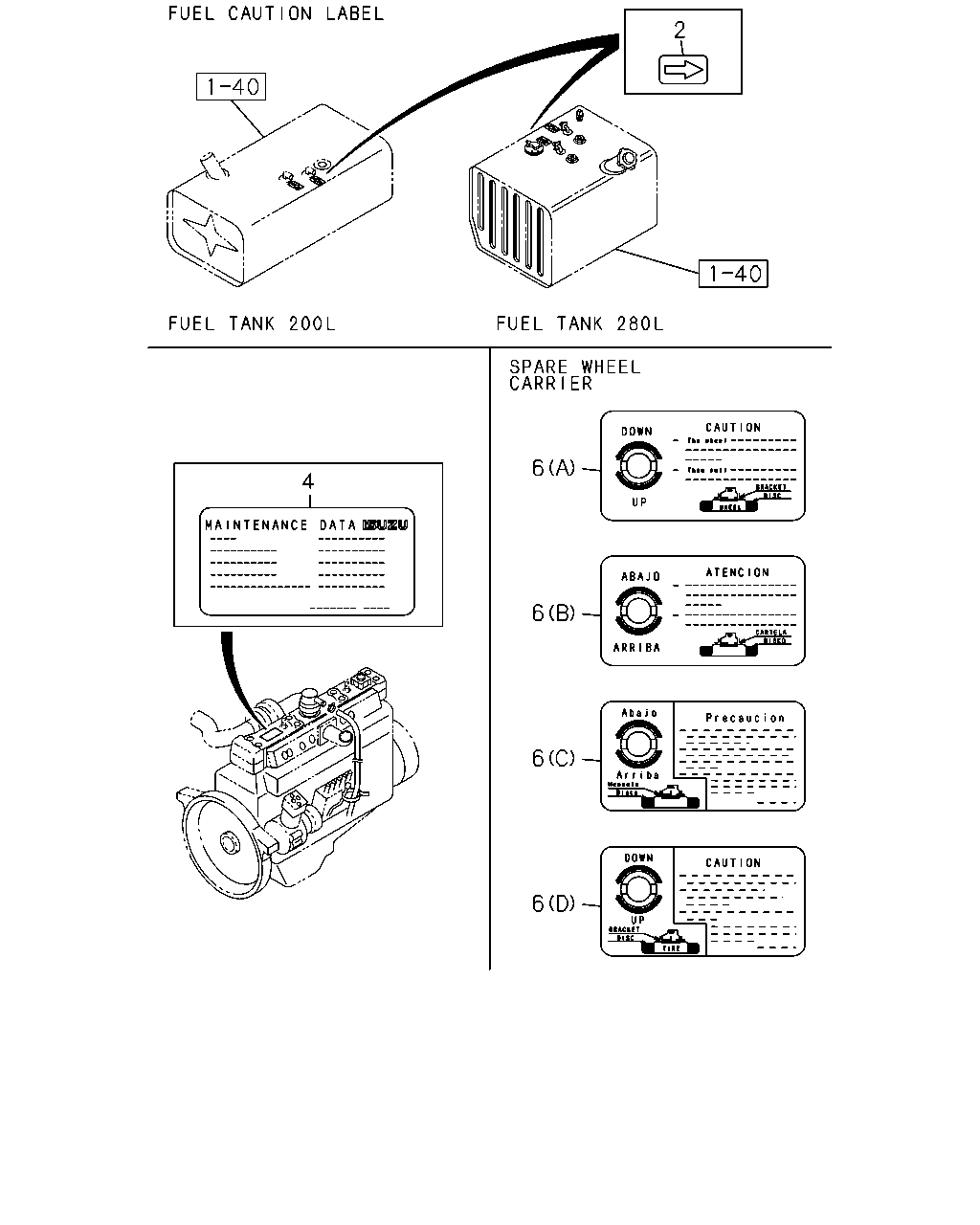

çizim 176930

2 4 6 6 6 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	LABEL; FUEL CAUTION	1-85889-068-0	02	1	0404-	●	●
	4	LABEL; ENG MAINTENANCE	1-85889-082-0	01	1	0404-	●	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER<SFB> CAUTIONS SPANISH<YN1> (B)	1-53639-005-0	01	1	0404-0708	●	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER<SFB> CAUTIONS SPANISH<YN1> (C)	8-98082-439-0	01	1	0709-	●	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER<SFB> EXC. CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0404-0708	●	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER<SFB> EXC. CAUTIONS SPANISH<YN1> (D)	8-98082-437-0	01	1	0709-	●	●

çizim 176936

49 150

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	49	PLATE; CAUTION,FUSE BOX	1-85878-298-1	01	1	0404-	●	●
	150	PLATE; CAUTION,INSTRUCTION ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-85888-543-0	01	1	0404-	●	●
