6-47 — MUD GUARD AND INSULATOR (#35004) — 149 parça

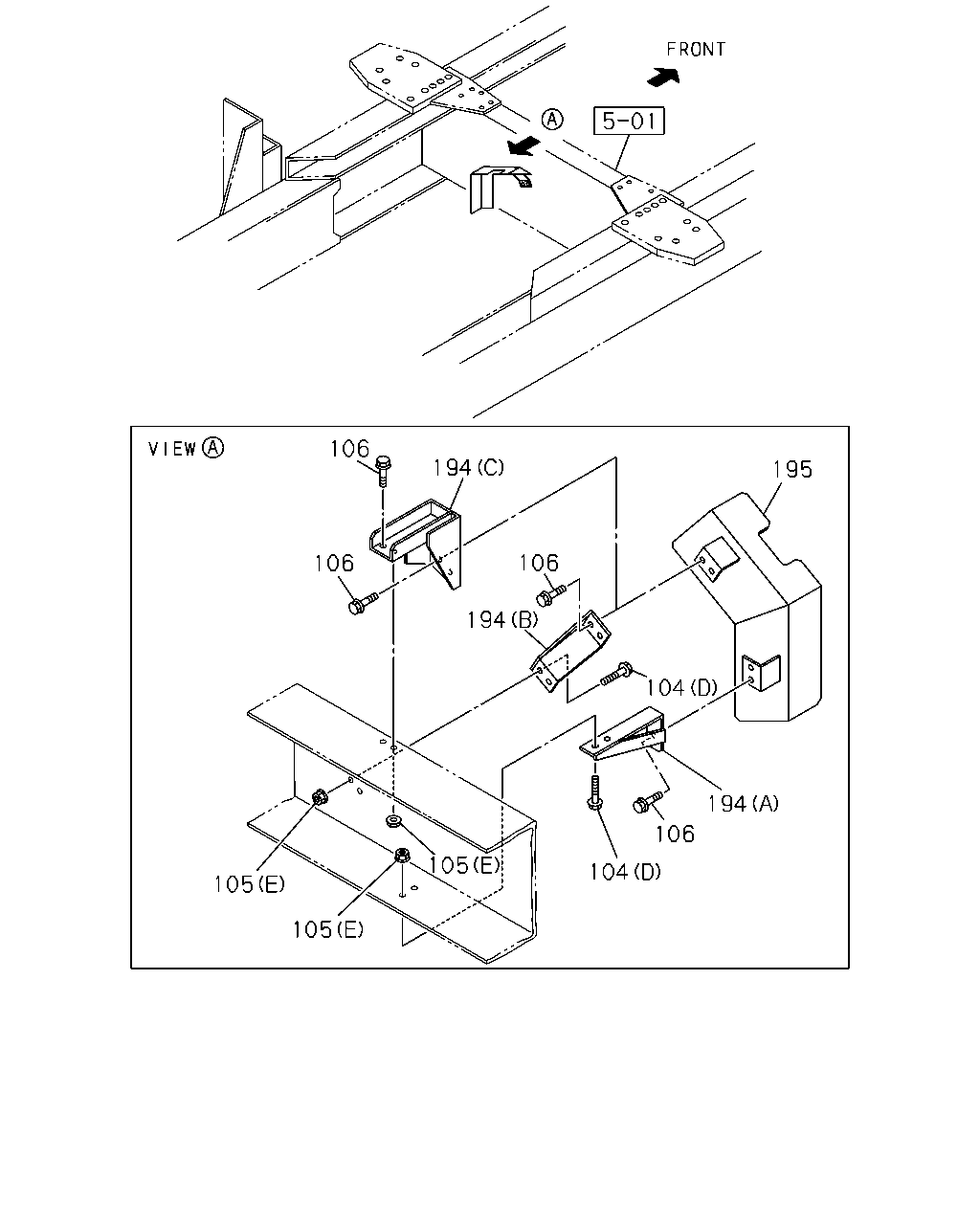

106 194 195 106 106 194 104 194 106 105 104 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	05	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	05	1	0601-	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	10	1	0404-0512	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0404-0512	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-	●	●
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	01	1	0404-0512	●	●
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●
104	BOLT; BRKT EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0404-0512	●	●
104	BOLT; BRKT EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-	●	●
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (E) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (E) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (C) M8 FLANGE	0-91150-108-0	08	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (C) M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (D) M10 FLANGE	0-91150-210-0	03	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (D) M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
105	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	07	1	0404-0602	●	●
105	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0603-	●	●
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0404-0602	●	●
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-	●	●
105	NUT; BRKT EXC. RADIATOR FAN DUCT<WF8> (C) M10 FLANGE	0-91150-210-0	06	1	0404-0602	●	●
105	NUT; BRKT EXC. RADIATOR FAN DUCT<WF8> (C) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
106	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE	0-28080-816-0	04	1	0404-0512	●	●
106	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
194	BRACKET; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> (B)	1-22159-349-0	01	1	0404-	●
194	BRACKET; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> (A)	1-22159-348-0	01	1	0404-	●	●
194	BRACKET; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> (C)	1-22159-350-0	01	1	0404-		●
195	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> MAL6 M/T<X9G>	1-22119-492-0	01	1	0404-	●	●
195	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2> MAL7 M/T<X9H>	1-22119-491-0	01	1	0404-	●	●

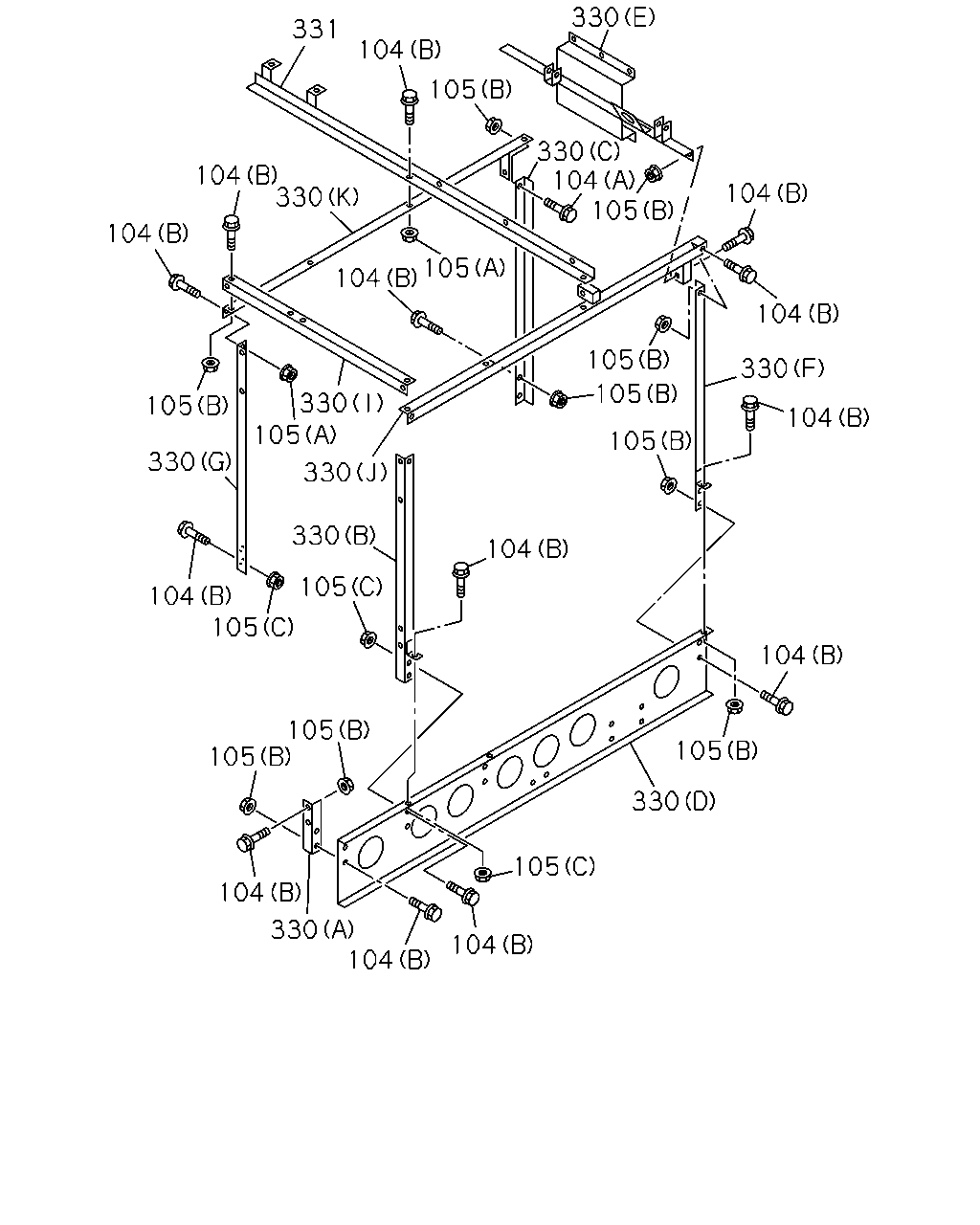

330 331 104 105 330 104 105 104 330 104 104 105 104 104 105 330 330 105 105 105 104 105 330 330 330 104 105 104 105 104 105 105 105 330 105 104 330 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	05	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	05	1	0601-	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	10	1	0404-0512	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0404-0512	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-	●	●
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	01	1	0404-0512	●	●
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●
104	BOLT; BRKT EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0404-0512	●	●
104	BOLT; BRKT EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-	●	●
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (E) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (E) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (C) M8 FLANGE	0-91150-108-0	08	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (C) M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (D) M10 FLANGE	0-91150-210-0	03	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (D) M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
105	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	07	1	0404-0602	●	●
105	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0603-	●	●
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0404-0602	●	●
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-	●	●
105	NUT; BRKT EXC. RADIATOR FAN DUCT<WF8> (C) M10 FLANGE	0-91150-210-0	06	1	0404-0602	●	●
105	NUT; BRKT EXC. RADIATOR FAN DUCT<WF8> (C) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (G)	1-65600-668-0	01	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (L)	1-65600-673-0	02	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (J)	1-65600-685-0	01	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (H)	1-65600-687-0	01	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (K)	1-65600-719-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (A)	1-65600-544-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (F)	1-65600-659-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (B)	1-65600-660-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (C)	1-65600-661-1	01	1	0404-	●	●
330	BRACKET; ENG COVER (D)	1-65600-662-3	01	1	0404-	●	●
330	BRACKET; ENG COVER (E)	1-65600-663-2	01	1	0404-	●	●
330	BRACKET; ENG COVER (I)	1-65600-670-6	01	1	0404-	●	●
330	BRACKET; ENG COVER EXC. RADIATOR FAN DUCT<WF8> (J)	1-65600-684-0	01	1	0404-	●	●
330	BRACKET; ENG COVER EXC. RADIATOR FAN DUCT<WF8> (G)	1-65600-688-1	01	1	0404-	●	●
330	BRACKET; ENG COVER EXC. RADIATOR FAN DUCT<WF8> (K)	1-65600-713-0	01	1	0404-	●	●
331	BRACKET; ENG COVER BRKT	1-65600-718-0	01	1	0404-	●	●

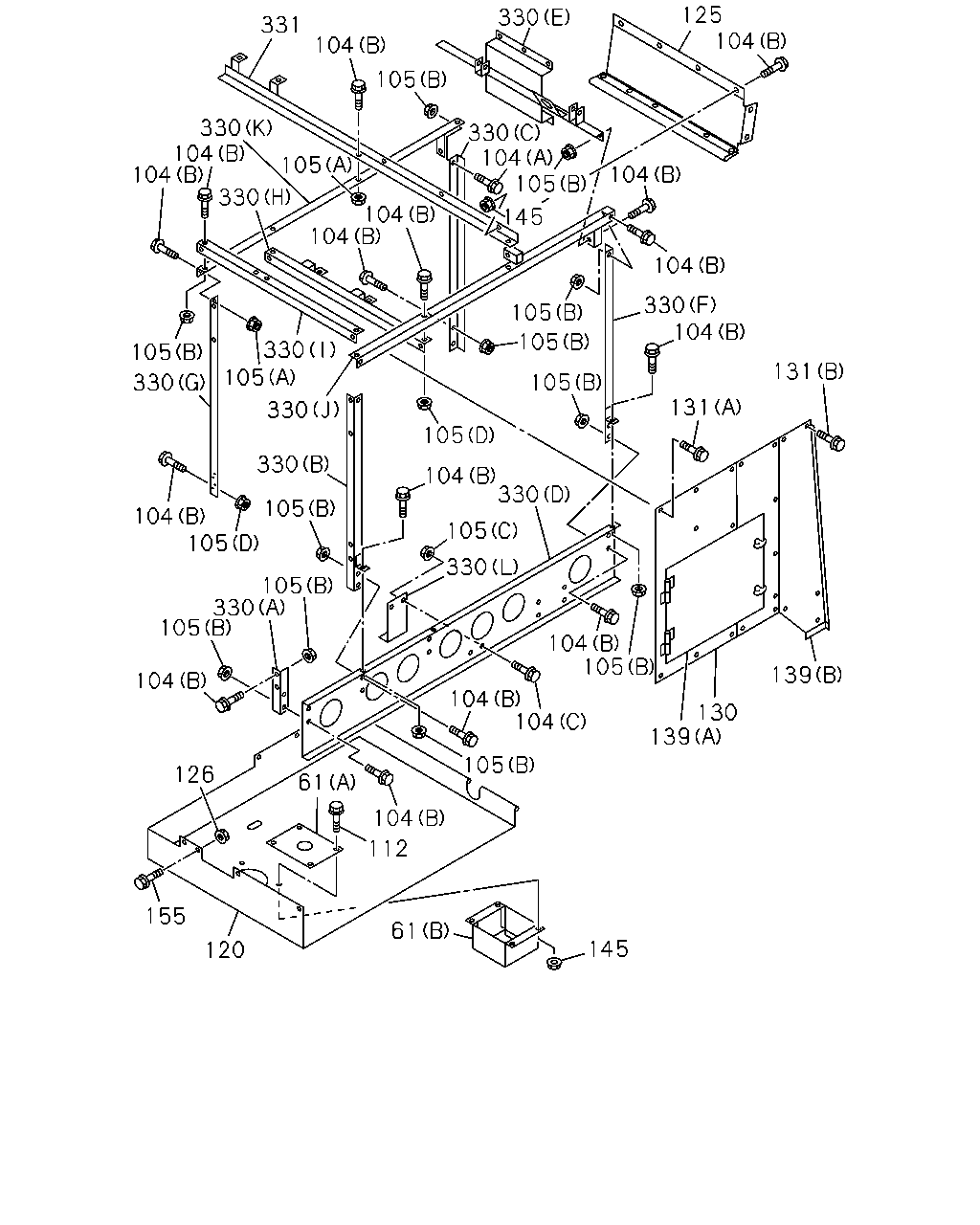

125 104 330 331 104 105 330 104 105 145 330 104 104 105 104 330 104 104 104 330 104 105 330 105 105 105 131 105 330 330 131 105 330 104 330 105 104 105 105 330 105 330 105 104 105 139 104 104 104 130 139 105 126 61 104 112 155 61 145 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER RADIATOR FAN DUCT<WF8> (A)	1-65600-674-0	01	1	0404-	●
61	BRACKET; COVER AIR DRYER<PS7> RADIATOR FAN DUCT<WF8> (A)	1-65600-674-0	01	1	0404-		●
61	BRACKET; COVER RADIATOR FAN DUCT<WF8> EXC. AIR DRYER<PS7> (B)	1-65600-675-0	01	1	0404-		●
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	05	1	0404-0512	●	●
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	05	1	0601-	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	10	1	0404-0512	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0404-0512	●	●
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-	●	●
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	01	1	0404-0512	●	●
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●
104	BOLT; BRKT EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0404-0512	●	●
104	BOLT; BRKT EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-	●	●
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (E) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (E) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (C) M8 FLANGE	0-91150-108-0	08	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (C) M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (D) M10 FLANGE	0-91150-210-0	03	1	0404-0602	●	●
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (D) M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
105	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	07	1	0404-0602	●	●
105	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	0603-	●	●
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0404-0602	●	●
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-	●	●
105	NUT; BRKT EXC. RADIATOR FAN DUCT<WF8> (C) M10 FLANGE	0-91150-210-0	06	1	0404-0602	●	●
105	NUT; BRKT EXC. RADIATOR FAN DUCT<WF8> (C) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	10	1	0404-0512	●	●
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	10	1	0601-	●	●
120	PANEL; UNDER RADIATOR FAN DUCT<WF8>	1-53194-110-1	01	1	0404-	●	●
125	PANEL; RR RADIATOR FAN DUCT<WF8>	1-53194-108-0	01	1	0404-	●	●
126	NUT; PANEL RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
126	NUT; PANEL RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
130	PANEL; SHUTTER NOISE RADIATOR FAN DUCT<WF8>	1-53194-109-1	01	1	0404-	●	●
131	BOLT; PANEL RADIATOR FAN DUCT<WF8> (B) M8X20 FLANGE	0-28680-820-0	05	1	0404-0512	●	●
131	BOLT; PANEL RADIATOR FAN DUCT<WF8> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
131	BOLT; PANEL RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
131	BOLT; PANEL RADIATOR FAN DUCT<WF8> (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
139	PANEL; SIDE RADIATOR FAN DUCT<WF8> (A)	1-53193-986-1	01	1	0404-	●	●
139	PANEL; SIDE RADIATOR FAN DUCT<WF8> (B)	1-53194-107-1	01	1	0404-	●	●
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	08	1	0404-0602	●	●
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
155	BOLT; PANEL RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0404-0512	●	●
155	BOLT; PANEL RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (G)	1-65600-668-0	01	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (L)	1-65600-673-0	02	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (J)	1-65600-685-0	01	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (H)	1-65600-687-0	01	1	0404-	●	●
330	BRACKET; ENG COVER RADIATOR FAN DUCT<WF8> (K)	1-65600-719-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (A)	1-65600-544-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (F)	1-65600-659-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (B)	1-65600-660-0	01	1	0404-	●	●
330	BRACKET; ENG COVER (C)	1-65600-661-1	01	1	0404-	●	●
330	BRACKET; ENG COVER (D)	1-65600-662-3	01	1	0404-	●	●
330	BRACKET; ENG COVER (E)	1-65600-663-2	01	1	0404-	●	●
330	BRACKET; ENG COVER (I)	1-65600-670-6	01	1	0404-	●	●
330	BRACKET; ENG COVER EXC. RADIATOR FAN DUCT<WF8> (J)	1-65600-684-0	01	1	0404-	●	●
330	BRACKET; ENG COVER EXC. RADIATOR FAN DUCT<WF8> (G)	1-65600-688-1	01	1	0404-	●	●
330	BRACKET; ENG COVER EXC. RADIATOR FAN DUCT<WF8> (K)	1-65600-713-0	01	1	0404-	●	●
331	BRACKET; ENG COVER BRKT	1-65600-718-0	01	1	0404-	●	●
