Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

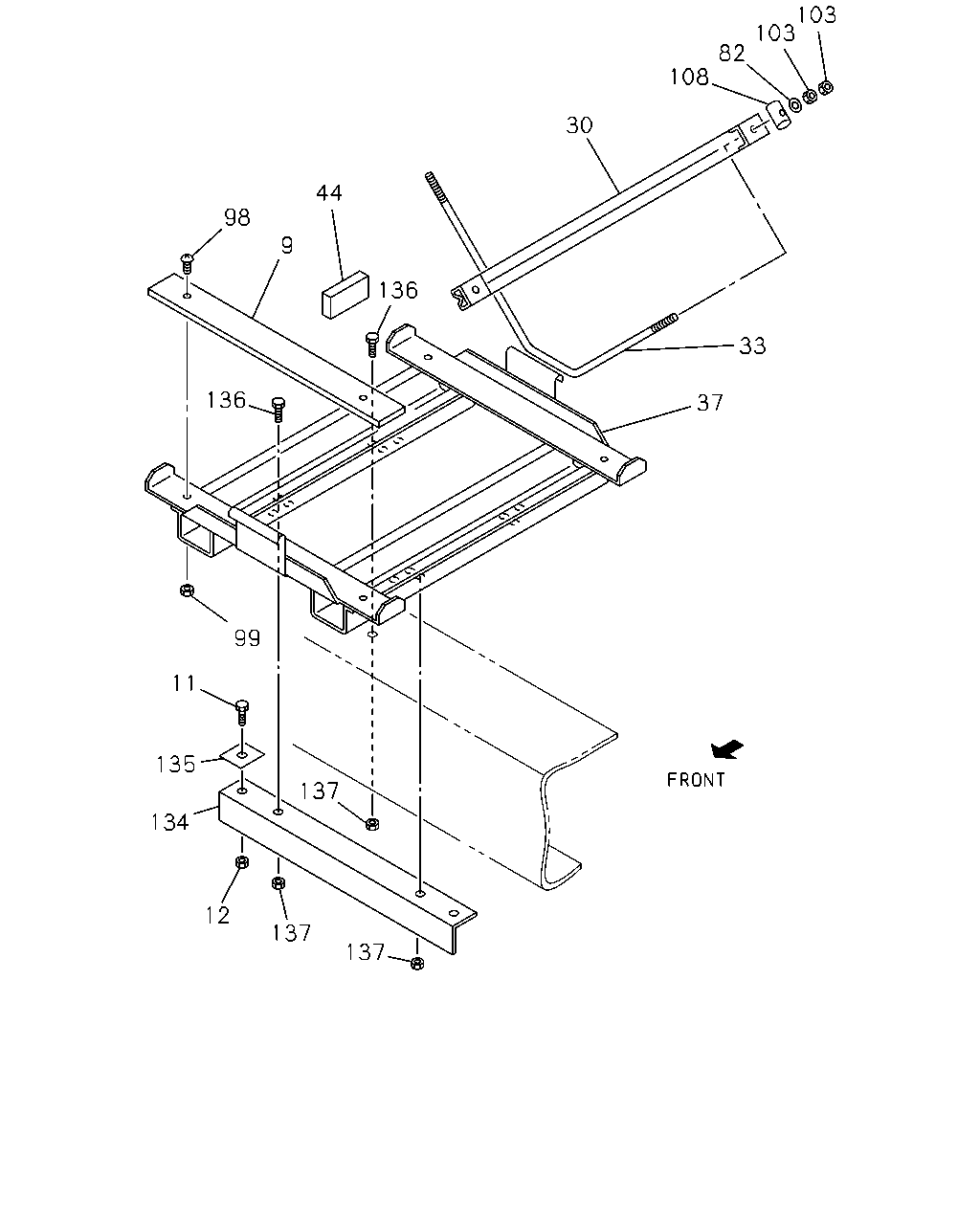

5-20 — BATTERY CARRIER
(#35001) — 24 parça
Tümü
A - LVD6FB
B - LVR6FB
103
103
82
108
30
44
98
9
136
33
136
37
99
11
135
137
134
12
137
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
SEAT; BATTERY
9-53613-535-0
02
1
0404-
●
●
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28681-035-0
02
1
0404-0512
●
●
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
02
1
0601-
●
●
12
NUT; BRKT FIX
M10 FLANGE
0-91150-210-0
02
1
0404-0602
●
●
12
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
30
PLATE; BATTERY
9-53616-119-0
02
1
0404-
●
●
33
BOLT; PLATE TO BRKT
BATTERY 145G51 N150<SJ8>
9-53616-214-1
02
1
0404-
●
●
33
BOLT; PLATE TO BRKT
BATTERY 190H52 N200<TP1>
1-53616-074-0
02
1
0404-
●
●
37
BRACKET; BATTERY
BATTERY 145G51 N150<SJ8>
9-53613-534-0
01
1
0404-
●
●
37
BRACKET; BATTERY
BATTERY 190H52 N200<TP1>
1-53613-175-2
01
1
0404-
●
●
44
SPACER; BATTERY
1-53619-010-0
01
1
0404-
●
●
82
WASHER; PL CENTER PEACE
ID=10.5
9-09164-510-0
04
1
0404-
●
●
98
SCREW; SEAT
M6X25 CK-HEAD
9-03090-625-0
04
1
0404-
●
●
99
NUT; SEAT
M6 FLANGE
0-91150-106-0
04
1
0404-0602
●
●
99
NUT; SEAT
M6 FLANGE
0-91180-106-0
04
1
0603-
●
●
103
NUT; BATTERY BRKT
M10
9-09110-510-0
08
1
0404-0512
●
●
103
NUT; BATTERY BRKT
M10
0-91110-510-0
08
1
0601-
●
●
108
PEACE; CENTER
9-53619-037-0
04
1
0404-1112
●
●
134
SUPPORT; BRKT
1-53613-459-0
01
1
0404-
●
●
135
PLATE; SUPPORT
1-53613-463-0
02
1
0404-
●
136
BOLT; SUPPORT
M10X30 FLANGE
0-28681-030-0
04
1
0404-0512
●
●
136
BOLT; SUPPORT
M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
●
137
NUT; SUPPORT
M10 FLANGE
0-91150-210-0
04
1
0404-0602
●
●
137
NUT; SUPPORT
M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
