Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#35000) — 225 parça

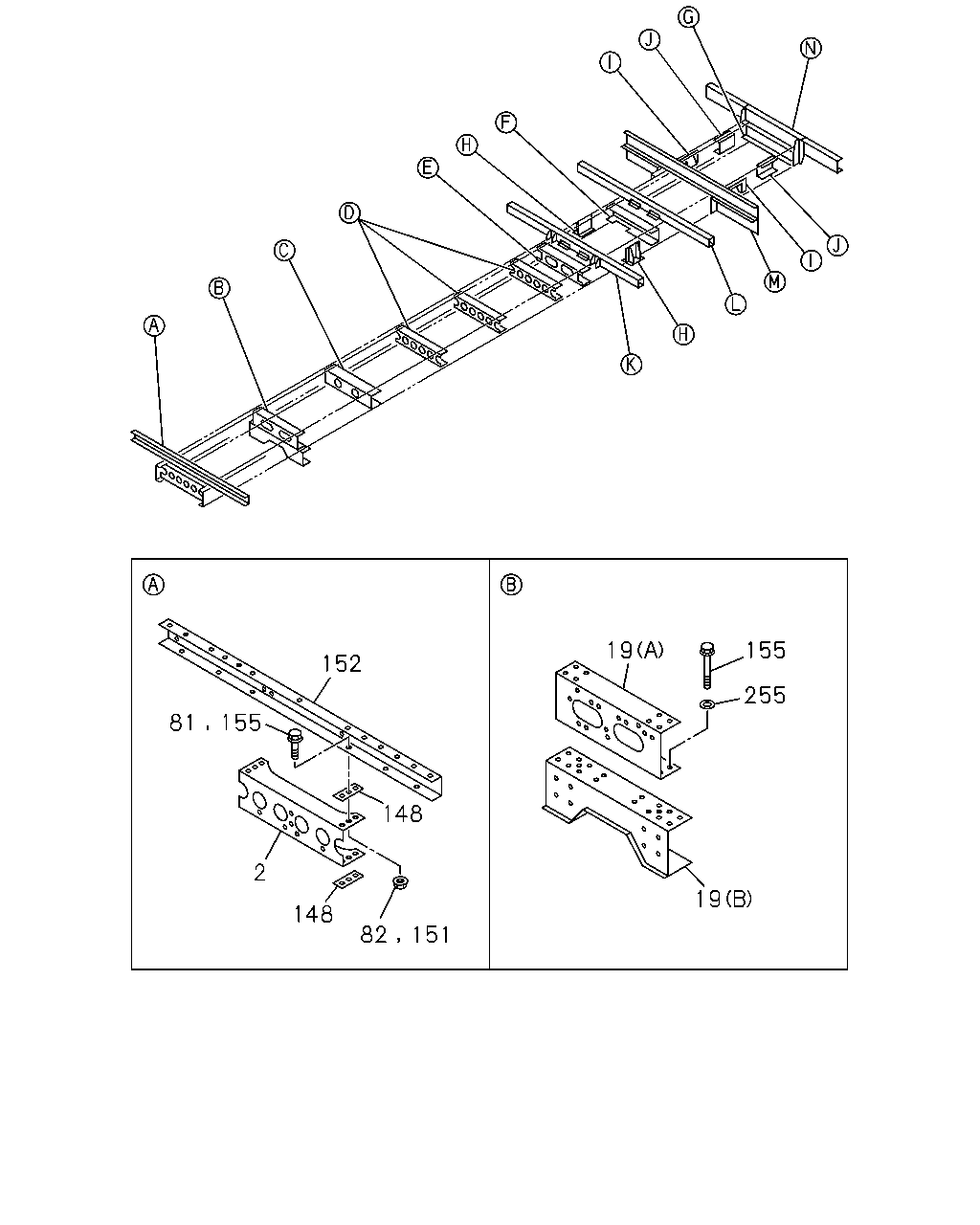

155 19 152 255 81 155 148 2 19 148 82 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	1-53181-951-1	01	1	0404-
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD0AA) (A) UPPER	1-53181-947-1	01	1	0404-
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD0AA) (B) LOWER	1-53181-948-1	01	1	0404-
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR0AA) (C)	1-53181-953-0	01	1	0404-
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0404-0512
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0404-0602
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-
148	SPACER; C/MBR UPPER	1-53167-554-0	01	1	0404-
148	SPACER; C/MBR LOWER	1-53167-555-0	01	1	0404-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91160-214-0	16	1	0404-0602
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91180-214-0	16	1	0603-
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0404-0602
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0404-0602
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0404-0602
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-
152	OUTRIGGER	1-53456-308-2	01	1	0404-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28891-445-0	16	1	0404-0512
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28861-445-0	16	1	0601-
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0404-0512
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0404-0512
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0404-0512
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-
255	WASHER; PL,BRKT RR ENG AIR SUSP(LVD0AA) ID=15	9-09651-069-0	04	1	0404-1201
255	WASHER; PL,BRKT RR ENG AIR SUSP(LVD0AA) ID=15	8-98010-627-1	04	1	1202-

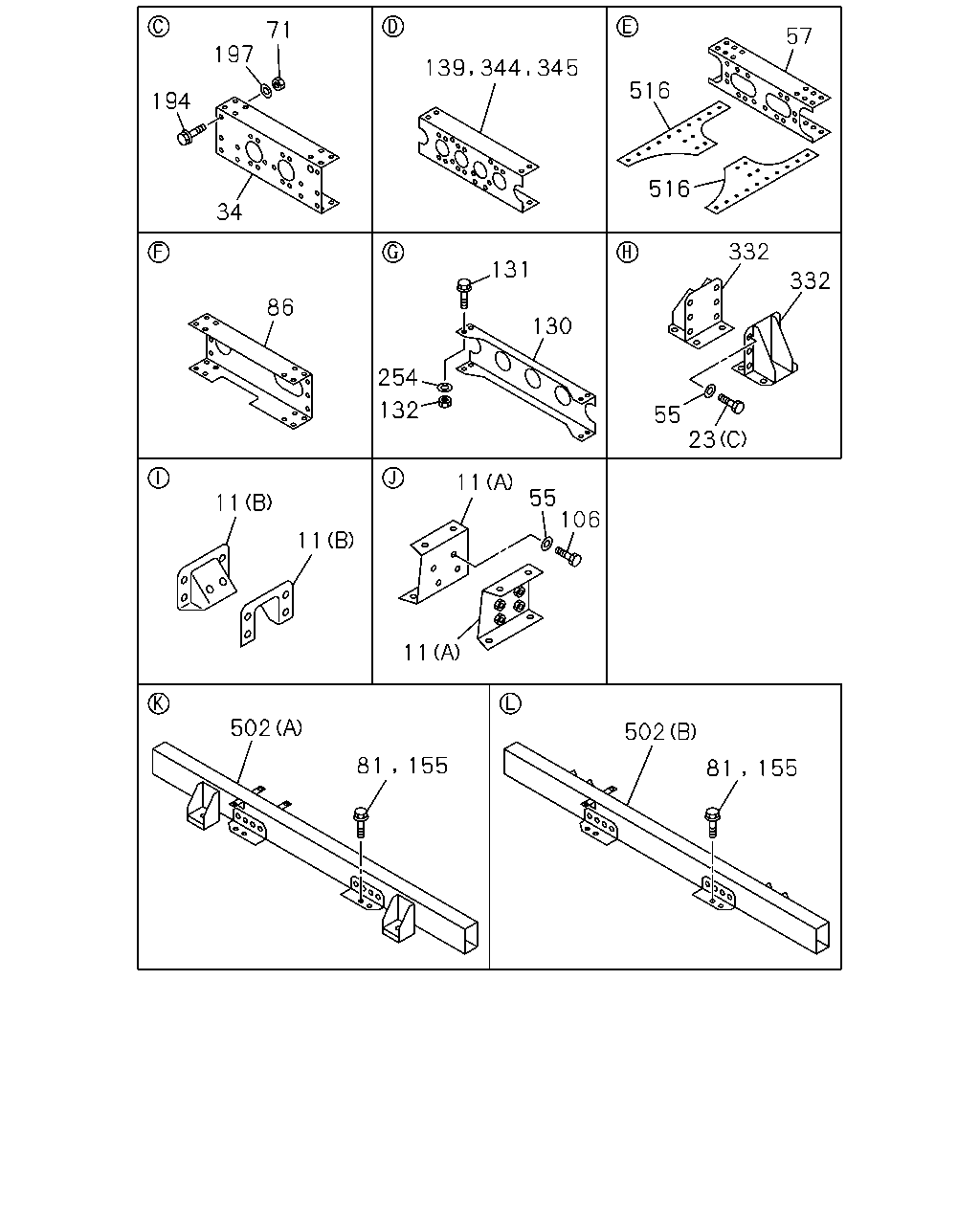

71 197 194 34 139 344 345 57 516 516 332 332 55 131 130 23 132 254 86 11 11 11 11 55 502 81 155 106 502 81 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD0AA) (B) REAR	1-53221-224-0	01	1	0404-
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD0AA) (B) REAR	1-53221-225-0	01	1	0404-
11	BRACKET; ENG MTG (A) FRONT	1-53211-363-0	01	1	0404-
11	BRACKET; ENG MTG (A) FRONT	1-53211-364-0	01	1	0404-
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR0AA) (B) REAR	1-53221-222-2	01	1	0404-
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR0AA) (B) REAR	1-53221-223-0	01	1	0404-
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD0AA) (C) M14X40	9-92061-440-0	12	1	0404-0512
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD0AA) (C) M14X40	0-20951-440-0	12	1	0601-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (A) M16X60	9-91066-660-0	08	1	0404-0512
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (A) M16X60	0-10956-660-0	08	1	0601-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	9-92061-650-0	12	1	0404-0512
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	0-20951-650-0	12	1	0601-
34	MEMBER; CROSS,3RD RR ENG AIR SUSP(LVD0AA)	1-53181-950-1	01	1	0404-
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR0AA)	1-53181-954-0	01	1	0404-
55	WASHER; PL RR ENG AIR SUSP(LVD0AA) ID=15	9-09651-069-0	12	1	0404-1201
55	WASHER; PL RR ENG AIR SUSP(LVD0AA) ID=15	8-98010-627-1	12	1	1202-
57	MEMBER; CROSS,RR SUSP FRT RR ENG AIR SUSP(LVD0AA)	1-53181-945-1	01	1	0404-
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR0AA)	1-53181-955-1	01	1	0404-
71	NUT; 2ND C/MBR RR ENG AIR SUSP(LVD0AA) M12	9-99110-512-0	08	1	0404-0512
71	NUT; 2ND C/MBR RR ENG AIR SUSP(LVD0AA) M12	0-91110-512-0	08	1	0601-
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0404-0512
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-
86	MEMBER; CROSS,RR SUSP RR RR ENG AIR SUSP(LVD0AA)	1-53181-946-4	01	1	0404-
86	MEMBER; CROSS,RR SUSP RR RR ENG LEAF SUSP(LVR0AA)	1-53181-956-4	01	1	0404-
106	BOLT; BRKT RR ENG AIR SUSP(LVD0AA) M14X40	9-92061-440-0	04	1	0404-0512
106	BOLT; BRKT RR ENG AIR SUSP(LVD0AA) M14X40	0-20951-440-0	04	1	0601-
130	MEMBER; CROSS,END	1-53181-928-0	01	1	0404-
131	BOLT; END C/MBR M14X30	9-92061-430-0	08	1	0404-0512
131	BOLT; END C/MBR M14X30	0-20951-430-0	08	1	0601-
132	NUT; END C/MBR M14	9-99110-514-0	08	1	0404-0512
132	NUT; END C/MBR M14	0-91110-514-0	08	1	0601-
139	MEMBER; CROSS,6TH	1-53181-952-2	01	1	0404-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28891-445-0	16	1	0404-0512
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28861-445-0	16	1	0601-
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0404-0512
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0404-0512
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0404-0512
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-
194	BOLT; 2ND C/MBR RR ENG AIR SUSP(LVD0AA) M12X35	9-92061-235-0	08	1	0404-0512
194	BOLT; 2ND C/MBR RR ENG AIR SUSP(LVD0AA) M12X35	0-20951-235-0	08	1	0601-
197	WASHER; PL,2ND C/MBR RR ENG AIR SUSP(LVD0AA) ID=12.5	9-09164-512-0	08	1	0404-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	08	1	0404-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	08	1	1202-
332	BRACKET; BUFFER RUBBER RR ENG AIR SUSP(LVD0AA)	1-53369-189-0	02	1	0404-
344	MEMBER; CROSS,4TH	1-53181-952-2	01	1	0404-
345	MEMBER; CROSS,5TH	1-53181-952-2	01	1	0404-
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD0AA) (A) FRONT	1-53456-366-1	01	1	0404-
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD0AA) (B) REAR	1-53456-367-2	01	1	0404-
516	GUSSET; LWR RR ENG AIR SUSP(LVD0AA)	1-53167-612-2	02	1	0404-

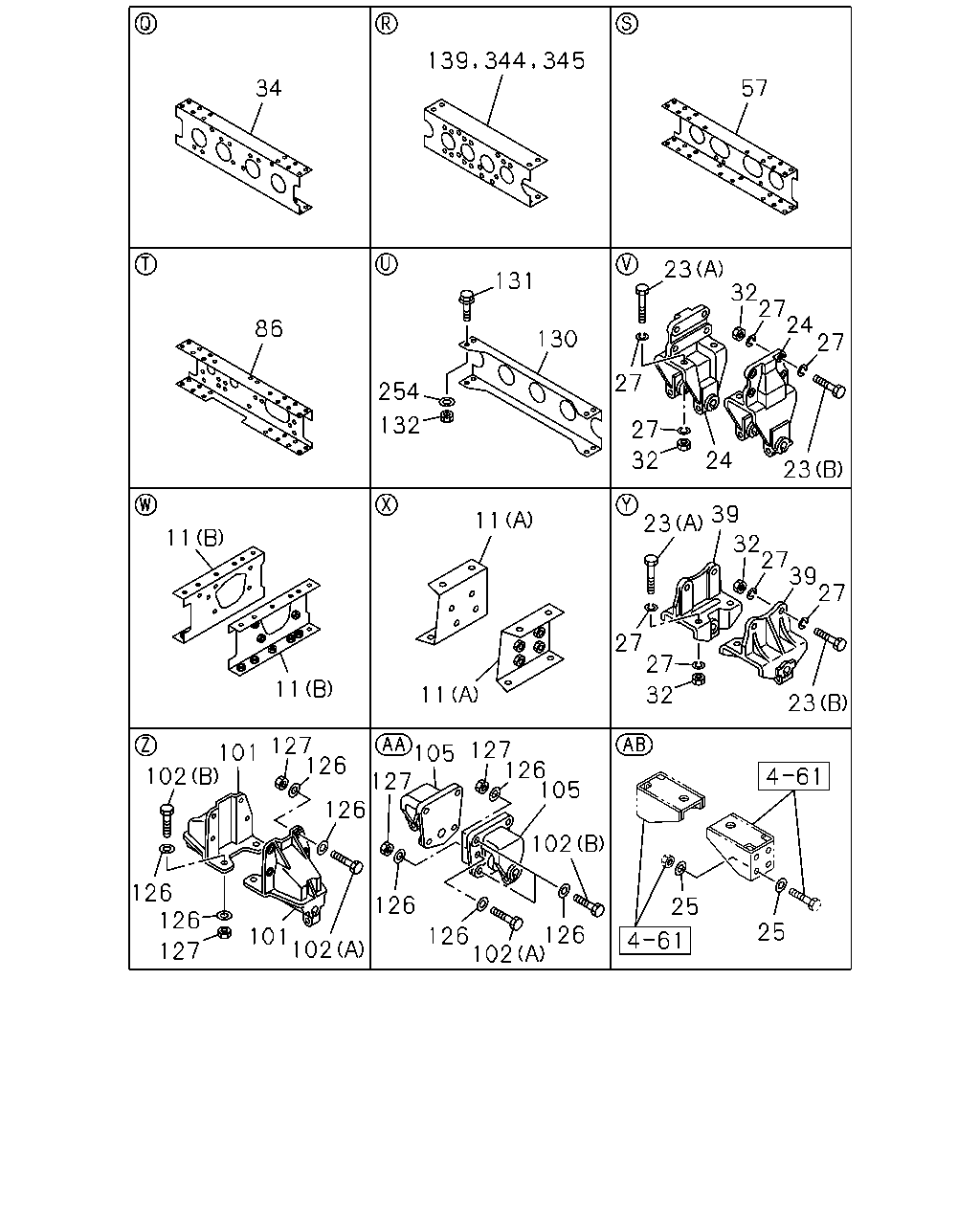

34 57 23 32 27 24 27 131 86 130 27 254 132 27 32 24 23 39 11 23 11 32 27 39 27 27 27 11 32 11 23 127 126 105 127 126 127 126 105 101 102 102 126 126 126 25 25 126 126 102 101 102 127 139 344 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD0AA) (B) REAR	1-53221-224-0	01	1	0404-
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD0AA) (B) REAR	1-53221-225-0	01	1	0404-
11	BRACKET; ENG MTG (A) FRONT	1-53211-363-0	01	1	0404-
11	BRACKET; ENG MTG (A) FRONT	1-53211-364-0	01	1	0404-
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR0AA) (B) REAR	1-53221-222-2	01	1	0404-
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR0AA) (B) REAR	1-53221-223-0	01	1	0404-
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD0AA) (C) M14X40	9-92061-440-0	12	1	0404-0512
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD0AA) (C) M14X40	0-20951-440-0	12	1	0601-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (A) M16X60	9-91066-660-0	08	1	0404-0512
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (A) M16X60	0-10956-660-0	08	1	0601-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	9-92061-650-0	12	1	0404-0512
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	0-20951-650-0	12	1	0601-
24	BRACKET; FRT SPR,FRT RR ENG LEAF SUSP(LVR0AA)	1-53351-254-0	02	1	0404-
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) ID=15	9-09651-069-0	16	1	0404-1201
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) ID=15	8-98010-627-1	16	1	1202-
27	WASHER; LK,BRKT,FRT SPR RR ENG LEAF SUSP(LVR0AA) ID=16.2	1-09503-223-0	40	1	0404-
32	NUT; BRKT FIX RR ENG LEAF SUSP(LVR0AA) M16	9-99110-516-0	20	1	0404-0512
32	NUT; BRKT FIX RR ENG LEAF SUSP(LVR0AA) M16	0-91110-516-0	20	1	0601-
34	MEMBER; CROSS,3RD RR ENG AIR SUSP(LVD0AA)	1-53181-950-1	01	1	0404-
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR0AA)	1-53181-954-0	01	1	0404-
39	BRACKET; FRT SPR,RR RR ENG LEAF SUSP(LVR0AA)	1-53352-181-0	02	1	0404-
57	MEMBER; CROSS,RR SUSP FRT RR ENG AIR SUSP(LVD0AA)	1-53181-945-1	01	1	0404-
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR0AA)	1-53181-955-1	01	1	0404-
86	MEMBER; CROSS,RR SUSP RR RR ENG AIR SUSP(LVD0AA)	1-53181-946-4	01	1	0404-
86	MEMBER; CROSS,RR SUSP RR RR ENG LEAF SUSP(LVR0AA)	1-53181-956-4	01	1	0404-
101	BRACKET; RR SPR,FRT RR ENG LEAF SUSP(LVR0AA)	1-53353-124-0	02	1	0404-
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR0AA) (A) M16X60	9-91066-660-0	12	1	0404-0512
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR0AA) (A) M16X60	0-10956-660-0	12	1	0601-
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X70	9-91066-670-0	12	1	0404-0512
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X70	0-10956-670-0	12	1	0601-
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR0AA)	1-53354-077-0	01	1	0404-1406
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR0AA)	8-98257-402-0	02	1	1407-
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR0AA)	1-53354-078-0	01	1	0404-1406
126	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) ID=16.2	1-09503-223-0	48	1	0404-
127	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M16	9-99110-516-0	24	1	0404-0512
127	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M16	0-91110-516-0	24	1	0601-
130	MEMBER; CROSS,END	1-53181-928-0	01	1	0404-
131	BOLT; END C/MBR M14X30	9-92061-430-0	08	1	0404-0512
131	BOLT; END C/MBR M14X30	0-20951-430-0	08	1	0601-
132	NUT; END C/MBR M14	9-99110-514-0	08	1	0404-0512
132	NUT; END C/MBR M14	0-91110-514-0	08	1	0601-
139	MEMBER; CROSS,6TH	1-53181-952-2	01	1	0404-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	08	1	0404-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	08	1	1202-
344	MEMBER; CROSS,4TH	1-53181-952-2	01	1	0404-
345	MEMBER; CROSS,5TH	1-53181-952-2	01	1	0404-

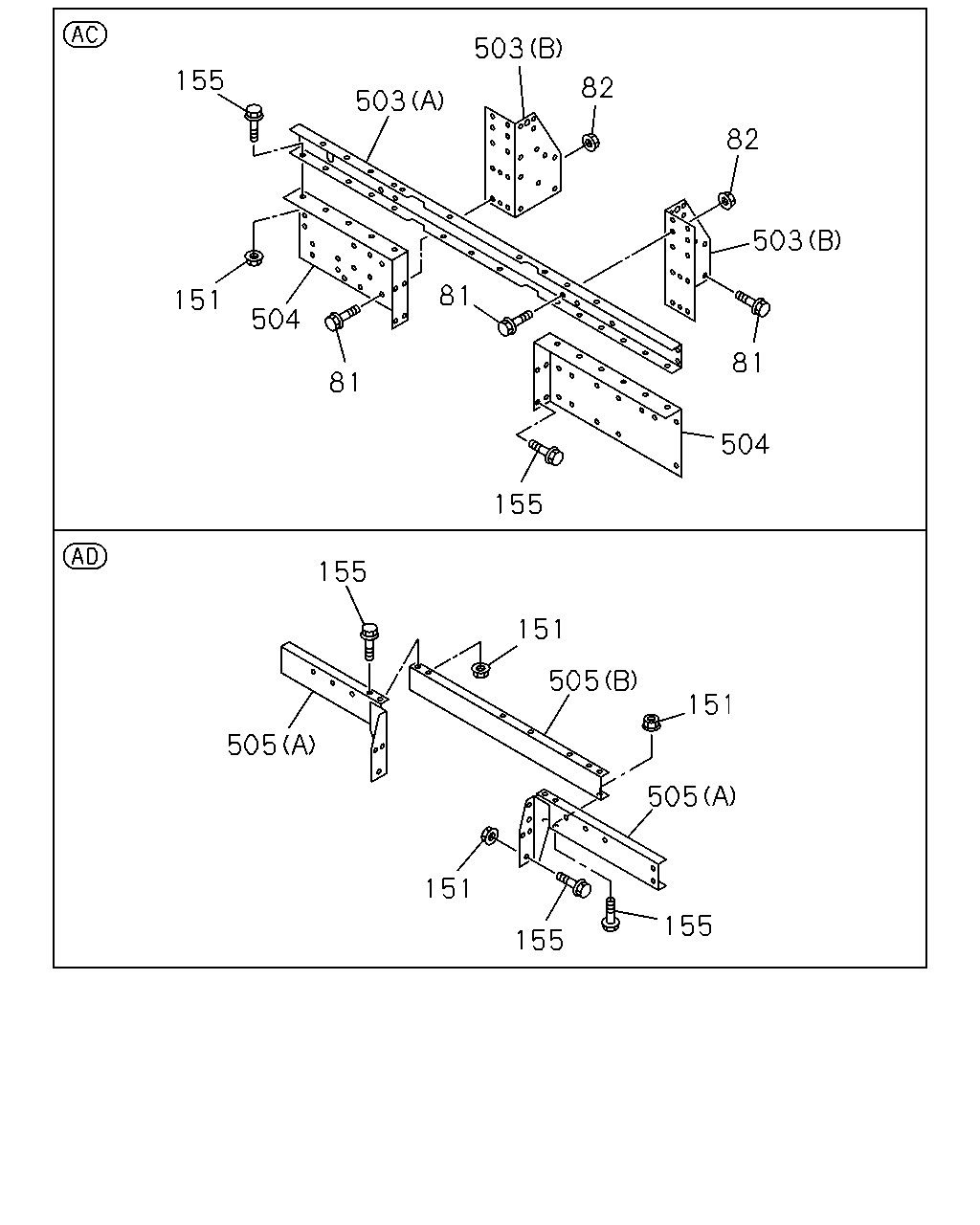

503 155 82 503 82 503 81 151 504 81 81 504 155 155 151 505 151 505 505 151 155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0404-0512
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0404-0602
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91160-214-0	16	1	0404-0602
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91180-214-0	16	1	0603-
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0404-0602
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0404-0602
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0404-0602
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28891-445-0	16	1	0404-0512
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28861-445-0	16	1	0601-
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0404-0512
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0404-0512
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0404-0512
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-
503	OUTRIGGER; ENG RR (A)	1-53456-359-6	01	1	0404-
503	OUTRIGGER; ENG RR (B)	1-53456-360-3	01	1	0404-
503	OUTRIGGER; ENG RR (B)	1-53456-361-2	01	1	0404-
504	OUTRIGGER; LWR	1-53456-363-3	01	1	0404-
504	OUTRIGGER; LWR	1-53456-395-0	01	1	0404-
505	OUTRIGGER; END (A)	1-53456-357-3	01	1	0404-
505	OUTRIGGER; END (A)	1-53456-358-1	01	1	0404-
505	OUTRIGGER; END (B)	1-53456-364-0	01	1	0404-

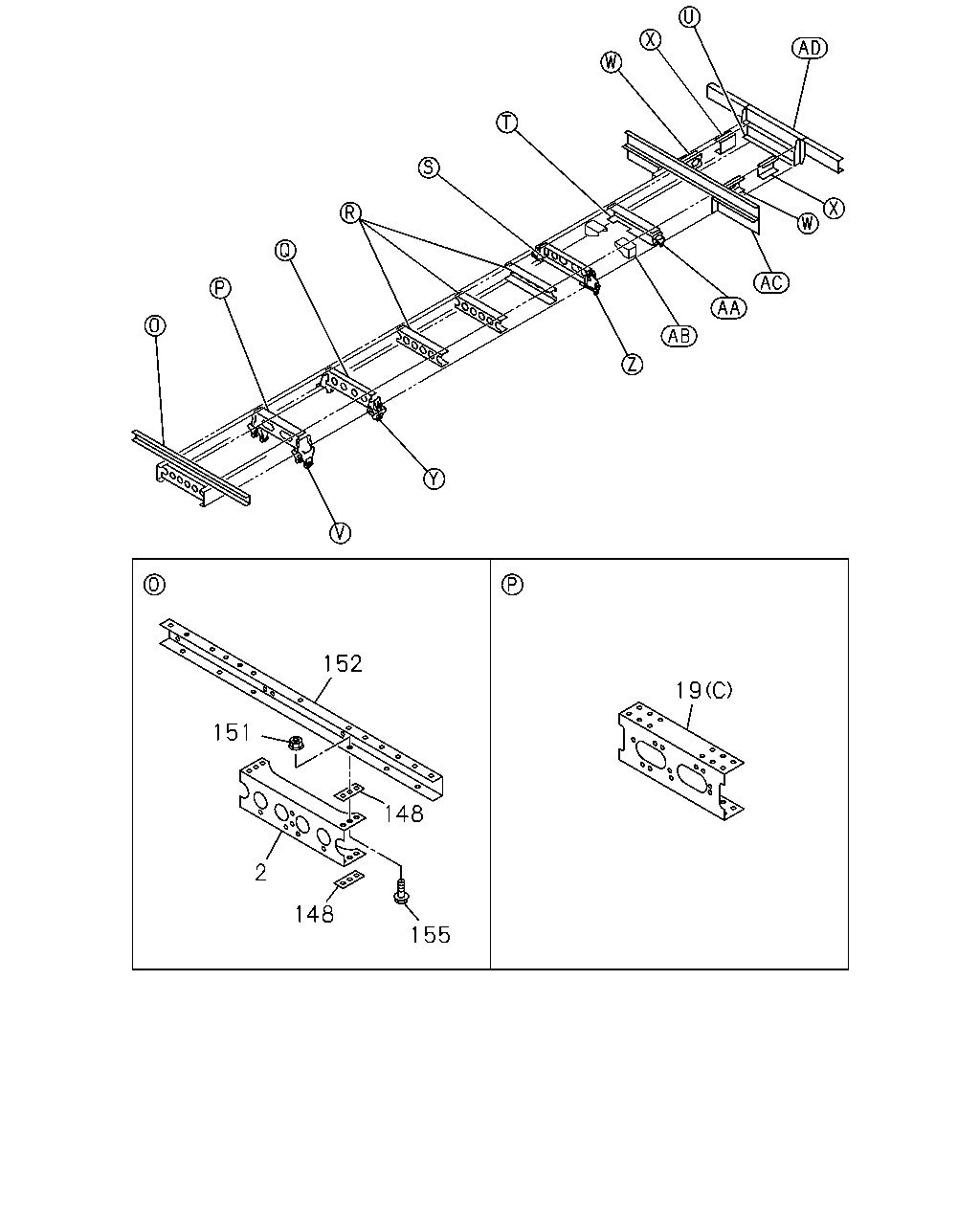

152 19 151 148 2 148 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	1-53181-951-1	01	1	0404-
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD0AA) (A) UPPER	1-53181-947-1	01	1	0404-
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD0AA) (B) LOWER	1-53181-948-1	01	1	0404-
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR0AA) (C)	1-53181-953-0	01	1	0404-
148	SPACER; C/MBR UPPER	1-53167-554-0	01	1	0404-
148	SPACER; C/MBR LOWER	1-53167-555-0	01	1	0404-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91160-214-0	16	1	0404-0602
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91180-214-0	16	1	0603-
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0404-0602
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0404-0602
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0404-0602
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-
152	OUTRIGGER	1-53456-308-2	01	1	0404-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28891-445-0	16	1	0404-0512
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28861-445-0	16	1	0601-
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0404-0512
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0404-0512
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0404-0512
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-

503 81 155 82 151 503 82 151 503 155 82 151 504 81 155 81 155 504 81 155 81 155 151 82 505 505 505 151 82 81 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0404-0512
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0404-0602
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91160-214-0	16	1	0404-0602
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14 FLANGE	0-91180-214-0	16	1	0603-
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0404-0602
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0404-0602
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0404-0602
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28891-445-0	16	1	0404-0512
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) M14X45 FLANGE	0-28861-445-0	16	1	0601-
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0404-0512
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0404-0512
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0404-0512
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0404-0512
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-
503	OUTRIGGER; ENG RR (A)	1-53456-359-6	01	1	0404-
503	OUTRIGGER; ENG RR (B)	1-53456-360-3	01	1	0404-
503	OUTRIGGER; ENG RR (B)	1-53456-361-2	01	1	0404-
504	OUTRIGGER; LWR	1-53456-363-3	01	1	0404-
504	OUTRIGGER; LWR	1-53456-395-0	01	1	0404-
505	OUTRIGGER; END (A)	1-53456-357-3	01	1	0404-
505	OUTRIGGER; END (A)	1-53456-358-1	01	1	0404-
505	OUTRIGGER; END (B)	1-53456-364-0	01	1	0404-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
