Sayfa 4-80 - Isuzu EPC

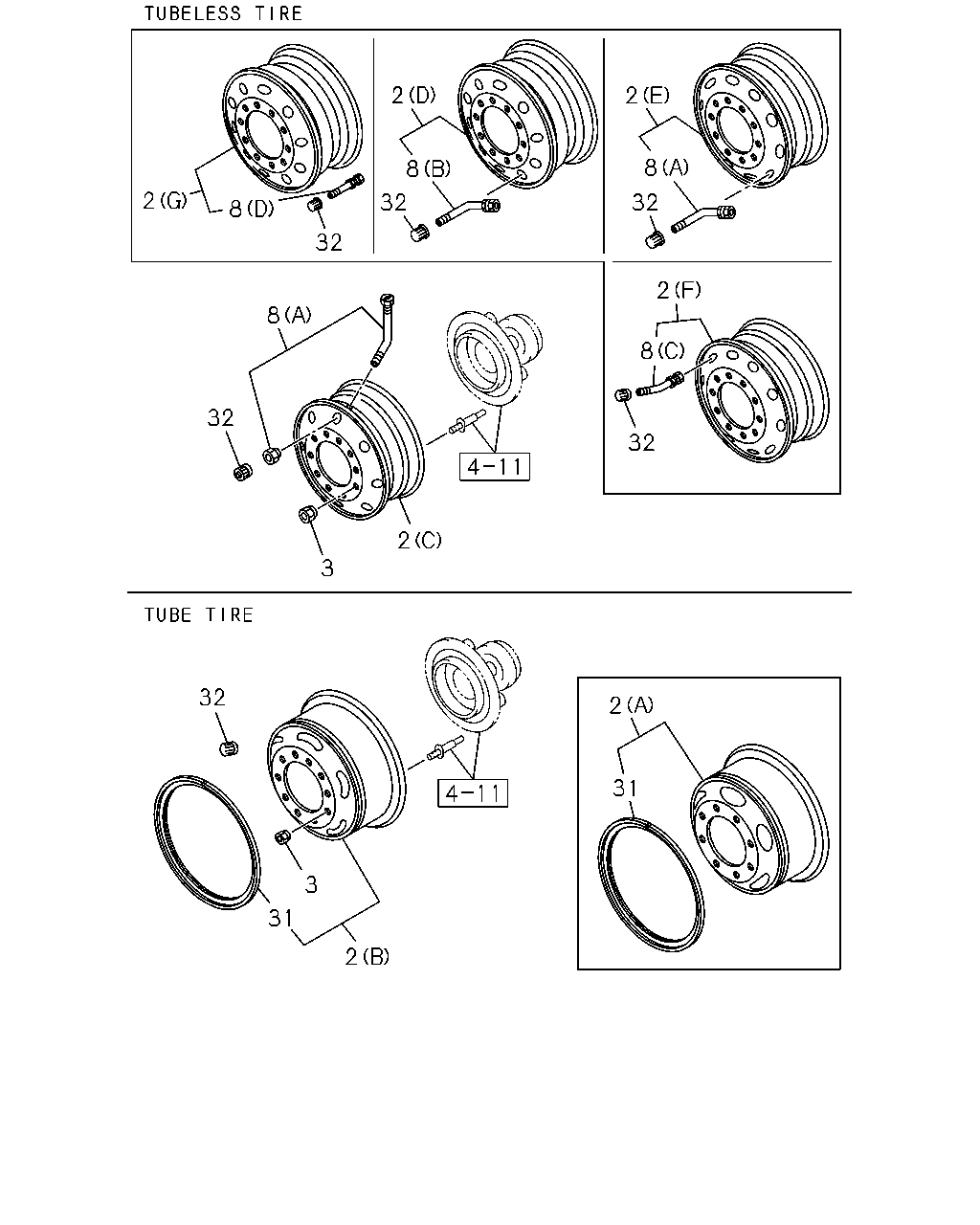

4-80 — ROAD WHEEL (#34999) — 150 parça

2 2 8 8 2 32 32 8 32 2 8 8 32 32 2 3 32 2 31 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (E)	1-42350-646-0	06	1	0404-0408	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (E)	1-42350-638-1	06	1	0409-0602	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-730-0	06	1	0603-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98217-247-0	06	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98281-497-0	06	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (E) SPARE	1-42350-646-0	01	1	0404-0408	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (E) SPARE	1-42350-638-1	01	1	0409-0602	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-730-0	01	1	0603-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	8-98217-247-0	01	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	8-98281-497-0	01	1	1408-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-362-0	06	1	0404-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-362-0	01	1	0404-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	06	1	0404-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-448-0	01	1	0404-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D) SPARE	1-42350-684-1	01	1	0404-0508	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D) SPARE	1-42350-711-0	01	1	0509-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F) SPARE	1-42350-661-0	01	1	0404-0407	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F) SPARE	1-42350-694-0	01	1	0408-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) SPARE	1-42350-667-0	01	1	0404-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (G) SPARE	1-42350-686-1	01	1	0404-	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D)	1-42350-684-1	06	1	0404-0508	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D)	1-42350-711-0	06	1	0509-	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F)	1-42350-661-0	06	1	0404-0407	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F)	1-42350-694-0	06	1	0408-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	06	1	0404-	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (G)	1-42350-686-1	06	1	0404-	●	●
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-42333-043-0	20	1	0404-0702	●	●
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0703-0907	●	●
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 RH THREAD	1-42333-025-3	08	1	0404-	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-025-3	08	1	0404-	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-3	08	1	0404-	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-3	08	1	0404-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-048-0	06	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-019-3	06	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-048-0	01	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-019-3	01	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-041-1	06	1	0409-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-041-1	01	1	0409-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	06	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) DISC WHEEL STEEL<SDN> (A)	1-42370-020-3	06	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> (A) SPARE	1-42370-020-3	01	1	0409-0506	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	01	1	0507-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	06	1	0603-1205	●	●
8	VALVE; TIRE DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	06	1	0603-1205	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) SPARE	1-42370-020-3	01	1	1206-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-020-3	01	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> (A) SPARE	1-42370-020-3	01	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) DISC WHEEL STEEL<SDN> (A)	1-42370-020-3	06	1	0409-0506	●	●
8	VALVE; TIRE DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	06	1	0507-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-020-3	01	1	0603-1205	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) SPARE	1-42370-020-3	01	1	0603-1205	●	●
8	VALVE; TIRE DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	06	1	1206-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (B) SPARE	1-42370-033-1	01	1	0404-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE	1-42370-040-0	01	1	0404-0407	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE	1-42370-044-0	01	1	0408-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (D) SPARE	1-42370-042-1	01	1	0404-	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (B)	1-42370-033-1	06	1	0404-	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-040-0	06	1	0404-0407	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-044-0	06	1	0408-	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (D)	1-42370-042-1	06	1	0404-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-004-1	06	1	0404-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>	1-42355-004-1	01	1	0404-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0404-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>	1-42355-014-0	01	1	0404-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0603-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0603-	●	●
32	CAP; VALVE DISC WHEEL STEEL<SDN> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), SPARETIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	0504-	●	●
32	CAP; VALVE	1-42374-001-0	05	1	0404-0503	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	05	1	0504-	●	●

2 2 8 8 2 32 8 32 32 2 2 8 32 8 2 32 5 32 8 4 16 32 16 32 2 31 31 5 2 31 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (E)	1-42350-646-0	06	1	0404-0408	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (E)	1-42350-638-1	06	1	0409-0602	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-730-0	06	1	0603-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98217-247-0	06	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98281-497-0	06	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (E) SPARE	1-42350-646-0	01	1	0404-0408	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (E) SPARE	1-42350-638-1	01	1	0409-0602	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-730-0	01	1	0603-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	8-98217-247-0	01	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	8-98281-497-0	01	1	1408-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-362-0	06	1	0404-	●	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-362-0	01	1	0404-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	06	1	0404-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-448-0	01	1	0404-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D) SPARE	1-42350-684-1	01	1	0404-0508	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D) SPARE	1-42350-711-0	01	1	0509-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F) SPARE	1-42350-661-0	01	1	0404-0407	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F) SPARE	1-42350-694-0	01	1	0408-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C) SPARE	1-42350-667-0	01	1	0404-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (G) SPARE	1-42350-686-1	01	1	0404-	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D)	1-42350-684-1	06	1	0404-0508	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (D)	1-42350-711-0	06	1	0509-	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F)	1-42350-661-0	06	1	0404-0407	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (F)	1-42350-694-0	06	1	0408-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	06	1	0404-	●	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (G)	1-42350-686-1	06	1	0404-	●	●
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-42333-043-0	20	1	0404-0702	●	●
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0703-0907	●	●
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL AL<SDM>,DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	08	1	0404-0610	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL AL<SDM>,DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	08	1	0611-	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL AL<SDM>,DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	08	1	0404-0610	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL AL<SDM>,DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	08	1	0611-	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-007-2	08	1	0404-	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-007-2	08	1	0404-	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0404-0610	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0404-0610	●	●
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-048-0	06	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-019-3	06	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-048-0	01	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-019-3	01	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-041-1	06	1	0409-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-041-1	01	1	0409-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	06	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) DISC WHEEL STEEL<SDN> (A)	1-42370-020-3	06	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> (A) SPARE	1-42370-020-3	01	1	0409-0506	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	01	1	0507-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	06	1	0603-1205	●	●
8	VALVE; TIRE DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	06	1	0603-1205	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) SPARE	1-42370-020-3	01	1	1206-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-020-3	01	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> (A) SPARE	1-42370-020-3	01	1	0404-0408	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) DISC WHEEL STEEL<SDN> (A)	1-42370-020-3	06	1	0409-0506	●	●
8	VALVE; TIRE DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	06	1	0507-0602	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42370-020-3	01	1	0603-1205	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) SPARE	1-42370-020-3	01	1	0603-1205	●	●
8	VALVE; TIRE DISC WHEEL STEEL<SDN> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	06	1	1206-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (B) SPARE	1-42370-033-1	01	1	0404-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE	1-42370-040-0	01	1	0404-0407	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) SPARE	1-42370-044-0	01	1	0408-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (D) SPARE	1-42370-042-1	01	1	0404-	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL DISH SUMIKIN(SER) (B)	1-42370-033-1	06	1	0404-	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-040-0	06	1	0404-0407	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-044-0	06	1	0408-	●	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL DISH TOPY(TGC) (D)	1-42370-042-1	06	1	0404-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115	1-42370-015-2	02	1	0404-1003	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115	8-98167-051-0	02	1	1004-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL EXC. WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=170	1-42370-024-0	02	1	0404-1003	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL EXC. WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=170	8-98167-052-0	02	1	1004-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-004-1	06	1	0404-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>	1-42355-004-1	01	1	0404-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0404-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46>	1-42355-014-0	01	1	0404-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0603-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0603-	●	●
32	CAP; VALVE DISC WHEEL STEEL<SDN> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), SPARETIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	0504-	●	●
32	CAP; VALVE	1-42374-001-0	05	1	0404-0503	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL STEEL<SDN> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	05	1	0504-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
