4-65 — REAR LEAF SPRING (#34994) — 56 parça

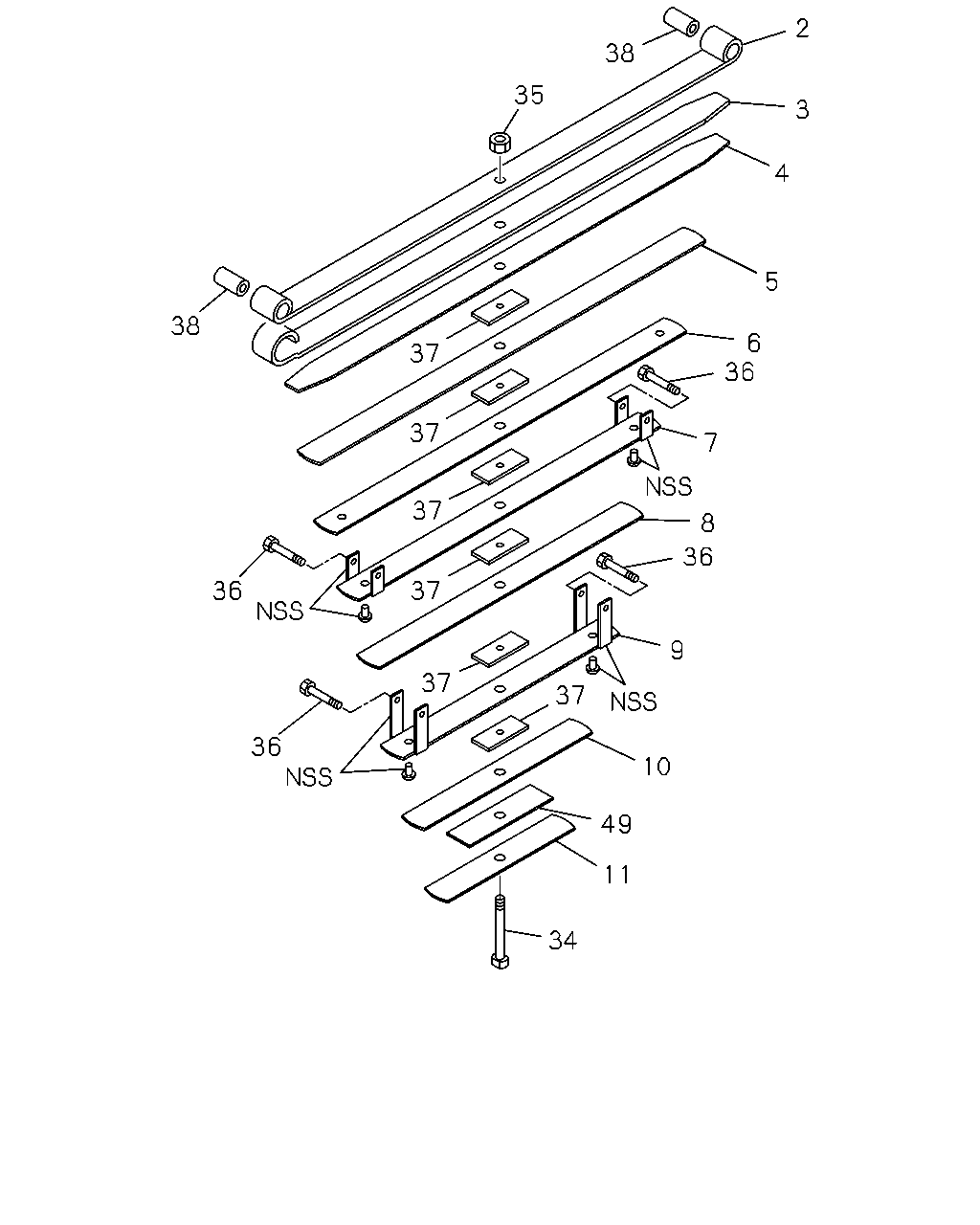

2 38 35 3 4 5 38 6 36 37 37 7 37 8 36 37 36 9 37 37 36 10 49 11 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51411-256-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51411-257-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51412-256-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51412-257-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51413-256-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51413-257-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51414-256-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51414-257-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51415-256-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51415-257-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51416-256-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51416-257-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51417-256-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51417-257-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51418-256-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51418-257-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51419-256-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51419-257-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51420-256-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51420-257-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: C = 8-98200-085-0, D = 8-98200-086-0	8-98204-831-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 1-51410-256-0, B = 1-51410-257-0	9-51356-169-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-09000-748-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-51177-338-0	06	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-51351-024-1	02	1	-
49	SPRING; LEAF,INTER,RR SPR ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-51399-037-0	01	1	-

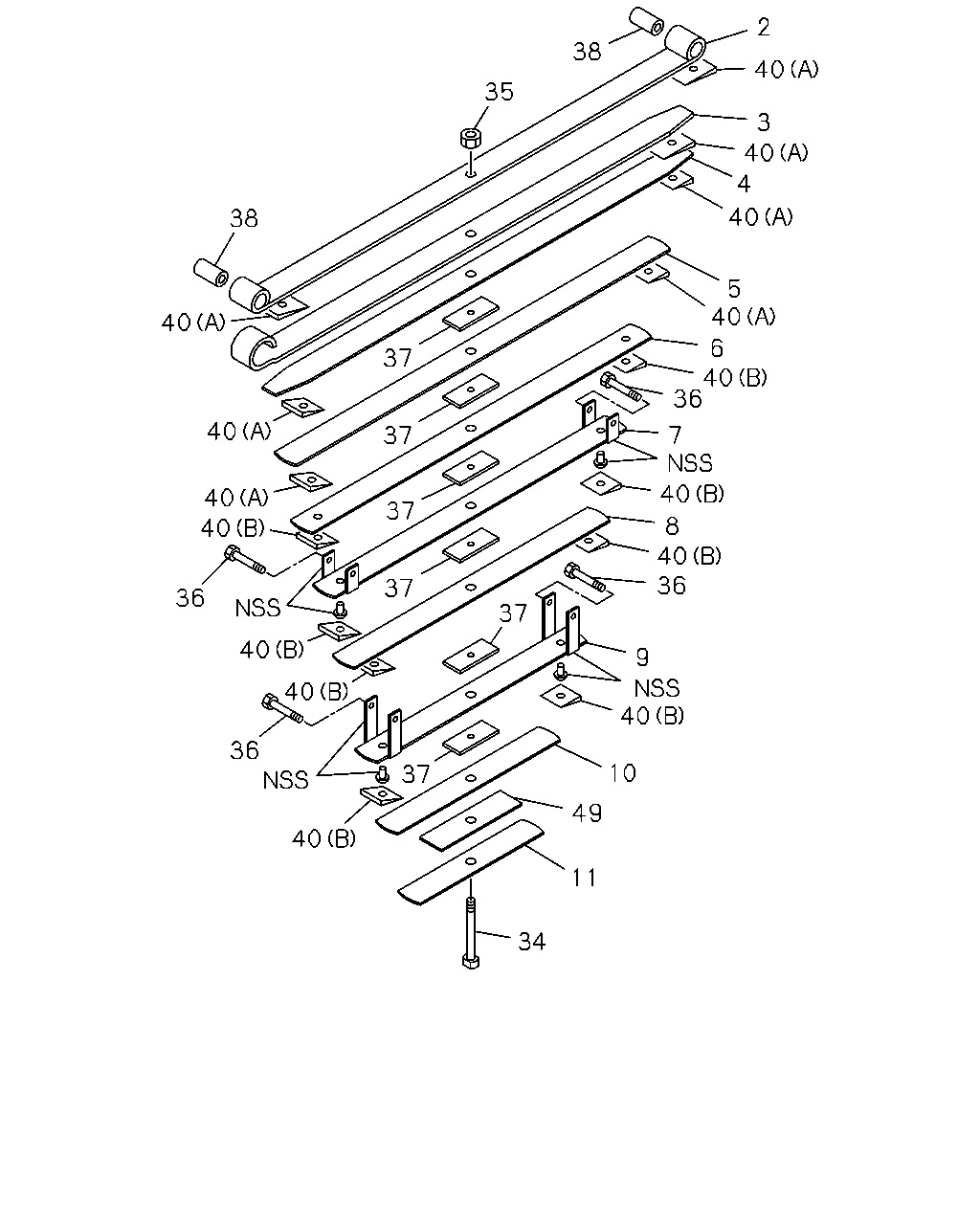

2 38 40 35 3 40 4 40 38 5 40 40 6 40 36 37 40 7 37 40 40 40 37 8 40 36 37 36 37 40 9 40 40 36 10 37 49 40 11 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51411-256-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51411-257-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51412-256-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51412-257-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51413-256-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51413-257-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51414-256-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51414-257-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51415-256-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51415-257-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51416-256-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN W/CLIP ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51416-257-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51417-256-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51417-257-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51418-256-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN W/CLIP ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51418-257-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51419-256-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51419-257-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51410-256-0, C = 8-98200-085-0	1-51420-256-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51420-257-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: C = 8-98200-085-0, D = 8-98200-086-0	8-98204-831-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=165 ASM PART: A = 1-51410-256-0, B = 1-51410-257-0	9-51356-169-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-09000-748-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-51177-338-0	06	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-51351-024-1	02	1	-
40	LINER; LEAF SPR,RR ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51159-024-0	10	1	-
40	LINER; LEAF SPR,RR ASM PART: B = 1-51410-257-0, D = 8-98200-086-0	1-51159-029-0	06	1	-
49	SPRING; LEAF,INTER,RR SPR ASM PART: A = 1-51410-256-0, B = 1-51410-257-0, C = 8-98200-085-0, D = 8-98200-086-0	1-51399-037-0	01	1	-
