◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10948 - LV123/423-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#34993) — 77 parça

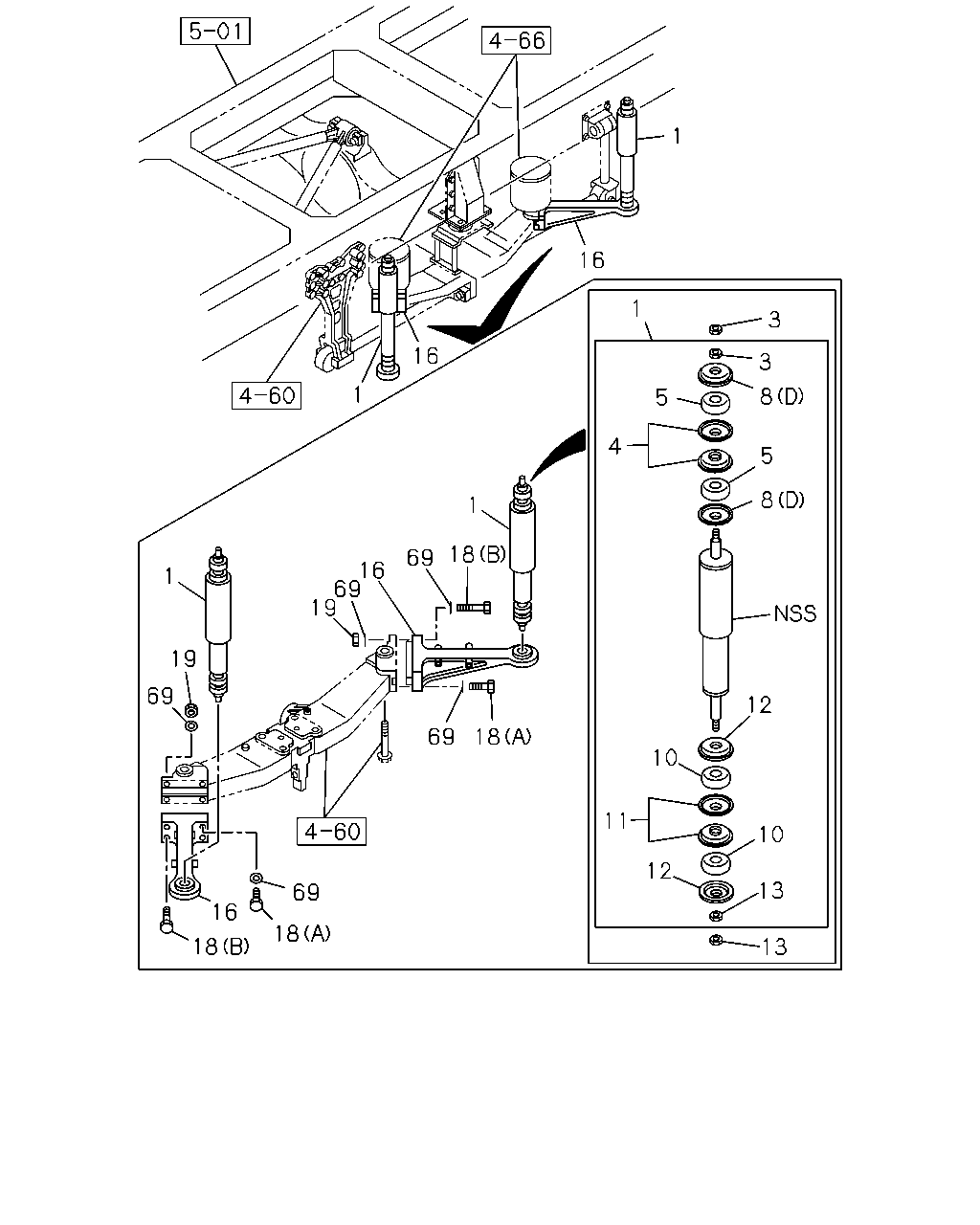

çizim 176911
1 16 1 3 16 3 1 8 5 4 5 8 1 18 69 16 69 19 1 19 69 12 69 18 10 11 10 12 13 69 16 18 18 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR 1-51630-764-1 04 1 0404- ●
1 ABSORBER ASM; SHOCK,RR 1-51630-718-1 02 1 0404-1208 ●
1 ABSORBER ASM; SHOCK,RR 8-98218-075-0 02 1 1209- ●
3 NUT; S/ABS
M18 		0-91111-518-0 02 1 0601- ●
3 NUT; S/ABS
M18 		9-99111-418-0 12 1 0404-0512 ●
3 NUT; S/ABS
M18 		0-91111-518-0 08 1 0601- ●
3 NUT; S/ABS
M18 		9-99111-418-0 04 1 0601- ●
3 NUT; S/ABS
M18 		9-99111-418-0 04 1 0404-0512 ●
3 NUT; S/ABS
M18 		9-99111-418-0 02 1 0601- ●
4 WASHER; CENTER,S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 08 1 0404- ●
4 WASHER; CENTER,S/ABS 1-51631-072-0 04 1 0404- ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-043-0 08 1 0404- ●
5 BUSHING; RUBBER,S/ABS,UPR 1-51631-073-0 04 1 0404- ●
8 WASHER; S/ABS
(D) ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 0404- ●
8 WASHER; S/ABS
(A) 		1-51631-071-0 04 1 0404- ●
8 WASHER; S/ABS
(B) 		1-51631-074-0 02 1 0404- ●
8 WASHER; S/ABS
(C) 		1-51631-075-0 02 1 0404- ●
10 BUSHING; RUBBER,S/ABS 9-51631-043-0 08 1 0404- ●
10 BUSHING; RUBBER,S/ABS 1-51631-076-0 04 1 0404- ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 08 1 0404- ●
12 WASHER; S/ABS TO RR AXLE
ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 0404- ●
13 NUT; LWR,RR S/ABS
M18 		9-99111-418-0 04 1 0404- ●
16 BRACKET; S/ABS,RR 1-52175-017-0 04 1 0404- ●
16 BRACKET; S/ABS,RR 1-51681-801-1 02 1 0404- ●
18 BOLT; S/ABS BRKT
(A) M18X78 		1-09000-574-0 08 1 0404- ●
18 BOLT; S/ABS BRKT
(B) M18X75 		9-91066-875-0 08 1 0404-0408 ●
18 BOLT; S/ABS BRKT
(B) M18X75 		1-09000-221-2 08 1 0409-0709 ●
18 BOLT; S/ABS BRKT
(B) M18X75 		8-98012-872-0 08 1 0710- ●
18 BOLT; S/ABS BRKT
(C) M14X50 		9-92061-450-0 08 1 0404-0512 ●
18 BOLT; S/ABS BRKT
(C) M14X50 		0-20951-450-0 08 1 0601- ●
19 NUT; S/ABS BRKT
M18 		9-99110-518-0 08 1 0404-0512 ●
19 NUT; S/ABS BRKT
M18 		0-91110-518-0 08 1 0601- ●
19 NUT; S/ABS BRKT
M14 		9-99110-514-0 08 1 0404-0512 ●
19 NUT; S/ABS BRKT
M14 		0-91110-514-0 08 1 0601- ●
69 WASHER; PL
ID=18.5 OD=32 T=4 		1-09503-255-0 24 1 0404- ●

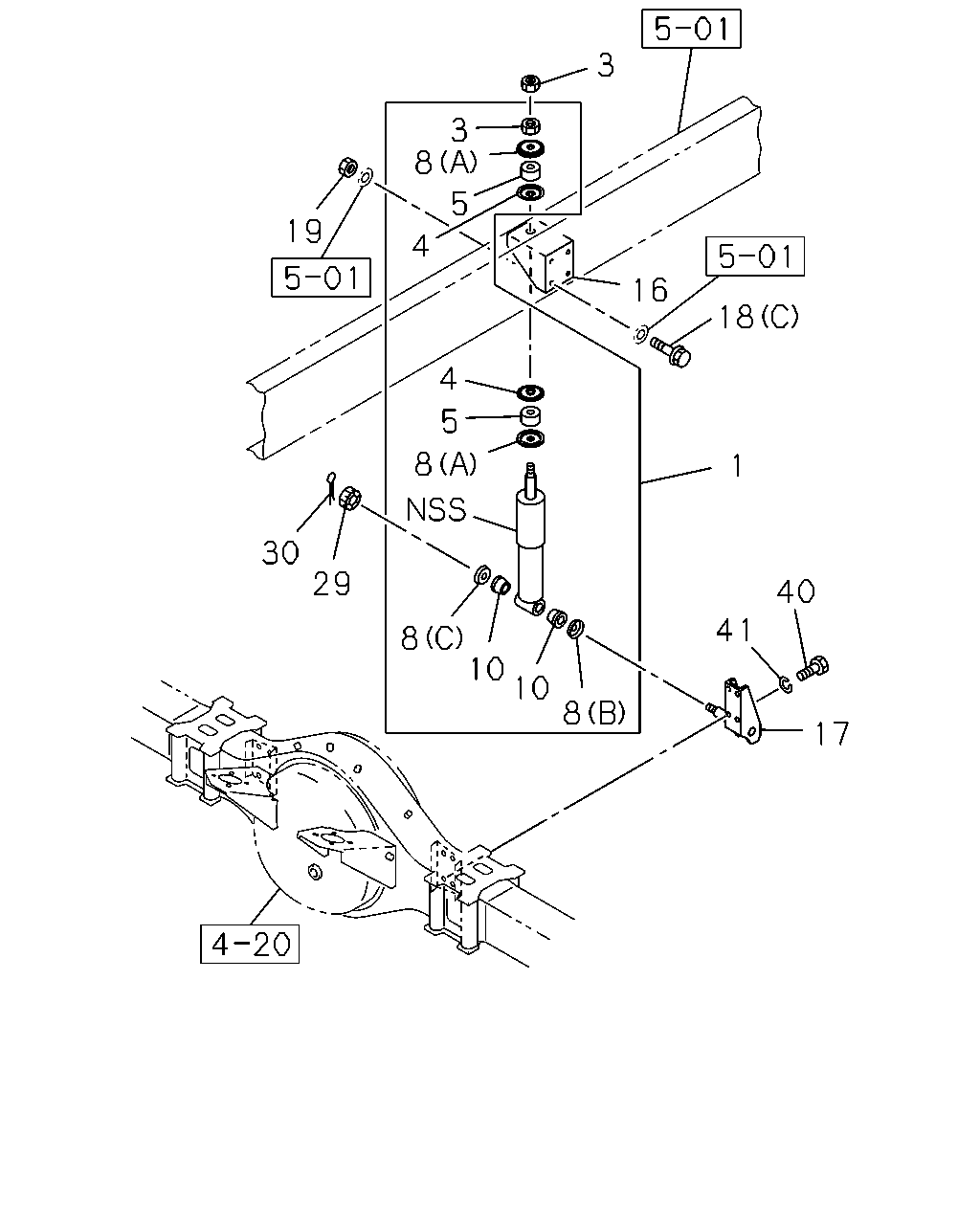

çizim 176915
3 3 8 5 19 4 16 18 4 5 8 1 30 29 40 41 8 10 10 8 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR 1-51630-764-1 04 1 0404- ●
1 ABSORBER ASM; SHOCK,RR 1-51630-718-1 02 1 0404-1208 ●
1 ABSORBER ASM; SHOCK,RR 8-98218-075-0 02 1 1209- ●
3 NUT; S/ABS
M18 		0-91111-518-0 02 1 0601- ●
3 NUT; S/ABS
M18 		9-99111-418-0 12 1 0404-0512 ●
3 NUT; S/ABS
M18 		0-91111-518-0 08 1 0601- ●
3 NUT; S/ABS
M18 		9-99111-418-0 04 1 0601- ●
3 NUT; S/ABS
M18 		9-99111-418-0 04 1 0404-0512 ●
3 NUT; S/ABS
M18 		9-99111-418-0 02 1 0601- ●
4 WASHER; CENTER,S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 08 1 0404- ●
4 WASHER; CENTER,S/ABS 1-51631-072-0 04 1 0404- ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-043-0 08 1 0404- ●
5 BUSHING; RUBBER,S/ABS,UPR 1-51631-073-0 04 1 0404- ●
8 WASHER; S/ABS
(D) ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 0404- ●
8 WASHER; S/ABS
(A) 		1-51631-071-0 04 1 0404- ●
8 WASHER; S/ABS
(B) 		1-51631-074-0 02 1 0404- ●
8 WASHER; S/ABS
(C) 		1-51631-075-0 02 1 0404- ●
10 BUSHING; RUBBER,S/ABS 9-51631-043-0 08 1 0404- ●
10 BUSHING; RUBBER,S/ABS 1-51631-076-0 04 1 0404- ●
16 BRACKET; S/ABS,RR 1-52175-017-0 04 1 0404- ●
16 BRACKET; S/ABS,RR 1-51681-801-1 02 1 0404- ●
17 BRACKET; S/ABS LWR 1-51681-799-0 01 1 0404-1208 ●
17 BRACKET; S/ABS LWR 1-51681-716-0 01 1 1209- ●
17 BRACKET; S/ABS LWR 1-51681-800-0 01 1 0404-1208 ●
17 BRACKET; S/ABS LWR 1-51681-717-0 01 1 1209- ●
18 BOLT; S/ABS BRKT
(A) M18X78 		1-09000-574-0 08 1 0404- ●
18 BOLT; S/ABS BRKT
(B) M18X75 		9-91066-875-0 08 1 0404-0408 ●
18 BOLT; S/ABS BRKT
(B) M18X75 		1-09000-221-2 08 1 0409-0709 ●
18 BOLT; S/ABS BRKT
(B) M18X75 		8-98012-872-0 08 1 0710- ●
18 BOLT; S/ABS BRKT
(C) M14X50 		9-92061-450-0 08 1 0404-0512 ●
18 BOLT; S/ABS BRKT
(C) M14X50 		0-20951-450-0 08 1 0601- ●
19 NUT; S/ABS BRKT
M18 		9-99110-518-0 08 1 0404-0512 ●
19 NUT; S/ABS BRKT
M18 		0-91110-518-0 08 1 0601- ●
19 NUT; S/ABS BRKT
M14 		9-99110-514-0 08 1 0404-0512 ●
19 NUT; S/ABS BRKT
M14 		0-91110-514-0 08 1 0601- ●
29 NUT; LK,S/ABS,RR SUSP
M24 		9-99116-424-0 02 1 0404- ●
30 PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45 		9-08115-045-0 02 1 0404-0606 ●
30 PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45 		0-81125-045-0 02 1 0607- ●
40 BOLT; LWR BRKT
M14X30 		0-20801-430-0 08 1 0404-0512 ●
40 BOLT; LWR BRKT
M14X30 		0-20851-430-0 08 1 0601- ●
41 WASHER; LK
ID=14.2 		9-09150-614-0 08 1 0404-0603 ●
41 WASHER; LK
ID=14.2 		0-91510-614-0 08 1 0604- ●
