4-60 — REAR SUSPENSION (#34992) — 208 parça

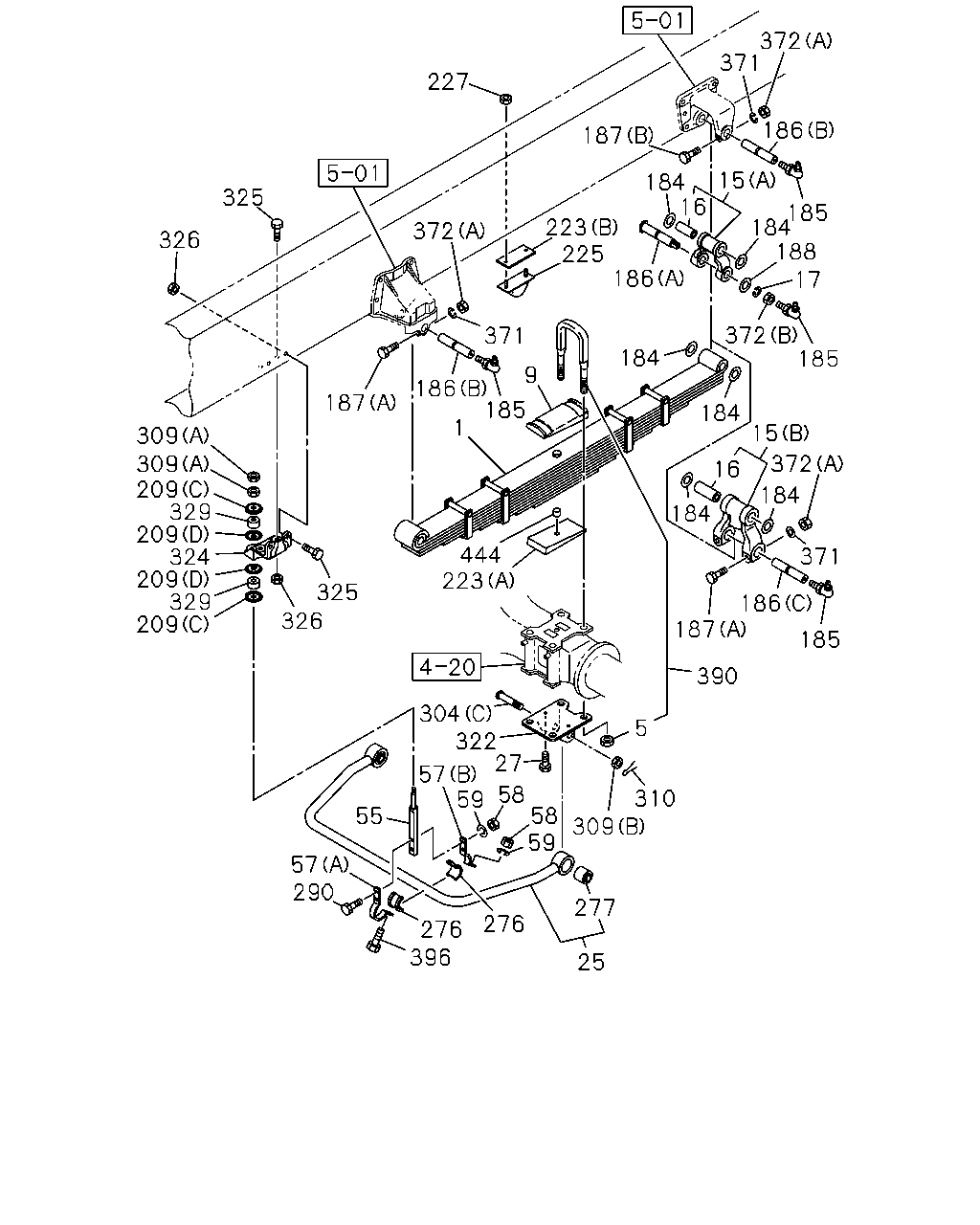

çizim 176907
372 186 371 187 227 325 326 372 187 186 371 1 9 185 184 186 225 184 15 223 16 17 372 184 185 185 15 184 185 371 372 186 184 16 184 187 5 444 325 326 223 304 310 309 58 59 58 309 209 309 329 209 324 209 329 209 322 27 57 55 57 290 276 276 396 25 277 390 59 188
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		1-51410-257-0 02 1 0404-1109 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		8-98200-086-0 02 1 1110- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		1-51410-256-0 02 1 0404-1109 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		8-98200-085-0 02 1 1110- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0404-0512 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ●
9 PAD; U BOLT,RR SPR 1-51372-070-0 02 1 0404- ●
15 SHACKLE; RR SPR
(A) 		1-51362-051-0 02 1 0404-0911 ●
15 SHACKLE; RR SPR
(A) 		1-51362-050-0 02 1 0912-1403 ●
15 SHACKLE; RR SPR
(B) 		8-98245-110-0 02 1 1404- ●
16 BUSHING; SHACKLE,RR SPR 1-51351-024-1 02 1 0404-0911 ●
16 BUSHING; SHACKLE,RR SPR
OD=38 		1-51351-031-0 02 1 0912- ●
17 WASHER; LK,SHACKLE PIN
ID=24.5 OD=52 		9-51369-012-0 02 1 0404-1403 ●
25 BAR ASM; STAB,RR SUSP 1-51771-183-0 01 1 0404- ●
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-174-0 01 1 0404- ●
27 BOLT; STAB
STABILIZER SHAFT FRT&RR<FE6> M10X16 FLANGE 		0-28081-016-0 04 1 0404-0512 ●
27 BOLT; STAB
STABILIZER SHAFT FRT&RR<FE6> M10X16 FLANGE 		0-28051-016-0 04 1 0601- ●
55 ROD; STAB 1-51773-088-1 02 1 0404-0711 ●
55 ROD; STAB 1-51773-113-1 02 1 0712- ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-072-2 02 1 0404- ●
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-51789-027-2 02 1 0404- ●
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-51789-028-1 02 1 0404- ●
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-412-0 06 1 0404-0512 ●
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		0-91110-512-0 06 1 0601- ●
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-512-0 06 1 0404-0603 ●
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		0-91510-512-0 06 1 0604- ●
184 WASHER; SPRING PIN 1-09503-277-0 08 1 0404- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 ELBOW 		9-09031-210-0 06 1 0404-0512 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 ELBOW 		0-90301-610-0 06 1 0601- ●
186 PIN; SHACKLE,RR SPR
(A) 		1-51361-025-0 02 1 0404-1403 ●
186 PIN; SHACKLE,RR SPR
(C) 		8-98245-117-0 02 1 1404- ●
186 PIN; SHACKLE,RR SPR
(B) 		1-51361-026-0 04 1 0404- ●
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28881-470-0 02 1 0404-0512 ●
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28851-470-0 02 1 0601-1403 ●
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28851-470-0 06 1 1404- ●
187 BOLT; SPR & SHACKLE
(B) M14X80 FLANGE 		0-28881-480-0 02 1 0404-0512 ●
187 BOLT; SPR & SHACKLE
(B) M14X80 FLANGE 		0-28851-480-0 02 1 0601- ●
188 WASHER; PL,SHACKLE PIN 9-09164-624-0 02 1 0404-1403 ●
209 WASHER; PL
(B) ID=25 		1-09503-282-0 08 1 0404- ●
209 WASHER; PL
(A) ID=21 		9-09164-520-0 04 1 0404- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (C) ID=16.5 		9-51631-040-0 04 1 0404- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (D) ID=20.8 		9-51631-041-0 04 1 0404- ●
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-343-2 02 1 0404-1109 ●
223 SPACER; U BOLT,RR SPR
(A) 		8-98200-087-0 02 1 1110- ●
223 SPACER; U BOLT,RR SPR
(B) 		1-53157-950-0 02 1 0404-1105 ●
225 RUBBER; CUSHION,RR SPR 1-51374-004-0 02 1 0404- ●
225 RUBBER; CUSHION,RR SPR 1-53366-174-0 02 1 0404- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0404-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0404-0602 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
276 BUSHING; STAB ROD 1-51779-055-0 02 1 0712- ●
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-079-1 04 1 0404- ●
277 BUSHING; STAB,RR UPR 1-51779-055-0 02 1 0404- ●
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0404- ●
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> M12X50 		0-20801-250-0 04 1 0404-0910 ●
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> M12X50 		0-20851-250-0 04 1 0911- ●
304 PIN; STAB ROD
(A) M20X106 		1-51361-028-2 02 1 0404- ●
304 PIN; STAB ROD
(B) M20X110 		1-51361-029-2 02 1 0404- ●
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (C) 		1-51789-020-2 02 1 0404- ●
309 NUT; STAB ROD
(C) M20 FLANGE 		1-09440-060-0 04 1 0404-0805 ●
309 NUT; STAB ROD
(C) M20 FLANGE 		8-98010-392-0 04 1 0806- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		9-99111-414-0 04 1 0404-0512 ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		0-91111-514-0 04 1 0601- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (B) M24 		9-99116-424-0 02 1 0404- ●
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		9-08115-045-0 02 1 0404-0606 ●
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		0-81125-045-0 02 1 0607- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-048-4 02 1 0404- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-112-0 01 1 0404- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-134-0 01 1 0404- ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28691-440-0 08 1 0404-0512 ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28661-440-0 08 1 0601- ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28891-445-0 08 1 0404-0512 ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28861-445-0 08 1 0601- ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91160-214-0 08 1 0404-0602 ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91180-214-0 08 1 0603- ●
329 BUSHING; STAB ROD 1-51779-055-0 02 1 0404-0711 ●
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		9-51631-039-0 04 1 0404- ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0404-0603 ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604-0903 ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-814-0 04 1 0904-1403 ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-814-0 08 1 1404- ●
372 NUT; SHACKLE
(A) M14 		9-99110-514-0 04 1 0404-0512 ●
372 NUT; SHACKLE
(A) M14 		0-91110-514-0 04 1 0601-1403 ●
372 NUT; SHACKLE
(A) M14 		0-91110-514-0 08 1 1404- ●
372 NUT; SHACKLE
(B) M24 		9-99111-524-0 02 1 0404-0512 ●
372 NUT; SHACKLE
(B) M24 		0-91111-524-0 02 1 0601-1403 ●
390 U-BOLT SET; RR SPRING
L=430 		1-87870-095-3 04 1 0404- ●
396 BOLT; CLAMP
STABILIZER SHAFT FRT&RR<FE6> M12X30 		0-20801-230-0 02 1 0404-0910 ●
396 BOLT; CLAMP
STABILIZER SHAFT FRT&RR<FE6> M12X30 		0-20851-230-0 02 1 0911- ●
444 PIN; CASTER PLATE 1-09740-058-0 02 1 0404-1109 ●

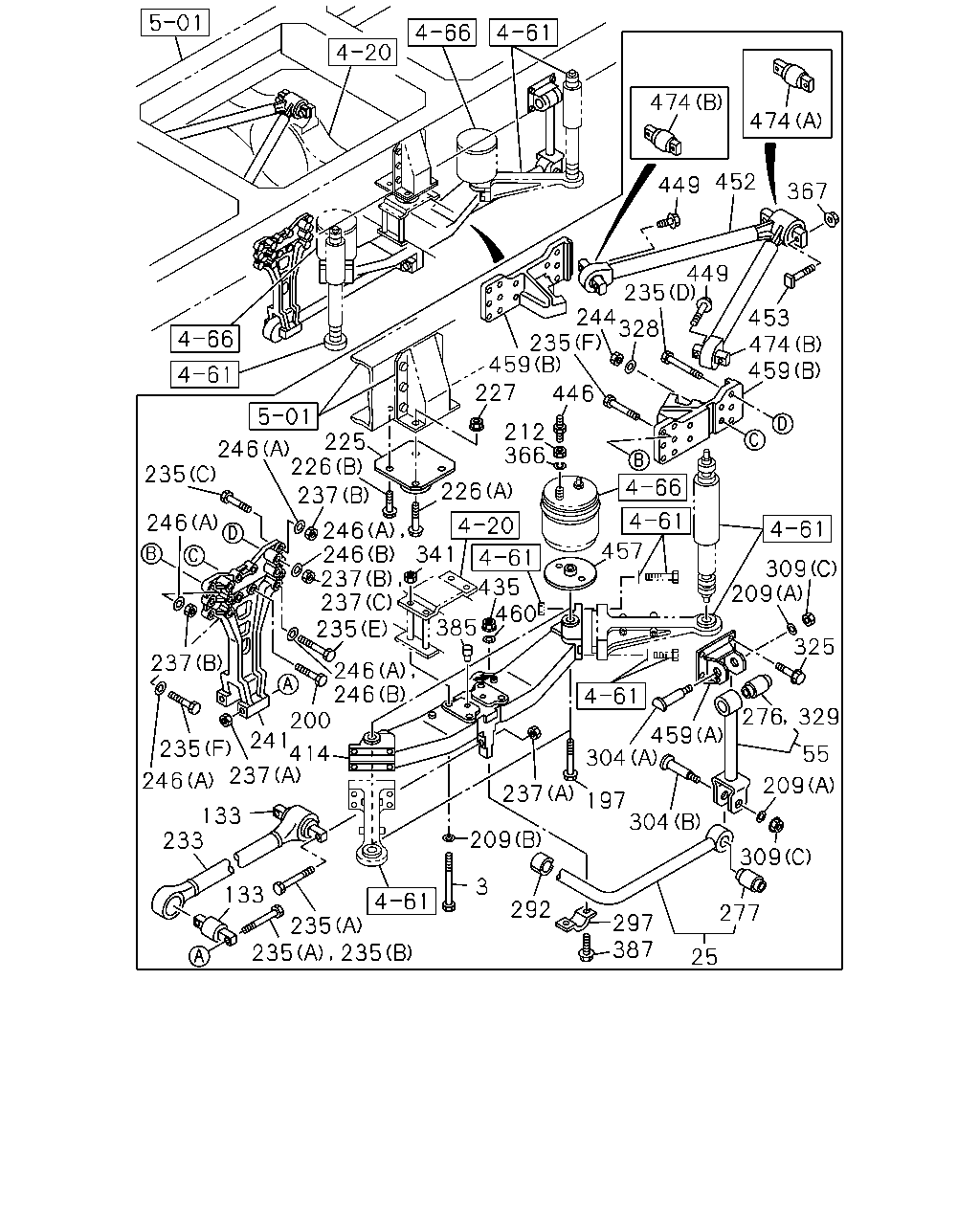

çizim 176928
474 474 452 449 367 449 235 244 328 235 459 227 453 474 459 446 212 366 225 226 246 235 226 237 246 246 237 237 235 457 309 209 237 435 460 385 325 276 246 246 200 241 235 414 237 329 459 55 304 246 209 237 197 304 133 233 209 309 3 133 292 277 297 387 235 25 341 235 235 246
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BEAM
M24X295 		1-09000-622-2 08 1 0404- ●
25 BAR ASM; STAB,RR SUSP 1-51771-183-0 01 1 0404- ●
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-174-0 01 1 0404- ●
55 ROD; STAB 1-51773-088-1 02 1 0404-0711 ●
55 ROD; STAB 1-51773-113-1 02 1 0712- ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-072-2 02 1 0404- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0404- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 04 1 0404- ●
197 BOLT
M16X110 FLANGE 		1-09044-100-1 04 1 0404- ●
200 BOLT; BRKT
M16X60 		9-91066-660-0 08 1 0404-0512 ●
200 BOLT; BRKT
M16X60 		0-10956-660-0 08 1 0601- ●
209 WASHER; PL
(B) ID=25 		1-09503-282-0 08 1 0404- ●
209 WASHER; PL
(A) ID=21 		9-09164-520-0 04 1 0404- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (C) ID=16.5 		9-51631-040-0 04 1 0404- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (D) ID=20.8 		9-51631-041-0 04 1 0404- ●
212 NUT
M20 		9-99111-520-0 04 1 0404-0512 ●
212 NUT
M20 		0-91111-520-0 04 1 0601- ●
225 RUBBER; CUSHION,RR SPR 1-51374-004-0 02 1 0404- ●
225 RUBBER; CUSHION,RR SPR 1-53366-174-0 02 1 0404- ●
226 BOLT
(A) M12X30 FLANGE 		0-28691-230-0 04 1 0404-0512 ●
226 BOLT
(A) M12X30 FLANGE 		0-28661-230-0 04 1 0601- ●
226 BOLT
(B) M12X40 FLANGE 		0-28691-240-0 04 1 0404-0512 ●
226 BOLT
(B) M12X40 FLANGE 		0-28661-240-0 04 1 0601- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0404-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0404-0602 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
233 ROD ASM; TORQUE,RR SUSP
L=685 		1-51511-751-0 02 1 0404- ●
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0508- ●
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-627-0 04 1 0404-0505 ●
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-568-0 08 1 0506-0507 ●
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-568-0 04 1 0508-0805 ●
235 BOLT; TORQUE ROD
(A) M18X102 		8-98012-877-0 04 1 0806- ●
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0404-0505 ●
235 BOLT; TORQUE ROD
(C) M20X60 		1-09000-633-0 06 1 0404- ●
235 BOLT; TORQUE ROD
(D) M20X165 		1-09000-661-1 10 1 0404-0811 ●
235 BOLT; TORQUE ROD
(D) M20X165 		8-98010-548-0 10 1 0812- ●
235 BOLT; TORQUE ROD
(E) M20X160 		1-09000-697-0 02 1 0404- ●
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-736-0 06 1 0404-0606 ●
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-792-0 06 1 0607- ●
237 NUT; TORQUE ROD
(C) M20 		8-98010-408-0 10 1 0812- ●
237 NUT; TORQUE ROD
(A) M18 SELF LOCK 		1-09464-032-0 08 1 0404- ●
237 NUT; TORQUE ROD
(B) M20 		9-99110-520-0 20 1 0404-0512 ●
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 20 1 0601-0811 ●
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 10 1 0812- ●
241 BRACKET; TORQUE ROD 1-53361-081-2 02 1 0404- ●
244 NUT; BRKT
M16 		9-99110-516-0 08 1 0404-0512 ●
244 NUT; BRKT
M16 		0-91110-516-0 08 1 0601- ●
246 WASHER; TORQUE ROD
(B) ID=21 		8-98010-403-0 10 1 0812- ●
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 24 1 0404-0811 ●
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 14 1 0812- ●
276 BUSHING; STAB ROD 1-51779-055-0 02 1 0712- ●
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-079-1 04 1 0404- ●
277 BUSHING; STAB,RR UPR 1-51779-055-0 02 1 0404- ●
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0404- ●
292 BUSHING; RUBBER,STAB 1-51779-100-0 04 1 0404- ●
297 CAP; STAB BAR 1-52175-024-2 02 1 0404- ●
304 PIN; STAB ROD
(A) M20X106 		1-51361-028-2 02 1 0404- ●
304 PIN; STAB ROD
(B) M20X110 		1-51361-029-2 02 1 0404- ●
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (C) 		1-51789-020-2 02 1 0404- ●
309 NUT; STAB ROD
(C) M20 FLANGE 		1-09440-060-0 04 1 0404-0805 ●
309 NUT; STAB ROD
(C) M20 FLANGE 		8-98010-392-0 04 1 0806- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		9-99111-414-0 04 1 0404-0512 ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		0-91111-514-0 04 1 0601- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (B) M24 		9-99116-424-0 02 1 0404- ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28691-440-0 08 1 0404-0512 ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28661-440-0 08 1 0601- ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28891-445-0 08 1 0404-0512 ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28861-445-0 08 1 0601- ●
328 WASHER; PL,BRKT
ID=16.2 		1-09503-223-0 16 1 0404-0903 ●
328 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 16 1 0904- ●
329 BUSHING; STAB ROD 1-51779-055-0 02 1 0404-0711 ●
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		9-51631-039-0 04 1 0404- ●
341 NUT; BEAM
M24 		9-99110-524-0 08 1 0404-0512 ●
341 NUT; BEAM
M24 		0-91110-524-0 08 1 0601- ●
366 WASHER; LK
ID=20.2 		9-09150-520-0 04 1 0404-0603 ●
366 WASHER; LK
ID=20.2 		0-91510-520-0 04 1 0604- ●
367 NUT
M24 FLANGE 		1-42334-045-1 02 1 0404-0805 ●
367 NUT
M24 FLANGE 		8-98019-963-0 02 1 0806- ●
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 04 1 0404- ●
387 BOLT; CAP FIX,STAB BAR
M16X60 FLANGE 		1-09044-101-0 04 1 0404-0505 ●
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28891-650-0 04 1 0506-0512 ●
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28861-650-0 04 1 0601- ●
414 BEAM; AIR SPR 1-52170-104-0 01 1 0404- ●
414 BEAM; AIR SPR 1-52170-105-0 01 1 0404- ●
435 NUT; CAP
M16 		9-99110-516-0 04 1 0404-0512 ●
435 NUT; CAP
M16 		0-91110-516-0 04 1 0601- ●
446 CONNECTOR; AIR SPRING
M12 & PT1/4 STRAIGHT 		1-09650-074-1 04 1 0404- ●
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 04 1 0404-0805 ●
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 04 1 0806-1102 ●
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 04 1 1103- ●
452 ROD ASM; V 1-51510-858-0 01 1 0404-1309 ●
452 ROD ASM; V 8-98239-075-0 01 1 1310- ●
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0404-0805 ●
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0806- ●
457 PLATE; AIR SPRING,UPR 1-52119-250-1 04 1 0404- ●
459 BRACKET; ROD
(A) 		1-51781-123-4 02 1 0404- ●
459 BRACKET; ROD
(B) 		1-53353-136-1 01 1 0404- ●
459 BRACKET; ROD
(B) 		1-53353-137-1 01 1 0404- ●
460 WASHER; CAP
ID=16.2 		1-09503-223-0 04 1 0404-0903 ●
460 WASHER; CAP
ID=16.2 		1-09503-316-0 04 1 0904- ●
474 REPAIR KIT; V-ROD
(A) 		1-51519-173-0 01 1 0404-1309 ●
474 REPAIR KIT; V-ROD
(A) 		8-98240-610-0 01 1 1310- ●
474 REPAIR KIT; V-ROD
(B) 		1-51519-174-0 02 1 0404-1309 ●
474 REPAIR KIT; V-ROD
(B) 		8-98240-613-0 02 1 1310- ●

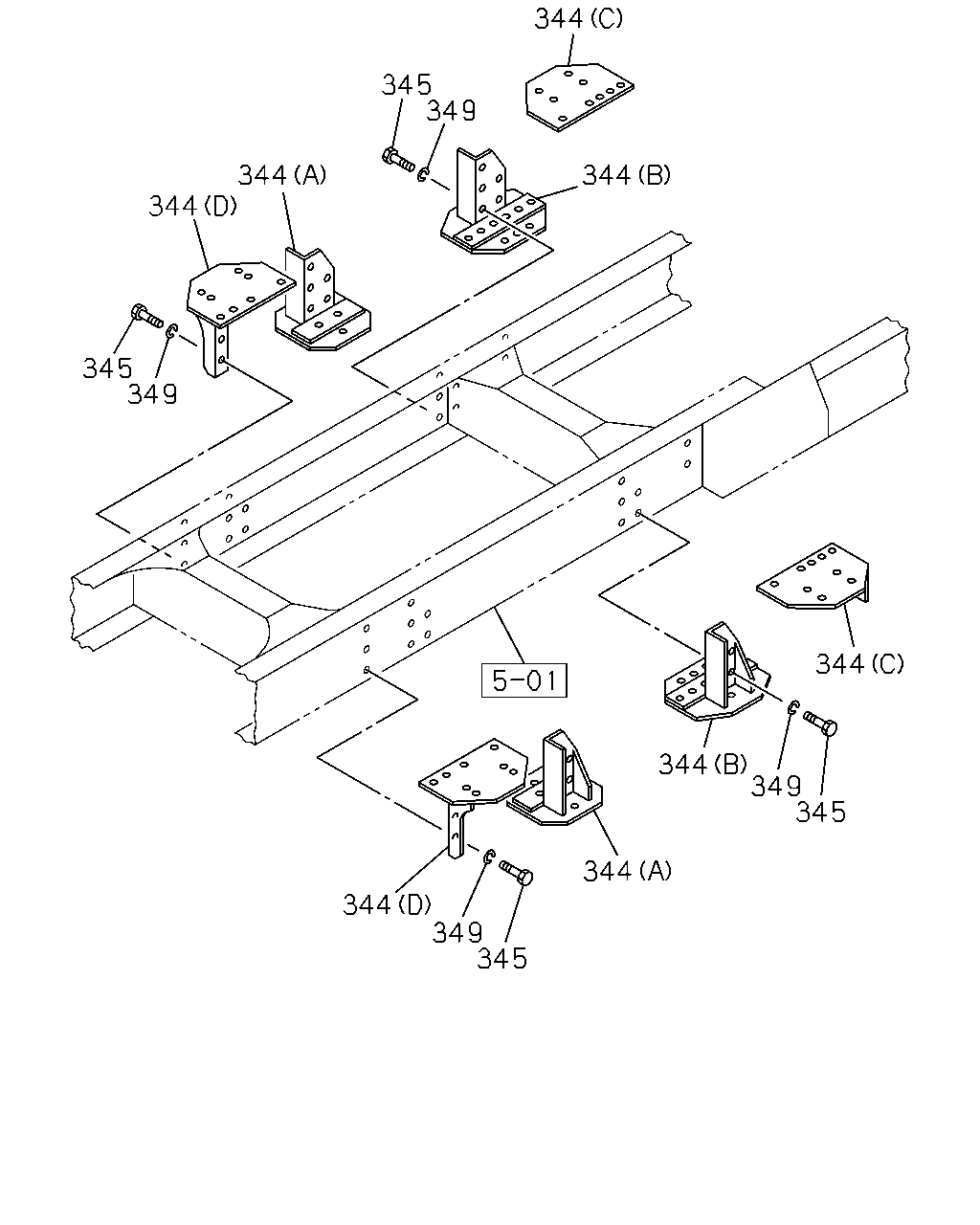

çizim 176951
344 345 349 344 344 344 345 349 344 344 349 345 344 344 349 345
BalonParca AdiParca NoAdetTipApplied Date A B
344 BRACKET; AIR SPR,UPR
(A) 		1-52171-196-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(A) 		1-52171-197-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(B) 		1-52171-198-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(B) 		1-52171-199-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(C) 		1-52171-202-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(C) 		1-52171-203-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(D) 		1-52171-215-1 01 1 0404- ●
344 BRACKET; AIR SPR,UPR
(D) 		1-52171-216-1 01 1 0404- ●
345 BOLT; BRKT
M14X40 		9-92061-440-0 30 1 0404-0512 ●
345 BOLT; BRKT
M14X40 		0-20951-440-0 30 1 0601- ●
349 WASHER; LK,AIR SPR
ID=15 		9-09651-069-0 30 1 0404-1201 ●
349 WASHER; LK,AIR SPR
ID=15 		8-98010-627-1 30 1 1202- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
