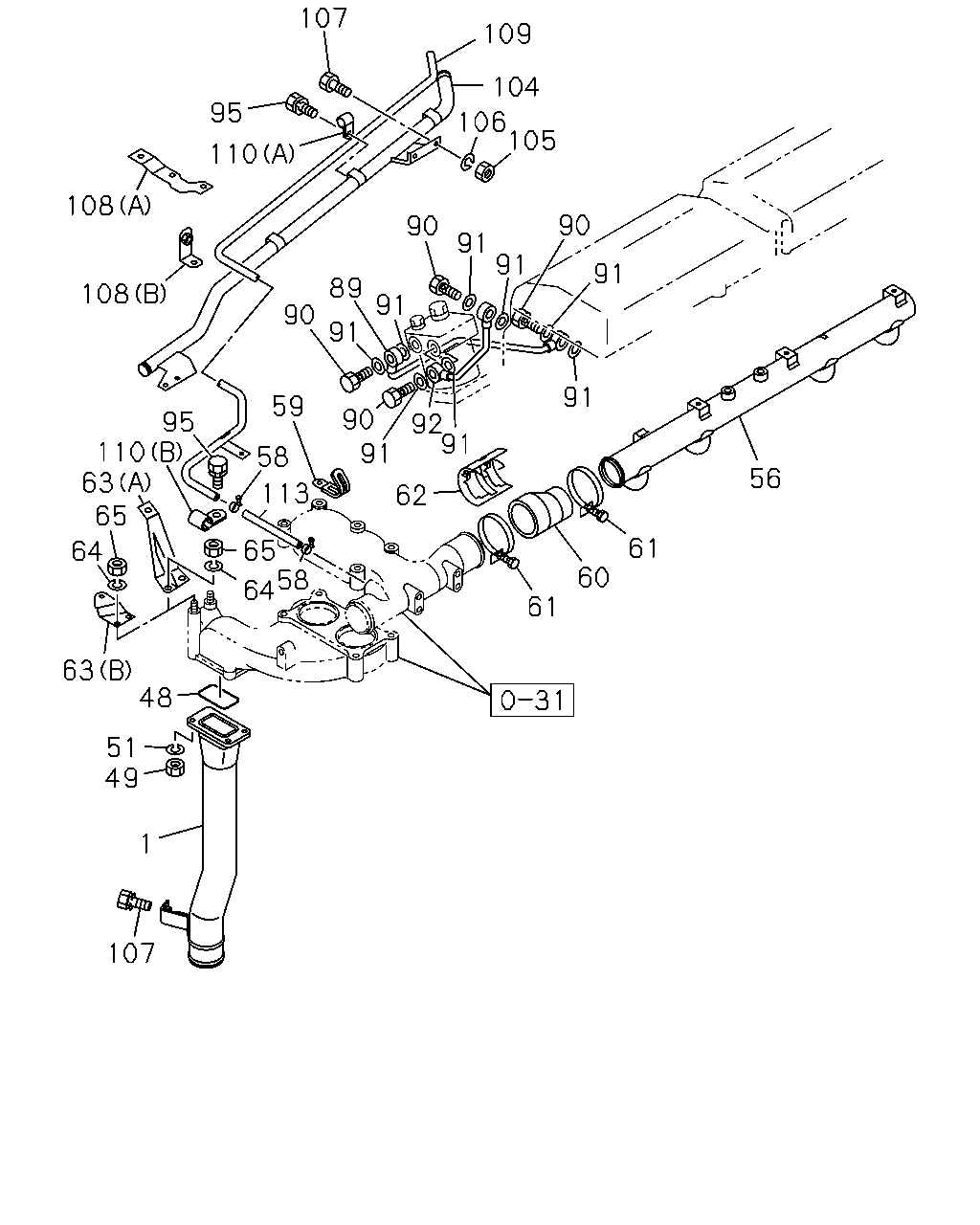

0-32A — WATER PIPING; ENGINE (#3499) — 46 parça

107 109 104 95 106 105 110 108 90 91 90 91 91 89 108 91 90 91 91 59 90 91 95 110 63 65 92 91 58 56 113 62 61 65 58 64 64 60 61 63 48 51 49 1 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	1-13711-387-1	01	1	9002-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-217-0	01	1	9002-	●	●
49	NUT; WATER PIPE M8	9-09110-508-0	04	1	9002-	●	●
51	WASHER; LK,PIPE ID=8.2	9-09150-508-0	04	1	9002-	●	●
56	PIPE; WATER OUTLET	1-13711-421-0	01	1	9002-	●	●
58	CLIP; RUBBER HOSE	5-09704-056-0	02	1	9002-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE L=36	8-94224-891-1	01	1	9002-	●	●
60	HOSE; OUTLET PIPE TO HSG	1-09360-446-0	01	1	9002-9008	●
60	HOSE; OUTLET PIPE TO HSG	1-09360-895-0	01	1	9009-	●	●
61	CLIP; HOSE,OUTLET PIPE TO HSG ID=63	1-09704-067-0	01	1	9002-	●	●
61	CLIP; HOSE,OUTLET PIPE TO HSG ID=70	1-09704-078-0	01	1	9002-	●	●
62	PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE	1-14181-156-1	01	1	9002-	●	●
63	BRACKET; WATER PIPE (A)	1-13719-056-0	01	1	9012-9101		●
63	BRACKET; WATER PIPE (B)	1-13719-042-3	01	1	9102-		●
64	WASHER; LK ID=8.2	9-09150-508-0	02	1	9012-		●
65	NUT M8	9-09110-408-0	02	1	9012-		●
89	PIPE; WATER,AIR CMPR,IN	1-13721-256-0	01	1	9002-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	04	1	9002-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9002-9306	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9307-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-359-0	01	1	9002-	●	●
95	BOLT; CLIP M6X14	9-01910-614-0	03	1	9002-9005	●
95	BOLT; CLIP M6X14 W/LK WASHER	0-50040-614-0	03	1	9006-	●
95	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9102-		●
104	PIPE; WATER CHARGE	1-13721-241-2	01	1	9002-	●
104	PIPE; WATER CHARGE	1-13721-301-1	01	1	9012-9101		●
104	PIPE; WATER CHARGE	1-13721-331-0	01	1	9102-		●
105	NUT; PIPE M8	9-09110-408-0	02	1	9002-9006	●
105	NUT; PIPE M10	9-09110-410-0	02	1	9002-	●
105	NUT; PIPE M8	9-09110-408-0	02	1	9007-	●
105	NUT; PIPE M10	9-09110-410-0	03	1	9012-		●
106	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-	●
106	WASHER; LK ID=10.2	9-09150-510-0	02	1	9002-	●
106	WASHER; LK ID=10.2	9-09150-510-0	03	1	9012-		●
107	BOLT; WATER PIPE M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●
107	BOLT; WATER PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-	●
107	BOLT; WATER PIPE M10X20 W/LK WASHER	0-50041-020-0	02	1	9012-		●
108	BRACKET; WATER CHARGE (A)	1-13729-002-0	01	1	9002-	●
108	BRACKET; WATER CHARGE (B)	1-13729-003-0	01	1	9012-9101		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-204-2	01	1	9002-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-302-0	01	1	9012-9101		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-351-0	01	1	9102-		●
110	CLIP; AIR PIPE (A) ID=11 L=20	9-09525-033-0	03	1	9002-	●
110	CLIP; AIR PIPE (B) ID=11 L=28	9-09917-544-0	01	1	9002-	●	●
110	CLIP; AIR PIPE (A) ID=11 L=16	9-09525-023-0	01	1	9102-		●
113	HOSE; RUBBER,AIR LEAK L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9002-	●	●
