4-36 — POWER STEERING CONTROL; ENGINE SIDE (#34985) — 16 parça

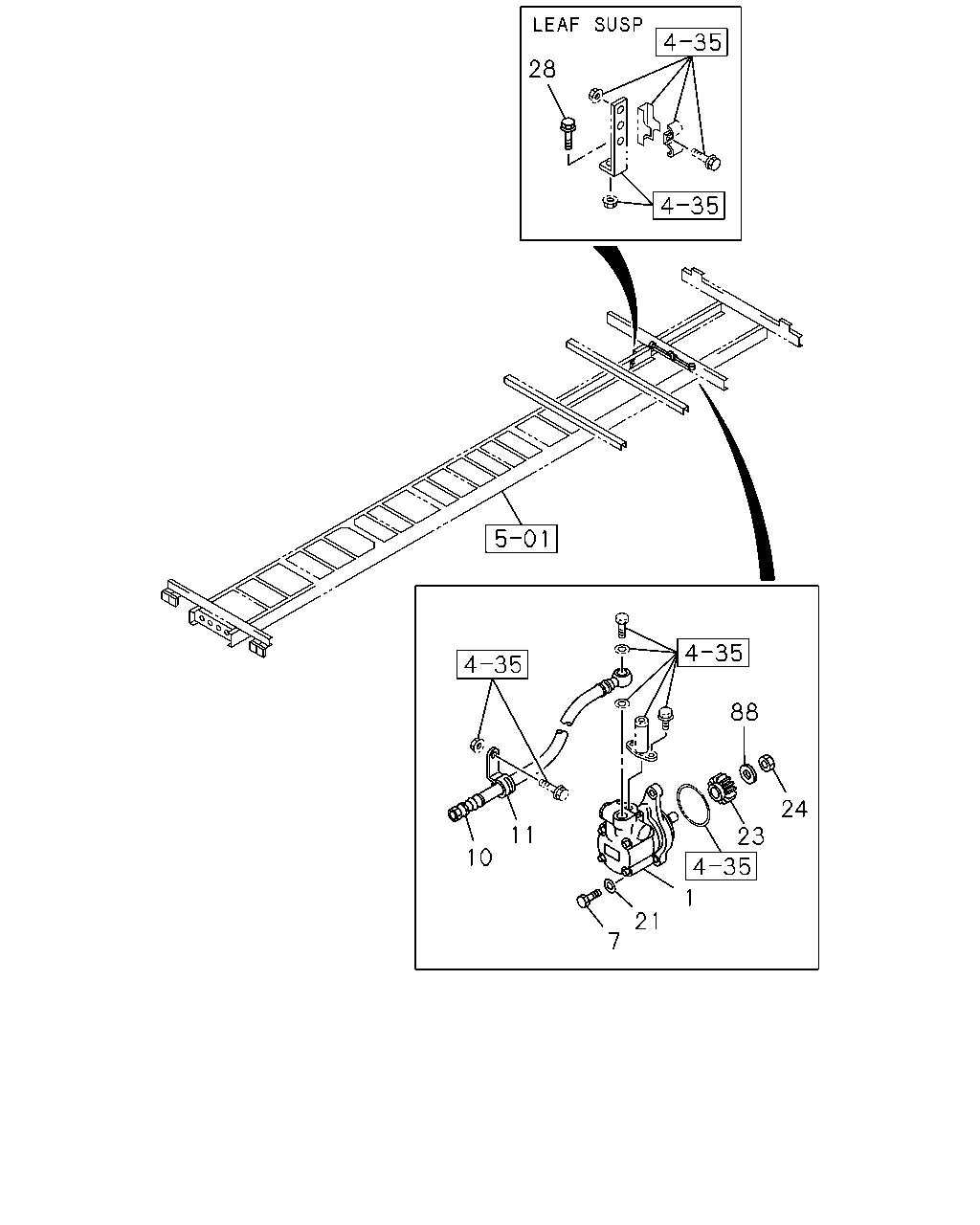

28 88 24 11 23 10 1 21 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-413-2	01	1	0404-	●	●
7	BOLT; OIL PUMP,P/S M12X75	9-01666-275-0	02	1	0404-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L=610	1-09365-121-0	01	1	0404-	●	●
11	CLIP; FLEX HOSE ID=25 H=30 L=35	1-09700-875-0	01	1	0404-	●	●
21	WASHER; PL,P/S OIL PUMP ID=12.5	9-09160-512-0	02	1	0404-0605	●	●
21	WASHER; PL,P/S OIL PUMP ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
23	GEAR; OIL PUMP Z=14	1-19581-033-0	01	1	0404-	●	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0404-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	01	1	0404-0512		●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
88	WASHER; GEAR,P/S PUMP ID=17	1-19519-294-0	01	1	0404-1405	●	●
88	WASHER; GEAR,P/S PUMP ID=16.2	9-09851-672-2	01	1	1406-	●	●

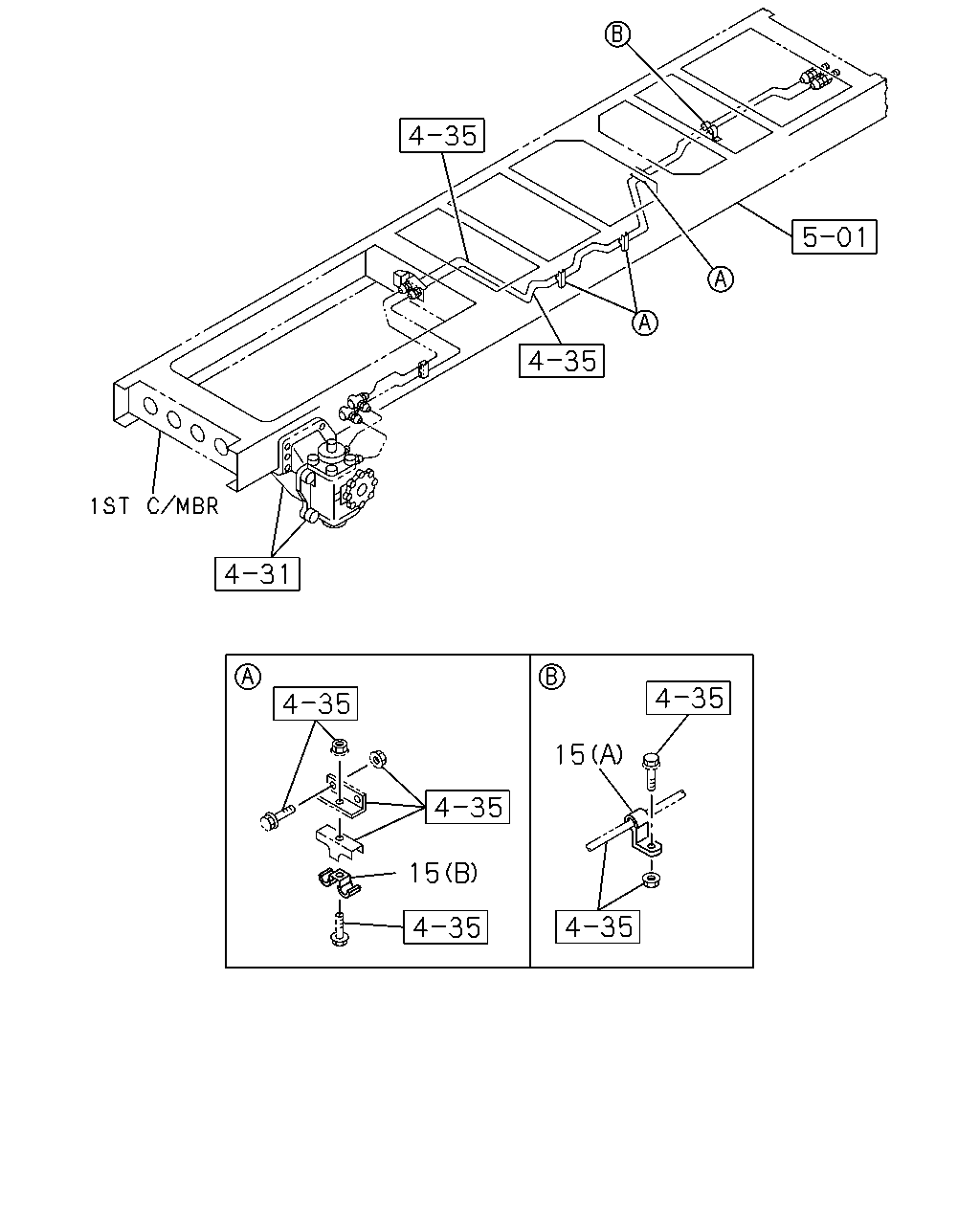

15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; OIL PIPE SUCTION (A) ID=13 H=40 L=25	1-09700-620-0	02	1	0404-	●
15	CLIP; OIL PIPE SUCTION (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
15	CLIP; OIL PIPE SUCTION (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-		●
15	CLIP; OIL PIPE SUCTION (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-		●
