Sayfa 4-35 - Isuzu EPC

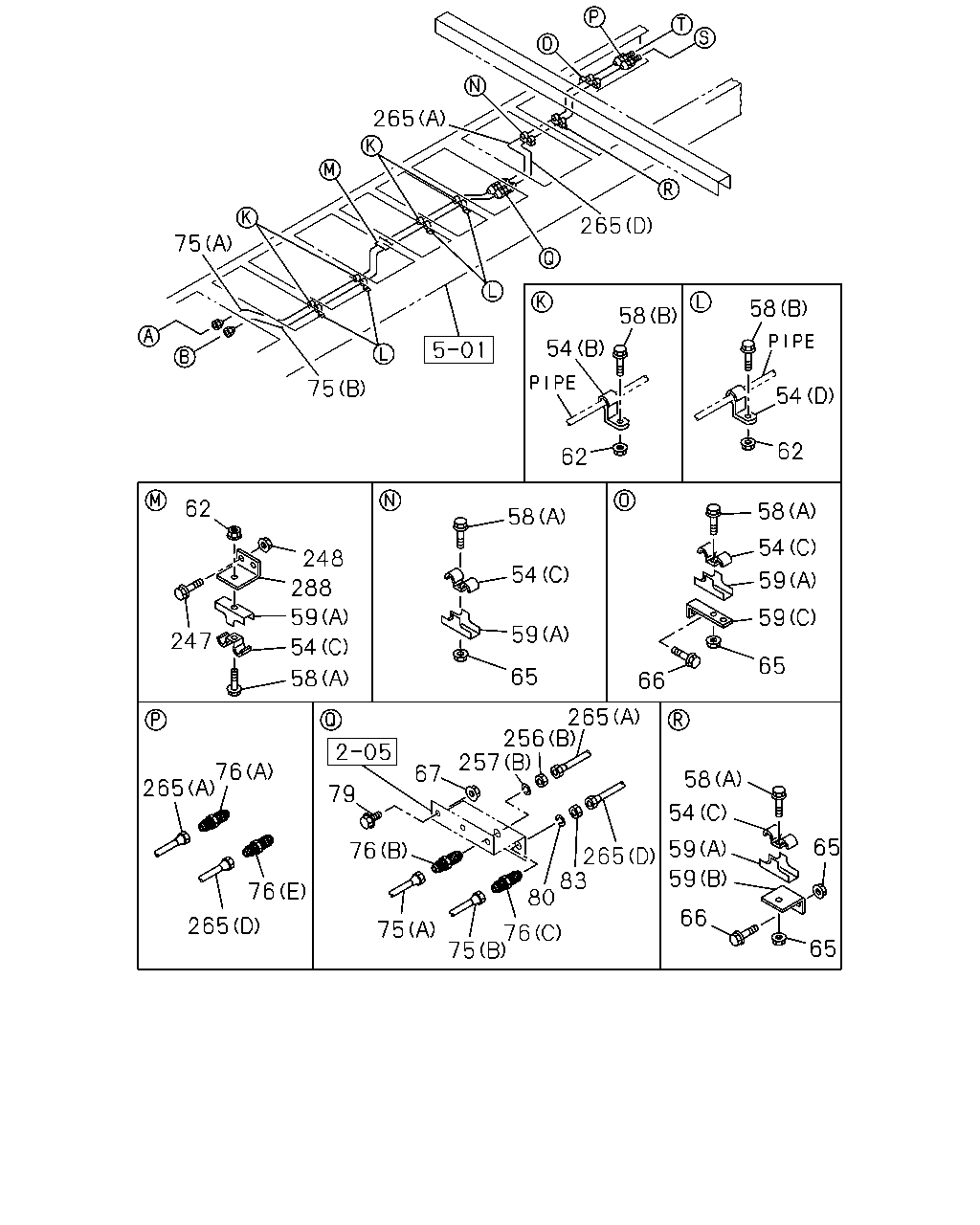

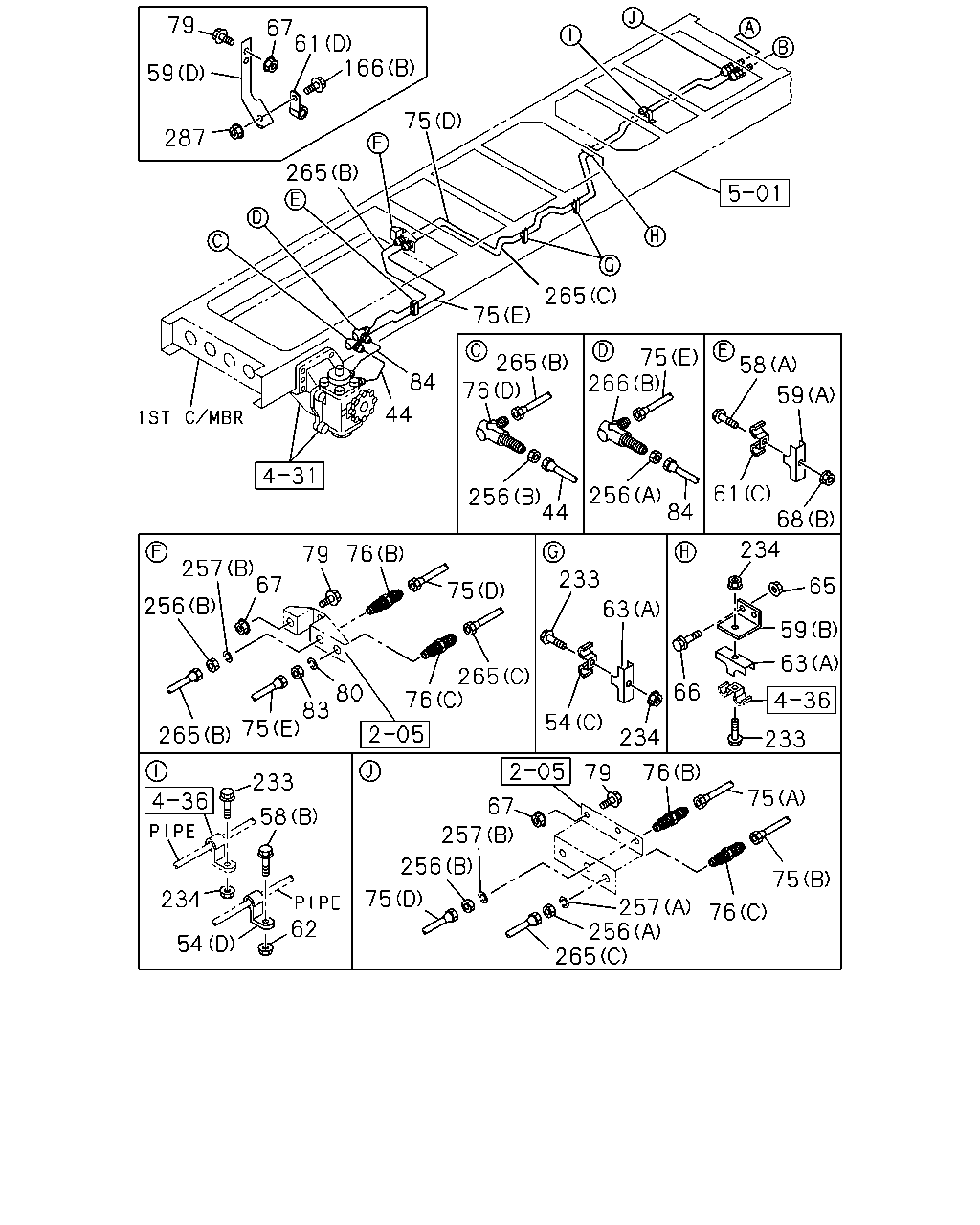

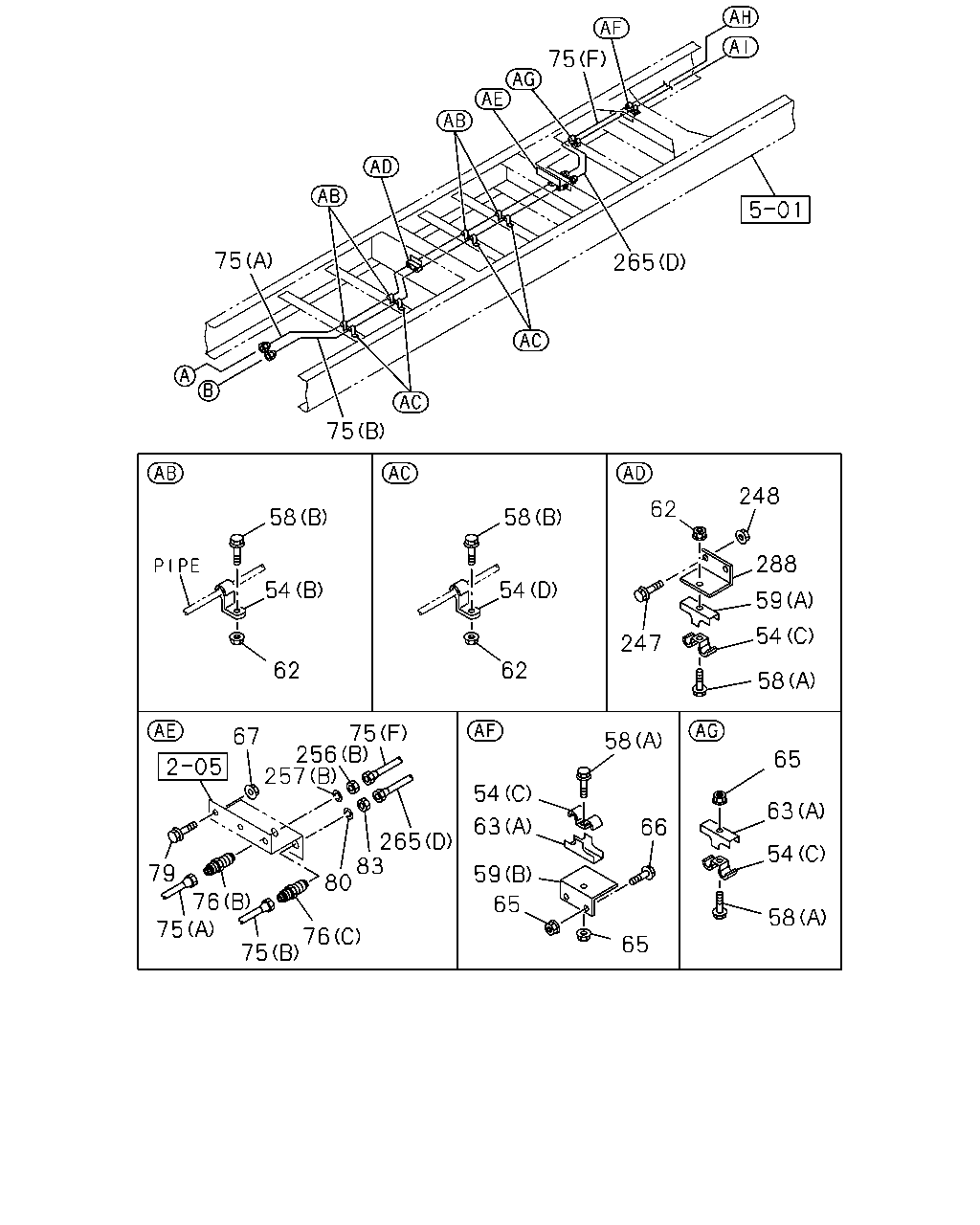

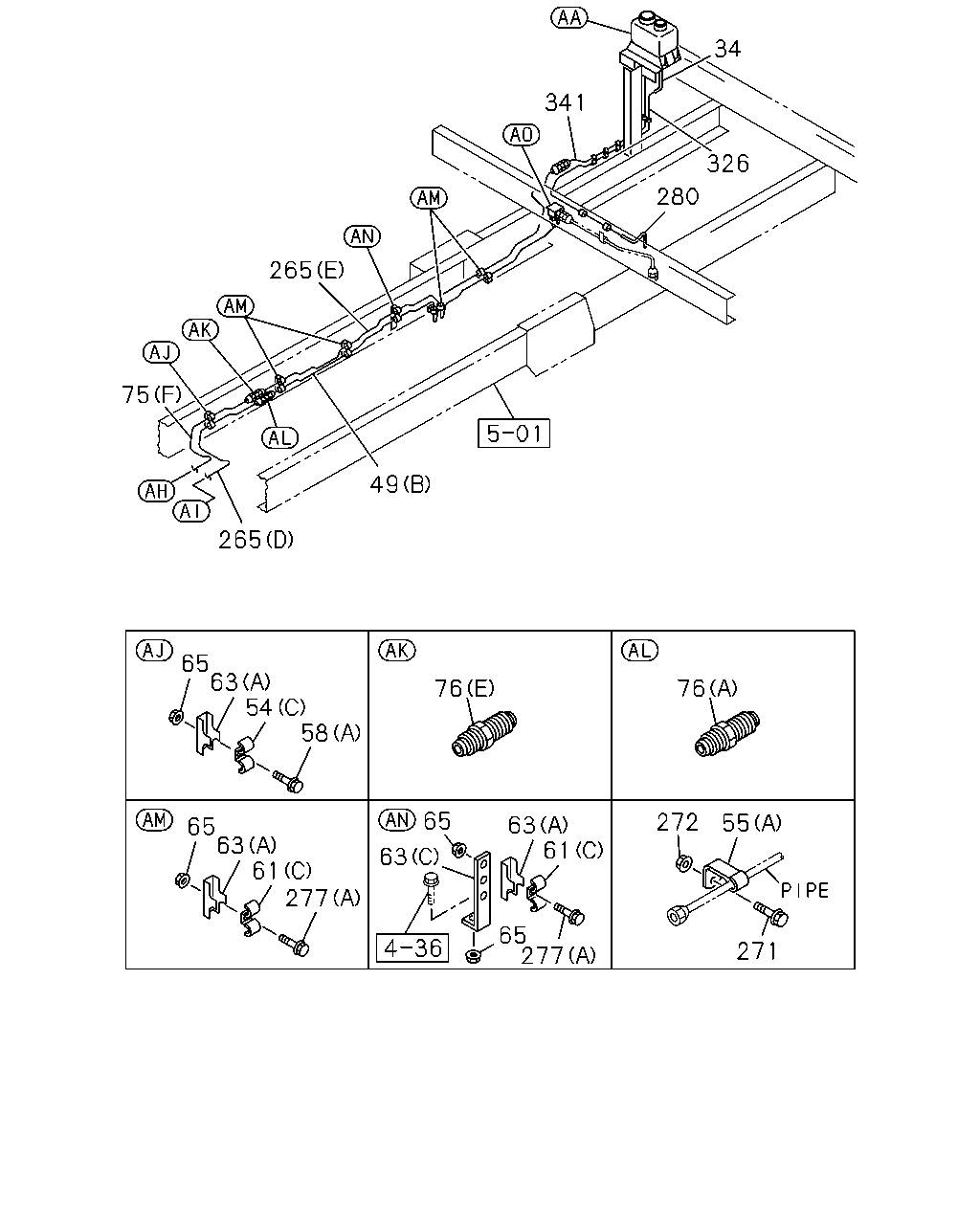

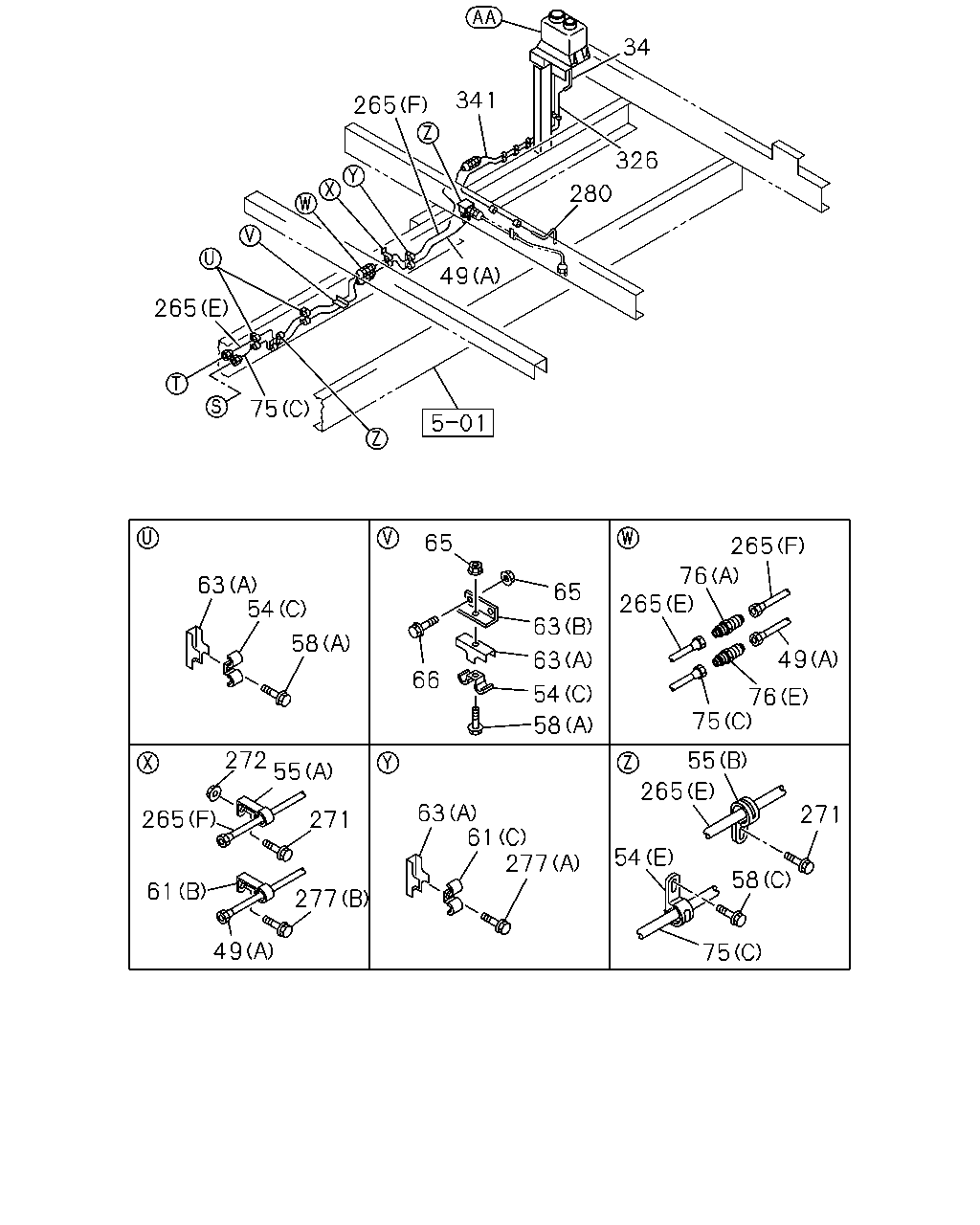

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#34984) — 731 parça

34 341 265 326 280 49 265 75 65 265 76 265 63 54 65 63 58 49 63 66 54 76 75 58 272 55 55 265 63 61 277 271 265 271 54 58 61 277 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	HOSE; P/S OIL TANK,OUTLET L=240	1-09360-625-1	01	1	0404-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION (A)	1-21116-739-0	01	1	0404-	●
49	PIPE; OIL,FLEX HOSE TO UNION (B)	1-21117-130-0	01	1	0404-		●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0404-0606	●
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0404-	●	●
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-		●
55	CLIP; P/S RUBBER HOSE (A) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
55	CLIP; P/S RUBBER HOSE (B) ID=16 L=20	9-09525-535-0	01	1	0404-0606	●
55	CLIP; P/S RUBBER HOSE (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●
55	CLIP; P/S RUBBER HOSE (A) ID=15 H=30 L=30	1-09700-832-0	01	1	0404-		●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0404-0512	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0404-	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0404-	●	●
61	CLIP; OIL PIPE (D) ID=28 L=40	1-09701-261-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-		●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0404-	●
63	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	0404-	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0404-	●	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	0404-		●
63	BRACKET; CLIP,P/S (C) L=135	1-47478-729-0	01	1	0404-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0404-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0404-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0404-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-089-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1130	1-21117-318-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-745-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-751-0	01	1	0404-		●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-	●	●
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-	●	●
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-	●	●
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (F)	1-21117-104-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B) L=1231	1-21117-317-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B)	1-21116-753-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-090-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-092-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (E)	1-21117-131-0	01	1	0404-		●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28080-845-0	01	1	0404-0512	●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28080-845-0	04	1	0404-0512		●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28050-845-0	04	1	0601-		●
280	HOSE; P/S OIL PUMP,INL	1-21116-740-1	01	1	0404-	●	●
326	PIPE; OIL,OIL TANK TO PUMP	1-21116-985-0	01	1	0404-	●	●
341	PIPE; OIL,UNION TO OIL TANK	1-21117-105-0	01	1	0404-	●	●

1 2 7 8 20 2 19 3 12 5 19 15

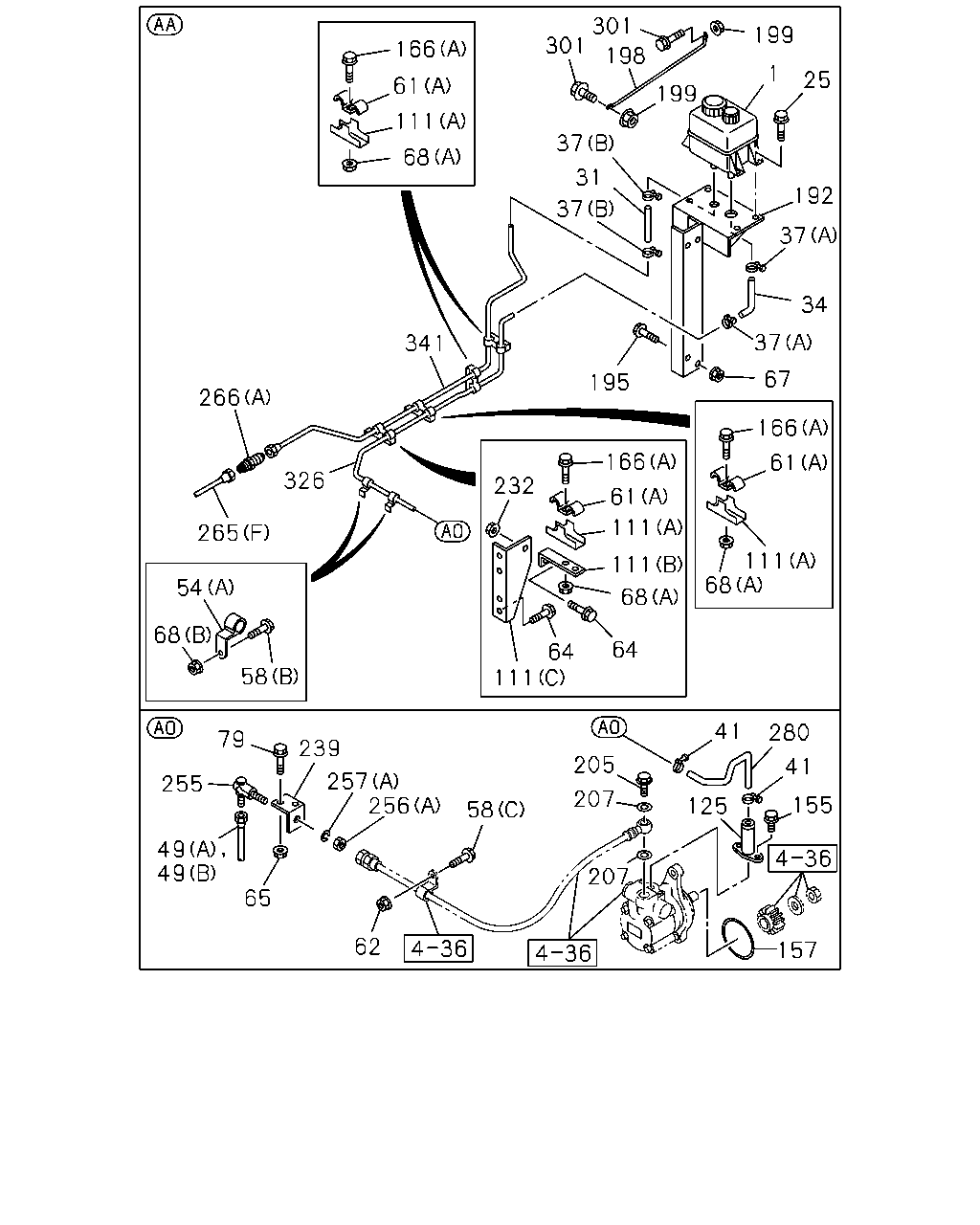

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0404-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0404-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0404-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0404-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0404-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0404-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0404-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0404-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	0404-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0404-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0404-	●	●

34 341 326 280 265 75 49 265 65 63 54 58 76 76 65 272 55 63 61 65 63 61 277 63 65 277 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	HOSE; P/S OIL TANK,OUTLET L=240	1-09360-625-1	01	1	0404-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION (A)	1-21116-739-0	01	1	0404-	●
49	PIPE; OIL,FLEX HOSE TO UNION (B)	1-21117-130-0	01	1	0404-		●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0404-0606	●
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0404-	●	●
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-		●
55	CLIP; P/S RUBBER HOSE (A) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
55	CLIP; P/S RUBBER HOSE (B) ID=16 L=20	9-09525-535-0	01	1	0404-0606	●
55	CLIP; P/S RUBBER HOSE (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●
55	CLIP; P/S RUBBER HOSE (A) ID=15 H=30 L=30	1-09700-832-0	01	1	0404-		●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0404-0512	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0404-	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0404-	●	●
61	CLIP; OIL PIPE (D) ID=28 L=40	1-09701-261-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-		●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0404-	●
63	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	0404-	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0404-	●	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	0404-		●
63	BRACKET; CLIP,P/S (C) L=135	1-47478-729-0	01	1	0404-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0404-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0404-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0404-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-		●
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-089-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1130	1-21117-318-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-745-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-751-0	01	1	0404-		●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-	●	●
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-	●	●
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-	●	●
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (F)	1-21117-104-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B) L=1231	1-21117-317-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B)	1-21116-753-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-090-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-092-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (E)	1-21117-131-0	01	1	0404-		●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28080-845-0	01	1	0404-0512	●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28080-845-0	04	1	0404-0512		●
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28050-845-0	04	1	0601-		●
280	HOSE; P/S OIL PUMP,INL	1-21116-740-1	01	1	0404-	●	●
326	PIPE; OIL,OIL TANK TO PUMP	1-21116-985-0	01	1	0404-	●	●
341	PIPE; OIL,UNION TO OIL TANK	1-21117-105-0	01	1	0404-	●	●

79 67 61 166 59 75 287 265 265 75 75 266 265 76 8 84 59 44 61 68 256 84 256 44 234 76 79 257 67 233 65 75 256 63 59 63 265 76 66 80 83 75 54 265 234 233 76 79 233 75 67 58 257 256 75 62 75 234 257 256 265 76 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0404-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE L=451	1-21116-755-0	01	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0404-0606	●
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0404-	●	●
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-		●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0404-0512	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0404-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47478-918-0	01	1	0404-	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0404-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0404-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-197-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0404-	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0404-	●	●
61	CLIP; OIL PIPE (D) ID=28 L=40	1-09701-261-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-		●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0404-0602	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0404-0602		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-		●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0404-	●
63	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	0404-	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0404-	●	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	0404-		●
63	BRACKET; CLIP,P/S (C) L=135	1-47478-729-0	01	1	0404-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0404-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0404-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0404-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
68	NUT; CLIP,OIL PIPE (A) M6 FLANGE	0-91150-106-0	04	1	0404-0602	●	●
68	NUT; CLIP,OIL PIPE (A) M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	01	1	0404-0602		●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-089-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1130	1-21117-318-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-745-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-751-0	01	1	0404-		●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-	●	●
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-	●	●
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	10	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	0601-	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	02	1	0404-0603	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	02	1	0604-0903	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	02	1	0904-	●	●
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	02	1	0404-0512	●	●
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	02	1	0601-	●	●
84	HOSE; FLEX,P/S L=520	0-09671-520-0	01	1	0404-0607	●	●
84	HOSE; FLEX,P/S L=520	0-89671-520-0	01	1	0608-0611	●	●
84	HOSE; FLEX,P/S L=520	8-98072-097-0	01	1	0612-	●	●
166	BOLT; CLIP (A) M6X40 FLANGE	0-28680-640-0	04	1	0404-0512	●	●
166	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	04	1	0601-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
233	BOLT; PIPE CLIP,P/S M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
233	BOLT; PIPE CLIP,P/S M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
233	BOLT; PIPE CLIP,P/S M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
233	BOLT; PIPE CLIP,P/S M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28680-840-0	01	1	0404-0512		●
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	03	1	0404-0602	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	03	1	0603-	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	05	1	0404-0602		●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	05	1	0603-		●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-	●	●
256	NUT; UNION (B) M20	9-99111-420-0	04	1	0404-0512	●	●
256	NUT; UNION (B) M20	0-91111-520-0	04	1	0601-	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0404-0603	●	●
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-	●	●
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (F)	1-21117-104-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B) L=1231	1-21117-317-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B)	1-21116-753-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-090-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-092-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (E)	1-21117-131-0	01	1	0404-		●
266	UNION; OIL PIPE,P/S (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0404-	●	●
266	UNION; OIL PIPE,P/S (A) M22	1-09654-409-0	01	1	0404-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

265 265 75 58 58 54 54 75 62 62 62 58 58 54 248 54 59 288 59 59 59 247 54 65 65 58 66 265 256 257 76 67 58 265 79 54 65 59 76 265 83 80 59 76 66 265 75 76 75 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0404-0606	●
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0404-	●	●
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-		●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0404-0512	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0404-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47478-918-0	01	1	0404-	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0404-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0404-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-197-0	01	1	0404-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0404-0602	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0404-0602		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0404-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0404-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0404-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-089-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1130	1-21117-318-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-745-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-751-0	01	1	0404-		●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-	●	●
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-	●	●
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	10	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	0601-	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	02	1	0404-0603	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	02	1	0604-0903	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	02	1	0904-	●	●
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	02	1	0404-0512	●	●
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	02	1	0601-	●	●
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
248	NUT; BRKT,CLIP M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-	●	●
256	NUT; UNION (B) M20	9-99111-420-0	04	1	0404-0512	●	●
256	NUT; UNION (B) M20	0-91111-520-0	04	1	0601-	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0404-0603	●	●
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-	●	●
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (F)	1-21117-104-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B) L=1231	1-21117-317-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B)	1-21116-753-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-090-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-092-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (E)	1-21117-131-0	01	1	0404-		●
288	BRACKET; CLIP,P/S	1-47478-408-0	01	1	0404-	●	●

301 199 301 166 198 1 25 61 199 111 37 68 31 192 37 37 34 37 341 67 195 266 166 166 61 326 232 61 111 265 111 68 111 54 68 68 64 64 111 58 41 280 79 239 205 41 257 256 255 207 155 125 58 49 49 207 65 62 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0404-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL	0-09814-120-0	01	1	0404-	●	●
34	HOSE; P/S OIL TANK,OUTLET L=240	1-09360-625-1	01	1	0404-	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0404-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0404-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0404-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION (A)	1-21116-739-0	01	1	0404-	●
49	PIPE; OIL,FLEX HOSE TO UNION (B)	1-21117-130-0	01	1	0404-		●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0404-0606	●
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0404-	●	●
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-		●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0404-0512	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0404-	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0404-	●
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0404-	●	●
61	CLIP; OIL PIPE (D) ID=28 L=40	1-09701-261-0	01	1	0404-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-		●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0404-0602	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0404-0602		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-		●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0404-0512	●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0404-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0404-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0404-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
68	NUT; CLIP,OIL PIPE (A) M6 FLANGE	0-91150-106-0	04	1	0404-0602	●	●
68	NUT; CLIP,OIL PIPE (A) M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	01	1	0404-0602		●
68	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	10	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	0601-	●	●
111	BRACKET; OIL PIPE (A)	1-47475-427-1	04	1	0404-	●	●
111	BRACKET; OIL PIPE (B)	1-47478-918-0	01	1	0404-	●	●
111	BRACKET; OIL PIPE (C)	1-47479-211-1	01	1	0404-	●	●
125	CONNECTOR; P/S PUMP	1-21122-022-0	01	1	0404-	●	●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0404-0906	●	●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50640-818-0	02	1	0907-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0404-	●	●
166	BOLT; CLIP (A) M6X40 FLANGE	0-28680-640-0	04	1	0404-0512	●	●
166	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	04	1	0601-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
192	BRACKET; P/S OIL TANK	1-65600-681-0	01	1	0404-	●	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0404-0512	●	●
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
198	STAY; OIL TANK,POWER STEERING	1-47479-210-0	01	1	0404-	●	●
199	NUT; STAY,OIL TANK M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
199	NUT; STAY,OIL TANK M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
205	BOLT; EYE,FLEX HOSE,P/S M18X39	1-09675-114-0	01	1	0404-	●	●
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	0404-	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
239	BRACKET; FLEX HOSE	1-47478-942-0	01	1	0404-	●	●
255	UNION; FLEX HOSE M20 & M22 ELBOW	1-09654-154-1	01	1	0404-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-	●	●
256	NUT; UNION (B) M20	9-99111-420-0	04	1	0404-0512	●	●
256	NUT; UNION (B) M20	0-91111-520-0	04	1	0601-	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0404-0603	●	●
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-	●	●
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (F)	1-21117-104-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B) L=1231	1-21117-317-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B)	1-21116-753-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-090-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-092-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (E)	1-21117-131-0	01	1	0404-		●
266	UNION; OIL PIPE,P/S (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0404-	●	●
266	UNION; OIL PIPE,P/S (A) M22	1-09654-409-0	01	1	0404-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21116-740-1	01	1	0404-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
326	PIPE; OIL,OIL TANK TO PUMP	1-21116-985-0	01	1	0404-	●	●
341	PIPE; OIL,UNION TO OIL TANK	1-21117-105-0	01	1	0404-	●	●

75 75 265 75 248 62 58 58 288 54 54 59 54 247 62 62 58 75 256 257 67 58 65 54 63 63 66 265 83 80 54 79 59 76 75 65 58 76 75 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0404-	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0404-	●
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0404-0606	●
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0404-	●	●
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-	●	●
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0404-		●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	03	1	0404-0512	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	03	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0404-0512	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28680-840-0	05	1	0404-0512	●	●
58	BOLT; CLIP (A) M8X40 FLANGE	0-28650-840-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	04	1	0404-0512		●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0404-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47478-918-0	01	1	0404-	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0404-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0404-	●	●
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-197-0	01	1	0404-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0404-0602	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0404-0602	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0404-0602		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-		●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0404-	●
63	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	0404-	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0404-	●	●
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	05	1	0404-		●
63	BRACKET; CLIP,P/S (C) L=135	1-47478-729-0	01	1	0404-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0404-0602	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0404-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0404-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0404-0512		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0404-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21117-089-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1130	1-21117-318-0	01	1	0404-	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0404-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (F)	1-21116-745-0	01	1	0404-		●
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-751-0	01	1	0404-		●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0404-0607	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●	●
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0404-0607	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●	●
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-	●
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-	●	●
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0404-0607	●	●
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-	●	●
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0404-0607	●	●
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	10	1	0404-0512	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	0601-	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	02	1	0404-0603	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	02	1	0604-0903	●	●
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	02	1	0904-	●	●
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	02	1	0404-0512	●	●
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	02	1	0601-	●	●
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
248	NUT; BRKT,CLIP M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0404-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-	●	●
256	NUT; UNION (B) M20	9-99111-420-0	04	1	0404-0512	●	●
256	NUT; UNION (B) M20	0-91111-520-0	04	1	0601-	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-	●	●
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0404-0603	●	●
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-	●	●
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (F)	1-21117-104-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B) L=1231	1-21117-317-0	01	1	0404-	●
265	PIPE; OIL,UNION TO UNION (B)	1-21116-753-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (C)	1-21117-090-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (D)	1-21117-092-0	01	1	0404-		●
265	PIPE; OIL,UNION TO UNION (E)	1-21117-131-0	01	1	0404-		●
288	BRACKET; CLIP,P/S	1-47478-408-0	01	1	0404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
