Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

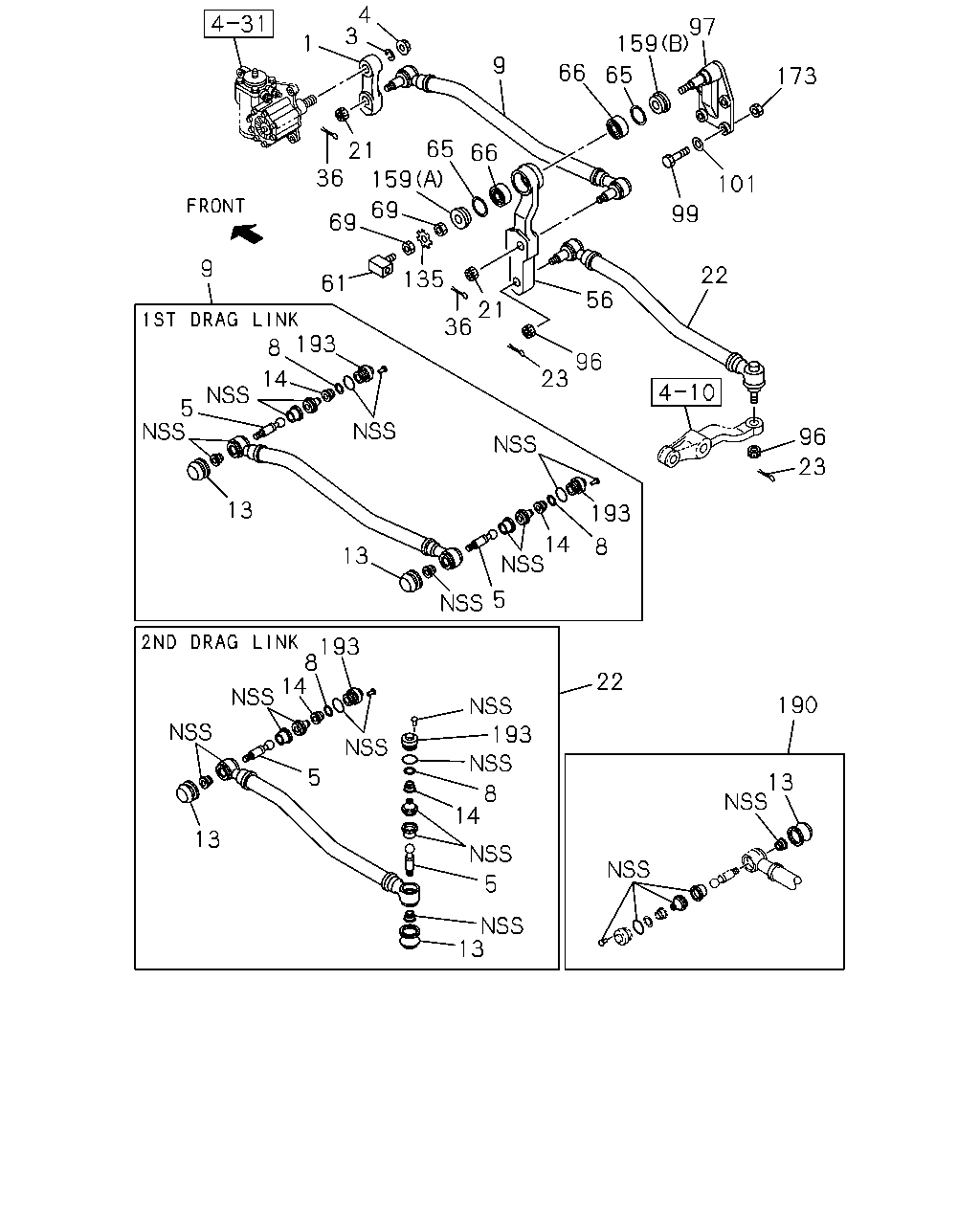

4-33 — STEERING LINKAGE
(#34983) — 41 parça
Tümü
A - LVD6FB
B - LVR6FB
1
3
4
9
66
65
159
97
173
101
99
22
96
23
193
14
8
13
13
5
14
8
193
9
61
69
135
36
21
56
96
23
69
159
65
66
21
36
5
22
190
13
5
13
14
8
193
5
14
8
193
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-473-3
01
1
0404-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0404-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0404-0805
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
●
●
5
BALL; JOINT,DRAG LINK
1-44361-105-1
04
1
0404-
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
04
1
0404-
●
●
9
LINK; DRAG
1-44380-289-1
01
1
0404-
●
9
LINK; DRAG
1-44380-250-3
01
1
0404-
●
13
BOOT; DRAG LINK
1-43159-107-0
04
1
0404-
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
04
1
0404-
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0404-0805
●
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
●
22
LINK; DRAG,2ND
1-44380-251-2
01
1
0404-
●
22
LINK; DRAG,2ND
1-44380-253-2
01
1
0404-
●
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
9-08115-035-0
02
1
0404-0606
●
●
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0404-0606
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-174-0
01
1
0404-
●
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-191-0
01
1
0404-
●
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
9-09031-210-0
01
1
0404-0512
●
●
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
0-90301-610-0
01
1
0601-
●
●
65
SEAL; DUST,LINK ARM
9-44349-040-1
02
1
0404-
●
●
66
BEARING; LINK ARM
9-00030-207-0
02
1
0404-
●
●
69
NUT; LINK ARM
M24
9-09840-264-0
02
1
0404-
●
●
96
NUT; LINK ARM
M24 SLOTTED
1-09442-020-0
02
1
0404-0805
●
●
96
NUT; LINK ARM
M24
1-09442-032-0
02
1
0806-
●
●
97
BRACKET; LINK ARM
1-44348-078-1
01
1
0404-1111
●
97
BRACKET; LINK ARM
1-44348-078-1
01
1
1112-
●
●
97
BRACKET; LINK ARM
1-44348-080-0
01
1
0404-1111
●
99
BOLT; BRKT
M14X50
9-92061-450-0
04
1
0404-0512
●
●
99
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0601-
●
●
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
08
1
1206-
●
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
04
1
0404-1205
●
●
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
04
1
1206-
●
135
WASHER; LK,PIN SET,LINK ARM
9-09853-842-0
01
1
0404-
●
●
159
WASHER; LINK ARM
(A)
9-44349-039-0
01
1
0404-
●
●
159
WASHER; LINK ARM
(B) ID=35 T=9
9-44349-046-0
01
1
0404-
●
●
173
NUT; BRKT,LINK ASM
M14
0-91110-514-0
04
1
1206-
●
190
REPAIR KIT; DRAG LINK
1-85574-041-0
04
1
0404-
●
●
193
PLUG; END,DRAG LINK
1-43159-093-0
04
1
0404-
●
●
