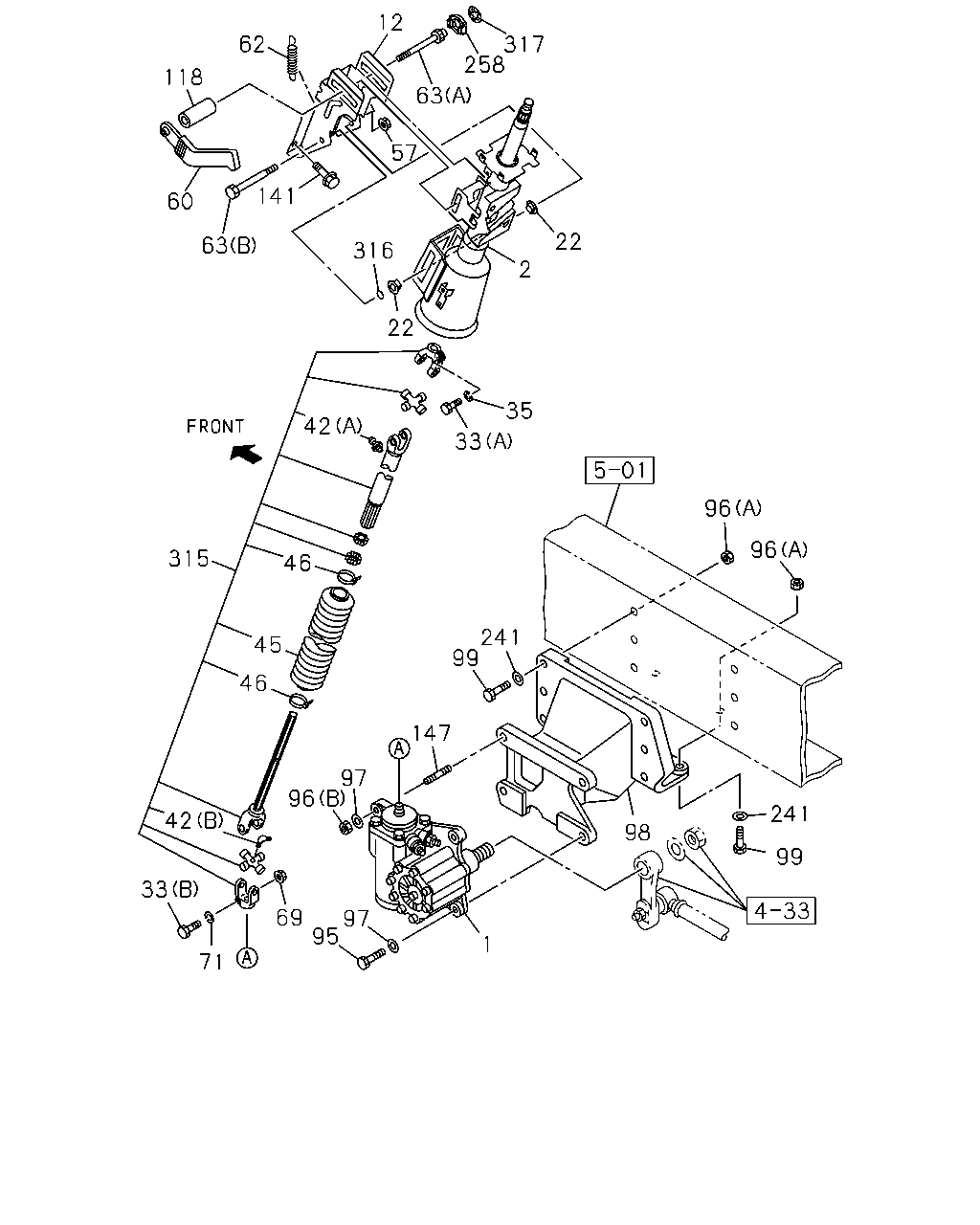

4-31 — STEERING COLUMN AND SHAFT
(#34982) — 44 parça
Tümü
A - LVD6FB
B - LVR6FB
12
62
317
258
118
63
57
141
60
22
63
316
2
22
35
42
33
96
96
315
46
241
99
45
46
147
97
96
241
42
98
99
33
69
97
95
1
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-912-2
01
1
0404-
●
●
2
SHAFT ASM; STRG
1-44130-689-1
01
1
0404-
●
●
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0404-0811
●
●
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0812-
●
●
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0404-
●
●
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0404-0709
●
●
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0710-
●
●
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0404-
●
●
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0404-
●
●
42
NIPPLE; GREASE,SLEEVE YOKE
(A)
1-44135-375-0
01
1
0507-
●
●
42
NIPPLE; GREASE,SLEEVE YOKE
(B)
1-44135-376-0
01
1
0507-
●
●
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0404-
●
●
46
CLIP; BOOT
1-44139-156-0
02
1
0404-
●
●
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0404-
●
●
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0404-
●
●
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0404-
●
●
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0404-
●
●
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0404-
●
●
69
NUT; TILT CENTER
M10 FLANGE
0-91150-210-0
01
1
0404-0602
●
●
69
NUT; TILT CENTER
M10 FLANGE
0-91180-210-0
01
1
0603-1006
●
●
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
1007-
●
●
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
9-09150-810-0
01
1
0404-0603
●
●
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0604-
●
●
95
BOLT; STRG UNIT
M18X65
1-09000-583-0
03
1
0404-0805
●
●
95
BOLT; STRG UNIT
M18X65
1-09000-789-0
03
1
0806-
●
●
96
NUT; STRG UNIT
(A) M16
9-99110-516-0
08
1
0404-0512
●
●
96
NUT; STRG UNIT
(A) M16
0-91110-516-0
08
1
0601-
●
●
96
NUT; STRG UNIT
(B) M18
9-99110-518-0
01
1
0404-0512
●
●
96
NUT; STRG UNIT
(B) M18
0-91110-518-0
01
1
0601-
●
●
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
0404-
●
●
98
BRACKET; STRG GEAR BOX
1-44226-172-1
01
1
0404-
●
●
99
BOLT; BRKT TO FRAME
M16X55
1-09000-480-0
08
1
0404-
●
●
118
NUT; LEVER,TILT BOLT
1-44227-146-0
01
1
0404-0506
●
●
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0507-
●
●
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28080-816-0
04
1
0404-0512
●
●
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28050-816-0
04
1
0601-
●
●
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
0404-
●
●
241
WASHER; PL
ID=16.2
1-09503-223-0
16
1
0404-0903
●
●
241
WASHER; PL
ID=16.2
1-09503-316-0
16
1
0904-
●
●
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0404-
●
●
315
JOINT; SPLINE
1-44135-342-0
01
1
0404-0506
●
●
315
JOINT; SPLINE
1-44135-377-0
01
1
0507-
●
●
316
RING
1-44227-152-0
01
1
0404-
●
●
317
NUT; PUSH
1-44227-148-0
01
1
0404-
●
●
