10948 - LV123/423-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

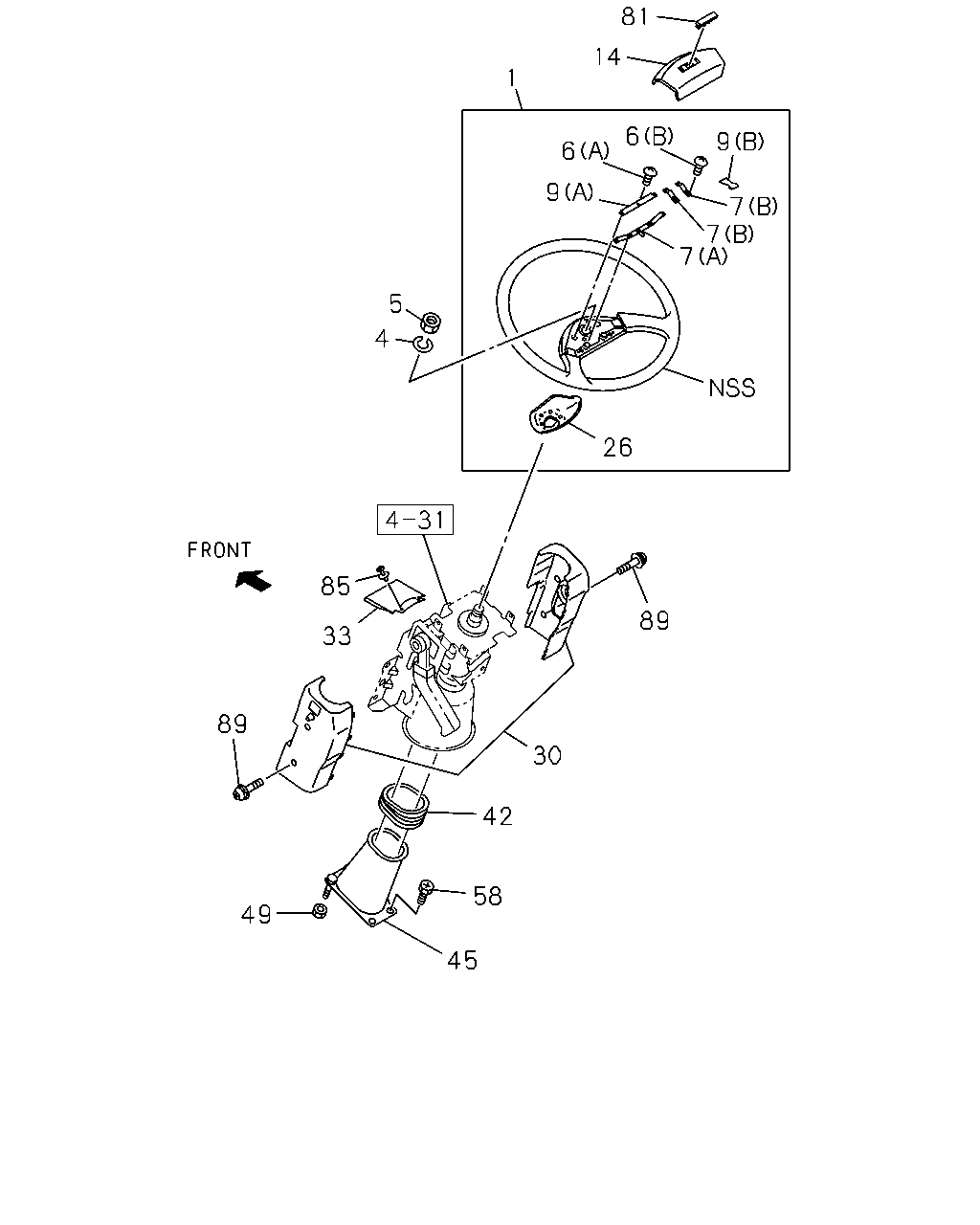

4-30 — STEERING WHEEL AND COWL
(#34981) — 23 parça
Tümü
A - LVD6FB
B - LVR6FB
81
14
1
6
9
6
9
7
7
7
5
4
26
85
89
33
89
30
42
58
49
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
WHEEL; STRG
1-44110-156-1
01
1
0404-
●
●
4
WASHER; LK,STRG WHEEL
ID=20.2
9-09150-520-0
01
1
0404-0603
●
●
4
WASHER; LK,STRG WHEEL
ID=20.2
0-91510-520-0
01
1
0604-
●
●
5
NUT; STRG WHEEL TO SHAFT
M20
9-99111-420-0
01
1
0404-0512
●
●
5
NUT; STRG WHEEL TO SHAFT
M20
0-91111-520-0
01
1
0601-
●
●
6
SCREW; HORN SPR CONTACT
(B) M4X16
1-44129-036-0
04
1
0404-
●
●
6
SCREW; HORN SPR CONTACT
(A) M5X10
1-44129-049-0
01
1
0404-
●
●
7
SPRING; HORN CONTACT
(B)
1-44129-033-0
02
1
0404-
●
●
7
SPRING; HORN CONTACT
(A)
1-44129-060-0
01
1
0404-
●
●
9
PLATE; HORN CONTACT
(B)
1-44129-048-0
02
1
0404-
●
●
9
PLATE; HORN CONTACT
(A)
1-44129-059-0
01
1
0404-
●
●
14
BUTTON; HORN,STRG WHEEL
1-44120-045-2
01
1
0404-
●
●
26
COVER; STRG WHEEL,LWR
1-44129-050-0
01
1
0404-
●
●
30
COWL; STEERING
1-79997-342-3
01
1
0404-
●
●
33
COVER; STRG COWL
1-72438-121-3
01
1
0404-
●
●
42
BOOT; STEERING COLUMN
1-79996-385-1
01
1
0404-
●
●
45
BOOT; STRG SHAFT
1-79998-738-2
01
1
0404-
●
●
49
NUT; BOOT,STRG SHAFT
M6 FLANGE
0-91150-106-0
02
1
0404-0602
●
●
49
NUT; BOOT,STRG SHAFT
M6 FLANGE
0-91180-106-0
02
1
0603-
●
●
58
SCREW; SET
M6X30
9-03494-630-0
02
1
0404-
●
●
81
EMBLEM; STRG WHEEL
1-76210-638-1
01
1
0404-
●
●
85
CLIP; STRG COWL
D6X12.5
8-94146-425-0
02
1
0404-
●
●
89
SCREW; COWL
M6X16 W/LK&PL WASHER
8-94279-402-0
04
1
0404-
●
●
