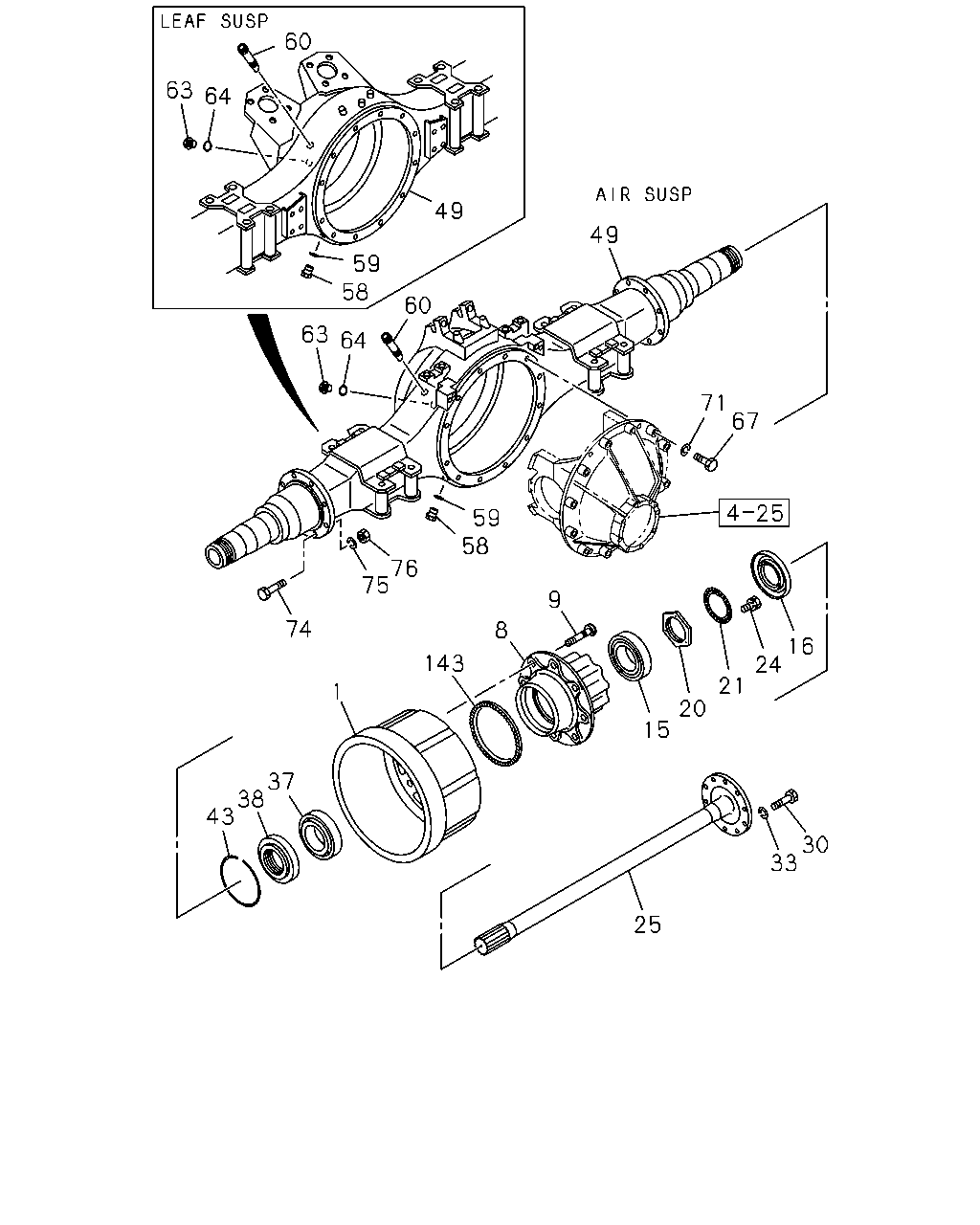

4-20 — REAR AXLE CASE AND SHAFT (#34979) — 117 parça

60 63 64 49 49 59 58 60 63 64 71 67 59 58 76 75 9 74 8 16 24 143 21 1 20 15 37 38 43 30 33 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-377-2	02	1	0404-	●	●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-358-0	02	1	0404-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> ANTI SKID BRK SYSTEM<SFL>	1-42311-094-0	02	1	0404-	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. ANTI SKID BRK SYSTEM<SFL>	1-42311-085-0	02	1	0404-	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-085-0	02	1	0404-		●
8	HUB; RR AXLE ANTI SKID BRK SYSTEM<SFL> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-105-0	02	1	0404-	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,ANTI SKID BRK SYSTEM<SFL>	1-42311-104-0	02	1	0404-	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-104-0	02	1	0404-		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> M22X109 RH THREAD	1-42337-071-0	20	1	0404-0501	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> M22X109 RH THREAD	1-42337-076-1	20	1	0502-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> M22X93 RH THREAD	1-42337-066-2	20	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X55.5,M22X51.5 RH THREAD	1-42331-146-2	08	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X55.5 LH THREAD,M22X51.5 RH THREAD	1-42332-146-2	08	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0404-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0404-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0404-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0404-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0404-		●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0404-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0404-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
25	SHAFT; AXLE,RR	1-42171-382-0	02	1	0404-0910	●	●
25	SHAFT; AXLE,RR	8-98146-165-0	02	1	0911-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0404-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0404-0603	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0404-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0404-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0404-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0404-	●	●
49	CASE; RR AXLE	1-42190-234-1	01	1	0404-0507	●
49	CASE; RR AXLE	1-42190-497-2	01	1	0508-	●
49	CASE; RR AXLE	1-42190-230-1	01	1	0404-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0404-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0404-	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	0404-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0404-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0404-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0404-0512	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0404-0512	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0404-0603	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-	●	●
74	BOLT; RR BRK ASM SETTING ANTI SKID BRK SYSTEM<SFL> M14X50	1-09040-066-0	10	1	0404-	●
74	BOLT; RR BRK ASM SETTING ANTI SKID BRK SYSTEM<SFL> M14X80	9-92621-480-0	04	1	0404-	●
74	BOLT; RR BRK ASM SETTING EXC. ANTI SKID BRK SYSTEM<SFL> M14X50	1-09040-066-0	14	1	0404-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0404-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0404-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0404-0512	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●
143	RING; EXCITER ANTI SKID BRK SYSTEM<SFL>	1-42319-173-0	02	1	0404-	●

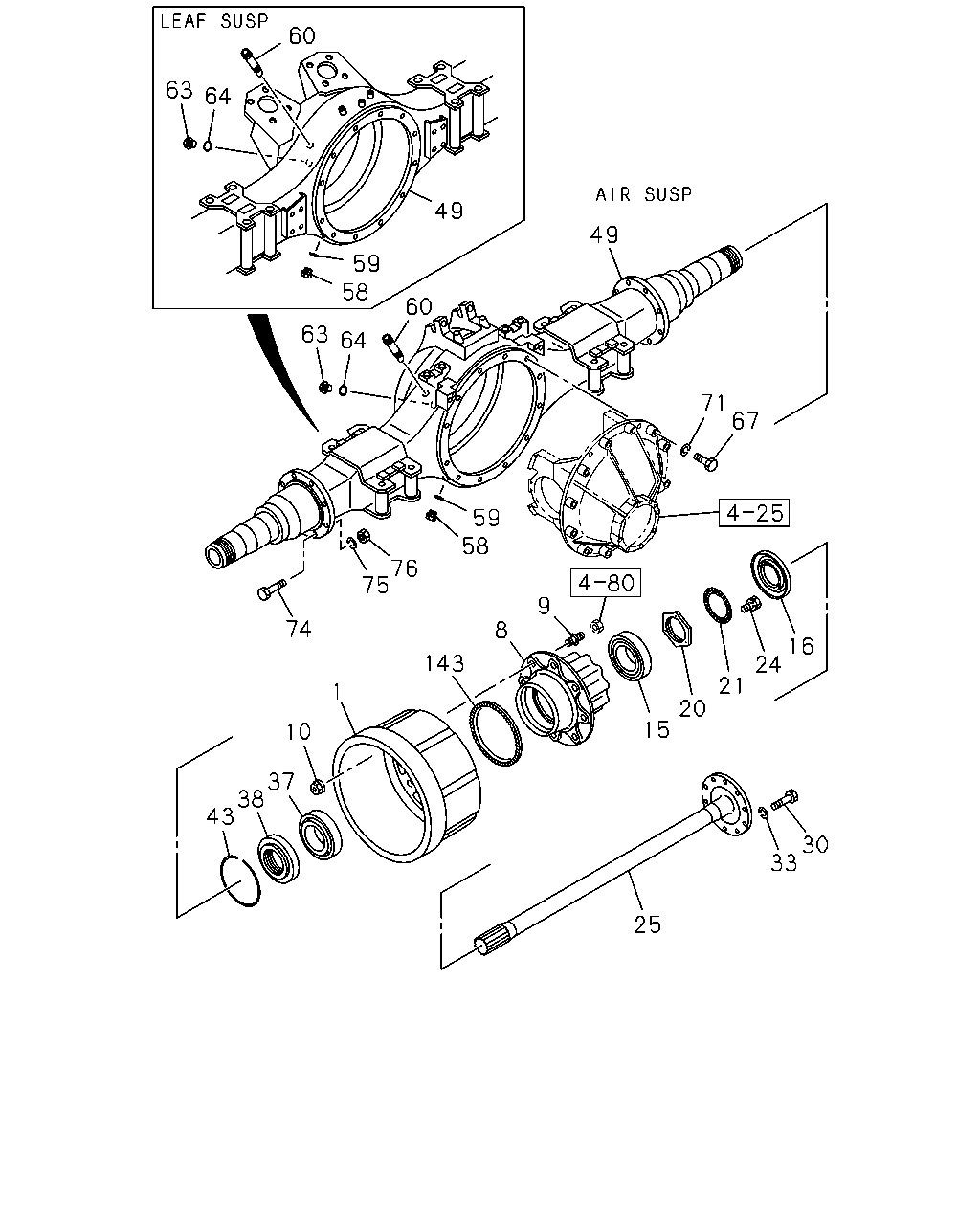

60 63 64 49 49 59 58 60 63 64 71 67 59 58 76 75 9 74 8 16 24 143 21 1 20 15 10 37 38 43 30 33 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-377-2	02	1	0404-	●	●
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-358-0	02	1	0404-	●	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> ANTI SKID BRK SYSTEM<SFL>	1-42311-094-0	02	1	0404-	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. ANTI SKID BRK SYSTEM<SFL>	1-42311-085-0	02	1	0404-	●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-085-0	02	1	0404-		●
8	HUB; RR AXLE ANTI SKID BRK SYSTEM<SFL> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-105-0	02	1	0404-	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,ANTI SKID BRK SYSTEM<SFL>	1-42311-104-0	02	1	0404-	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-104-0	02	1	0404-		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> M22X109 RH THREAD	1-42337-071-0	20	1	0404-0501	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> M22X109 RH THREAD	1-42337-076-1	20	1	0502-	●	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> M22X93 RH THREAD	1-42337-066-2	20	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X55.5,M22X51.5 RH THREAD	1-42331-146-2	08	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X55.5 LH THREAD,M22X51.5 RH THREAD	1-42332-146-2	08	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0404-	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0404-	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	0404-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0404-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0404-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0404-	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0404-		●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0404-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0404-0512	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●	●
25	SHAFT; AXLE,RR	1-42171-382-0	02	1	0404-0910	●	●
25	SHAFT; AXLE,RR	8-98146-165-0	02	1	0911-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0404-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0404-0603	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0404-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0404-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0404-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0404-	●	●
49	CASE; RR AXLE	1-42190-234-1	01	1	0404-0507	●
49	CASE; RR AXLE	1-42190-497-2	01	1	0508-	●
49	CASE; RR AXLE	1-42190-230-1	01	1	0404-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0404-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0404-	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	0404-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0404-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0404-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0404-0512	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0404-0512	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0404-0603	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-	●	●
74	BOLT; RR BRK ASM SETTING ANTI SKID BRK SYSTEM<SFL> M14X50	1-09040-066-0	10	1	0404-	●
74	BOLT; RR BRK ASM SETTING ANTI SKID BRK SYSTEM<SFL> M14X80	9-92621-480-0	04	1	0404-	●
74	BOLT; RR BRK ASM SETTING EXC. ANTI SKID BRK SYSTEM<SFL> M14X50	1-09040-066-0	14	1	0404-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0404-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0404-0603	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0404-0512	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●	●
143	RING; EXCITER ANTI SKID BRK SYSTEM<SFL>	1-42319-173-0	02	1	0404-	●
