Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#34977) — 368 parça

3 61 32 275 8 6 312 25 34 33 6 8 8 305 11 275 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	KING PIN SET	1-87830-738-5	02	1	0404-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0404-	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0404-	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0404-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0404-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0404-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0404-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0404-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0404-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-798-0	01	1	1404-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-799-0	01	1	1404-	●	●
61	ROD END; TIE ROD	1-43150-803-0	01	1	0404-1403	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43150-803-0	01	1	1404-	●	●
61	ROD END; TIE ROD	1-43150-804-0	01	1	0404-1403	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43150-804-0	01	1	1404-	●	●
275	BOOT; ROD END,TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98229-116-0	02	1	1404-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0404-1403	●	●
275	BOOT; ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43159-107-0	02	1	1404-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0404-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●
311	REPAIR KIT; ROD END,TIE	1-85574-041-0	02	1	0404-1403	●	●
311	REPAIR KIT; ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-85574-041-0	02	1	1404-	●	●
312	JOINT; BALL,ROD END,TIE	1-44361-105-1	02	1	0404-1403	●	●
312	JOINT; BALL,ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-44361-105-1	02	1	1404-	●	●

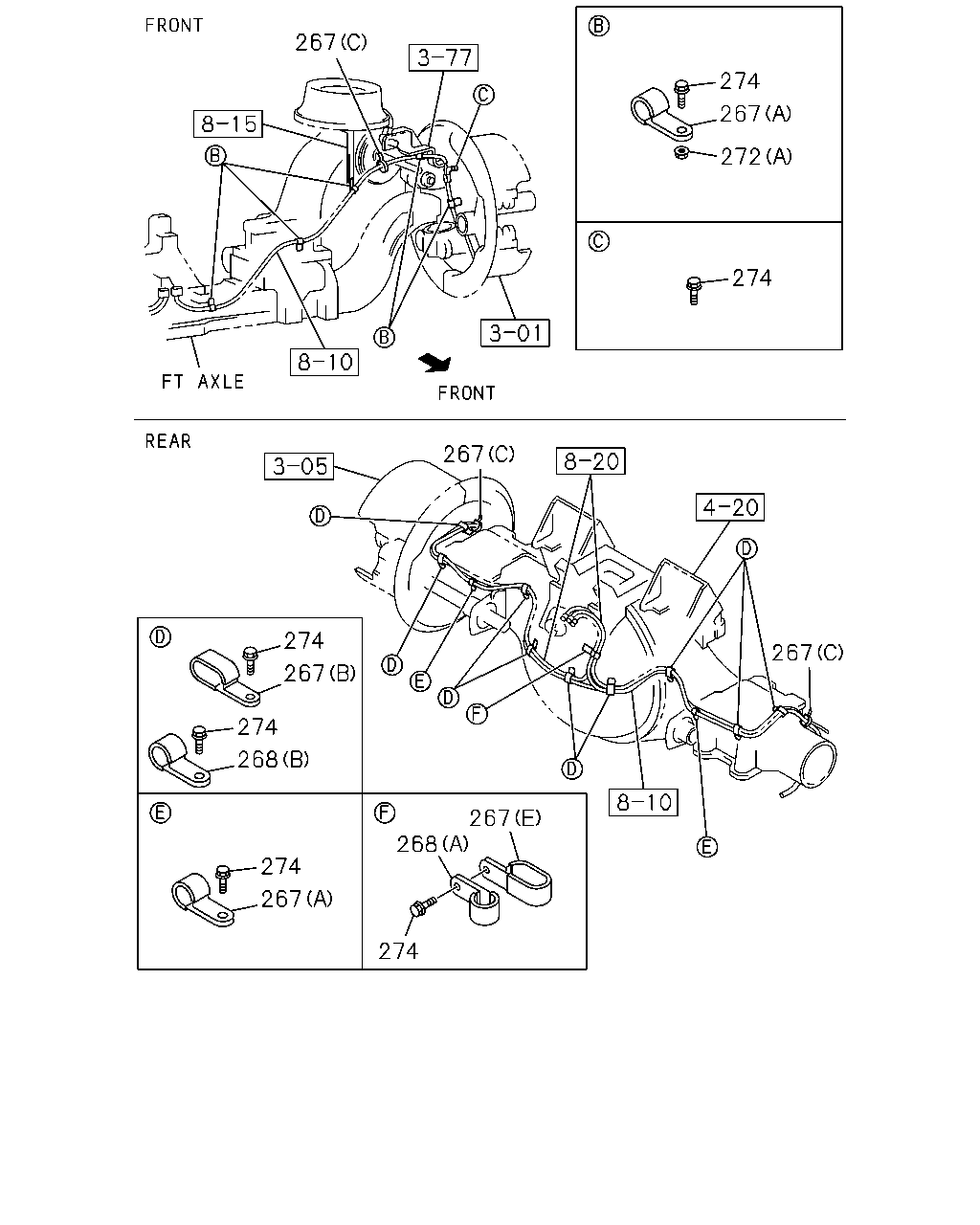

267 274 267 272 274 267 274 267 267 274 268 267 268 74 267 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0404-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	02	1	0807-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	9-09535-085-0	02	1	0404-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	0-95325-085-0	02	1	0607-	●
267	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	04	1	0404-0606	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	04	1	0607-1003	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (C) L=140	5-09707-031-1	02	1	0404-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	9-09525-025-0	02	1	0404-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	0607-1003	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	9-09535-025-0	09	1	0404-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	09	1	0607-	●
267	CLIP; HARNESS (D) ID=11 L=58	9-09917-135-2	02	1	0404-		●
268	CLIP; HARNESS (A) ID=11 L=50	9-09525-085-0	01	1	0404-0606	●
268	CLIP; HARNESS (A) ID=11 L=50	0-95235-085-0	01	1	0607-	●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	9-09525-025-0	09	1	0404-0606	●
268	CLIP; HARNESS (B) ID=11 L=16	9-09525-025-0	09	1	0404-0606		●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	0-95235-025-0	09	1	0607-	●
268	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	09	1	0607-		●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	02	1	0404-0602	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	04	1	0404-0602		●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●
272	NUT; CLIP (B) M10	9-09111-410-0	02	1	0404-0512		●
272	NUT; CLIP (B) M10	0-91111-510-0	02	1	0601-		●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	06	1	0807-1003	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
274	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0404-0512	●
274	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
274	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●
274	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	12	1	0404-0512	●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	12	1	0601-	●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	09	1	0404-0512		●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	09	1	0601-		●

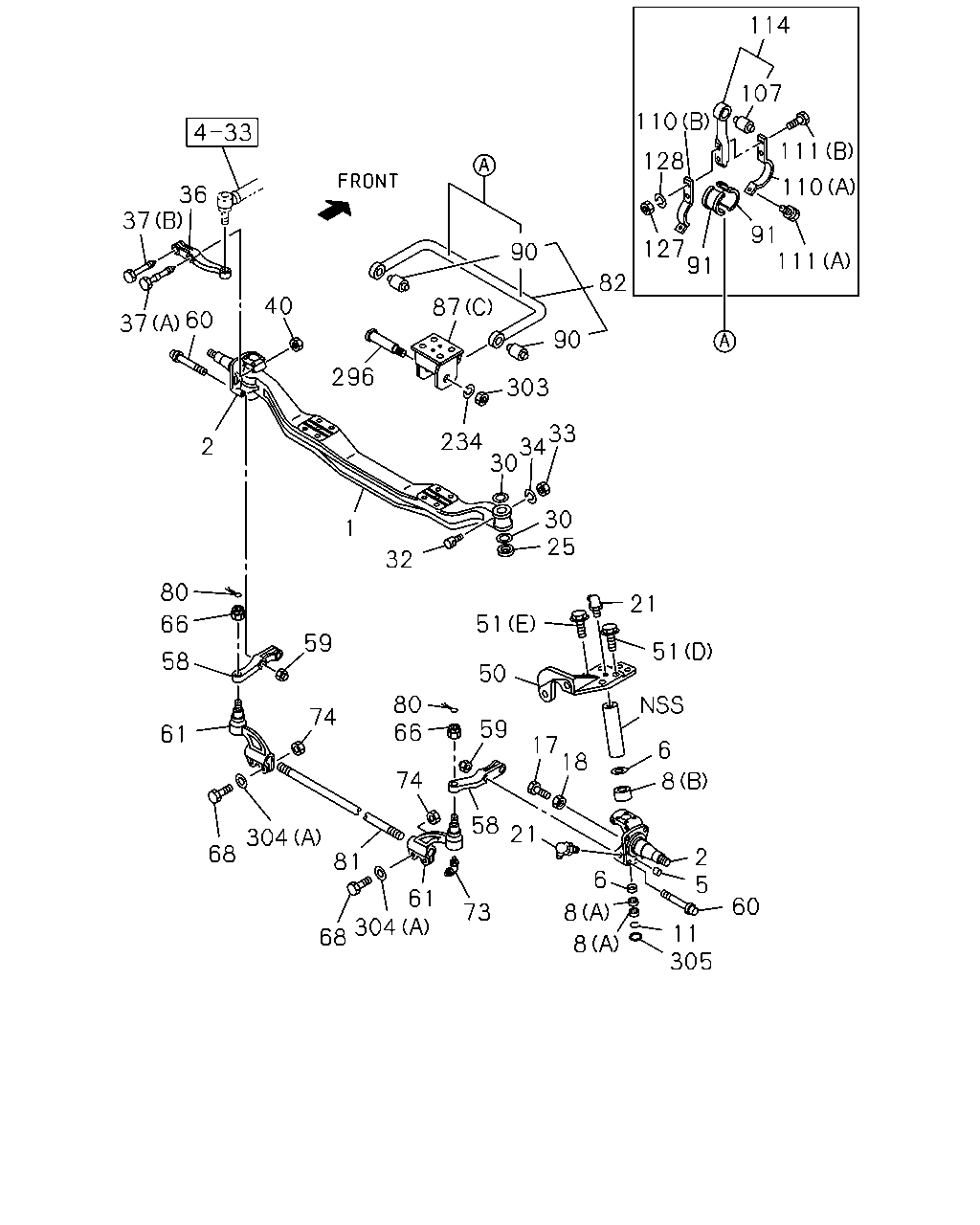

114 107 111 110 111 91 91 127 128 110 36 37 37 60 40 296 87 90 90 82 303 33 34 30 234 32 1 2 80 66 80 59 58 59 60 61 61 74 68 304 81 68 304 73 74 66 58 21 17 50 51 21 25 30 51 6 8 2 5 6 8 8 11 305 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-157-2	01	1	0404-1004	●
1	AXLE; FRT	8-98162-922-0	01	1	1005-	●
1	AXLE; FRT	1-43111-160-2	01	1	0404-1004		●
1	AXLE; FRT	8-98162-923-0	01	1	1005-1009		●
1	AXLE; FRT	1-43111-107-9	01	1	1010-		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0404-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0404-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	04	1	0404-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0404-	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0404-	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0404-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0404-	●	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1005-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0404-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	1005-	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0404-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0404-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0404-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0404-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0404-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0404-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-075-2	01	1	0404-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0404-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0404-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0404-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
50	BRACKET; POWER CHAMBER	1-43145-029-0	01	1	0404-	●
50	BRACKET; POWER CHAMBER	1-43145-030-0	01	1	0404-	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0404-		●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0404-		●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28681-225-0	04	1	0404-0512	●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28681-240-0	04	1	0404-0512	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0404-0512		●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	02	1	0404-0512		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0404-		●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43134-042-3	01	1	0404-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43135-042-3	01	1	0404-	●	●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0404-0806		●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0807-	●	●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0404-0806		●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0807-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0404-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0404-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-798-0	01	1	1404-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-799-0	01	1	1404-	●	●
61	ROD END; TIE ROD	1-43150-803-0	01	1	0404-1403	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43150-803-0	01	1	1404-	●	●
61	ROD END; TIE ROD	1-43150-804-0	01	1	0404-1403	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43150-804-0	01	1	1404-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0404-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0404-0709	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-	●	●
73	NIPPLE; GREASE,TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43159-133-0	02	1	1404-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0404-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0404-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43151-148-0	01	1	0404-	●	●
81	ROD; TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0404-0806		●
81	ROD; TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0807-	●	●
82	BAR; STAB,FRT SUSP	1-51770-169-0	01	1	0404-	●
82	BAR; STAB,FRT SUSP	1-51771-186-0	01	1	0404-		●
87	BRACKET; STABILIZER (C)	1-51781-123-4	02	1	0404-	●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0404-0912		●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0404-0912		●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-		●
90	BUSHING; RUBBER,STAB BAR	1-51779-067-0	02	1	0404-	●
91	BUSHING; RUBBER,STAB BAR	1-51779-112-1	04	1	0404-1102	●
91	BUSHING; RUBBER,STAB BAR	8-98183-355-0	04	1	1103-	●
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0404-		●
107	BUSHING; STABILIZER BAR	1-51779-055-0	02	1	0404-	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0404-	●	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0404-	●	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0404-0910	●	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0404-0910	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-	●	●
114	ROD; STAB BAR	1-51773-105-0	02	1	0404-	●
114	ROD; STAB BAR	1-51773-083-2	02	1	0404-		●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0404-0512	●	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-1002		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1003-	●	●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0404-0603	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	1001-1002	●
234	WASHER; STAB ID=20.2	9-09150-620-0	02	1	0404-0603	●
234	WASHER; STAB ID=20.2	0-91510-620-0	02	1	0604-	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0404-0910		●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-		●
296	PIN; STAB M20X106	1-51361-028-2	02	1	0404-	●
296	PIN; STAB	1-51682-136-2	02	1	0404-		●
303	NUT; PIN M20	9-99110-520-0	02	1	0404-0512	●	●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0404-0709	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0404-		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0404-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

116 115 116 112 115 115 112 115 111 110 111 91 91 128 110 114 127 82 234 105 296 87 60 93 237 40 93 87 304 303 237 34 33 30 30 25 21 36 37 37 80 66 2 58 61 59 1 74 304 68 81 68 304 61 66 80 59 32 58 17 18 21 73 74 6 8 8 305 11 60 5 2 8 6 103 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-157-2	01	1	0404-1004	●
1	AXLE; FRT	8-98162-922-0	01	1	1005-	●
1	AXLE; FRT	1-43111-160-2	01	1	0404-1004		●
1	AXLE; FRT	8-98162-923-0	01	1	1005-1009		●
1	AXLE; FRT	1-43111-107-9	01	1	1010-		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0404-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0404-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	04	1	0404-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0404-	●	●
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0404-	●	●
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0404-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0404-	●	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1005-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0404-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	1005-	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0404-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0404-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0404-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0404-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0404-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0404-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0404-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-075-2	01	1	0404-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0404-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0404-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0404-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43134-042-3	01	1	0404-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43135-042-3	01	1	0404-	●	●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0404-0806		●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0807-	●	●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0404-0806		●
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0807-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0404-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0404-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-798-0	01	1	1404-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-799-0	01	1	1404-	●	●
61	ROD END; TIE ROD	1-43150-803-0	01	1	0404-1403	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43150-803-0	01	1	1404-	●	●
61	ROD END; TIE ROD	1-43150-804-0	01	1	0404-1403	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43150-804-0	01	1	1404-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0404-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0404-0709	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-	●	●
73	NIPPLE; GREASE,TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43159-133-0	02	1	1404-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0404-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0404-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64)	1-43151-148-0	01	1	0404-	●	●
81	ROD; TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0404-0806		●
81	ROD; TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0807-	●	●
82	BAR; STAB,FRT SUSP	1-51770-169-0	01	1	0404-	●
82	BAR; STAB,FRT SUSP	1-51771-186-0	01	1	0404-		●
87	BRACKET; STABILIZER (C)	1-51781-123-4	02	1	0404-	●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0404-0912		●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0404-0912		●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-		●
91	BUSHING; RUBBER,STAB BAR	1-51779-112-1	04	1	0404-1102	●
91	BUSHING; RUBBER,STAB BAR	8-98183-355-0	04	1	1103-	●
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0404-		●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0404-		●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0404-0512		●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-		●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0404-0910		●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-		●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0404-	●	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0404-	●	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0404-0910	●	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0404-0910	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-	●	●
112	BUSHING; ROD	9-51631-039-0	04	1	0404-		●
114	ROD; STAB BAR	1-51773-105-0	02	1	0404-	●
114	ROD; STAB BAR	1-51773-083-2	02	1	0404-		●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	0404-		●
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	0404-		●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0404-0512		●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-		●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0404-0512	●	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-1002		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1003-	●	●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0404-0603	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	1001-1002	●
234	WASHER; STAB ID=20.2	9-09150-620-0	02	1	0404-0603	●
234	WASHER; STAB ID=20.2	0-91510-620-0	02	1	0604-	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0404-0910		●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-		●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0404-		●
296	PIN; STAB M20X106	1-51361-028-2	02	1	0404-	●
296	PIN; STAB	1-51682-136-2	02	1	0404-		●
303	NUT; PIN M20	9-99110-520-0	02	1	0404-0512	●	●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0404-0709	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0404-		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0404-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

272 51 272 274 265 51 51 50 267 265 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	BRACKET; POWER CHAMBER	1-43145-029-0	01	1	0404-	●
50	BRACKET; POWER CHAMBER	1-43145-030-0	01	1	0404-	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0404-		●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0404-		●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28681-225-0	04	1	0404-0512	●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28681-240-0	04	1	0404-0512	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0404-0512		●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	02	1	0404-0512		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0404-		●
265	BRACKET; CLIP I BEAM (A)	1-82698-238-1	01	1	0404-		●
265	BRACKET; CLIP I BEAM (A)	1-82698-239-0	01	1	0404-		●
265	BRACKET; CLIP I BEAM (B)	1-82698-250-0	02	1	0404-		●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	02	1	0807-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	9-09535-085-0	02	1	0404-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	0-95325-085-0	02	1	0607-	●
267	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	04	1	0404-0606	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	04	1	0607-1003	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (C) L=140	5-09707-031-1	02	1	0404-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	9-09525-025-0	02	1	0404-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	0607-1003	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	9-09535-025-0	09	1	0404-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	09	1	0607-	●
267	CLIP; HARNESS (D) ID=11 L=58	9-09917-135-2	02	1	0404-		●
268	CLIP; HARNESS (A) ID=11 L=50	9-09525-085-0	01	1	0404-0606	●
268	CLIP; HARNESS (A) ID=11 L=50	0-95235-085-0	01	1	0607-	●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	9-09525-025-0	09	1	0404-0606	●
268	CLIP; HARNESS (B) ID=11 L=16	9-09525-025-0	09	1	0404-0606		●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	0-95235-025-0	09	1	0607-	●
268	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	09	1	0607-		●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	02	1	0404-0602	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	04	1	0404-0602		●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●
272	NUT; CLIP (B) M10	9-09111-410-0	02	1	0404-0512		●
272	NUT; CLIP (B) M10	0-91111-510-0	02	1	0601-		●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	06	1	0807-1003	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
274	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0404-0512	●
274	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
274	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●
274	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	12	1	0404-0512	●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	12	1	0601-	●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	09	1	0404-0512		●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	09	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
