4-01 — PROPELLER SHAFT (#34976) — 67 parça

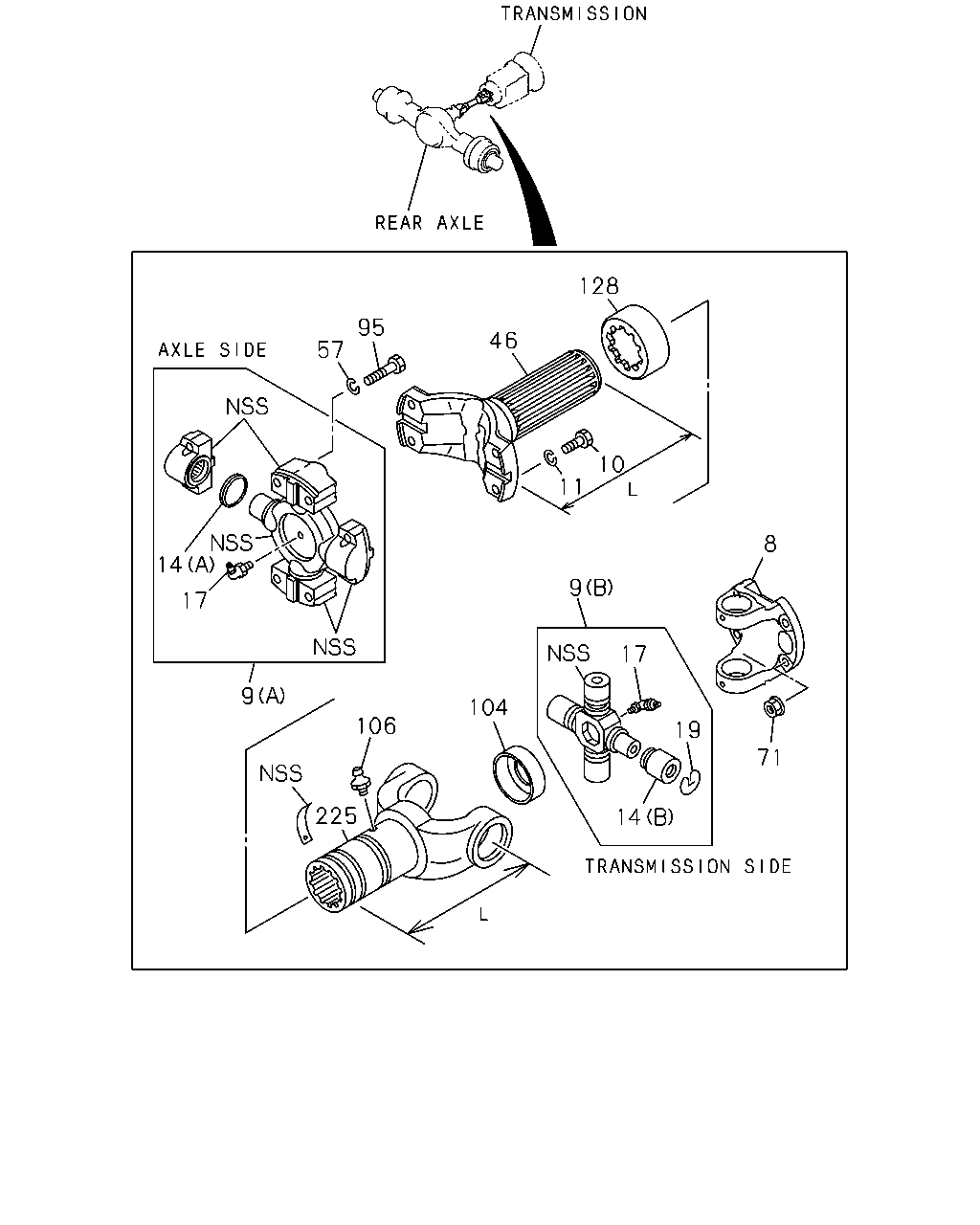

çizim 176876
128 95 46 57 10 11 8 14 9 17 17 9 104 106 19 71 225 14
BalonParca AdiParca NoAdetTipApplied Date
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-079-1 01 1 0404-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-088-0 01 1 0404-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-110-0 01 1 0404-
10 BOLT; UJT
P80W PROP SHAFT<C2U> M12X45 		9-91066-245-0 08 1 0404-0805
10 BOLT; UJT
P80W PROP SHAFT<C2U> M12X45 		8-98036-382-0 08 1 0806-
10 BOLT; UJT
P90 PROP SHAFT<C5T> M12X45 		9-91066-245-0 04 1 0404-0805
10 BOLT; UJT
P90 PROP SHAFT<C5T> M12X45 		8-98036-382-0 04 1 0806-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0404-0603
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604-
14 COVER; DUST,SPIDER
P80W PROP SHAFT<C2U> (A) 		1-37249-130-0 08 1 0404-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 04 1 0404-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 0404-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0404-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 		1-09587-102-1 04 1 0404-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P80W PROP SHAFT<C2U> L=220 		1-37171-110-0 01 1 0404-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> L=285 		1-37171-154-0 01 1 0404-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 04 1 0404-0603
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 04 1 0604-
71 NUT; YOKE
P80W PROP SHAFT<C2U> M12 		9-99110-512-0 04 1 0404-0512
71 NUT; YOKE
P80W PROP SHAFT<C2U> M12 		0-91110-512-0 04 1 0601-
71 NUT; YOKE
P90 PROP SHAFT<C5T> M14 FLANGE 		1-09440-048-0 04 1 0404-0805
71 NUT; YOKE
P90 PROP SHAFT<C5T> M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
M12X45 		9-91066-245-0 04 1 0404-0805
95 BOLT; YOKE,FINAL
M12X45 		8-98036-382-0 04 1 0806-
104 PLUG; SLEEVE YOKE
P80W PROP SHAFT<C2U> 		1-09600-049-0 01 1 0404-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 0404-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0404-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
128 SEAL; SLEEVE
P80W PROP SHAFT<C2U> 		1-37247-023-0 01 1 0404-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> 		1-37247-018-0 01 1 0404-
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> L=263.5 		1-37241-144-0 01 1 0404-

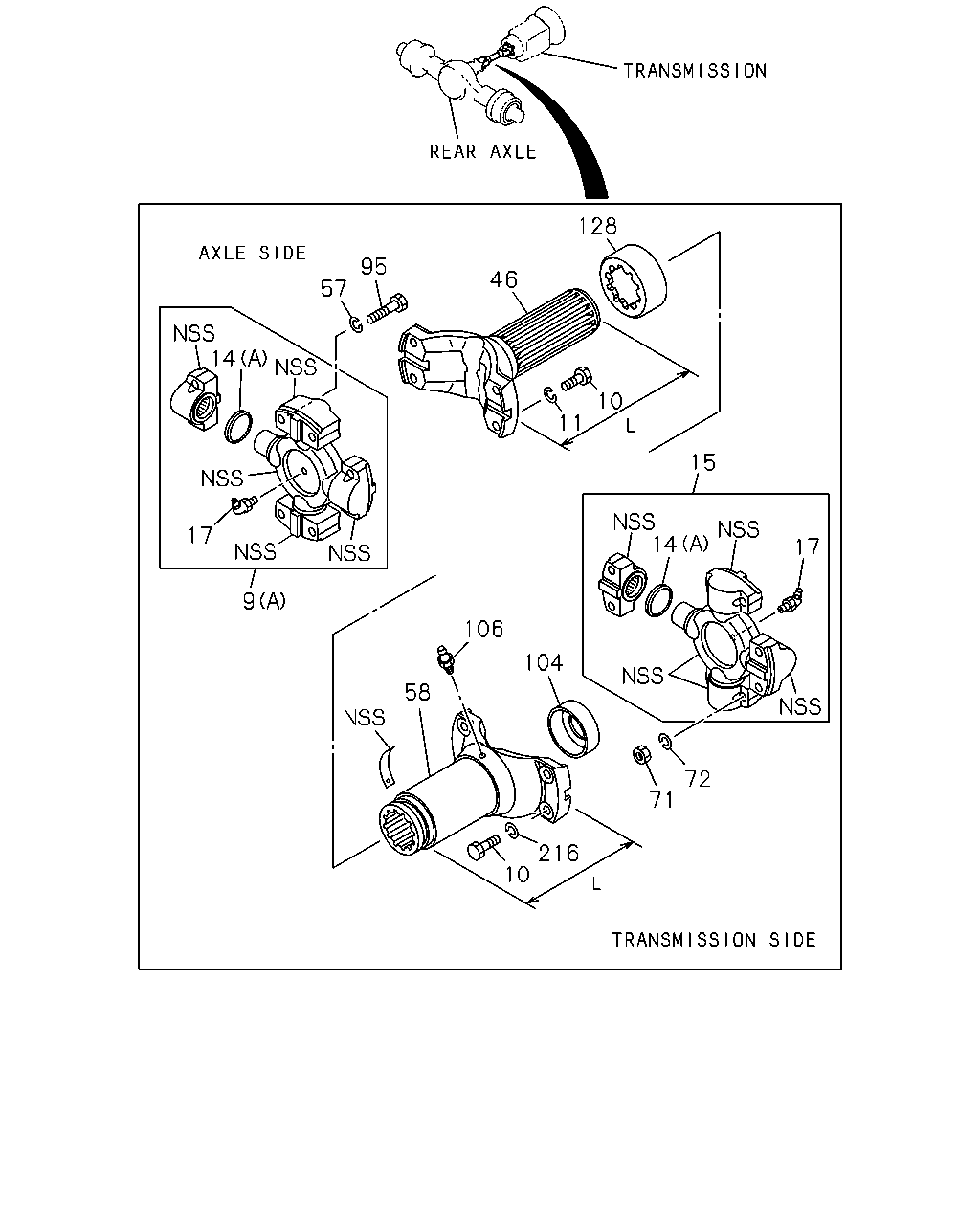

çizim 176885
128 95 46 57 14 10 11 15 14 17 17 9 106 104 58 72 71 216 10
BalonParca AdiParca NoAdetTipApplied Date
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-088-0 01 1 0404-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-110-0 01 1 0404-
10 BOLT; UJT
P80W PROP SHAFT<C2U> M12X45 		9-91066-245-0 08 1 0404-0805
10 BOLT; UJT
P80W PROP SHAFT<C2U> M12X45 		8-98036-382-0 08 1 0806-
10 BOLT; UJT
P90 PROP SHAFT<C5T> M12X45 		9-91066-245-0 04 1 0404-0805
10 BOLT; UJT
P90 PROP SHAFT<C5T> M12X45 		8-98036-382-0 04 1 0806-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0404-0603
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604-
14 COVER; DUST,SPIDER
P80W PROP SHAFT<C2U> (A) 		1-37249-130-0 08 1 0404-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 04 1 0404-
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-131-0 04 1 0404-
15 UNIVERSAL CENTER
P80W PROP SHAFT<C2U> 		1-37300-096-0 01 1 0404-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0404-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P80W PROP SHAFT<C2U> L=220 		1-37171-110-0 01 1 0404-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> L=285 		1-37171-154-0 01 1 0404-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 04 1 0404-0603
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 04 1 0604-
58 FLANGE; SPLINED
P80W PROP SHAFT<C2U> L=204 		1-37245-320-0 01 1 0404-
71 NUT; YOKE
P80W PROP SHAFT<C2U> M12 		9-99110-512-0 04 1 0404-0512
71 NUT; YOKE
P80W PROP SHAFT<C2U> M12 		0-91110-512-0 04 1 0601-
71 NUT; YOKE
P90 PROP SHAFT<C5T> M14 FLANGE 		1-09440-048-0 04 1 0404-0805
71 NUT; YOKE
P90 PROP SHAFT<C5T> M14 FLANGE 		8-97365-444-0 04 1 0806-
72 WASHER; LK,YOKE
P80W PROP SHAFT<C2U> ID=12.2 		9-09150-612-0 04 1 0404-0603
72 WASHER; LK,YOKE
P80W PROP SHAFT<C2U> ID=12.2 		0-91510-612-0 04 1 0604-
95 BOLT; YOKE,FINAL
M12X45 		9-91066-245-0 04 1 0404-0805
95 BOLT; YOKE,FINAL
M12X45 		8-98036-382-0 04 1 0806-
104 PLUG; SLEEVE YOKE
P80W PROP SHAFT<C2U> 		1-09600-049-0 01 1 0404-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> 		1-09600-067-0 01 1 0404-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0404-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
128 SEAL; SLEEVE
P80W PROP SHAFT<C2U> 		1-37247-023-0 01 1 0404-
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> 		1-37247-018-0 01 1 0404-
216 WASHER; LK,UJT
P80W PROP SHAFT<C2U> ID=12.2 		9-09150-612-0 04 1 0404-0603
216 WASHER; LK,UJT
P80W PROP SHAFT<C2U> ID=12.2 		0-91510-612-0 04 1 0604-
