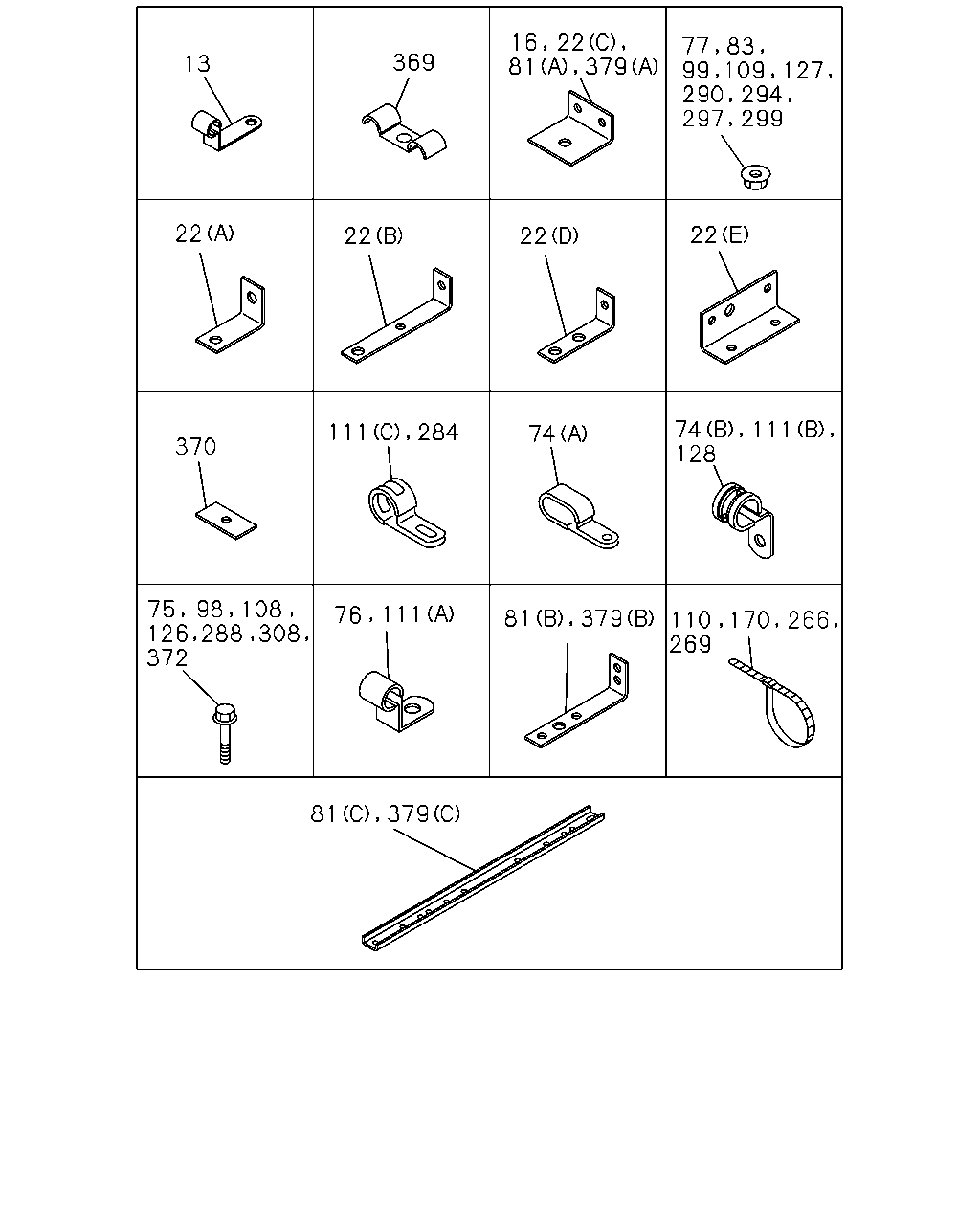

3-78 — FIXING PARTS; AIR PIPING (#34975) — 91 parça

369 13 22 22 22 22 74 128 111 74 370 372 111 76 269 16 22 379 81 77 83 127 109 99 290 294 299 297 111 284 75 98 126 288 108 308 81 379 110 170 266 81 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0404-	●	●
16	BRACKET; PIPE CLIP	1-47478-422-0	01	1	0404-	●
22	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0404-	●
22	BRACKET; CLIP (C)	1-47478-422-0	01	1	0404-	●
22	BRACKET; CLIP (D)	1-47478-901-0	02	1	0404-1404	●
22	BRACKET; CLIP (D)	8-98259-391-0	02	1	1405-	●
22	BRACKET; CLIP (E)	1-47478-924-0	01	1	0404-	●
22	BRACKET; CLIP (B) L=115 H=30	1-47477-715-3	01	1	0404-	●	●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0404-	●	●
74	CLIP; NYLON TUBE (A) ID=13X2 L=16	9-09535-225-0	02	1	0404-0606	●
74	CLIP; NYLON TUBE (A) ID=13X2 L=16	0-95325-225-0	02	1	0607-	●
74	CLIP; NYLON TUBE (B) ID=25 H=30 L=35	1-09700-875-0	01	1	0404-		●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0404-0512	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0404-0512		●
75	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
76	CLIP; NYLON TUBE ID=13 H=40 L=25	1-09700-620-0	01	1	0404-	●	●
77	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	32	1	0404-0602	●	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	32	1	0603-	●	●
77	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	14	1	0404-0602		●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	14	1	0603-		●
81	BRACKET; CLIP (A)	1-47478-422-0	02	1	0404-	●	●
81	BRACKET; CLIP (B)	1-47478-903-0	06	1	0404-	●	●
81	BRACKET; CLIP (C) L=628 15-HOLE MARK 913	1-47478-913-0	02	1	0404-	●	●
81	BRACKET; CLIP (C) L=628 11-HOLE MARK 557	1-47479-557-1	01	1	0404-	●	●
83	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0404-0602		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
99	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
99	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
110	CLIP; BAND,NYLON TUBE EXC. ANTI SKID BRK SYSTEM<SFL> L=250	1-09707-126-0	02	1	0404-	●
110	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	05	1	0404-		●
111	CLIP; AIR PIPE (A) ID=13 H=40 L=25	1-09700-620-0	02	1	0404-	●
111	CLIP; AIR PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0404-	●
111	CLIP; AIR PIPE (C) ID=13 L=50	9-09525-286-0	01	1	0404-0606	●
111	CLIP; AIR PIPE (C) ID=13 L=50	0-95235-286-0	01	1	0607-	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0404-0602	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●
128	CLIP; NYLON TUBE ID=25 H=30 L=35	1-09700-875-0	01	1	0404-	●
170	CLIP; NYLON TUBE ANTI SKID BRK SYSTEM<SFL> L=250	1-09707-126-0	29	1	0404-	●
170	CLIP; NYLON TUBE EXC. ANTI SKID BRK SYSTEM<SFL> L=250	1-09707-126-0	27	1	0404-	●
170	CLIP; NYLON TUBE L=250	1-09707-126-0	18	1	0404-		●
266	CLIP; NYLON TUBE ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250	1-09707-126-0	31	1	0404-0809	●
266	CLIP; NYLON TUBE ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250	1-09707-126-0	35	1	0810-	●
266	CLIP; NYLON TUBE ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250	1-09707-126-0	29	1	0404-0809	●
266	CLIP; NYLON TUBE ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250	1-09707-126-0	33	1	0810-	●
266	CLIP; NYLON TUBE DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> L=250	1-09707-126-0	25	1	0404-	●
266	CLIP; NYLON TUBE EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250	1-09707-126-0	23	1	0404-	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	21	1	0404-		●
269	CLIP; BAND,NYLON TUBE ANTI SKID BRK SYSTEM<SFL> L=250	1-09707-126-0	05	1	0404-	●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	02	1	0404-	●	●
269	CLIP; BAND,NYLON TUBE EXC. ANTI SKID BRK SYSTEM<SFL> L=250	1-09707-126-0	04	1	0404-	●
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	04	1	0404-		●
284	CLIP; FLEX HOSE ID=14.5 L=20	1-09701-012-0	04	1	0404-	●	●
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0404-0602	●
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0404-0602		●
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	36	1	0404-0602	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	36	1	0603-	●	●
299	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
299	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●
308	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0404-0512		●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
308	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
369	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0404-	●
369	CLIP; AIR PIPE AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0404-		●
370	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	0404-	●
370	BRACKET; PIPE CLIP AIR DRYER<PS7> L=50	1-47475-299-2	01	1	0404-		●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	14	1	0404-0512	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	14	1	0601-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	68	1	0404-0512	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	68	1	0601-	●	●
379	BRACKET; NYLON TUBE (A)	1-47478-422-0	01	1	0404-	●	●
379	BRACKET; NYLON TUBE (B)	1-47478-903-0	04	1	0404-	●	●
379	BRACKET; NYLON TUBE (C) L=628 7-HOLE MARK 555	1-47479-555-0	01	1	0404-	●	●
379	BRACKET; NYLON TUBE (C) L=628 11-HOLE MARK 556	1-47479-556-0	01	1	0404-	●	●
