3-77 — BRAKE PIPING; AIR,REAR
(#34974) — 80 parça
Tümü
A - LVD6FB
B - LVR6FB
◀

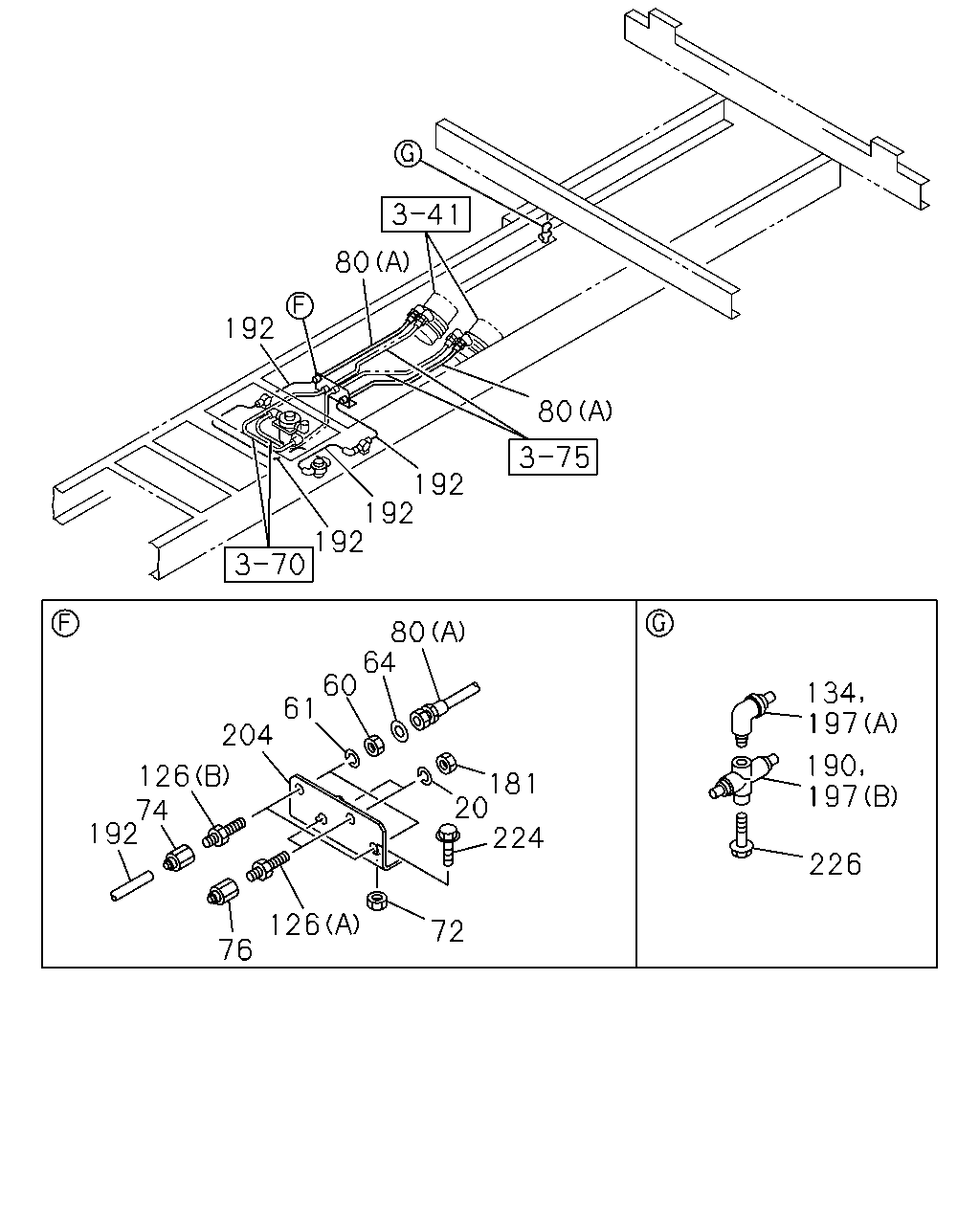

[377A] LEAF SUSP (37 parça)

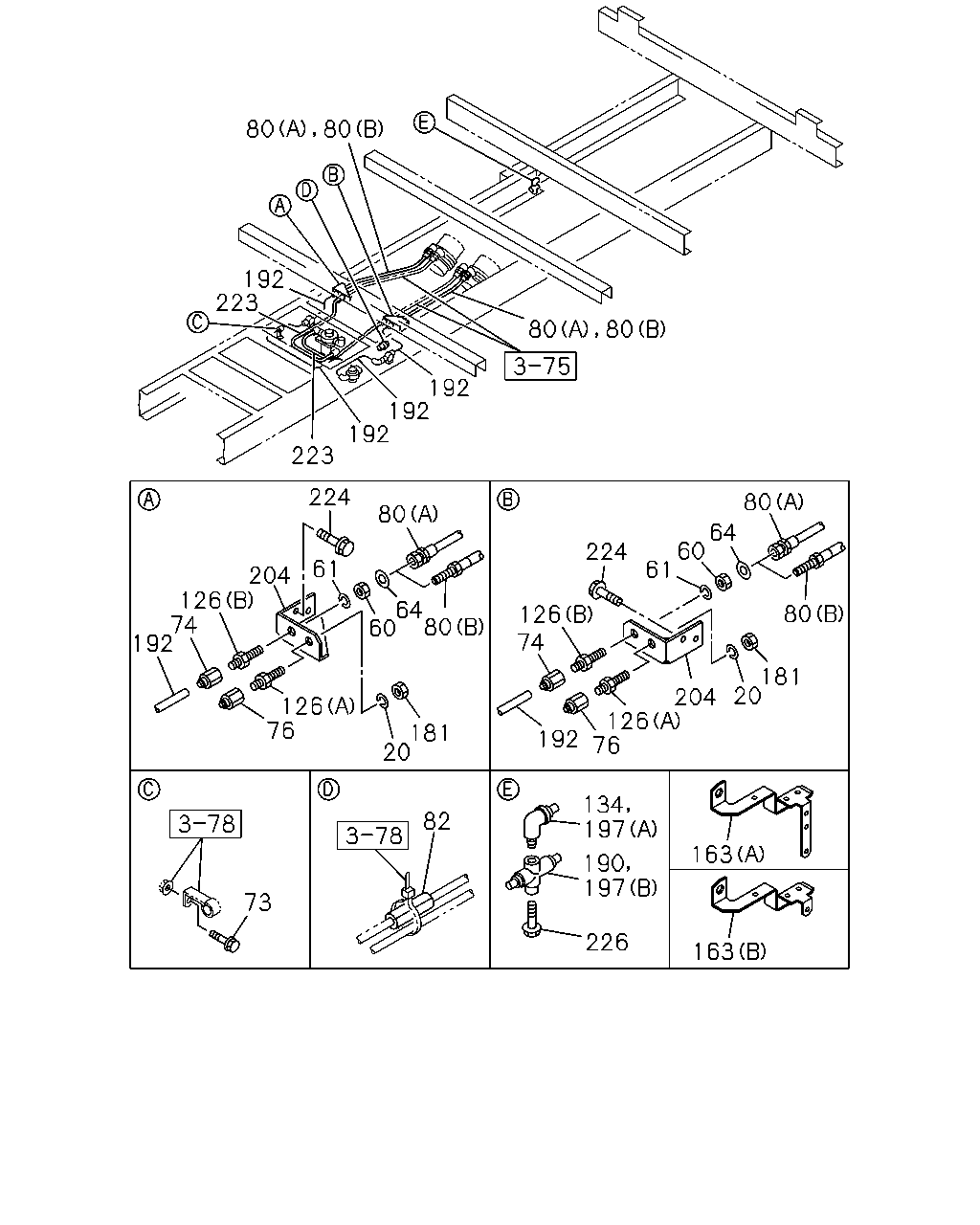

[377A] AIR SUSP (43 parça)
▶
80
192
80
192
192
192
80
64
60
61
204
134
197
190
197
126
74
192
181
20
224
226
126
72
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
20
WASHER; LK,PIPE UNION
ID=16.2
9-09150-516-0
02
1
0404-0603
●
●
20
WASHER; LK,PIPE UNION
ID=16.2
0-91510-516-0
02
1
0604-
●
●
60
NUT; NIPPLE,AIR PIPE
M16
9-99111-416-0
02
1
0404-0512
●
●
60
NUT; NIPPLE,AIR PIPE
M16
0-91111-516-0
02
1
0601-
●
●
61
WASHER; LK,NIPPLE
ID=16.2
9-09150-516-0
02
1
0404-0603
●
●
61
WASHER; LK,NIPPLE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0404-0411
●
●
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0412-
●
72
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0404-0602
●
72
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
●
74
ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0404-
●
●
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0404-
●
●
80
HOSE; FLEX,POWER CHAMBER
(A) L=550
0-07908-550-0
02
1
0404-0411
●
80
HOSE; FLEX,POWER CHAMBER
(B) L=640
1-09363-747-0
02
1
0412-
●
80
HOSE; FLEX,POWER CHAMBER
(A) L=630
0-07908-630-0
01
1
0404-
●
80
HOSE; FLEX,POWER CHAMBER
(A) L=670
0-07908-670-0
01
1
0404-
●
126
UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT
1-09650-338-2
02
1
0404-0411
●
●
126
UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT
1-09650-338-2
02
1
0412-
●
126
UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT
1-09654-016-2
02
1
0404-0411
●
●
126
UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT
1-09654-016-2
02
1
0412-
●
134
CONNECTOR
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1004-
●
●
181
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0404-0512
●
●
181
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0601-
●
●
190
UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1004-
●
●
192
TUBE; NYLON
L=480 SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0404-
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0404-
●
●
197
UNION ASM; NYLON TUBE
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0404-1003
●
●
197
UNION ASM; NYLON TUBE
(B) DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
0404-1003
●
●
204
BRACKET; TUBE UNION
1-47478-955-0
01
1
0404-
●
204
BRACKET; TUBE UNION
1-47478-956-0
01
1
0404-
●
204
BRACKET; TUBE UNION
1-47478-532-0
01
1
0404-
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28681-030-0
04
1
0404-0512
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28681-030-0
02
1
0404-0512
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
02
1
0601-
●
226
BOLT; UNION
M8X16 FLANGE
0-28080-816-0
01
1
0404-0512
●
●
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
80
80
192
223
80
80
192
192
192
223
224
80
80
64
60
61
224
61
204
126
74
192
64
80
126
74
181
20
204
126
76
126
76
181
20
192
134
197
82
163
190
197
73
226
163
60
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
20
WASHER; LK,PIPE UNION
ID=16.2
9-09150-516-0
02
1
0404-0603
●
●
20
WASHER; LK,PIPE UNION
ID=16.2
0-91510-516-0
02
1
0604-
●
●
60
NUT; NIPPLE,AIR PIPE
M16
9-99111-416-0
02
1
0404-0512
●
●
60
NUT; NIPPLE,AIR PIPE
M16
0-91111-516-0
02
1
0601-
●
●
61
WASHER; LK,NIPPLE
ID=16.2
9-09150-516-0
02
1
0404-0603
●
●
61
WASHER; LK,NIPPLE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0404-0411
●
●
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0412-
●
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0404-0512
●
73
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
74
ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0404-
●
●
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0404-
●
●
80
HOSE; FLEX,POWER CHAMBER
(A) L=550
0-07908-550-0
02
1
0404-0411
●
80
HOSE; FLEX,POWER CHAMBER
(B) L=640
1-09363-747-0
02
1
0412-
●
80
HOSE; FLEX,POWER CHAMBER
(A) L=630
0-07908-630-0
01
1
0404-
●
80
HOSE; FLEX,POWER CHAMBER
(A) L=670
0-07908-670-0
01
1
0404-
●
82
SLEEVE; RUBBER,NYLON TUBE
ID=14 OD=18 L=60
1-09337-030-0
01
1
0404-
●
126
UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT
1-09650-338-2
02
1
0404-0411
●
●
126
UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT
1-09650-338-2
02
1
0412-
●
126
UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT
1-09654-016-2
02
1
0404-0411
●
●
126
UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT
1-09654-016-2
02
1
0412-
●
134
CONNECTOR
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1004-
●
●
163
BRACKET; FLEX HOSE
(A)
1-82698-302-0
01
1
0404-1003
●
163
BRACKET; FLEX HOSE
(B)
8-98163-880-0
01
1
1004-
●
163
BRACKET; FLEX HOSE
(A)
1-82698-303-0
01
1
0404-1003
●
163
BRACKET; FLEX HOSE
(B)
8-98163-881-0
01
1
1004-
●
181
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0404-0512
●
●
181
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0601-
●
●
190
UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1004-
●
●
192
TUBE; NYLON
L=480 SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0404-
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0404-
●
●
197
UNION ASM; NYLON TUBE
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0404-1003
●
●
197
UNION ASM; NYLON TUBE
(B) DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
0404-1003
●
●
204
BRACKET; TUBE UNION
1-47478-955-0
01
1
0404-
●
204
BRACKET; TUBE UNION
1-47478-956-0
01
1
0404-
●
204
BRACKET; TUBE UNION
1-47478-532-0
01
1
0404-
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0404-
●
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28681-030-0
04
1
0404-0512
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28681-030-0
02
1
0404-0512
●
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
02
1
0601-
●
226
BOLT; UNION
M8X16 FLANGE
0-28080-816-0
01
1
0404-0512
●
●
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
