3-70 — BRAKE PIPING; AIR,AIR MASTER (#34972) — 112 parça

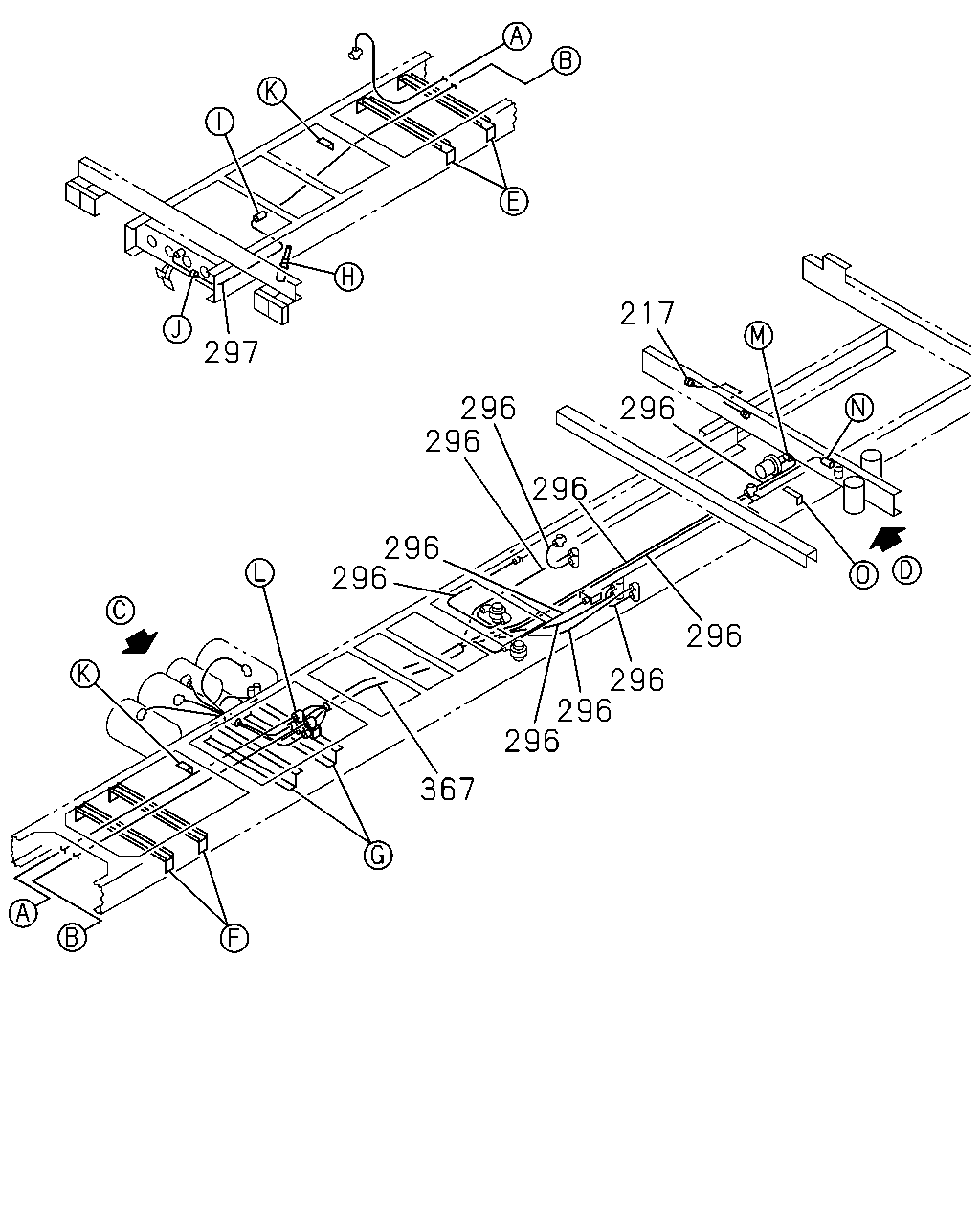

217 297 296 296 296 296 296 296 296 296 296 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
217	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM RETARDER<RE2>	1-49122-966-0	01	1	0404-	●	●
217	PIPE; VAC,UNION TO MAG VLV EXC. BRAKE SYSTEM RETARDER<RE2>	1-49122-967-0	01	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0907-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0907-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0404-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0404-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0404-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0404-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0404-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0404-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0907-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0907-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0907-	●	●

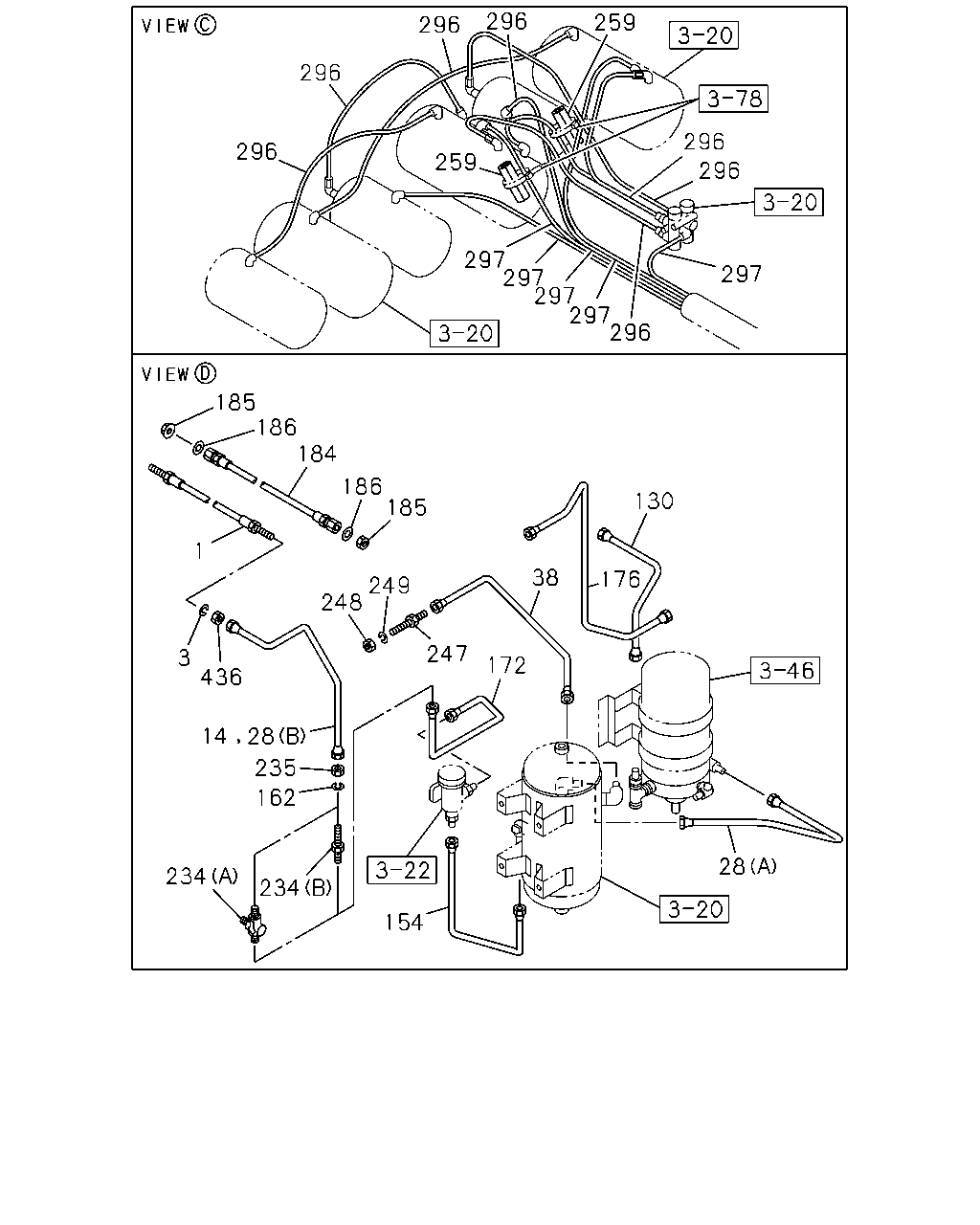

296 259 296 296 296 296 259 296 297 297 297 297 296 297 185 186 184 186 185 130 1 38 176 249 248 247 3 436 172 235 162 28 234 234 154 14 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK L=430	1-09363-559-0	01	1	0404-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-622-0	01	1	0904-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-718-0	01	1	0404-		●
28	PIPE; AIR,AIR DRYER (A)	1-49122-301-0	01	1	0404-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A)	1-49122-301-0	01	1	0404-		●
28	PIPE; AIR,AIR DRYER (B)	1-49122-567-0	01	1	0404-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B)	1-49122-567-0	01	1	0404-		●
38	PIPE; AIR,MAIN TANK TO UNION	1-49122-302-0	01	1	0404-	●	●
130	PIPE; AIR,UNION TO UNION	1-49122-582-0	01	1	0404-	●
130	PIPE; AIR,UNION TO UNION AIR DRYER<PS7>	1-49122-582-0	01	1	0404-		●
130	PIPE; AIR,UNION TO UNION EXC. AIR DRYER<PS7>	1-49122-719-0	01	1	0404-		●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-297-0	01	1	0404-	●	●
162	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	0404-0603	●	●
162	WASHER; LK,NIPPLE ID=12.2	0-91510-512-0	01	1	0604-	●	●
172	PIPE; AIR,GOV TO UNION	1-49121-796-0	01	1	0404-	●	●
176	PIPE; AIR,AIR DRYER TO UNION	1-49122-298-0	01	1	0404-	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49122-298-0	01	1	0404-		●
184	HOSE; FLEX,AIR GOV L=390	1-09363-629-0	01	1	0404-	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	02	1	0404-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	02	1	0404-0603	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	02	1	0604-	●	●
234	UNION; AIR PIPE (A) M12 3WAY	9-09228-906-1	01	1	0404-0607	●
234	UNION; AIR PIPE AIR DRYER<PS7> (A) M12 3WAY	9-09228-906-1	01	1	0404-0607		●
234	UNION; AIR PIPE (A) M12 3WAY	0-92138-906-0	01	1	0608-	●
234	UNION; AIR PIPE AIR DRYER<PS7> (A) M12 3WAY	0-92138-906-0	01	1	0608-		●
234	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 L=66.5	9-09223-306-1	01	1	0404-0607		●
234	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 L=66.5	0-92113-306-0	01	1	0608-		●
235	NUT; PIPE UNION M12	9-09840-280-0	01	1	0404-	●	●
247	UNION; AIR PIPE M22	9-09235-215-1	01	1	0404-0607	●	●
247	UNION; AIR PIPE M22	0-92135-215-0	01	1	0608-	●	●
248	NUT; PIPE UNION M22	9-09111-422-0	01	1	0404-0512	●	●
248	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-	●	●
249	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0404-0603	●	●
249	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-0903	●	●
249	WASHER; LK,PIPE UNION ID=22.5	0-91510-622-0	01	1	0904-	●	●
259	SLEEVE; RUBBER,NYLON TUBE ANTI SKID BRK SYSTEM<SFL> ID=23 OD=27 L=40	1-09337-015-0	01	1	0810-0812	●
259	SLEEVE; RUBBER,NYLON TUBE ANTI SKID BRK SYSTEM<SFL> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0901-	●
259	SLEEVE; RUBBER,NYLON TUBE ANTI SKID BRK SYSTEM<SFL> ID=29 OD=39 L=40	1-09337-013-0	02	1	0404-	●
259	SLEEVE; RUBBER,NYLON TUBE EXC. ANTI SKID BRK SYSTEM<SFL> ID=29 OD=39 L=40	1-09337-013-0	01	1	0404-	●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	0404-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0404-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0907-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0907-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0404-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0404-	●	●
436	NUT; CLIP M22	9-09111-422-0	01	1	0404-0512	●	●
436	NUT; CLIP M22	0-91111-522-0	01	1	0601-	●	●

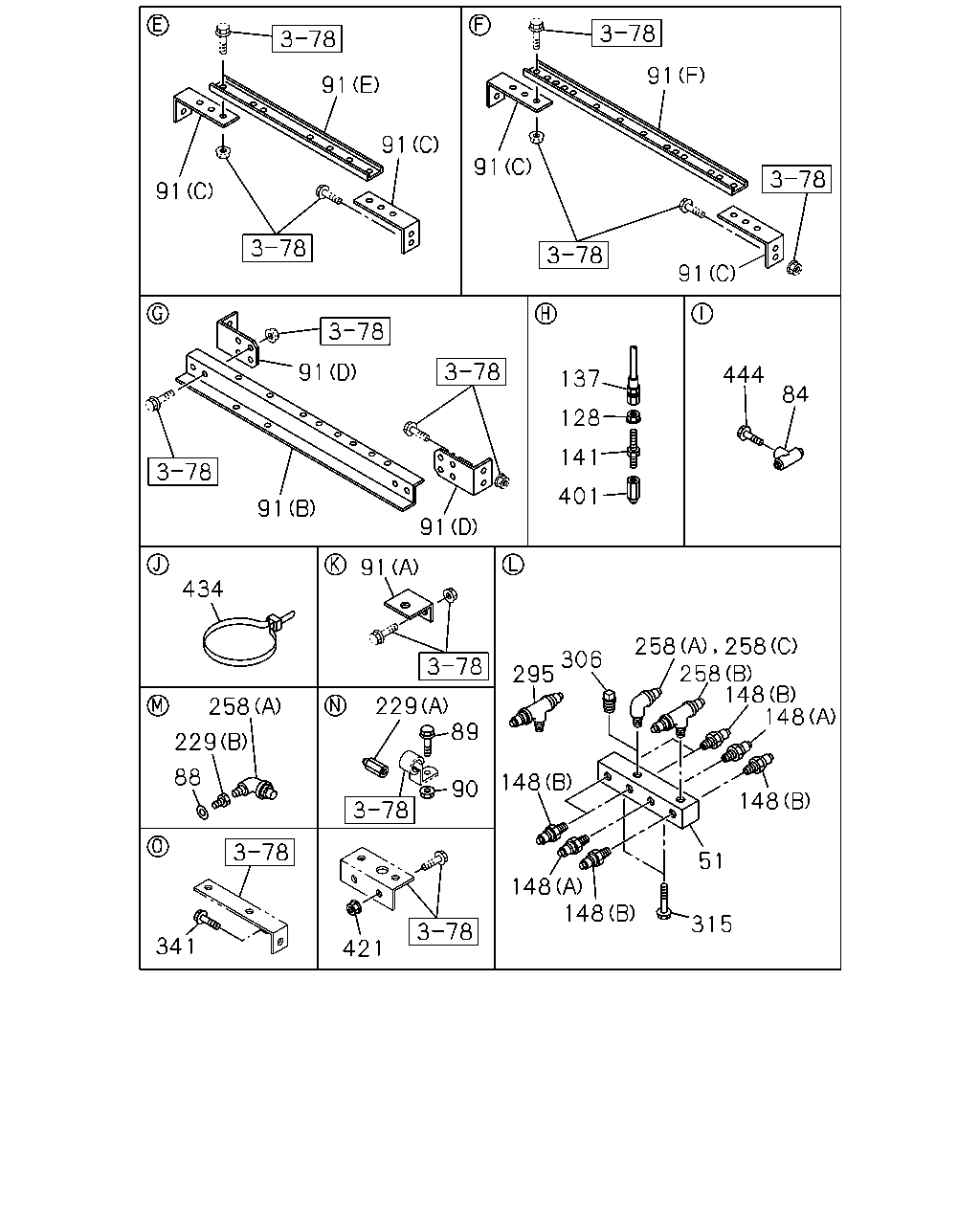

91 91 91 91 91 91 91 444 137 84 128 141 401 91 91 91 434 258 148 148 306 295 229 258 89 229 88 148 90 148 51 148 148 315 341 421 258 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	UNION	1-09661-346-0	01	1	0404-	●	●
84	UNION; NYLON TUBE AIR HORN(WB8)	1-09661-133-0	01	1	0404-	●	●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	0404-	●	●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
90	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
90	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
91	BRACKET; TUBE CLIP (E)	1-47479-558-0	02	1	0404-	●
91	BRACKET; TUBE CLIP (A)	1-47478-422-0	03	1	0404-	●	●
91	BRACKET; TUBE CLIP (C)	1-47478-903-0	08	1	0404-	●	●
91	BRACKET; TUBE CLIP (D)	1-47478-910-0	04	1	0404-	●	●
91	BRACKET; TUBE CLIP (B)	1-47478-914-1	02	1	0404-	●	●
91	BRACKET; TUBE CLIP (F)	1-47478-913-0	02	1	0404-	●	●
91	BRACKET; TUBE CLIP (F)	1-47478-913-0	02	1	0404-		●
128	NUT; PIPE UNION M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
128	NUT; PIPE UNION M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE L=810	0-07210-810-0	02	1	0404-0605	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE L=810	0-57210-810-0	02	1	0606-	●	●
141	UNION; FLEX HOSE	1-09650-270-1	02	1	0404-	●	●
148	CONNECTOR; UNION (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0404-	●
148	CONNECTOR; UNION (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	06	1	0404-	●	●
229	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0404-	●	●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0404-	●	●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN(WB8) (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0404-	●	●
258	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0404-	●	●
258	CONNECTOR; NYLON TUBE AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0404-	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0404-	●
295	CONNECTOR; NYLON TUBE	1-09661-128-0	01	1	0404-	●	●
306	PLUG; NYLON TUBE EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN(WB8) PT1/4	9-99204-513-0	01	1	0404-	●	●
315	BOLT; CONNECTOR M8X12 FLANGE	0-28080-812-0	03	1	0404-0512	●	●
315	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	03	1	0601-	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	08	1	0404-0512	●
341	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0601-	●
341	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0404-0512		●
341	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
401	CONNECTOR; FLEX HOSE DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0404-	●	●
421	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0404-0602	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●
434	CLIP AIR HORN(WB8) L=250	1-09707-126-0	04	1	0404-	●	●
444	BOLT; UNION AIR HORN(WB8) M8X12 FLANGE	0-28080-812-0	01	1	0404-0512	●	●
444	BOLT; UNION AIR HORN(WB8) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
