Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

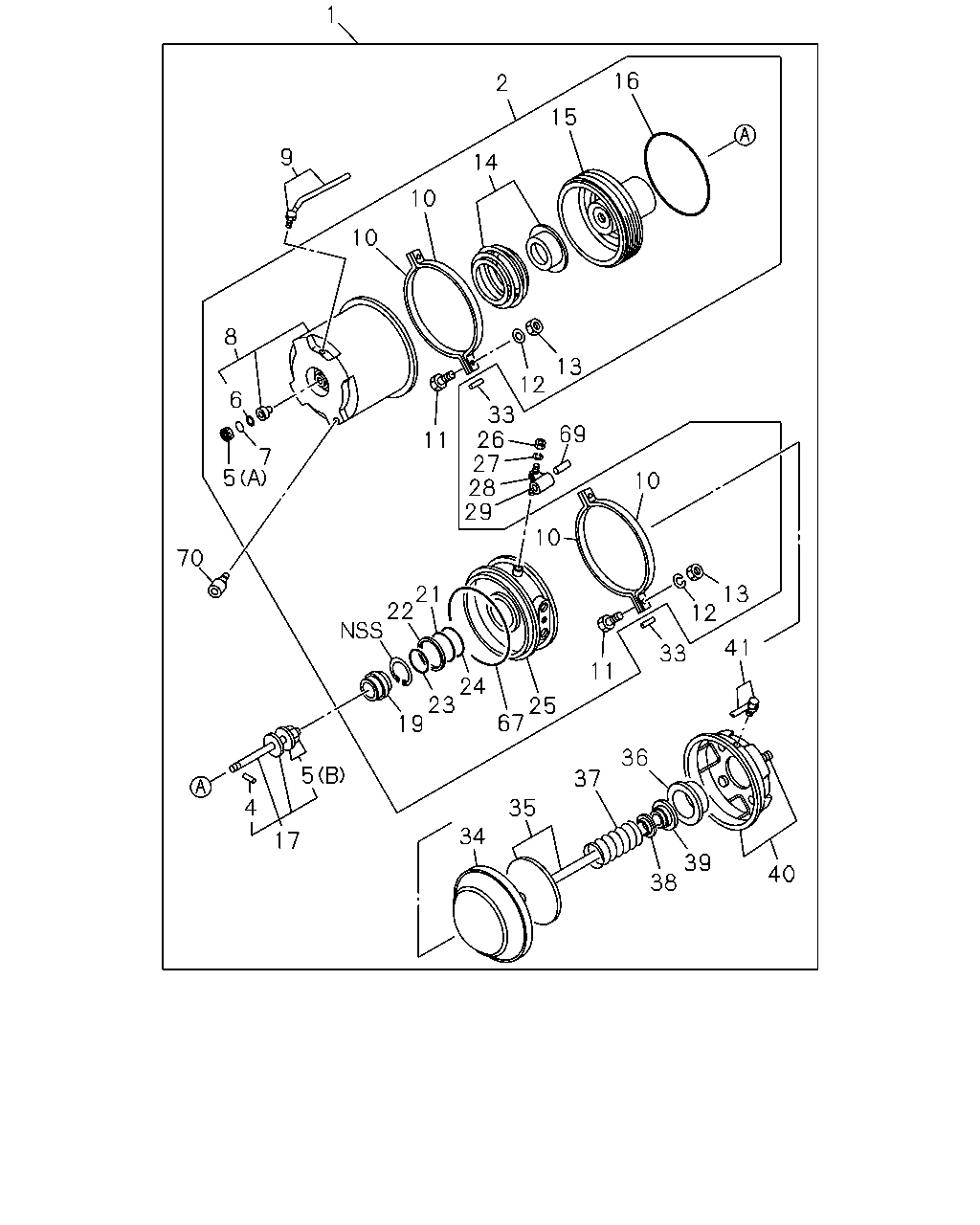

3-41 — REAR BRAKE POWER CHAMBER
(#34968) — 47 parça
Tümü
A - LVD6FB
B - LVR6FB
1
16
2
15
9
14
10
10
8
13
12
6
33
26
27
28
29
69
11
7
5
10
10
70
13
12
21
22
41
33
11
24
23
19
25
67
36
5
37
4
35
34
17
39
38
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-732-1
01
1
0404-
●
1
CHAMBER ASM; SPRING
1-48250-733-1
01
1
0404-
●
1
CHAMBER ASM; SPRING
1-48250-640-1
01
1
0404-
●
1
CHAMBER ASM; SPRING
1-48250-641-1
01
1
0404-
●
2
CHAMBER; EMERGENCY
1-48252-014-0
01
1
0404-
●
●
2
CHAMBER; EMERGENCY
1-48252-015-0
01
1
0404-
●
●
4
PIN; STRAIGHT,SPR CHAMBER
1-48259-056-0
04
1
0404-
●
●
5
NUT; SHELL
(A)
1-48259-054-0
02
1
0404-
●
●
5
NUT; SHELL
(B)
1-48259-074-0
02
1
0404-
●
●
6
GASKET; SHELL
9-09920-268-0
02
1
0404-
●
●
7
GASKET
1-48259-055-0
02
1
0404-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48259-069-0
01
1
0404-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48259-070-0
01
1
0404-
●
●
9
PIPE ASM; SHELL
1-48259-076-0
02
1
0404-
●
●
10
RING; CLAMP,SPR CHAMBER
1-48259-016-0
08
1
0404-
●
●
11
BOLT; CLAMP RING
1-48259-092-0
08
1
0404-
●
●
12
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
08
1
0404-
●
●
13
NUT; CLAMP RING
9-83315-080-0
08
1
0404-
●
●
14
SPRING & SEAT SET
1-48259-037-1
02
1
0404-
●
●
15
PISTON
1-48262-005-0
02
1
0404-
●
●
16
GASKET
1-48259-048-0
02
1
0404-
●
●
17
BOLT ASM; EMERGENCY
1-48259-073-0
02
1
0404-
●
●
19
COVER; PISTON
1-48269-011-0
02
1
0404-
●
●
21
GASKET; SPR CHAMBER
1-48259-049-0
02
1
0404-
●
●
22
RING; BACKUP,SPR CHAMBER
1-48259-019-0
02
1
0404-
●
●
23
GASKET; SPR CHAMBER
1-48259-047-0
02
1
0404-
●
●
24
BEARING; SPR CHAMBER
1-48259-020-0
02
1
0404-
●
●
25
PLATE; PRESSURE,SPR CHAMBER
1-48259-077-0
01
1
0404-
●
●
25
PLATE; PRESSURE,SPR CHAMBER
1-48259-078-0
01
1
0404-
●
●
26
NUT; PRESSURE PLATE
1-48259-058-0
04
1
0404-
●
●
27
WASHER; PRESSURE PLATE
ID=8.2
9-09150-508-0
02
1
0404-
●
●
28
BRACKET; PRESSURE PLATE,HOSE
1-48259-059-0
02
1
0404-
●
●
29
STUD; PRESSURE PLATE
1-48259-050-0
02
1
0404-
●
●
33
RETAINER; DIAPH
1-48259-044-0
04
1
0404-
●
●
34
DIAPHRAGM
1-48252-056-0
02
1
0404-
●
●
35
PLATE; ROD END,SPR CHAMBER
1-48253-062-0
02
1
0404-
●
35
PLATE; ROD END,SPR CHAMBER
1-48253-010-0
02
1
0404-
●
36
RETAINER; SPR CHAMBER
1-48259-043-0
02
1
0404-
●
●
37
SPRING; LWR,SPR CHAMBER
1-48255-016-0
02
1
0404-
●
●
38
COVER; ROD & PLATE
1-48259-066-0
02
1
0404-
●
●
39
COVER; ROD & PLATE
1-48259-065-0
02
1
0404-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48259-067-1
01
1
0404-
●
●
40
COVER ASM; LWR,SPR CHAMBER
1-48259-068-1
01
1
0404-
●
●
41
PIPE ASM; LWR COVER
1-48259-075-0
02
1
0404-
●
●
67
GASKET; SPR CHAMBER
1-48259-053-0
02
1
0404-
●
●
69
HOSE; PRESSURE PLATE
1-48259-051-0
02
1
0404-
●
●
70
COVER; EXH,SPR CHAMBER
1-48259-052-0
02
1
0404-
●
●
