3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

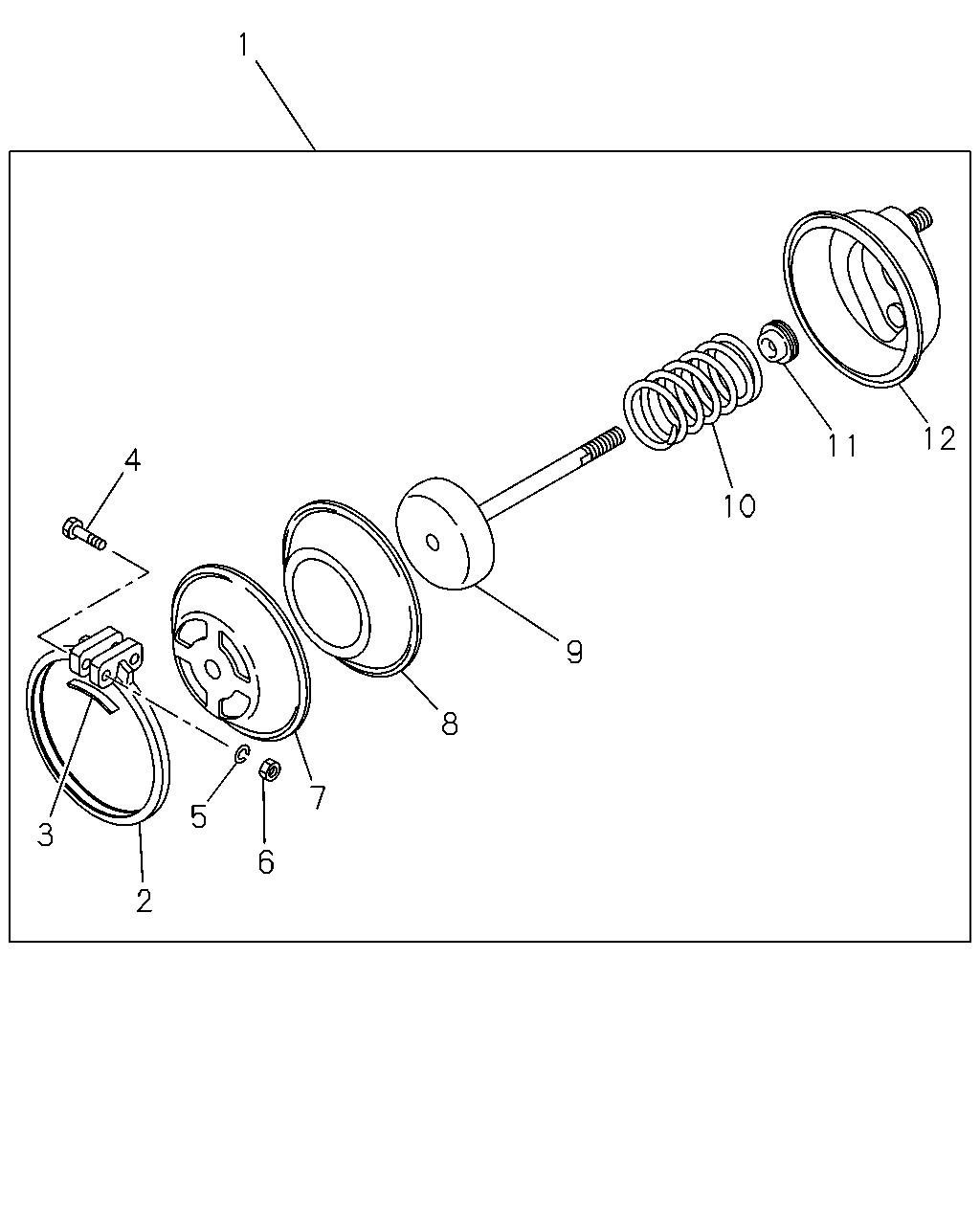

3-40 — FRONT BRAKE POWER CHAMBER
(#34967) — 21 parça
Tümü
A - LVD6FB
B - LVR6FB
1
12
11
4
10
9
8
7
5
3
6
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
1-48250-734-1
01
1
0404-0806
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-734-1
01
1
0807-
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-735-1
01
1
0404-0806
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-735-1
01
1
0807-
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-835-0
02
1
0404-
●
2
RING; CLAMP,SPR CHAMBER
1-48259-001-0
02
1
0404-
●
●
3
RETAINER; DIAPH
9-48259-016-0
02
1
0404-
●
3
RETAINER; DIAPH
9-48259-016-0
04
1
0404-
●
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0404-
●
4
BOLT; CLAMP RING
1-48259-313-0
04
1
0404-
●
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0404-
●
●
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0404-
●
●
7
COVER ASM; UPR,SPR CHAMBER
1-48251-007-0
02
1
0404-
●
7
COVER ASM; UPR,SPR CHAMBER
1-48251-039-0
02
1
0404-
●
8
DIAPHRAGM; SPR CHAMBER
1-48252-054-0
02
1
0404-
●
●
9
PISTON; SPR CHAMBER
1-48253-064-0
02
1
0404-
●
9
PISTON; SPR CHAMBER
1-48253-040-0
02
1
0404-
●
10
SPRING; PISTON,SPR CHAMBER
1-48255-015-0
02
1
0404-
●
●
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0404-
●
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-071-0
02
1
0404-
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-019-0
02
1
0404-
●
