3-22 — AIR CONTROL PARTS (#34965) — 165 parça
çizim 176854

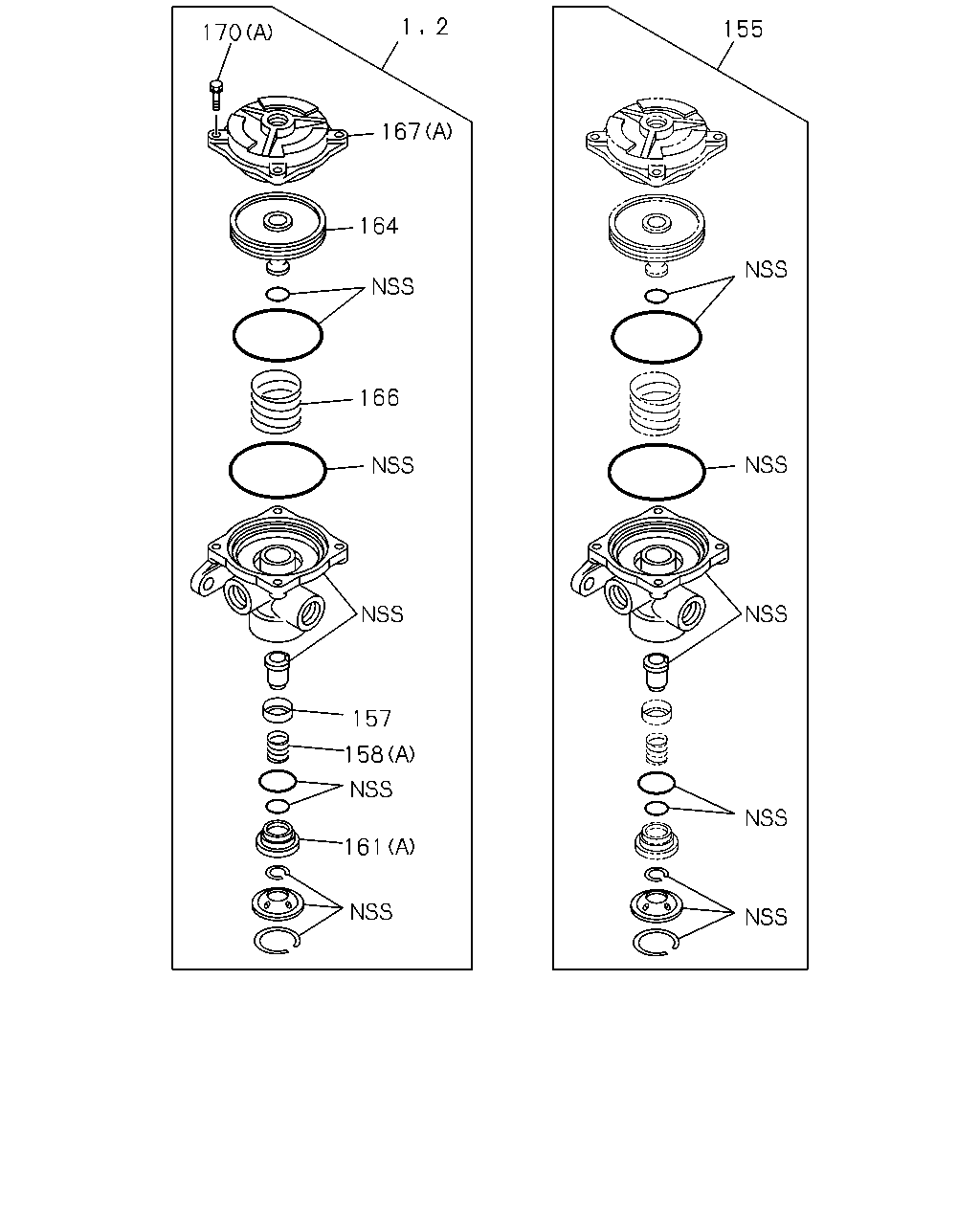

2 1 155 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48210-278-0 01 1 0404- ● ●
2 VALVE; RELAY 1-48210-278-0 01 1 0404- ● ●
2 VALVE; RELAY 1-48210-278-0 01 1 0404- ● ●
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0404- ● ●
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0404- ● ●
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0404- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0404- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0404- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0404- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0404- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0404- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0404- ● ●
158 SPRING; VALVE
(C) 		1-48469-059-0 01 1 0404- ● ●
158 SPRING; VALVE
(B) 		1-48469-063-0 01 1 0404- ● ●
158 SPRING; VALVE
(D) 		1-48469-070-0 01 1 0404- ● ●
158 SPRING; VALVE
(E) 		1-48469-089-0 01 1 0404- ● ●
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0404- ● ●
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0404- ● ●
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0404- ● ●
161 GUIDE; VALVE
(B) 		1-48469-058-0 01 1 0404- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0404- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0404- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0404- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0404- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0404- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0404- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0404- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0404- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0404- ● ●
167 COVER; VALVE
(B) 		1-48469-090-0 01 1 0404- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0404- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0404- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0404- ● ●
170 SCREW; COVER TO BODY
(B) 		1-48469-118-0 04 1 0404- ● ●
çizim 176856

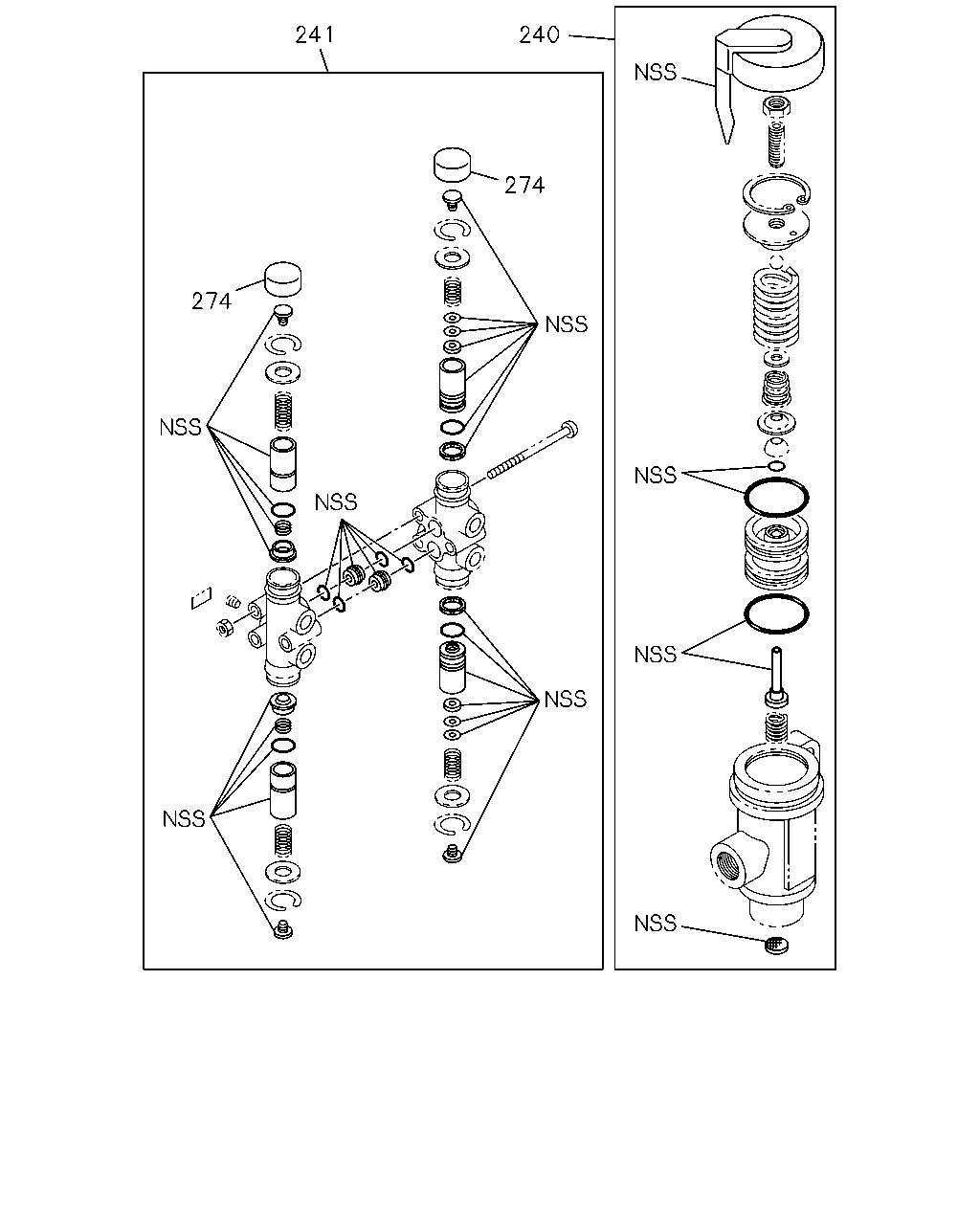

241 240 274 274
BalonParca AdiParca NoAdetTipApplied Date A B
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0404- ● ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0404- ● ●
274 COVER; DUST 1-48119-450-0 02 1 0404- ● ●
çizim 176861

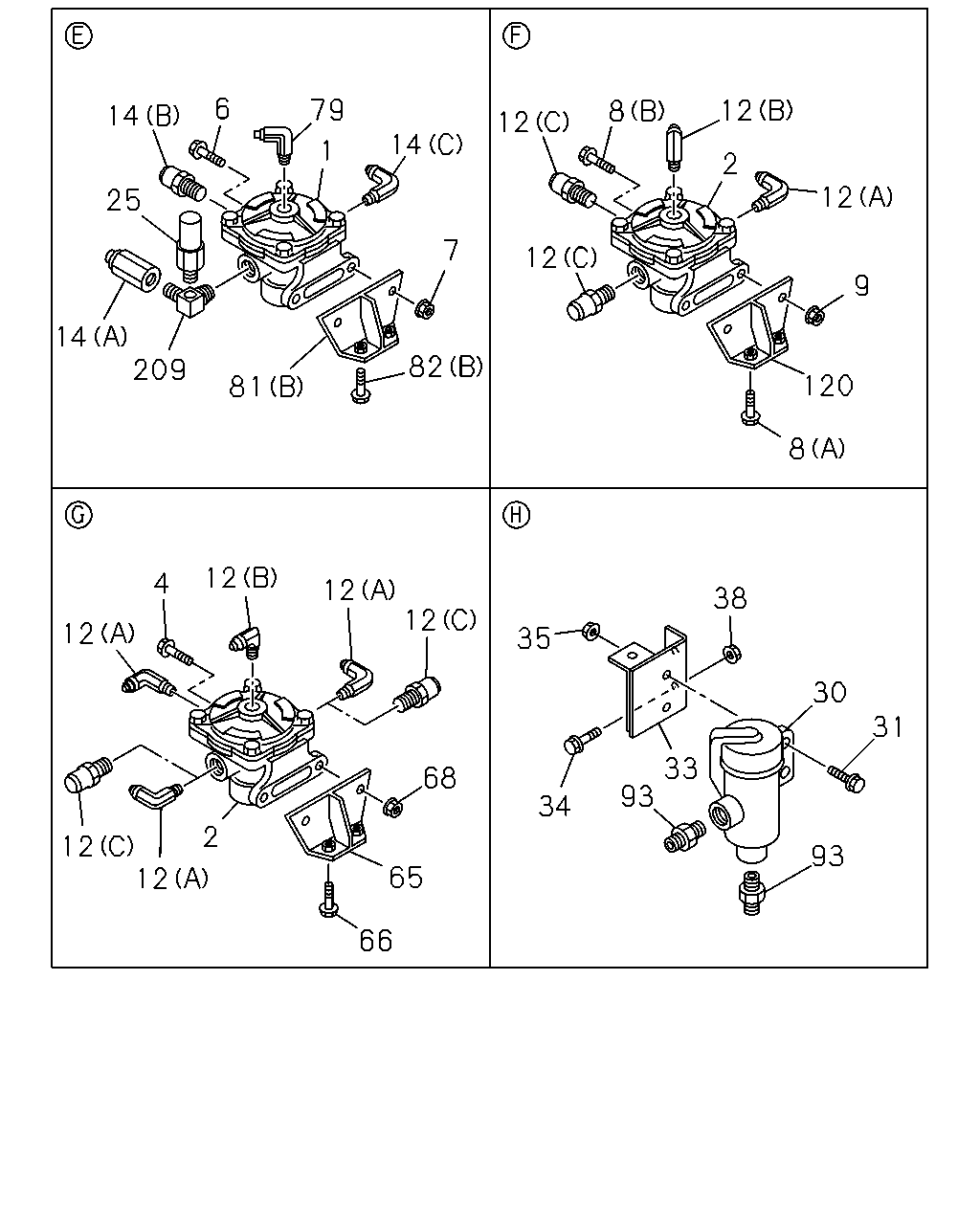

6 79 12 8 14 12 14 1 2 12 25 7 12 9 14 209 82 120 81 8 12 4 12 12 38 12 35 30 31 33 93 68 34 2 12 12 93 65 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48210-278-0 01 1 0404- ● ●
2 VALVE; RELAY 1-48210-278-0 01 1 0404- ● ●
2 VALVE; RELAY 1-48210-278-0 01 1 0404- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0404-0512 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 0404-0512 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0404-0602 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
8 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0404-0512 ● ●
8 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
8 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0404-0512 ● ●
8 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0404-0602 ● ●
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
12 CONNECTOR; RELAY VLV
ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 03 1 0404- ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0404- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0404- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0404- ● ●
12 CONNECTOR; RELAY VLV
EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0404- ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0404- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0404- ● ●
12 CONNECTOR; RELAY VLV
EXC. ANTI SKID BRK SYSTEM<SFL> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0404- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0404- ●
14 CONNECTOR; RELAY VLV
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0404- ● ●
14 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0404- ● ●
14 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0404- ● ●
25 SWITCH; PRESSURE 1-82410-163-1 01 1 0404- ● ●
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0404- ● ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
33 BRACKET; GOV,AIR CONT 1-48317-877-0 01 1 0404- ● ●
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
38 NUT; BRKT,GOV
M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
65 BRACKET; RELAY VLV RR 1-48219-145-0 01 1 0404- ● ●
66 BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE 		0-28681-035-0 02 1 0404-0512 ● ●
66 BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0404-0602 ● ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0404- ● ●
81 BRACKET; RELAY VLV,PARKING BRK
(A) 		1-48495-222-0 01 1 0404- ● ●
81 BRACKET; RELAY VLV,PARKING BRK
(B) 		1-48219-145-0 01 1 0404- ●
82 BOLT; BRKT,RELAY VLV
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0404-0512 ● ●
82 BOLT; BRKT,RELAY VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
82 BOLT; BRKT,RELAY VLV
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0404-0512 ●
82 BOLT; BRKT,RELAY VLV
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0404- ● ●
120 BRACKET; VLV 1-48219-145-0 01 1 0404- ● ●
209 CONNECTOR; 3WAY,DEL 1-09656-673-0 01 1 0404- ● ●
çizim 176862

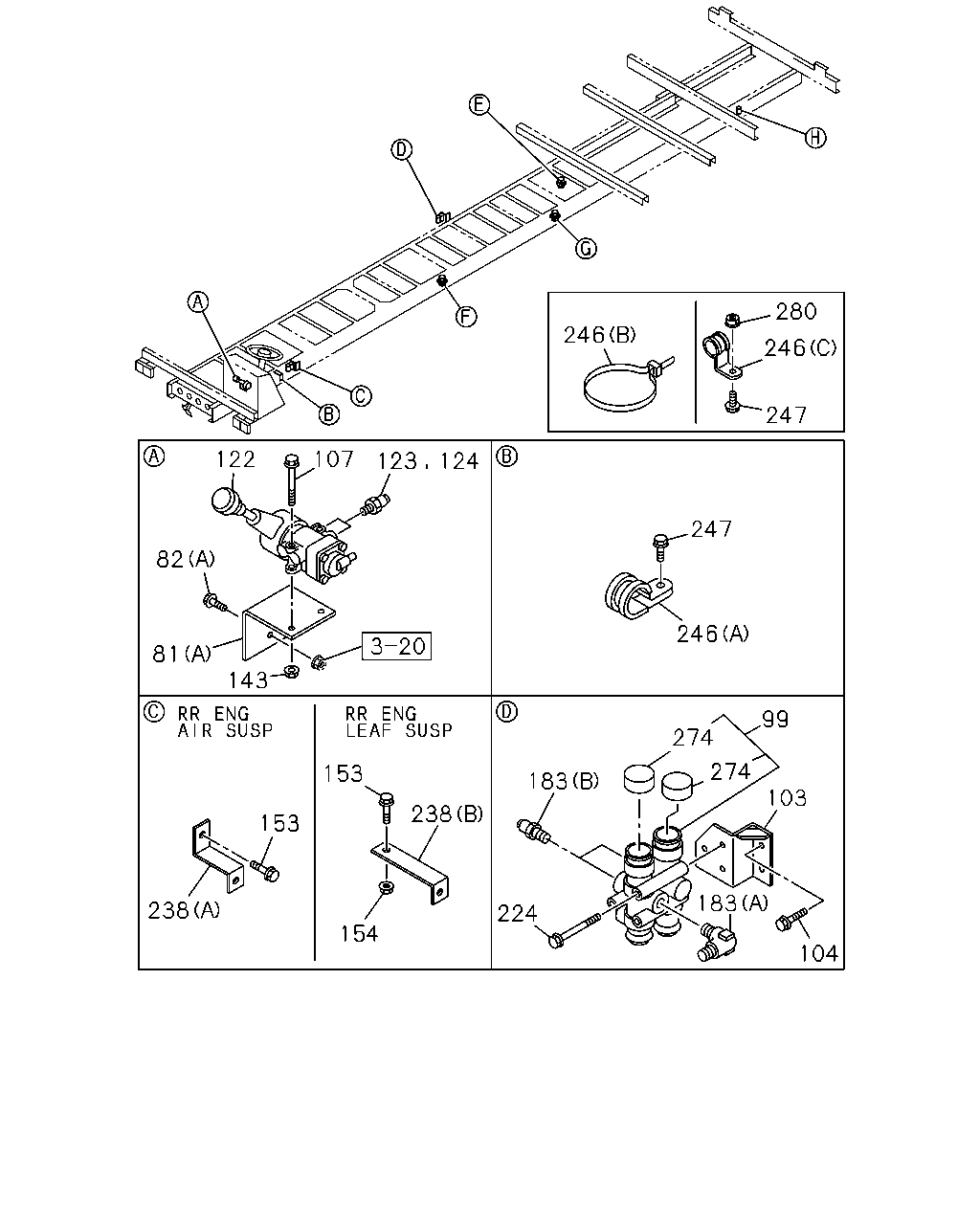

280 246 246 247 122 107 123 124 247 82 246 81 143 99 274 274 153 183 103 238 153 183 238 224 154 104
BalonParca AdiParca NoAdetTipApplied Date A B
81 BRACKET; RELAY VLV,PARKING BRK
(A) 		1-48495-222-0 01 1 0404- ● ●
81 BRACKET; RELAY VLV,PARKING BRK
(B) 		1-48219-145-0 01 1 0404- ●
82 BOLT; BRKT,RELAY VLV
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0404-0512 ● ●
82 BOLT; BRKT,RELAY VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
82 BOLT; BRKT,RELAY VLV
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0404-0512 ●
82 BOLT; BRKT,RELAY VLV
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
99 VALVE; PROTECTION 1-48110-103-5 01 1 0404- ● ●
103 BRACKET; PROTECTION VALVE 1-47478-544-0 01 1 0404- ● ●
104 BOLT; BRKT,VALVE
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
104 BOLT; BRKT,VALVE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
107 BOLT; VLV
M8X70 FLANGE 		0-28080-870-0 02 1 0404-0512 ● ●
107 BOLT; VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ●
122 VALVE ASM; CONT,WHEEL PARKING 1-48460-319-0 01 1 0404- ● ●
123 CONNECTOR; PARKING VLV
DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0404- ● ●
124 CONNECTOR; PARKING VLV
DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0404- ● ●
143 NUT; VLV
M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
143 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
153 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0404-0512 ● ●
153 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111 ● ●
153 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
154 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0404-0602 ●
154 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-1111 ●
183 CONNECTOR; PROTECTION VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0404- ● ●
183 CONNECTOR; PROTECTION VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 04 1 0404- ● ●
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0404-0602 ● ●
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
238 BRACKET; CLIP
(A) 		1-47478-917-0 01 1 0404- ●
238 BRACKET; CLIP
(B) 		1-47478-899-0 01 1 0404-1111 ●
246 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1112- ●
246 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0404- ●
246 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 02 1 0404- ●
246 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 04 1 0404-1111 ●
246 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 01 1 1112- ●
247 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0404-0512 ●
247 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111 ●
247 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
274 COVER; DUST 1-48119-450-0 02 1 0404- ● ●
280 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112- ●
çizim 176878

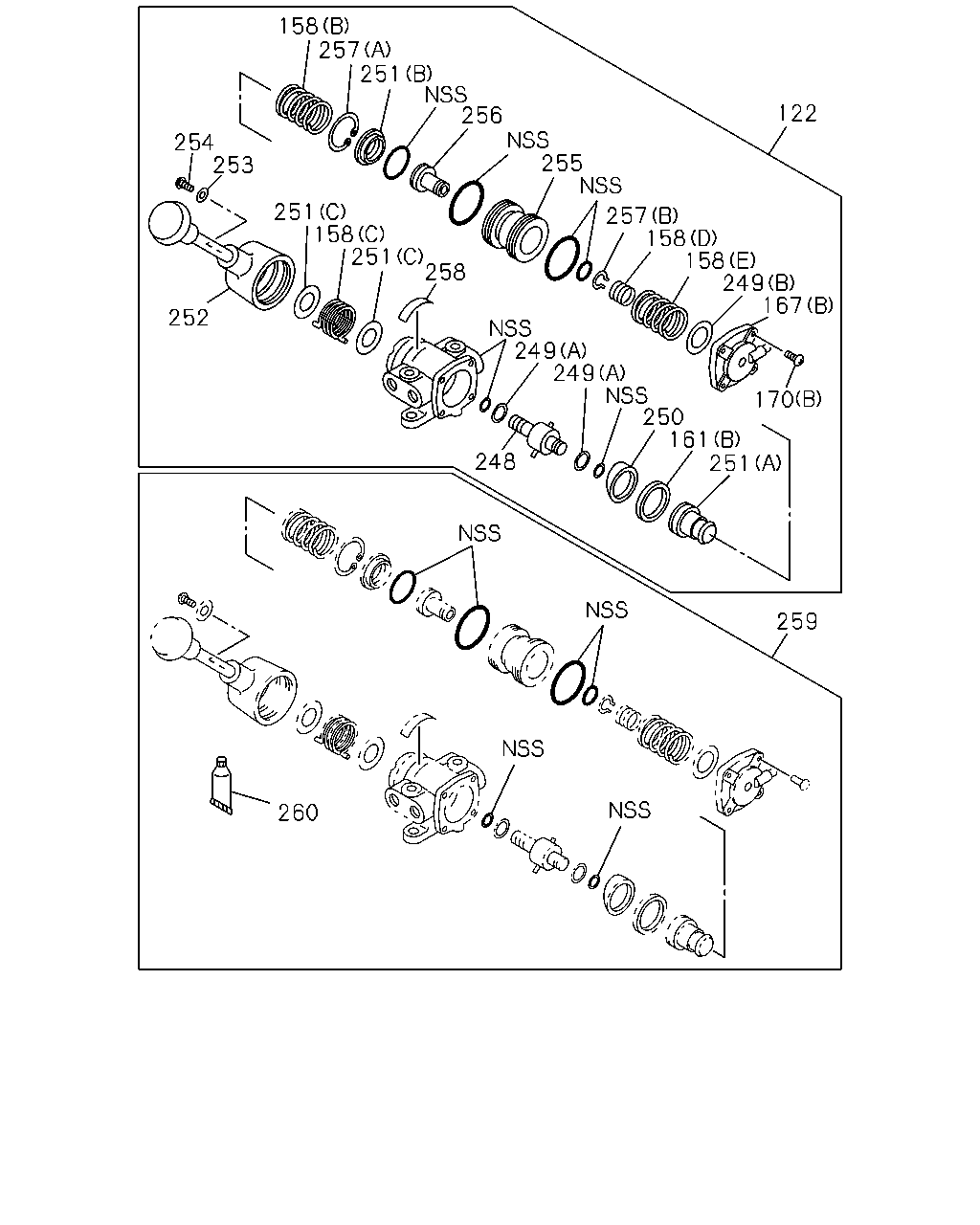

158 257 251 256 255 122 254 253 251 158 251 258 257 158 158 249 167 252 249 249 250 161 251 248 259 260 170
BalonParca AdiParca NoAdetTipApplied Date A B
122 VALVE ASM; CONT,WHEEL PARKING 1-48460-319-0 01 1 0404- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0404- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0404- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0404- ● ●
158 SPRING; VALVE
(C) 		1-48469-059-0 01 1 0404- ● ●
158 SPRING; VALVE
(B) 		1-48469-063-0 01 1 0404- ● ●
158 SPRING; VALVE
(D) 		1-48469-070-0 01 1 0404- ● ●
158 SPRING; VALVE
(E) 		1-48469-089-0 01 1 0404- ● ●
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0404- ● ●
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0404- ● ●
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0404- ● ●
161 GUIDE; VALVE
(B) 		1-48469-058-0 01 1 0404- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0404- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0404- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0404- ● ●
167 COVER; VALVE
(B) 		1-48469-090-0 01 1 0404- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0404- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0404- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0404- ● ●
170 SCREW; COVER TO BODY
(B) 		1-48469-118-0 04 1 0404- ● ●
248 HOLDER; VALVE 1-48469-054-0 01 1 0404- ● ●
249 SHIM; VALVE
(A) 		1-48469-055-0 AR 1 0404- ● ●
249 SHIM; VALVE
(B) 		1-48469-072-0 AR 1 0404- ● ●
250 RING; VALVE 1-48469-056-0 01 1 0404- ● ●
251 SEAT; VALVE
(A) 		1-48469-057-0 01 1 0404- ● ●
251 SEAT; VALVE
(B) 		1-48469-066-0 01 1 0404- ● ●
251 SEAT; VALVE
(C) 		1-48469-082-0 02 1 0404- ● ●
252 HANDLE ASM; VALVE 1-48469-126-0 01 1 0404- ● ●
253 WASHER; VALVE 1-48469-061-0 01 1 0404- ● ●
254 SCREW; VALVE 1-48469-062-0 01 1 0404- ● ●
255 PISTON; VALVE 1-48469-064-0 01 1 0404- ● ●
256 VALVE; FEED 1-48469-065-0 01 1 0404- ● ●
257 RING; SNAP
(A) 		1-48469-067-0 01 1 0404- ● ●
257 RING; SNAP
(B) 		1-48469-068-0 01 1 0404- ● ●
258 PLATE; CAUTION 1-48469-093-0 01 1 0404- ● ●
259 REPAIR KIT; VALVE 1-48469-096-0 01 1 0404- ● ●
260 GREASE; VALVE 1-48469-084-0 01 1 0404- ● ●
