Sayfa 3-20 - Isuzu EPC

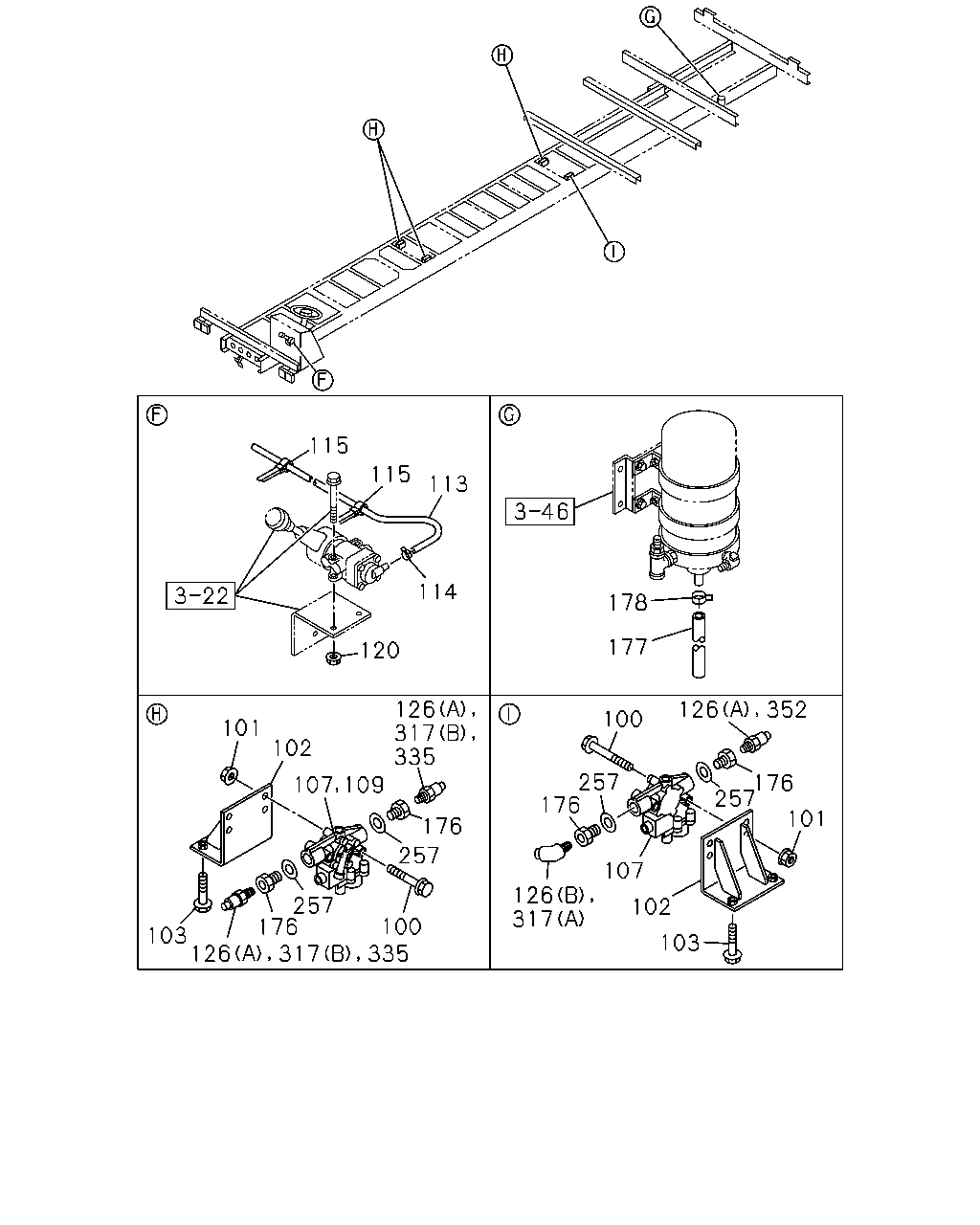

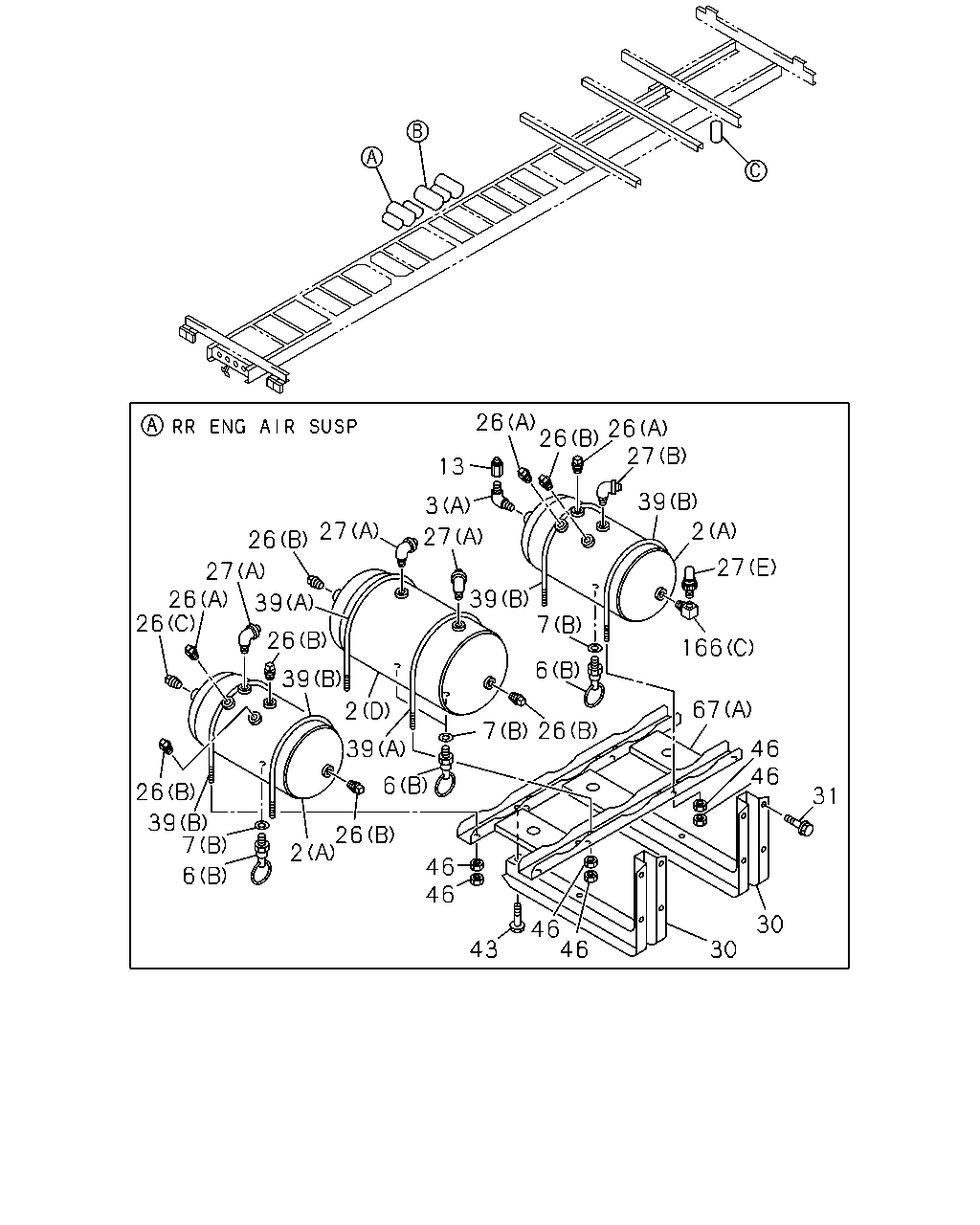

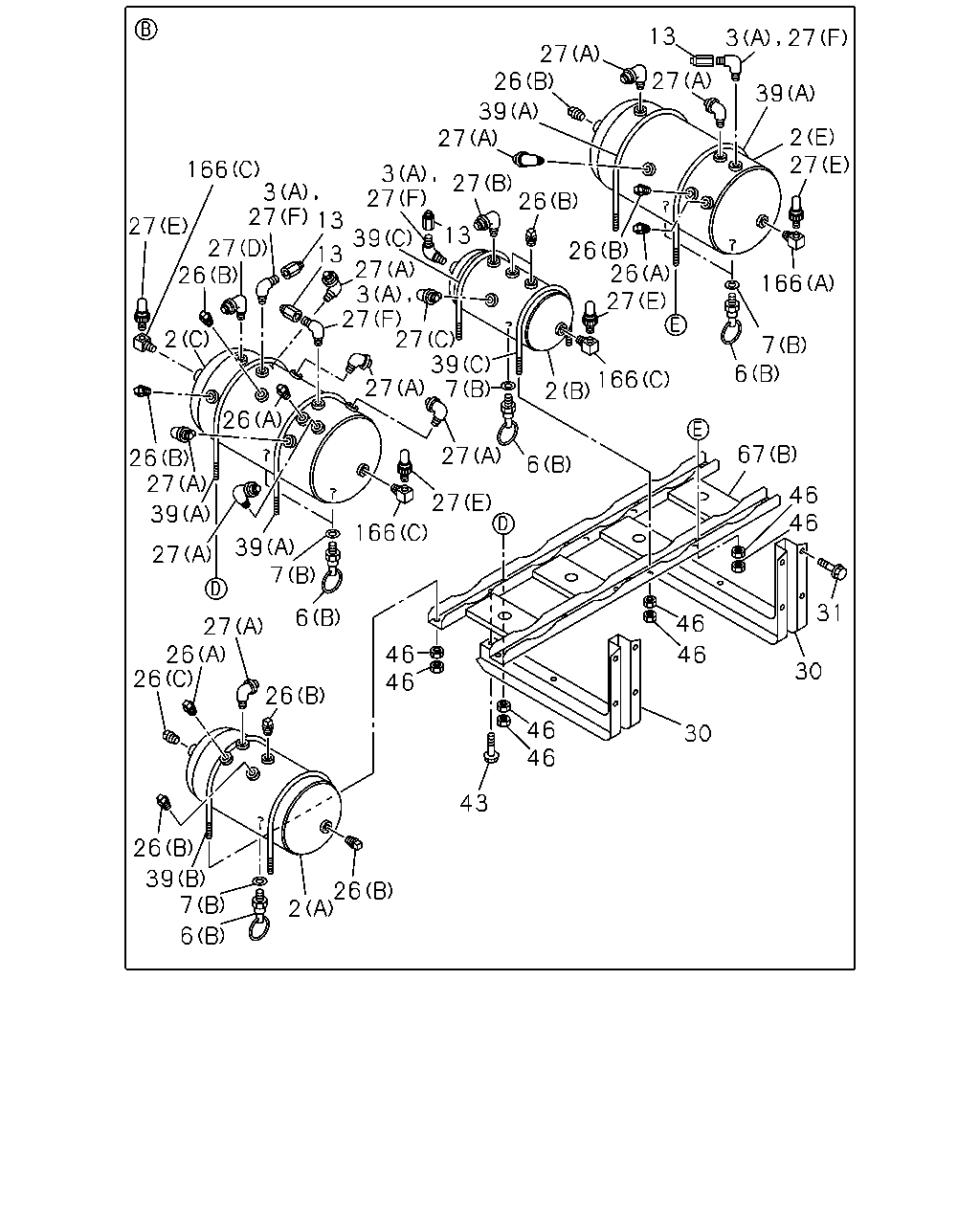

3-20 — AIR TANK (#34964) — 324 parça

3 10 166 11 5 10 5 37 5 1 7 7 6 17 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-861-0	01	1	0404-	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	05	1	0404-0811	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0812-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0404-	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0404-0811		●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0404-	●	●
5	UNION; AIR TANK (B) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0404-	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	01	1	0404-	●	●
6	COCK; DRAIN,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	08	1	0404-	●
6	COCK; DRAIN,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	07	1	0404-	●
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B)	1-48312-015-0	06	1	0404-	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	01	1	0404-	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	01	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	05	1	0404-	●
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	05	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	9-09904-177-0	01	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	04	1	0404-		●
7	GASKET; DRAIN COCK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	08	1	0404-	●
7	GASKET; DRAIN COCK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	07	1	0404-	●
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=14	1-09630-145-0	06	1	0404-	●
7	GASKET; DRAIN COCK (B) ID=14	1-09630-145-0	01	1	0404-	●
7	GASKET; DRAIN COCK AIR DRYER<PS7> (B) ID=14	1-09630-145-0	01	1	0404-		●
7	GASKET; DRAIN COCK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	05	1	0404-	●
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	05	1	0404-		●
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0404-		●
7	GASKET; DRAIN COCK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	04	1	0404-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0404-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0404-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0404-	●	●
17	ADAPTER; AUTO DRAIN EXC. AIR DRYER<PS7>	1-48319-031-0	01	1	0404-		●
37	BOLT; AIR TANK M10X30 FLANGE	0-28681-030-0	04	1	0404-0512	●	●
37	BOLT; AIR TANK M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0404-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0404-0811	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-0906	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0907-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) 530KPA	1-48340-054-1	01	1	0404-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (C) PT1/4 2WAY	1-09660-693-0	03	1	0404-		●

26 26 26 27 13 39 3 27 2 27 26 27 27 26 26 39 7 6 39 26 166 39 2 67 46 46 39 6 26 31 39 7 26 2 46 46 6 30 46 46 43 30 7 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR ANTI SKID BRK SYSTEM<SFL> (D)	1-48370-863-1	01	1	0404-	●
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48371-007-0	02	1	0404-	●
2	TANK; AIR (E)	1-48370-223-1	01	1	0404-	●	●
2	TANK; AIR (B)	1-48370-414-0	01	1	0404-	●	●
2	TANK; AIR (C)	1-48370-862-0	01	1	0404-	●	●
2	TANK; AIR EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48371-007-0	01	1	0404-	●
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48371-007-0	01	1	0404-		●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	05	1	0404-0811	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0812-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0404-	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0404-0811		●
6	COCK; DRAIN,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	08	1	0404-	●
6	COCK; DRAIN,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	07	1	0404-	●
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B)	1-48312-015-0	06	1	0404-	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	01	1	0404-	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	01	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	05	1	0404-	●
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	05	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	9-09904-177-0	01	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	04	1	0404-		●
7	GASKET; DRAIN COCK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	08	1	0404-	●
7	GASKET; DRAIN COCK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	07	1	0404-	●
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=14	1-09630-145-0	06	1	0404-	●
7	GASKET; DRAIN COCK (B) ID=14	1-09630-145-0	01	1	0404-	●
7	GASKET; DRAIN COCK AIR DRYER<PS7> (B) ID=14	1-09630-145-0	01	1	0404-		●
7	GASKET; DRAIN COCK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	05	1	0404-	●
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	05	1	0404-		●
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0404-		●
7	GASKET; DRAIN COCK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	04	1	0404-		●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	05	1	0404-	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0404-		●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> (A) PT3/8	9-09204-517-0	06	1	0404-0506	●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	06	1	0404-0506		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	08	1	0507-	●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	11	1	0404-0506	●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	09	1	0507-	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) PT1/4	9-99204-513-0	08	1	0404-0506	●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	08	1	0404-0506	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	08	1	0404-0506		●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) PT1/4	9-99204-513-0	08	1	0507-	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	08	1	0507-		●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT3/4	9-09204-526-0	01	1	0404-	●	●
26	PLUG; SUB AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL> (A) PT3/8	9-09204-517-0	08	1	0404-0506	●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	06	1	0507-		●
26	PLUG; SUB AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	06	1	0404-0506	●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	06	1	0404-0506		●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	06	1	0507-	●	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	07	1	0404-		●
27	UNION; ELBOW,AIR TANK (F) M20 & PT3/4 ELBOW	8-98067-083-1	04	1	0812-	●	●
27	UNION; ELBOW,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	10	1	0812-0906		●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	11	1	0404-0811	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	19	1	0812-0906	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	11	1	0907-	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0404-0811	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	16	1	0812-0906	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0907-	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0404-0811	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	13	1	0812-0906	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0907-	●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0404-	●
27	UNION; ELBOW,AIR TANK (E) 530KPA	1-48340-054-1	05	1	0404-	●
27	UNION; ELBOW,AIR TANK (D) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	0404-1211	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (D) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	0404-1211		●
27	UNION; ELBOW,AIR TANK (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1212-	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1212-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0404-	●	●
27	UNION; ELBOW,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0404-0811	●
27	UNION; ELBOW,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0404-0811		●
27	UNION; ELBOW,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0812-0906	●
27	UNION; ELBOW,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0907-	●
27	UNION; ELBOW,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0907-		●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0404-0811		●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	12	1	0812-0906		●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0907-		●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0404-		●
27	UNION; ELBOW,AIR TANK (E) 530KPA	1-48340-054-1	04	1	0404-		●
30	BRACKET; AIR TANK,SUB ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48317-900-0	04	1	0404-	●
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48317-900-0	04	1	0404-	●
30	BRACKET; AIR TANK,SUB EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48317-900-0	02	1	0404-	●
30	BRACKET; AIR TANK,SUB	1-48317-900-0	02	1	0404-		●
31	BOLT; BRKT TO FRAME ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28681-235-0	16	1	0404-0512	●
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28681-235-0	16	1	0404-0512	●
31	BOLT; BRKT TO FRAME ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28651-235-0	16	1	0601-	●
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28651-235-0	16	1	0601-	●
31	BOLT; BRKT TO FRAME EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28681-235-0	08	1	0404-0512	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	0404-0512		●
31	BOLT; BRKT TO FRAME EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28651-235-0	08	1	0601-	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	0601-		●
39	U-BOLT; AIR TANK ANTI SKID BRK SYSTEM<SFL> (A)	1-48317-675-0	06	1	0404-	●
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-289-0	04	1	0404-	●
39	U-BOLT; AIR TANK (C) L=250	1-48317-308-0	02	1	0404-	●	●
39	U-BOLT; AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL> (A)	1-48317-675-0	04	1	0404-	●
39	U-BOLT; AIR TANK (A)	1-48317-675-0	04	1	0404-		●
39	U-BOLT; AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-289-0	02	1	0404-	●
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-289-0	02	1	0404-		●
43	BOLT; STAY,AIR TANK,MAIN ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28681-225-0	08	1	0404-0512	●
43	BOLT; STAY,AIR TANK,MAIN DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28681-225-0	08	1	0404-0512	●
43	BOLT; STAY,AIR TANK,MAIN ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28651-225-0	08	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28651-225-0	08	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28681-225-0	04	1	0404-0512	●
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0404-0512		●
43	BOLT; STAY,AIR TANK,MAIN EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-		●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	48	1	0404-0512	●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	48	1	0601-	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> M8	9-09110-408-0	40	1	0404-0512	●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	40	1	0404-0512	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> M8	0-91110-508-0	40	1	0601-	●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	40	1	0601-	●
46	NUT; U-BOLT EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	32	1	0404-0512	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	32	1	0404-0512		●
46	NUT; U-BOLT EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	32	1	0601-	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	32	1	0601-		●
46	NUT; U-BOLT EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	24	1	0404-0512		●
46	NUT; U-BOLT EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	24	1	0601-		●
67	STAY; SUB TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-918-0	01	1	0404-	●
67	STAY; SUB TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-919-0	01	1	0404-	●
67	STAY; SUB TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-917-0	01	1	0404-	●
67	STAY; SUB TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-917-0	01	1	0404-	●
67	STAY; SUB TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-917-0	01	1	0404-		●
67	STAY; SUB TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A)	1-48317-920-0	01	1	0404-	●
67	STAY; SUB TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-921-0	01	1	0404-	●
67	STAY; SUB TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-921-0	01	1	0404-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0404-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0404-0811	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-0906	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0907-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) 530KPA	1-48340-054-1	01	1	0404-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (C) PT1/4 2WAY	1-09660-693-0	03	1	0404-		●

115 115 113 114 178 177 120 126 317 335 126 352 100 101 102 257 176 176 257 101 176 257 107 126 317 257 176 100 102 103 126 103 317 335 107 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTI SKID BRK SYSTEM<SFL> M8X80 FLANGE	0-28080-880-0	08	1	0404-0512	●
100	BOLT; MODULATOR ANTI SKID BRK SYSTEM<SFL> M8X80 FLANGE	0-28050-880-0	08	1	0601-	●
101	NUT; MODULATOR ANTI SKID BRK SYSTEM<SFL> M8 FLANGE	0-91150-108-0	08	1	0404-0602	●
101	NUT; MODULATOR ANTI SKID BRK SYSTEM<SFL> M8 FLANGE	0-91180-108-0	08	1	0603-	●
102	BRACKET; MODULATOR ANTI SKID BRK SYSTEM<SFL>	1-47478-426-0	04	1	0404-	●
103	BOLT; BRKT ANTI SKID BRK SYSTEM<SFL> M8X25 FLANGE	0-28680-825-0	08	1	0404-0512	●
103	BOLT; BRKT ANTI SKID BRK SYSTEM<SFL> M8X25 FLANGE	0-28650-825-0	08	1	0601-	●
107	MODULATOR; RR ANTI SKID BRK SYSTEM<SFL>	1-48210-880-0	02	1	0404-0409	●
107	MODULATOR; RR ANTI SKID BRK SYSTEM<SFL>	1-48240-115-0	02	1	0410-	●
109	MODULATOR; FRT ANTI SKID BRK SYSTEM<SFL>	1-48210-880-0	02	1	0404-0409	●
109	MODULATOR; FRT ANTI SKID BRK SYSTEM<SFL>	1-48240-115-0	02	1	0410-	●
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0404-	●	●
114	CLAMP; HOSE ID=14	1-09704-102-0	01	1	0404-	●	●
115	CLIP; VINYL HOSE ID=15 L=45	1-09700-402-0	02	1	0404-	●	●
120	NUT; BRKT,RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
120	NUT; BRKT,RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
126	CONNECTOR; ELBOW ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0404-0409	●
126	CONNECTOR; ELBOW ANTI SKID BRK SYSTEM<SFL> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0410-	●
176	ADAPTER ANTI SKID BRK SYSTEM<SFL> INNER PT3/8,OUTER M22	1-09650-494-1	08	1	0410-	●
177	HOSE; RUBBER,DRAIN L=250	0-02115-250-0	01	1	0404-	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250	0-02115-250-0	01	1	0404-		●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	0404-	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	0404-		●
257	GASKET; PLUG ANTI SKID BRK SYSTEM<SFL> ID=22.5	9-09571-422-0	08	1	0410-	●
317	CONNECTOR; MODULATOR ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0404-0409	●
317	CONNECTOR; MODULATOR ANTI SKID BRK SYSTEM<SFL> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0410-	●
335	CONNECTOR; MODULATOR ANTI SKID BRK SYSTEM<SFL> DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0404-0409	●
352	CONNECTOR; STRAIGHT ANTI SKID BRK SYSTEM<SFL> DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0410-	●

13 3 27 27 26 27 39 39 27 2 27 166 3 27 13 39 13 3 27 27 26 27 13 27 26 26 26 27 27 3 27 27 39 166 2 7 6 166 2 27 26 67 27 26 27 6 46 46 27 39 166 39 7 27 31 6 46 27 26 26 46 46 46 30 26 46 46 30 43 26 39 7 26 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR ANTI SKID BRK SYSTEM<SFL> (D)	1-48370-863-1	01	1	0404-	●
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48371-007-0	02	1	0404-	●
2	TANK; AIR (E)	1-48370-223-1	01	1	0404-	●	●
2	TANK; AIR (B)	1-48370-414-0	01	1	0404-	●	●
2	TANK; AIR (C)	1-48370-862-0	01	1	0404-	●	●
2	TANK; AIR EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48371-007-0	01	1	0404-	●
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48371-007-0	01	1	0404-		●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	05	1	0404-0811	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0812-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0404-	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0404-0811		●
6	COCK; DRAIN,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	08	1	0404-	●
6	COCK; DRAIN,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	07	1	0404-	●
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B)	1-48312-015-0	06	1	0404-	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	01	1	0404-	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	01	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	05	1	0404-	●
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	05	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	9-09904-177-0	01	1	0404-		●
6	COCK; DRAIN,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48312-015-0	04	1	0404-		●
7	GASKET; DRAIN COCK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	08	1	0404-	●
7	GASKET; DRAIN COCK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	07	1	0404-	●
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=14	1-09630-145-0	06	1	0404-	●
7	GASKET; DRAIN COCK (B) ID=14	1-09630-145-0	01	1	0404-	●
7	GASKET; DRAIN COCK AIR DRYER<PS7> (B) ID=14	1-09630-145-0	01	1	0404-		●
7	GASKET; DRAIN COCK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	05	1	0404-	●
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	05	1	0404-		●
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0404-		●
7	GASKET; DRAIN COCK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) ID=14	1-09630-145-0	04	1	0404-		●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	05	1	0404-	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0404-		●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> (A) PT3/8	9-09204-517-0	06	1	0404-0506	●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	06	1	0404-0506		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	08	1	0507-	●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	11	1	0404-0506	●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	09	1	0507-	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) PT1/4	9-99204-513-0	08	1	0404-0506	●
26	PLUG; SUB AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	08	1	0404-0506	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	08	1	0404-0506		●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (B) PT1/4	9-99204-513-0	08	1	0507-	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	08	1	0507-		●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT3/4	9-09204-526-0	01	1	0404-	●	●
26	PLUG; SUB AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL> (A) PT3/8	9-09204-517-0	08	1	0404-0506	●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	06	1	0507-		●
26	PLUG; SUB AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	06	1	0404-0506	●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	06	1	0404-0506		●
26	PLUG; SUB AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT1/4	9-99204-513-0	06	1	0507-	●	●
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	07	1	0404-		●
27	UNION; ELBOW,AIR TANK (F) M20 & PT3/4 ELBOW	8-98067-083-1	04	1	0812-	●	●
27	UNION; ELBOW,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	10	1	0812-0906		●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	11	1	0404-0811	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	19	1	0812-0906	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	11	1	0907-	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0404-0811	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	16	1	0812-0906	●
27	UNION; ELBOW,AIR TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0907-	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0404-0811	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	13	1	0812-0906	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0907-	●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0404-	●
27	UNION; ELBOW,AIR TANK (E) 530KPA	1-48340-054-1	05	1	0404-	●
27	UNION; ELBOW,AIR TANK (D) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	0404-1211	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (D) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	0404-1211		●
27	UNION; ELBOW,AIR TANK (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1212-	●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1212-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0404-	●	●
27	UNION; ELBOW,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0404-0811	●
27	UNION; ELBOW,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0404-0811		●
27	UNION; ELBOW,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0812-0906	●
27	UNION; ELBOW,AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0907-	●
27	UNION; ELBOW,AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0907-		●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0404-0811		●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	12	1	0812-0906		●
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0907-		●
27	UNION; ELBOW,AIR TANK (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0404-		●
27	UNION; ELBOW,AIR TANK (E) 530KPA	1-48340-054-1	04	1	0404-		●
30	BRACKET; AIR TANK,SUB ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48317-900-0	04	1	0404-	●
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48317-900-0	04	1	0404-	●
30	BRACKET; AIR TANK,SUB EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48317-900-0	02	1	0404-	●
30	BRACKET; AIR TANK,SUB	1-48317-900-0	02	1	0404-		●
31	BOLT; BRKT TO FRAME ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28681-235-0	16	1	0404-0512	●
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28681-235-0	16	1	0404-0512	●
31	BOLT; BRKT TO FRAME ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28651-235-0	16	1	0601-	●
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28651-235-0	16	1	0601-	●
31	BOLT; BRKT TO FRAME EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28681-235-0	08	1	0404-0512	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	08	1	0404-0512		●
31	BOLT; BRKT TO FRAME EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X35 FLANGE	0-28651-235-0	08	1	0601-	●
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	0601-		●
39	U-BOLT; AIR TANK ANTI SKID BRK SYSTEM<SFL> (A)	1-48317-675-0	06	1	0404-	●
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-289-0	04	1	0404-	●
39	U-BOLT; AIR TANK (C) L=250	1-48317-308-0	02	1	0404-	●	●
39	U-BOLT; AIR TANK EXC. ANTI SKID BRK SYSTEM<SFL> (A)	1-48317-675-0	04	1	0404-	●
39	U-BOLT; AIR TANK (A)	1-48317-675-0	04	1	0404-		●
39	U-BOLT; AIR TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-289-0	02	1	0404-	●
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-289-0	02	1	0404-		●
43	BOLT; STAY,AIR TANK,MAIN ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28681-225-0	08	1	0404-0512	●
43	BOLT; STAY,AIR TANK,MAIN DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28681-225-0	08	1	0404-0512	●
43	BOLT; STAY,AIR TANK,MAIN ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28651-225-0	08	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28651-225-0	08	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28681-225-0	04	1	0404-0512	●
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0404-0512		●
43	BOLT; STAY,AIR TANK,MAIN EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28651-225-0	04	1	0601-		●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	48	1	0404-0512	●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	48	1	0601-	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> M8	9-09110-408-0	40	1	0404-0512	●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	40	1	0404-0512	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> M8	0-91110-508-0	40	1	0601-	●
46	NUT; U-BOLT ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	40	1	0601-	●
46	NUT; U-BOLT EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	32	1	0404-0512	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	32	1	0404-0512		●
46	NUT; U-BOLT EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	32	1	0601-	●
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	32	1	0601-		●
46	NUT; U-BOLT EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	24	1	0404-0512		●
46	NUT; U-BOLT EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	24	1	0601-		●
67	STAY; SUB TANK ANTI SKID BRK SYSTEM<SFL> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-918-0	01	1	0404-	●
67	STAY; SUB TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-919-0	01	1	0404-	●
67	STAY; SUB TANK ANTI SKID BRK SYSTEM<SFL> EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-917-0	01	1	0404-	●
67	STAY; SUB TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-917-0	01	1	0404-	●
67	STAY; SUB TANK EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-917-0	01	1	0404-		●
67	STAY; SUB TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. ANTI SKID BRK SYSTEM<SFL> (A)	1-48317-920-0	01	1	0404-	●
67	STAY; SUB TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-921-0	01	1	0404-	●
67	STAY; SUB TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B)	1-48317-921-0	01	1	0404-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0404-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0404-0811	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-0906	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0907-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) 530KPA	1-48340-054-1	01	1	0404-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (C) PT1/4 2WAY	1-09660-693-0	03	1	0404-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
