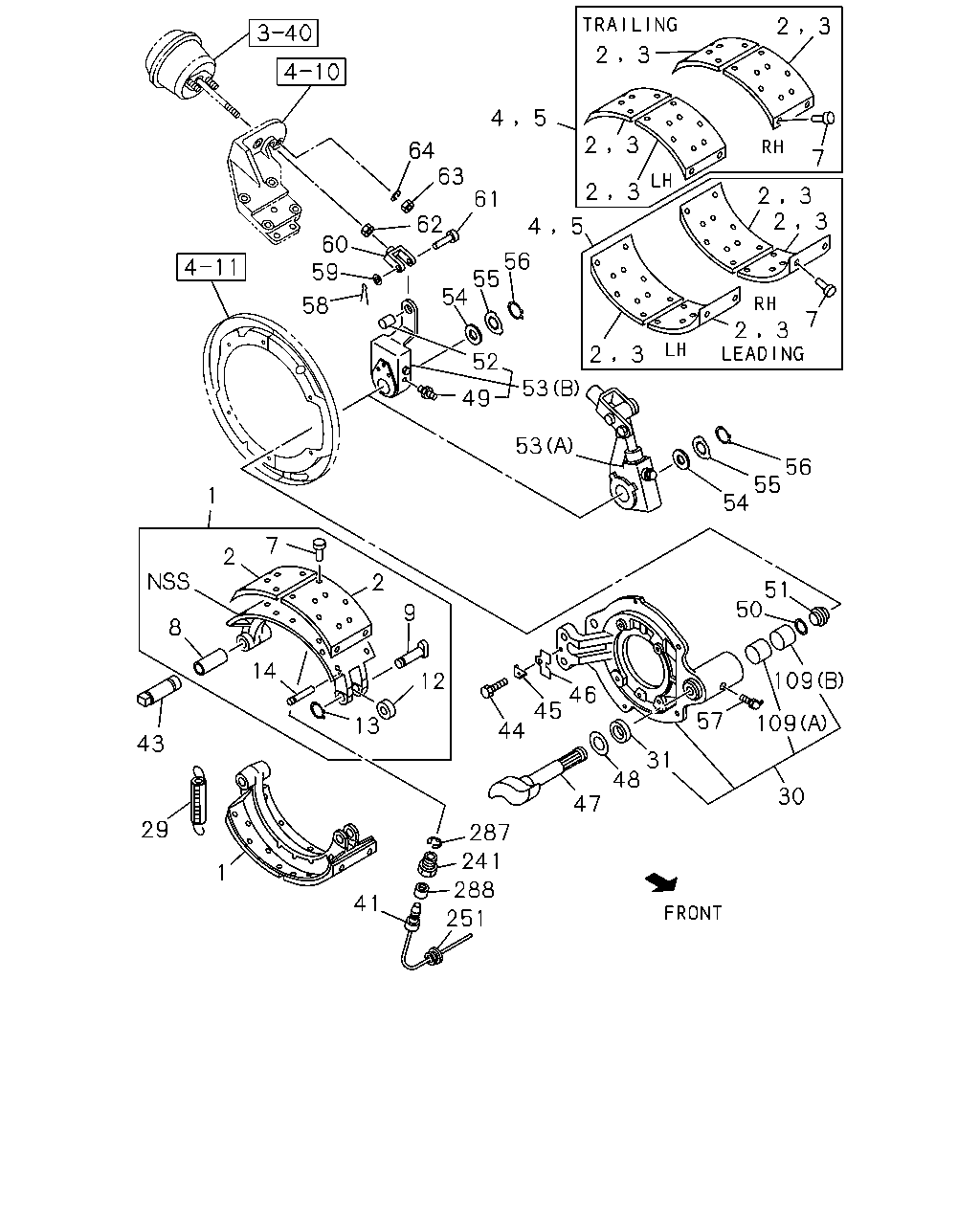

3-01 — FRONT WHEEL BRAKE (#34960) — 88 parça

2 3 2 3 5 4 3 2 64 63 7 2 3 2 2 3 3 61 62 5 4 60 59 56 55 54 58 7 2 3 52 53 49 53 56 55 54 1 7 2 2 51 50 9 8 14 109 12 46 45 44 13 57 109 43 31 48 30 47 29 287 241 1 288 41 251 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT LEADING	1-47170-198-0	01	1	0404-	●	●
1	SHOE; BRK,FRT TRAILING	1-47170-199-0	01	1	0404-	●	●
1	SHOE; BRK,FRT TRAILING	1-47170-200-0	01	1	0404-	●	●
1	SHOE; BRK,FRT LEADING	1-47170-201-0	01	1	0404-	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING WO/INDICATOR HOLE	1-47126-080-0	04	1	0404-	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47126-082-0	04	1	0404-	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING W/INDICATOR HOLE	1-47126-086-0	04	1	0404-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING WO/INDICATOR HOLE	1-47126-081-0	04	1	0404-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47126-083-0	04	1	0404-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING W/INDICATOR HOLE	1-47126-087-0	04	1	0404-	●	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-819-0	01	1	0404-	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-821-0	01	1	0404-	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-820-0	01	1	0404-	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-822-0	01	1	0404-	●	●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	AR	1	0404-	●	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0404-	●	●
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0404-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0404-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0404-	●	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0404-	●	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0404-	●	●
30	BRACKET; ANCHOR,FRT ANTI SKID BRK SYSTEM<SFL>	1-47137-502-0	01	1	0807-	●
30	BRACKET; ANCHOR,FRT ANTI SKID BRK SYSTEM<SFL>	1-47137-503-0	01	1	0807-	●
30	BRACKET; ANCHOR,FRT EXC. ANTI SKID BRK SYSTEM<SFL>	1-47137-480-0	01	1	0404-	●
30	BRACKET; ANCHOR,FRT	1-47137-480-0	01	1	0404-		●
30	BRACKET; ANCHOR,FRT EXC. ANTI SKID BRK SYSTEM<SFL>	1-47137-481-0	01	1	0404-	●
30	BRACKET; ANCHOR,FRT	1-47137-481-0	01	1	0404-		●
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0404-	●	●
41	INDICATOR	1-82480-173-0	02	1	0404-	●
41	INDICATOR	1-82480-188-0	02	1	0404-		●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0404-	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0404-0512	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-	●	●
45	WASHER; LK	1-47133-011-0	02	1	0404-	●	●
46	PLATE; LOCK	1-47133-005-0	02	1	0404-	●	●
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0404-	●	●
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0404-	●	●
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0404-	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0404-0512	●
49	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 STRAIGHT	9-09031-010-0	01	1	0404-0512		●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
49	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0404-0512	●
49	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0404-0512		●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●
49	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0404-	●	●
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0404-	●
51	COLLAR; RING,CM/SHF EXC. AUTO ADJUSTER BRAKE<BCU>	1-47143-016-0	02	1	0404-		●
51	COLLAR; RING,CM/SHF AUTO ADJUSTER BRAKE<BCU>	1-47143-013-0	02	1	0404-		●
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0404-	●
52	BUSHING; SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU>	1-09330-041-0	02	1	0404-		●
53	ADJUSTER ASM; SLACK (B)	1-48270-043-0	01	1	0404-	●
53	ADJUSTER ASM; SLACK EXC. AUTO ADJUSTER BRAKE<BCU> (B)	1-48270-043-0	01	1	0404-		●
53	ADJUSTER ASM; SLACK (B)	1-48270-044-0	01	1	0404-	●
53	ADJUSTER ASM; SLACK EXC. AUTO ADJUSTER BRAKE<BCU> (B)	1-48270-044-0	01	1	0404-		●
53	ADJUSTER ASM; SLACK AUTO ADJUSTER BRAKE<BCU> (A)	1-48270-071-0	01	1	0404-		●
53	ADJUSTER ASM; SLACK AUTO ADJUSTER BRAKE<BCU> (A)	1-48270-072-0	01	1	0404-		●
54	SPACER; CM/SHF	1-47143-004-0	02	1	0404-	●
54	SPACER; CM/SHF EXC. AUTO ADJUSTER BRAKE<BCU>	1-47143-004-0	02	1	0404-		●
54	SPACER; CM/SHF AUTO ADJUSTER BRAKE<BCU>	1-47143-004-0	04	1	0404-		●
55	PLATE; STOPPER,CM/SHF	1-47149-086-0	02	1	0404-	●
55	PLATE; STOPPER,CM/SHF	1-47149-055-0	02	1	0404-		●
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0404-	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0404-0512	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0404-0606	●
58	PIN; SPLIT,JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28	9-08114-028-0	02	1	0404-0606		●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●
58	PIN; SPLIT,JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28	0-81124-028-0	02	1	0607-		●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0404-	●
59	WASHER; PL,JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU> ID=17 OD=32	9-09160-616-0	02	1	0404-		●
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0404-	●
60	JOINT; JAW,POWER CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>	1-09768-060-1	02	1	0404-		●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0404-	●
61	PIN; JAW JOINT,POWER CHAMBER EXC. AUTO ADJUSTER BRAKE<BCU>	1-09744-088-0	02	1	0404-		●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0404-0512	●	●
62	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	0404-0512	●	●
63	NUT; POWER CHAMBER M16	0-91110-516-0	04	1	0601-	●	●
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	0404-0603	●	●
64	WASHER; LK,POWER CHAMBER ID=16.2	0-91510-516-0	04	1	0604-	●	●
109	BUSHING; CM/SHF,FRT BRK (A)	1-47146-003-1	02	1	0404-	●	●
109	BUSHING; CM/SHF,FRT BRK (B)	1-47146-019-0	02	1	0404-	●	●
241	HOLDER	1-47119-096-0	02	1	0404-	●	●
251	COVER; INDICATOR	1-09333-147-0	02	1	0404-	●	●
287	RING; SNAP ID=7	9-09185-407-0	02	1	0404-	●	●
288	WASHER; WAVE	1-47119-050-0	02	1	0404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
