2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#34957) — 25 parça

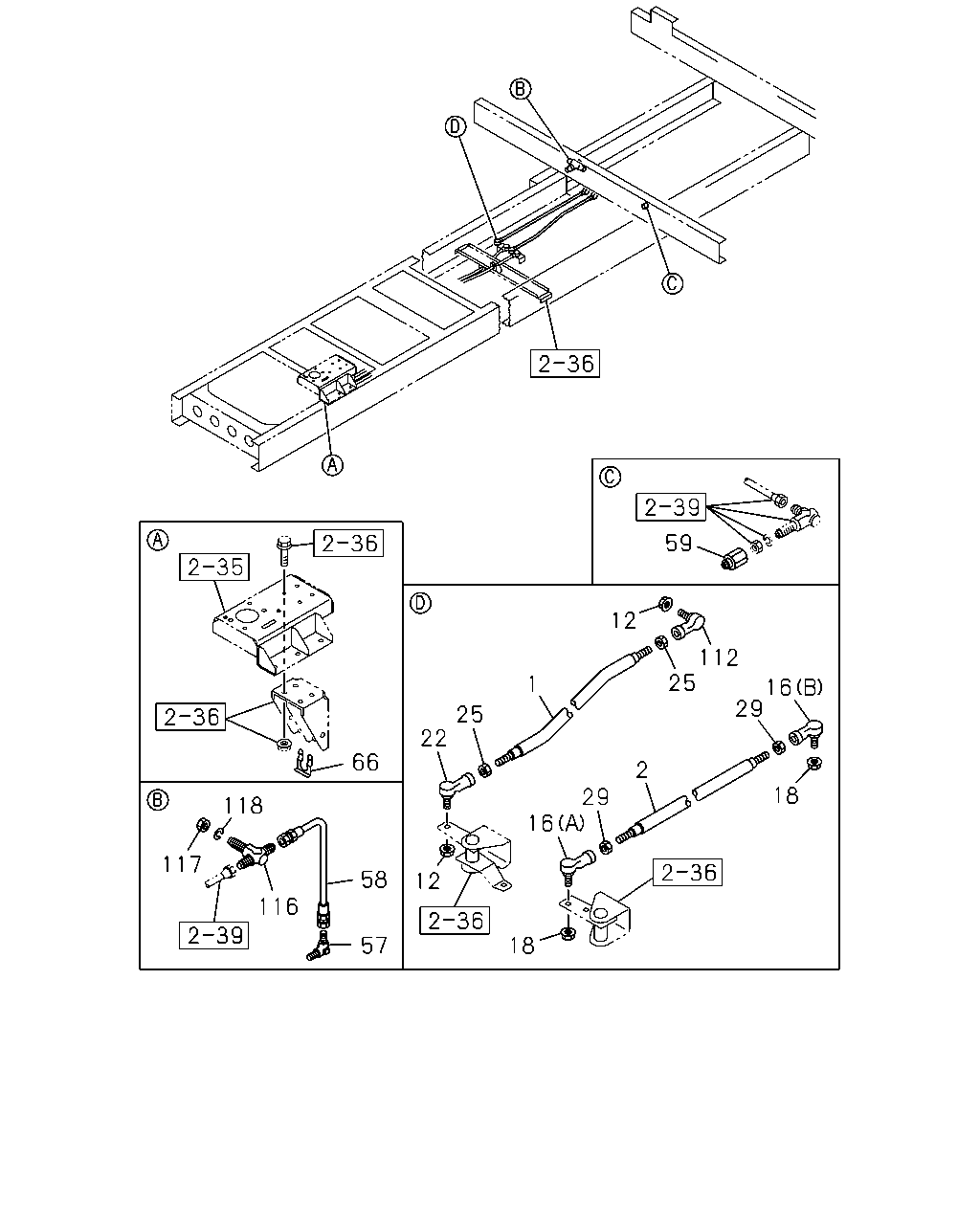

çizim 176847
59 12 112 25 1 16 29 25 22 66 2 18 29 118 16 117 58 12 116 57 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
RR ENG AIR SUSP(LVD0AA) L=788 		1-33652-955-0 01 1 0404- ● ●
1 ROD; LINK,1ST SHIFT
RR ENG LEAF SUSP(LVR0AA) L=788 		1-33652-963-0 01 1 0404- ● ●
2 ROD; LINK,1ST SELECT 1-33652-973-0 01 1 0404- ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0404- ● ●
16 JOINT ASM; BALL,CONT ROD
(A) LH THREAD 		1-09760-058-0 01 1 0404-1008 ● ●
16 JOINT ASM; BALL,CONT ROD
(A) LH THREAD 		8-98095-878-0 01 1 1009- ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-108-0 01 1 0404- ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0404- ● ●
22 JOINT; BALL,SCREW,LINK ROD 1-09760-125-0 01 1 0404- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0404-0512 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601- ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M8 LH THREAD 		1-09400-002-0 01 1 0404- ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD M8 		9-09111-408-0 01 1 0404-0512 ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD M8 		0-91111-508-0 01 1 0601- ● ●
57 NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0404- ● ●
58 HOSE; FLEX,POWER ASSISTOR
L=240 		1-09363-671-0 01 1 0404- ● ●
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0404- ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 01 1 0404- ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 0404- ● ●
116 UNION; AIR PIPE
M12 		9-09228-306-1 01 1 0404-0607 ● ●
116 UNION; AIR PIPE
M12 		0-92138-306-0 01 1 0608- ● ●
117 NUT; UNION,AIR PIPE
M12 		9-99111-412-0 01 1 0404-0512 ● ●
117 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 0601- ● ●
118 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0404-0603 ● ●
118 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
