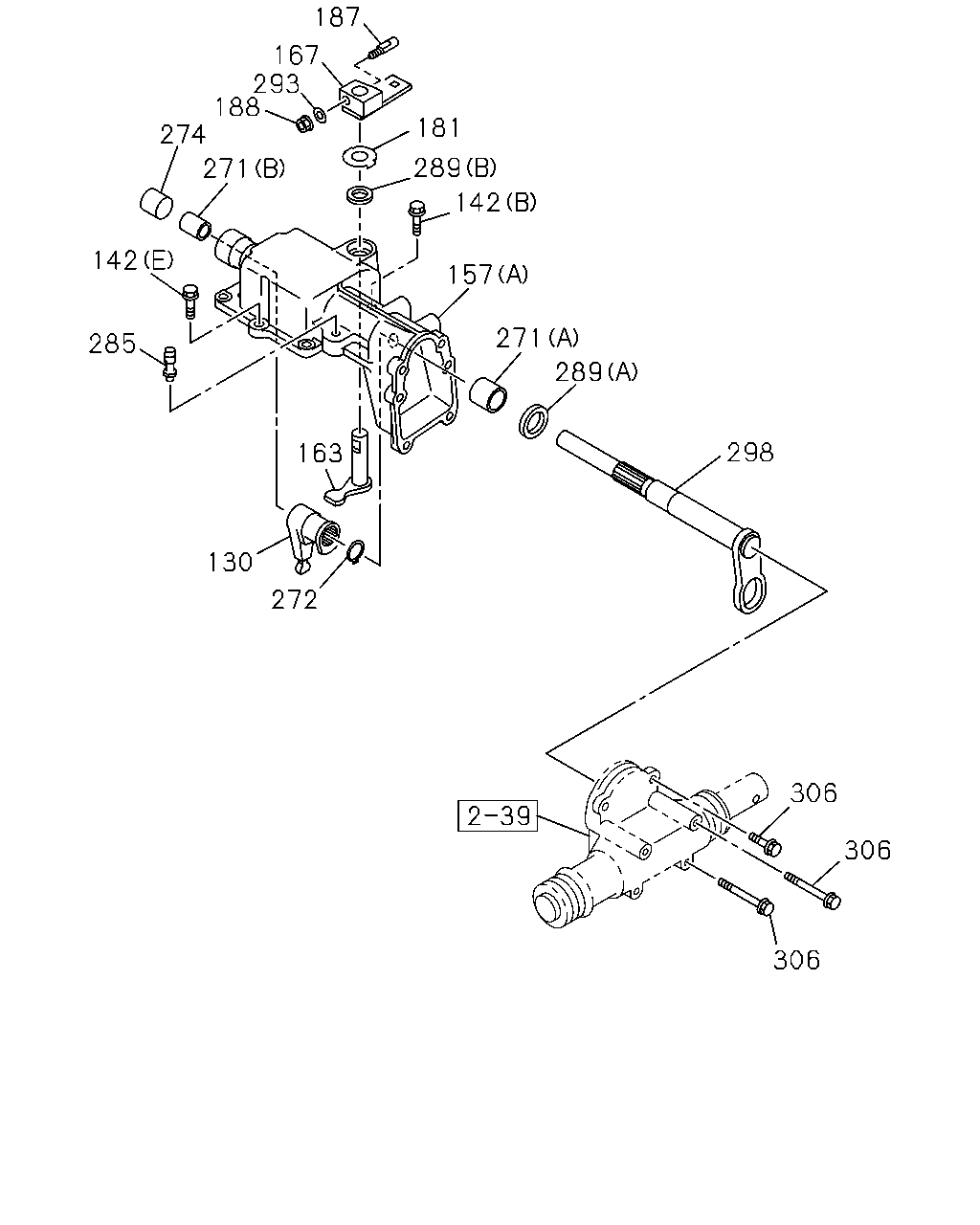

2-30 — GEAR SHIFTER AND QUADRANT BOX (#34954) — 195 parça

187 167 293 188 274 181 289 271 142 142 157 271 285 289 298 163 130 272 306 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0404-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0404-0805	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0404-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0404-0805	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0404-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0404-0805	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0404-0805	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-367-2	01	1	0404-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0404-		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	0404-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0404-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-150-1	01	1	0404-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0404-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0404-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0404-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0404-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0404-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0404-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0404-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0404-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0404-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0404-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0404-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
298	SHAFT; SHIFT LEVER	1-33522-179-0	01	1	0404-	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0404-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0404-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	0601-	●	●

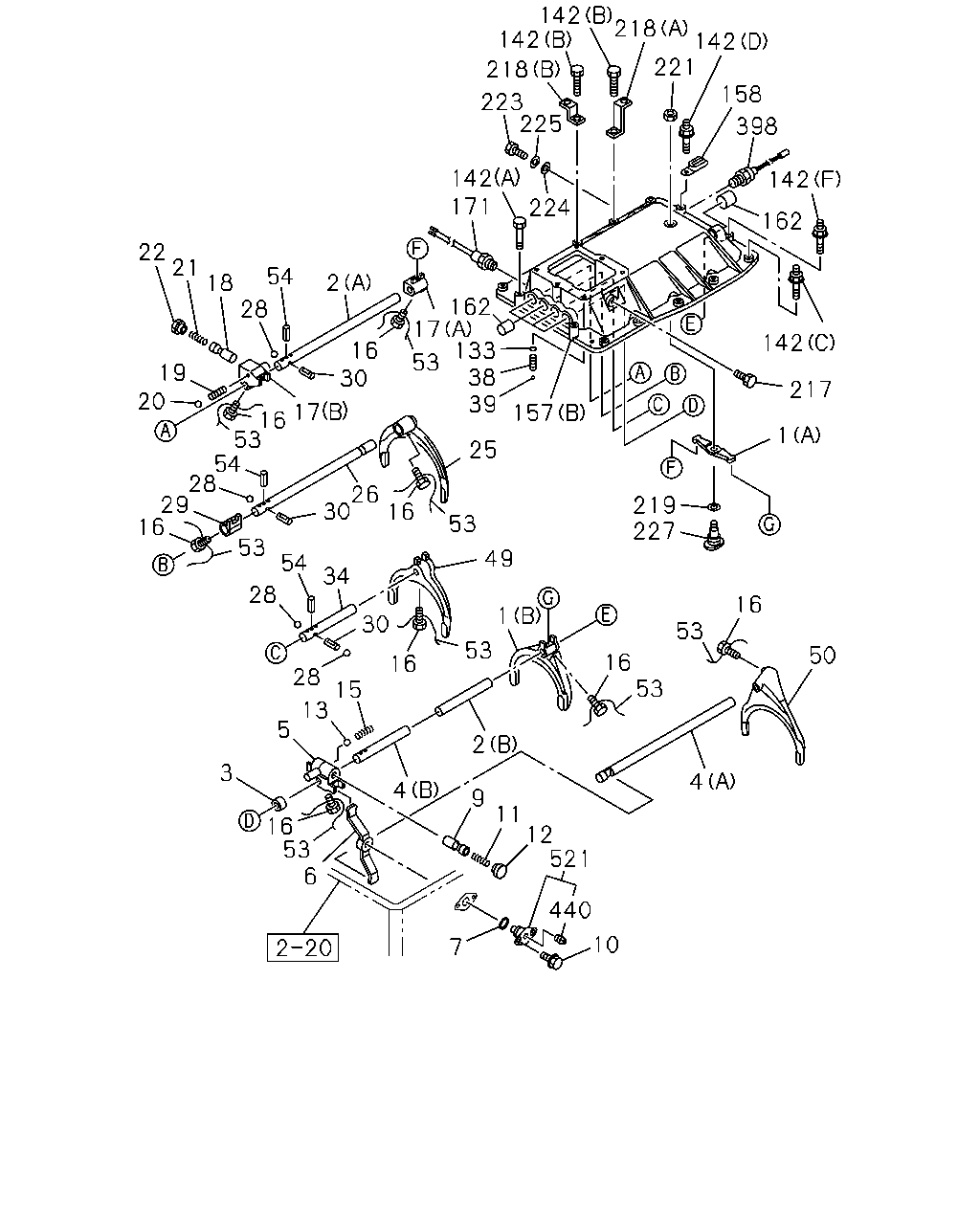

142 142 142 218 218 221 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 17 157 142 16 30 53 19 162 133 38 39 20 17 16 53 54 28 29 16 217 25 1 26 30 16 53 219 227 53 54 34 49 1 28 16 53 30 50 53 16 53 16 28 15 13 24 5 2 4 9 4 11 16 53 372 12 371 7 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0404-	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0404-	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0404-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0404-	●	●
4	ROD; SHIFT,6TH (A)	1-33531-406-1	01	1	0404-	●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0404-		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0404-	●	●
5	BLOCK; SHIFT,6TH	1-33511-374-2	01	1	0404-	●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0404-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0404-	●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0404-	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0404-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0404-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0404-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0404-	●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	0404-	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0404-	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0404-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0404-	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0404-	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0404-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0404-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0404-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0404-	●	●
24	PIN; SPR,6TH & 7TH	1-09748-006-0	01	1	0404-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0404-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0404-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0404-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0404-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0404-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	0404-	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	0404-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0404-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0404-	●	●
50	ARM; SHIFT,6TH	1-33511-340-1	01	1	0404-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0404-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0404-	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0404-	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0404-	●	●
133	SEAT; SPR	1-33549-072-0	04	1	0404-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0404-0805	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0404-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0404-0805	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0404-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0404-0805	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0404-0805	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-367-2	01	1	0404-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0404-		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	0404-	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0404-	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0404-	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0404-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
217	SCREW; SET,6TH SHIFT BLOCK	1-09070-091-0	01	1	0404-	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0404-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0404-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0404-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0404-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0404-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0404-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0404-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0404-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0404-	●	●
369	SPINDLE; 6TH,SHIFT ARM	1-33519-008-1	01	1	0404-	●
371	BOLT; 6 & 7TH SPINDLE M14X20	1-09044-078-0	02	1	0404-	●
372	LEVER; RELAY,6TH	9-33511-402-1	01	1	0404-	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0404-	●	●

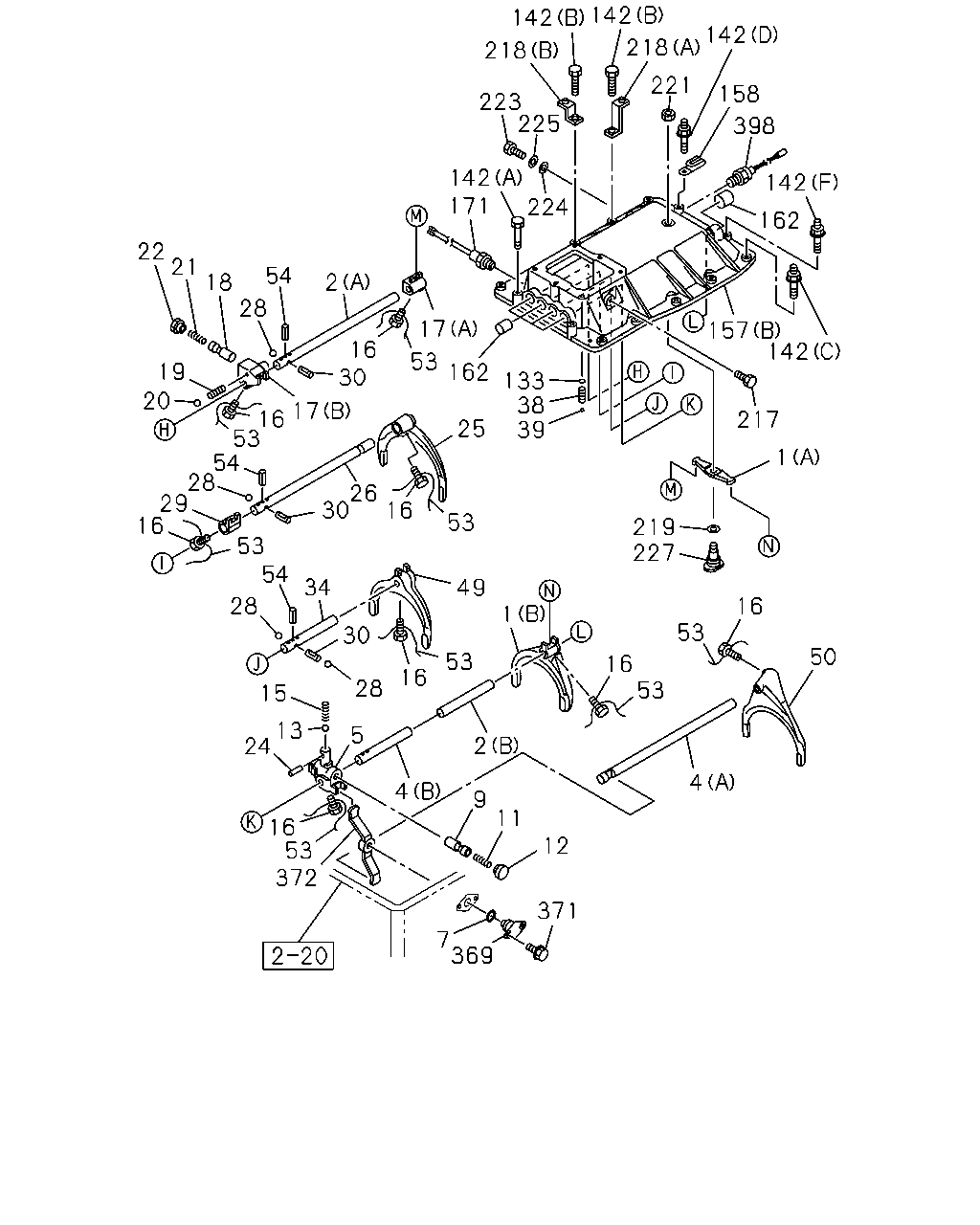

142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 22 21 162 17 133 38 39 54 18 28 2 142 16 30 53 19 20 217 17 157 16 53 54 28 29 16 1 25 26 30 219 227 16 53 53 49 54 34 28 1 16 30 53 53 50 16 53 16 28 15 13 5 2 3 4 9 4 16 53 6 11 12 521 440 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0404-	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0404-	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0404-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0404-	●	●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	0404-		●
4	ROD; SHIFT,6TH (A)	1-33531-406-1	01	1	0404-	●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0404-		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0404-	●	●
5	BLOCK; SHIFT,6TH	1-33511-374-2	01	1	0404-	●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0404-		●
6	LEVER; RELAY	9-33511-402-1	01	1	0404-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0404-	●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0404-	●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0404-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0404-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0404-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0404-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0404-	●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	0404-	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0404-	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0404-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0404-	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0404-	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0404-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0404-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0404-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0404-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0404-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0404-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0404-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0404-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0404-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	0404-	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	0404-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0404-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0404-	●	●
50	ARM; SHIFT,6TH	1-33511-340-1	01	1	0404-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0404-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0404-	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0404-	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0404-	●	●
133	SEAT; SPR	1-33549-072-0	04	1	0404-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0404-0805	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0404-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0404-0805	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0404-0805	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0404-0805	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0404-0805	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-367-2	01	1	0404-	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0404-		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	0404-	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0404-	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0404-	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0404-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
217	SCREW; SET,6TH SHIFT BLOCK	1-09070-091-0	01	1	0404-	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0404-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0404-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0404-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0404-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0404-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0404-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0404-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0404-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0404-	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0404-	●	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	0404-		●
521	SPINDLE; 6TH	1-33119-255-0	01	1	0404-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
