Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30A - WATER PUMP AND CORROSION RESISTOR
▶

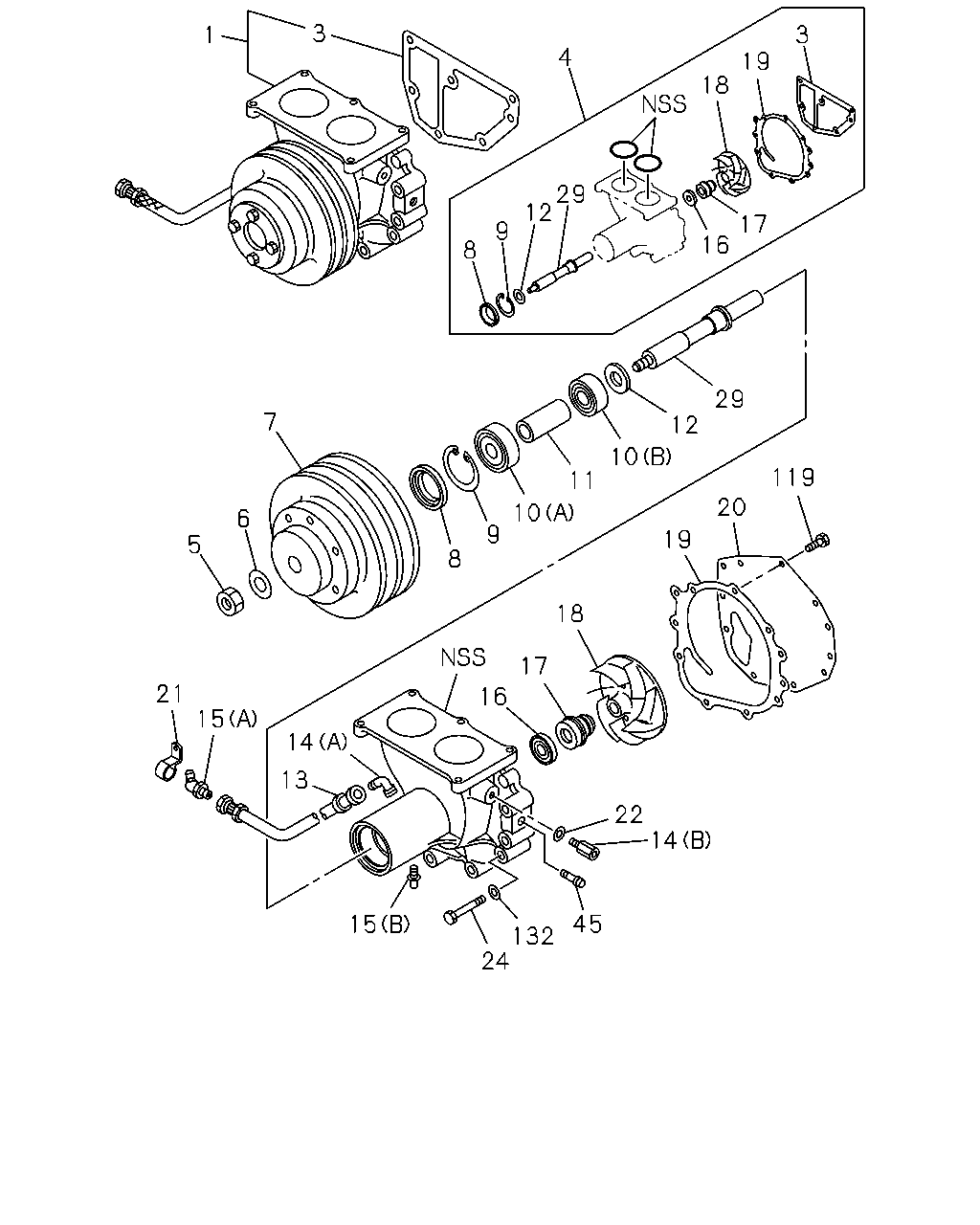

0-30A — WATER PUMP AND CORROSION RESISTOR
(#3495) — 32 parça
Tümü
A - 6RB1 STD ENG
B - 6RB1TC-N ENG
3
3
1
4
19
18
29
12
17
9
16
8
29
7
12
10
119
11
20
10
6
9
19
5
8
18
17
21
16
15
14
13
22
14
45
15
132
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
CHEAPER CAB(SAX)
1-13610-867-0
01
1
9002-
●
1
PUMP ASM; WATER,W/GASKET
EXC. CHEAPER CAB(SAX)
1-13610-866-0
01
1
9002-
●
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11779-014-0
01
1
9002-
●
●
4
REPAIR KIT; WATER PUMP
1-87810-669-2
01
1
9002-
●
●
5
NUT; PULLEY
1-09400-028-0
01
1
9002-
●
●
6
WASHER; PL,PULLEY
1-09503-076-0
01
1
9002-
●
●
7
PULLEY; WATER PUMP
2-GROOVE
1-13641-106-1
01
1
9002-
●
●
8
THROWER; DUST,WATER PUMP
1-13639-021-0
01
1
9002-
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9002-
●
●
10
BEARING; WATER PUMP
(B)
1-09800-011-0
01
1
9002-
●
●
10
BEARING; WATER PUMP
(A)
1-09800-012-0
01
1
9002-
●
●
11
SPACER; BRG,WATER PUMP
1-13634-016-0
01
1
9002-
●
●
12
WASHER; BALL BRG
1-09503-024-0
01
1
9002-
●
●
13
HOSE; FLEX
9-09911-863-0
01
1
9002-
●
●
14
CONNECTOR; JOINT
(A) PT 1/8
1-09660-143-0
01
1
9002-
●
●
14
CONNECTOR; JOINT
(B) M20 & PT3/8 STRAIGHT
1-09660-173-0
01
1
9002-
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
1-09380-002-0
01
1
9002-
●
●
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5?
9-09031-110-0
01
1
9002-
●
●
16
SEAL; OIL,WATER PUMP
1-09625-437-0
01
1
9002-
●
●
17
SEAL UNIT; WATER PUMP
1-13620-015-0
01
1
9002-
●
●
18
IMPELLER; WATER PUMP
1-13621-032-1
01
1
9002-
●
●
19
GASKET; COVER TO BODY
1-13613-040-0
01
1
9002-
●
●
20
COVER; WATER PUMP
1-13612-030-0
01
1
9002-
●
●
21
CLIP; FLEX HOSE,W/PUMP
1-09700-913-0
01
1
9002-
●
●
22
GASKET
1-09630-088-0
01
1
9002-
●
●
24
BOLT; WATER PUMP
M12X65
9-01656-265-0
06
1
9002-9005
●
24
BOLT; WATER PUMP
M12X65
0-16806-265-0
06
1
9006-
●
●
29
SHAFT; WATER PUMP
1-13631-062-0
01
1
9002-
●
●
45
JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47
9-09903-631-0
02
1
9002-
●
●
119
BOLT; PUMP COVER
M8X18 W/LK WASHER
9-01910-818-0
03
1
9002-9005
●
119
BOLT; PUMP COVER
M8X18 W/LK WASHER
0-50040-818-0
03
1
9006-
●
●
132
WASHER; PL,WATER PUMP
ID=12.2
9-09150-512-0
06
1
9002-
●
●
