2-07 — CLUTCH BOOSTER; MINIPACK (#34948) — 76 parça

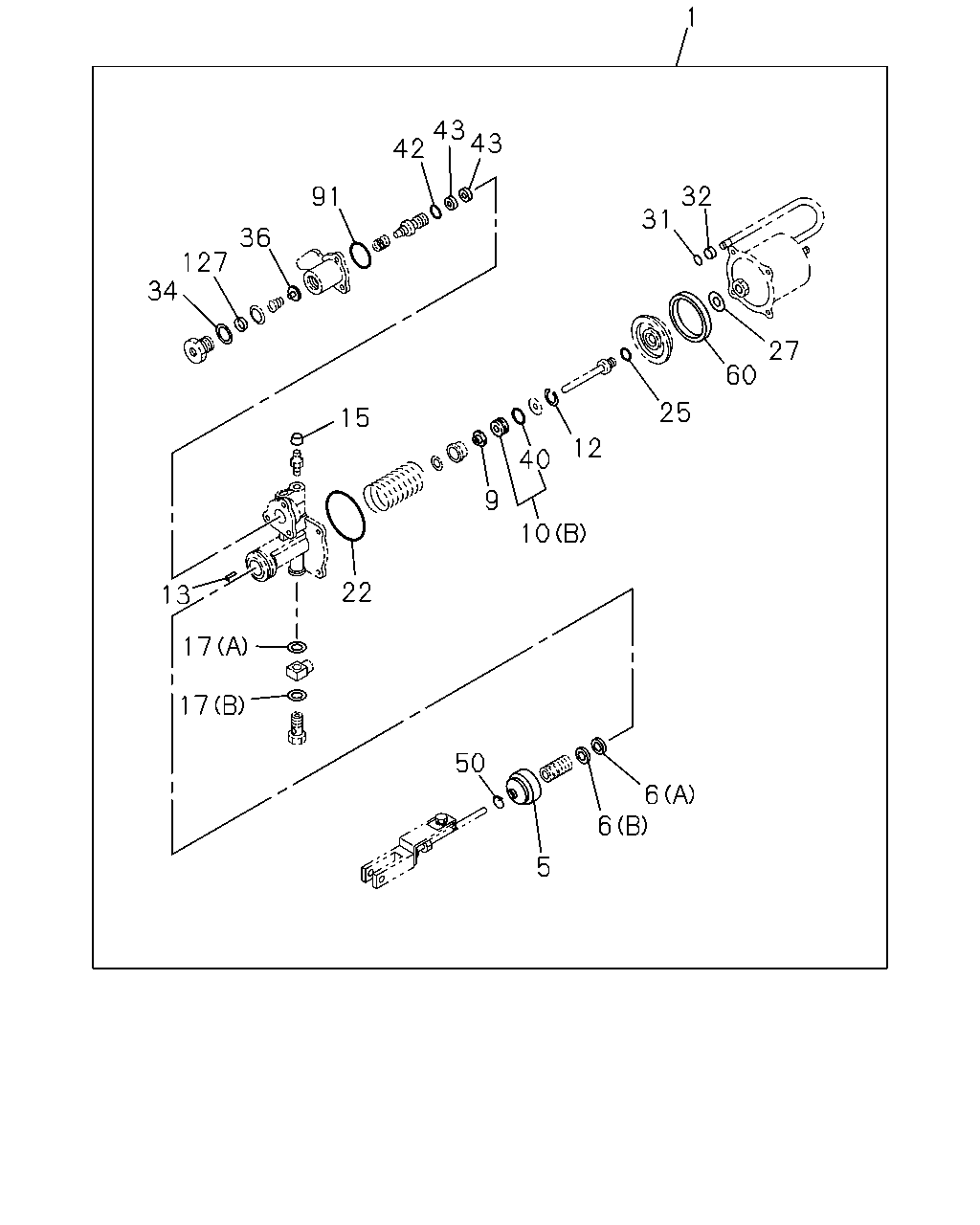

çizim 176823
1 43 43 42 32 91 31 36 127 34 27 60 25 15 12 40 9 10 22 13 17 17 50 6 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-500-0 01 1 0404- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0404- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-055-0 01 1 0404- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-056-0 01 1 0404- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0404- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0404- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0404- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0404- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0404- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0404- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0404- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0404- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0404- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0404- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0404- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0404- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0404- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0404- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0404- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0404- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0404- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0404- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0404- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0404- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0404- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0404- ● ●

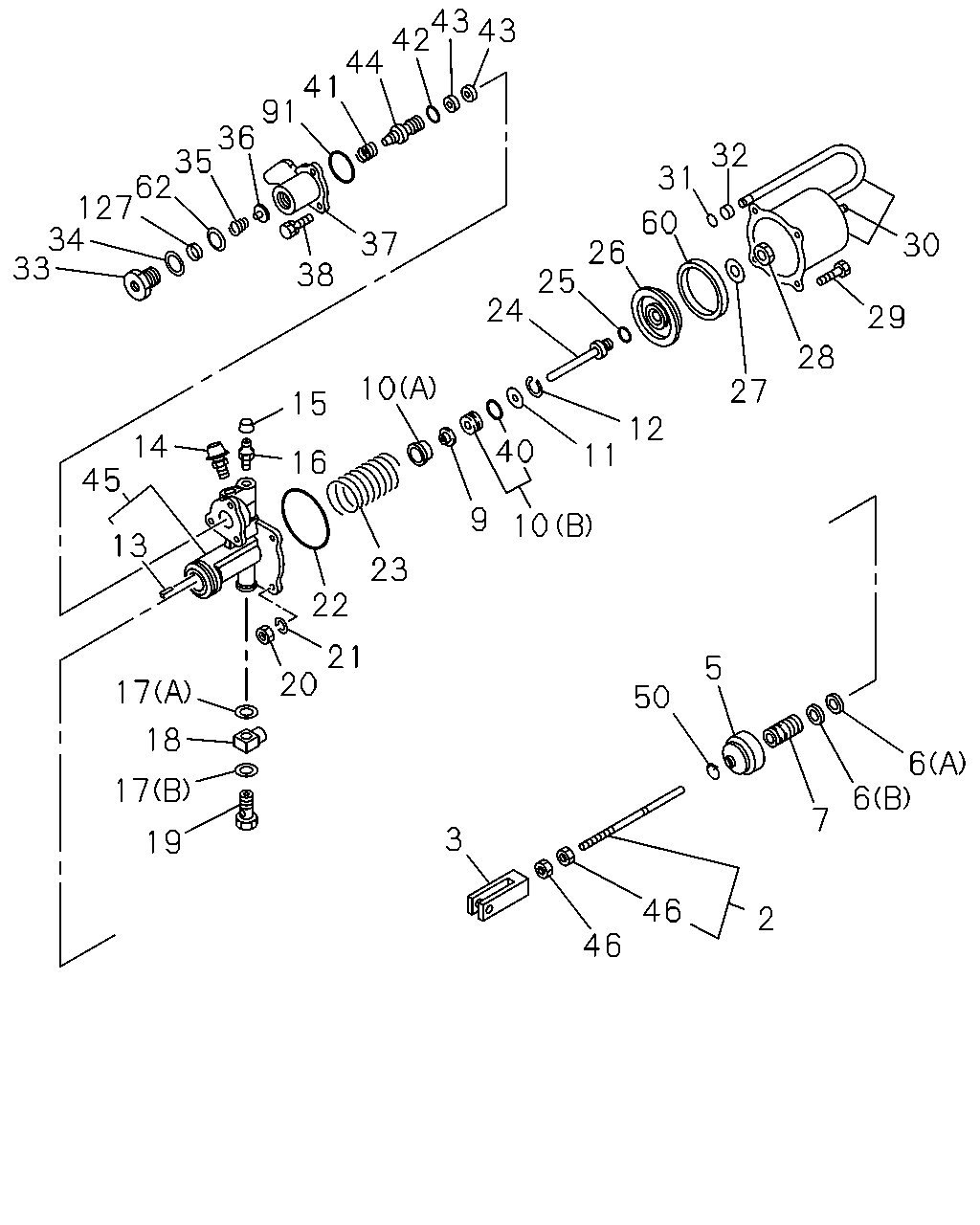

çizim 176825
43 43 42 44 41 91 36 35 62 127 34 33 32 31 60 37 30 26 25 24 38 29 28 10 27 15 12 14 40 11 16 45 9 10 13 23 22 21 20 5 17 50 18 6 6 17 7 3 19 46 2 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 ROD; PUSH,CLU BOOSTER 1-31824-210-0 01 1 0404- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0404- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0404- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-055-0 01 1 0404- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-056-0 01 1 0404- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0404- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0404- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0404- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0404- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0404- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0404- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0404- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0404- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0404- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0404- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0404- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0404- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0404- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0404- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0404- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0404- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0404- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0404- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0404- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0404- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0404- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0404- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0404- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0404- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0404- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0404- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0404- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0404- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0404- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0404- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0404- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0404- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0404- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0404- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-299-0 01 1 0404- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0404- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0404- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0404- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0404- ● ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0404- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0404- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0404- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0404- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0404- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0404- ● ●
