Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#34947) — 186 parça

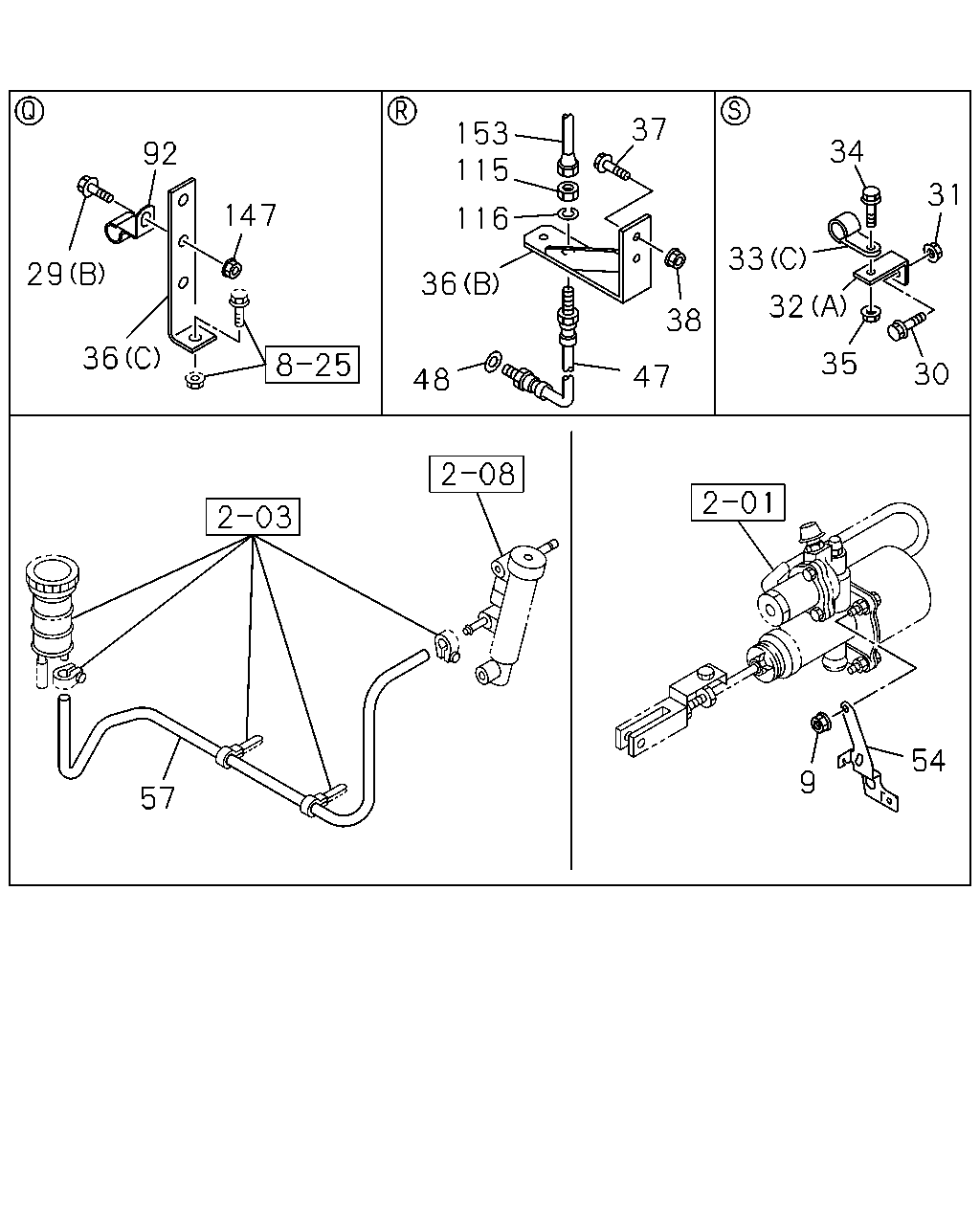

37 153 115 34 92 31 147 116 33 29 36 32 38 36 35 30 47 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0404-0602	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD0AA) (B) M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD0AA) (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR0AA) (B) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR0AA) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0404-	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0404-	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0404-	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0404-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD0AA) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0404-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD0AA) (B) D=18 H=30	1-09701-028-0	02	1	0404-	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0404-	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0404-0606	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR0AA) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0404-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR0AA) (B) D=18 H=30	1-09701-028-0	04	1	0404-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X20 FLANGE	0-28680-820-0	05	1	0404-0512	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0404-0602	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8 FLANGE	0-91150-108-0	05	1	0404-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91150-108-0	09	1	0404-0602	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0404-	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0404-	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR0AA) (C) L=135	1-47478-729-0	01	1	0404-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0404-0512	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0404-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0404-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0404-	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0404-	●	●
92	CLIP; OIL PIPE RR ENG AIR SUSP(LVD0AA) ID=8 H=20 L=20	1-09700-604-0	05	1	0404-	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0404-	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR0AA) ID=8 H=20 L=20	1-09700-604-0	04	1	0404-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0404-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0404-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0903	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD0AA)	1-49165-476-0	01	1	0404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR0AA)	1-49165-478-0	01	1	0404-	●	●

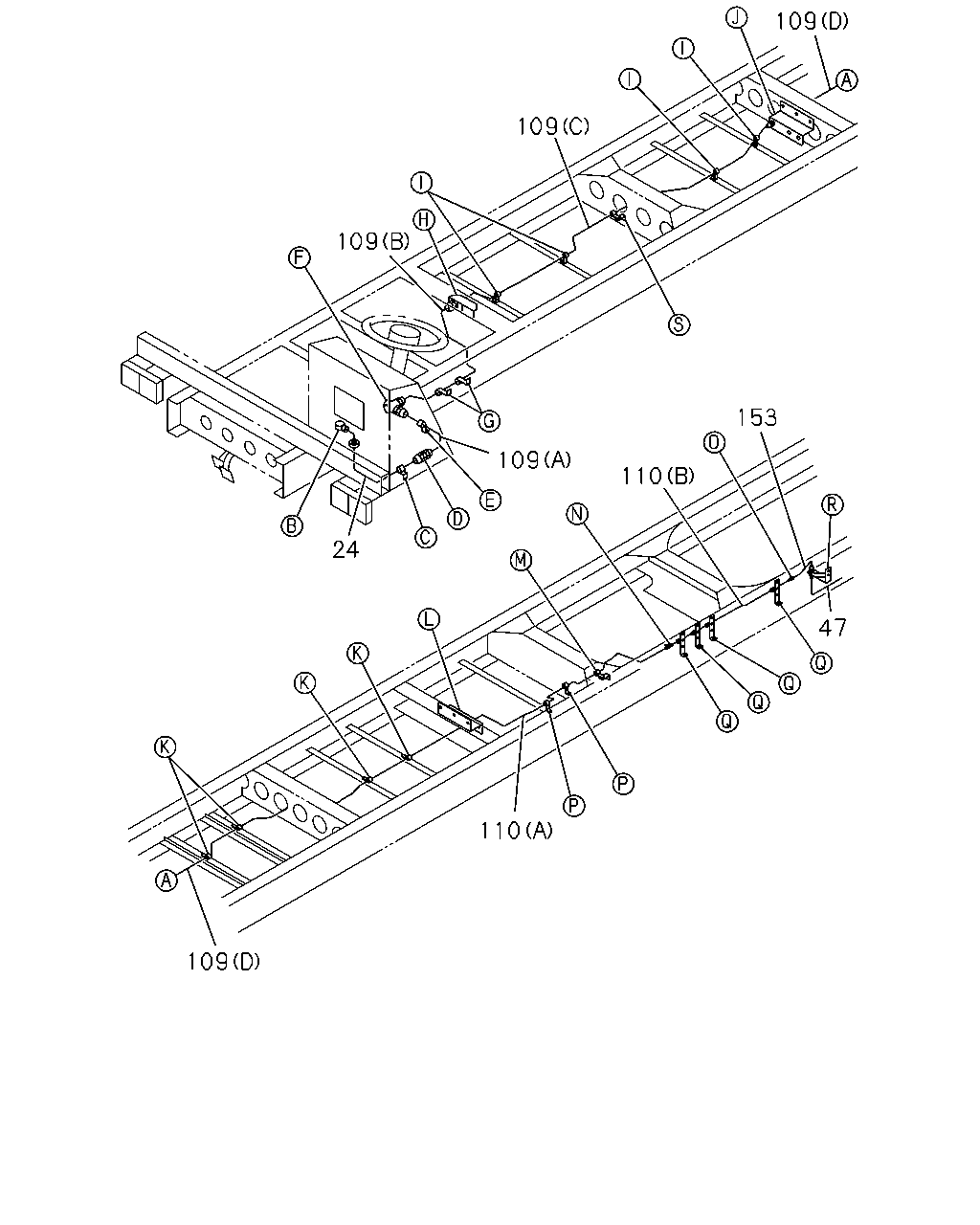

109 109 109 153 109 110 24 47 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0404-	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (C) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (B) L=1375 SERVICED BY L=1400	1-47428-765-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION (D) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (B) L=1230 SERVICED BY L=1250	1-47428-764-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (C) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (B) L=2130	1-49165-978-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (B) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (A) L=1856	1-49165-799-0	01	1	0404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD0AA)	1-49165-476-0	01	1	0404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR0AA)	1-49165-478-0	01	1	0404-	●	●

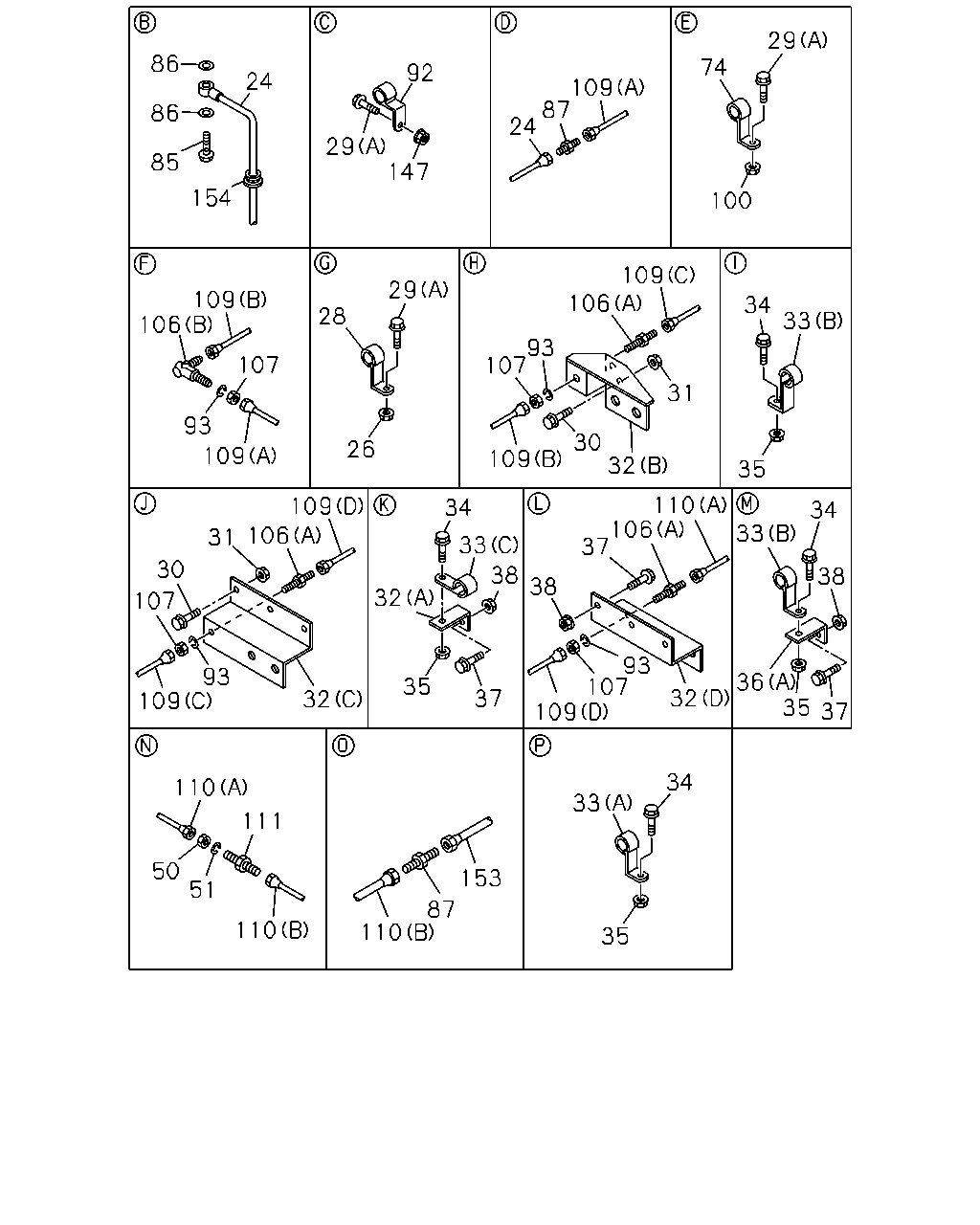

29 86 74 92 24 109 87 24 86 29 147 85 154 100 109 106 29 109 106 34 28 33 93 107 107 31 93 30 32 26 109 109 35 110 106 37 33 109 34 34 106 31 33 30 38 38 38 32 107 93 107 109 93 109 36 32 35 35 37 32 37 34 110 33 111 50 153 51 87 110 110 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0404-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0404-0602	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0404-	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD0AA) (B) M8X25 FLANGE	0-28680-825-0	05	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD0AA) (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR0AA) (B) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR0AA) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0404-	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0404-	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0404-	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0404-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD0AA) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0404-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD0AA) (B) D=18 H=30	1-09701-028-0	02	1	0404-	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0404-	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0404-0606	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR0AA) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0404-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR0AA) (B) D=18 H=30	1-09701-028-0	04	1	0404-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X20 FLANGE	0-28680-820-0	08	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X25 FLANGE	0-28680-825-0	01	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X20 FLANGE	0-28680-820-0	05	1	0404-0512	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE	0-28680-825-0	04	1	0404-0512	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0404-0602	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8 FLANGE	0-91150-108-0	05	1	0404-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD0AA) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91150-108-0	09	1	0404-0602	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0404-	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0404-	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR0AA) (C) L=135	1-47478-729-0	01	1	0404-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0404-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0404-0512	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
50	NUT; UNION RR ENG AIR SUSP(LVD0AA) M14	9-99111-414-0	01	1	0404-0512	●	●
50	NUT; UNION RR ENG AIR SUSP(LVD0AA) M14	0-91111-514-0	01	1	0601-	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD0AA) ID=14.2	9-09150-514-0	01	1	0404-0603	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD0AA) ID=14.2	0-91510-514-0	01	1	0604-0903	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD0AA) ID=14.2	0-91510-814-0	01	1	0904-	●	●
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0404-	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0404-	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0404-	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0404-0607	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0404-0607	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
92	CLIP; OIL PIPE RR ENG AIR SUSP(LVD0AA) ID=8 H=20 L=20	1-09700-604-0	05	1	0404-	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0404-	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR0AA) ID=8 H=20 L=20	1-09700-604-0	04	1	0404-	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	01	1	0404-0603	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	01	1	0604-0903	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	0904-	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0404-0603	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
106	UNION; OIL PIPE (A) M14	9-09223-308-1	03	1	0404-0607	●	●
106	UNION; OIL PIPE (A) M14	0-92113-308-0	03	1	0608-	●	●
106	UNION; OIL PIPE (B) M14	9-09225-208-1	01	1	0404-0607	●	●
106	UNION; OIL PIPE (B) M14 ELBOW	0-92125-208-0	01	1	0608-	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	01	1	0404-0512	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0601-	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0404-0512	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (C) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (B) L=1375 SERVICED BY L=1400	1-47428-765-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION (D) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (B) L=1230 SERVICED BY L=1250	1-47428-764-0	01	1	0404-	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (C) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD0AA) (B) L=2130	1-49165-978-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (B) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0404-	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR0AA) (A) L=1856	1-49165-799-0	01	1	0404-	●	●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD0AA) M14	9-09223-308-1	01	1	0404-0607	●	●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD0AA) M14	0-92113-308-0	01	1	0608-	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR0AA) M14 STRAIGHT	9-09223-008-1	01	1	0404-0607	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR0AA) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91150-108-0	04	1	0404-0602	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD0AA)	1-49165-476-0	01	1	0404-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR0AA)	1-49165-478-0	01	1	0404-	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
