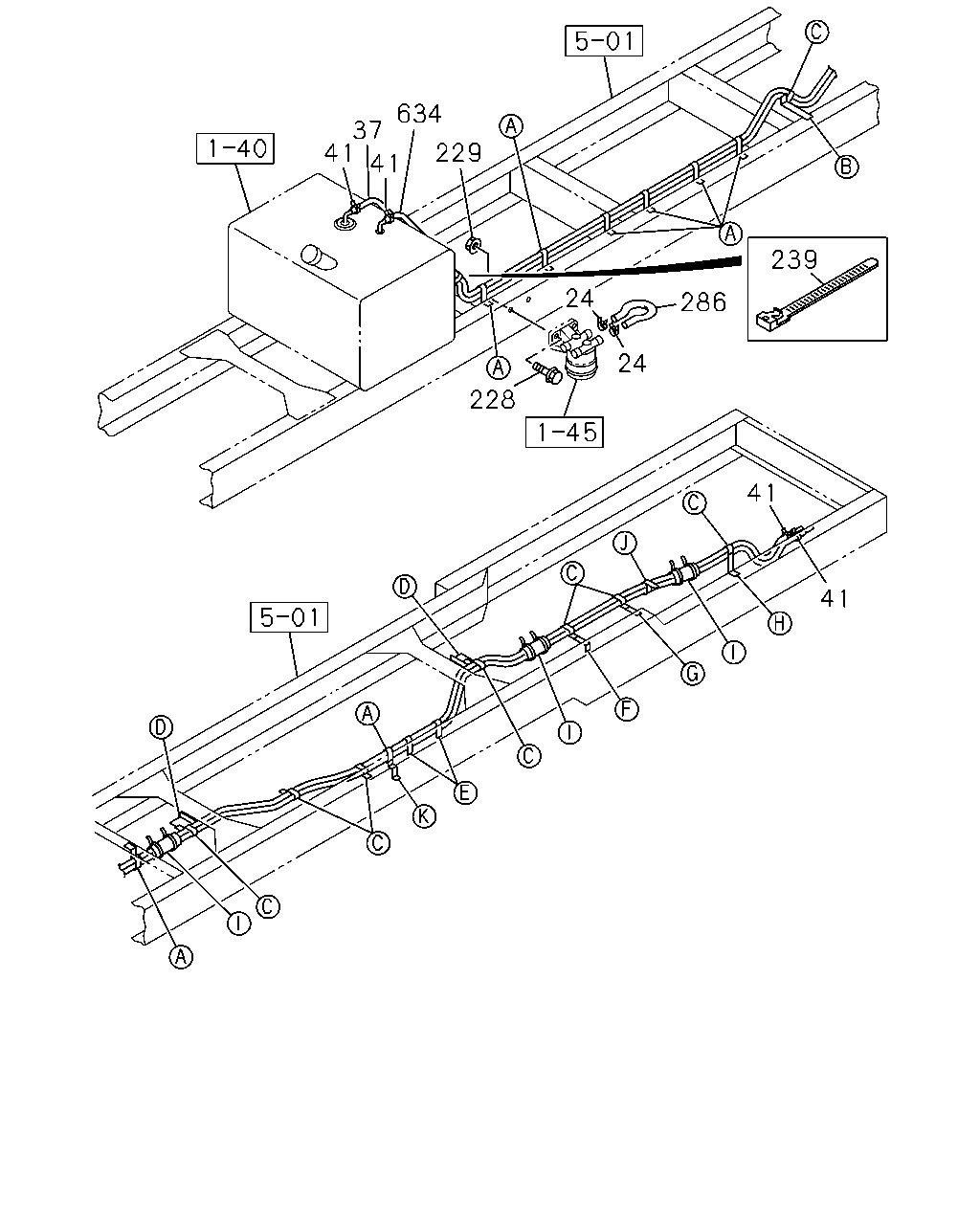

1-41 — FUEL PIPING; CHASSIS (#34940) — 44 parça

100 101 100 48 101 97 103 102 102 103 97 100 48 48 101 48 97 134 134 48 97 103 38 103 102 97 48 101 100 103 97 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD0AA) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0404-
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG LEAF SUSP(LVR0AA) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0404-
48	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0404-0512
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	09	1	0601-
48	BOLT; BRKT RR ENG LEAF SUSP(LVR0AA) M10X30 FLANGE	0-28681-030-0	01	1	0404-0512
48	BOLT; BRKT RR ENG LEAF SUSP(LVR0AA) M10X30 FLANGE	0-28651-030-0	01	1	0601-
97	BRACKET; CLIP RR ENG AIR SUSP(LVD0AA) (E)	1-47478-941-0	01	1	0404-
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0404-
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0404-
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0404-
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0404-
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR0AA) (G)	1-47478-917-0	01	1	0404-
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR0AA) (F)	1-47479-057-0	01	1	0404-
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD0AA) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0404-
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD0AA) (B) ID=16X2 L=20	9-09535-536-0	10	1	0404-0606
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD0AA) (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0404-
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR0AA) (A) ID=14X29 H=30 L=25	1-09701-101-0	08	1	0404-
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR0AA) (B) ID=16X2 L=20	9-09535-536-0	07	1	0404-0606
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR0AA) (B) ID=16X2 L=20	0-95325-536-0	07	1	0607-
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD0AA) M8X30 FLANGE	0-28680-830-0	18	1	0404-0512
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD0AA) M8X30 FLANGE	0-28650-830-0	18	1	0601-
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR0AA) M8X30 FLANGE	0-28680-830-0	16	1	0404-0512
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR0AA) M8X30 FLANGE	0-28650-830-0	16	1	0601-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0404-0602
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	16	1	0603-
103	NUT; BRKT RR ENG AIR SUSP(LVD0AA) M8 FLANGE	0-91150-108-0	07	1	0404-0602
103	NUT; BRKT RR ENG AIR SUSP(LVD0AA) M8 FLANGE	0-91180-108-0	07	1	0603-
103	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91150-108-0	09	1	0404-0602
103	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M8 FLANGE	0-91180-108-0	09	1	0603-
103	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M10 FLANGE	0-91150-210-0	01	1	0404-0602
103	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M10 FLANGE	0-91180-210-0	01	1	0603-
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD0AA) L=250	5-09707-030-1	04	1	0404-
134	CLIP; BAND,FUEL PIPE RR ENG LEAF SUSP(LVR0AA) L=250	5-09707-030-1	01	1	0404-

634 37 41 229 41 239 24 286 24 228 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0404-
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0404-
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0404-
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0404-0512
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28651-035-0	02	1	0601-
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0404-0602
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0404-
286	PIPE; VINYL SEDIMENTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0404-
634	HOSE; RUBBER RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0404-
