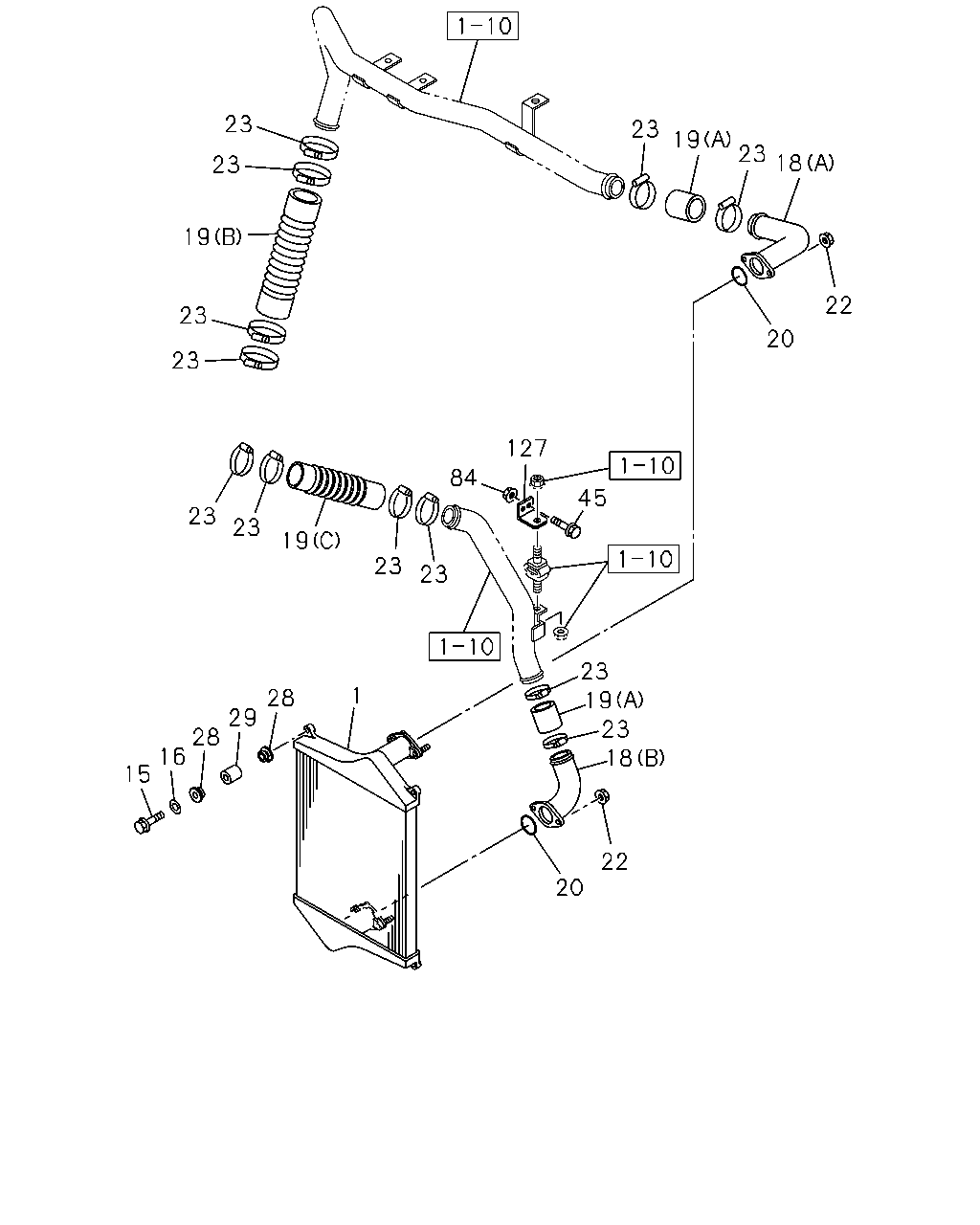

1-35 — CHARGE AIR COOLER
(#34938) — 24 parça
23
23
19
23
18
23
19
22
23
20
23
127
84
45
23
23
19
23
23
23
19
23
18
1
28
29
28
16
15
22
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-054-2
01
1
0404-
15
BOLT; CHARGE AIR COOLER
M8X50 FLANGE
0-28080-850-0
04
1
0404-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0404-1205
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
0-91614-810-0
04
1
1206-
18
ADAPTER
(A)
1-14112-761-1
01
1
0404-
18
ADAPTER
(B)
1-14112-762-1
01
1
0404-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09360-797-1
02
1
0404-1408
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-98245-240-0
02
1
1409-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-118-0
01
1
0404-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-94395-023-1
01
1
0404-
20
GASKET
ID=84.6
1-09623-431-0
02
1
0404-
22
NUT
M10 FLANGE
0-91150-210-0
04
1
0404-0602
22
NUT
M10 FLANGE
0-91180-210-0
04
1
0603-
23
CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
12
1
1002-
23
CLIP; HOSE
ID=58-76
1-09707-203-0
12
1
0404-0811
23
CLIP; HOSE
ID=55-75
8-98133-349-0
12
1
0812-1001
23
CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
12
1
1002-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-018-0
08
1
0404-
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0404-
45
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0404-0512
45
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
84
NUT; BRKT
M8 FLANGE
0-91150-208-0
02
1
0404-0602
84
NUT; BRKT
M8 FLANGE
0-91180-208-0
02
1
0603-
127
BRACKET; DUCT
1-47478-710-0
01
1
0404-
