10948 - LV123/423-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

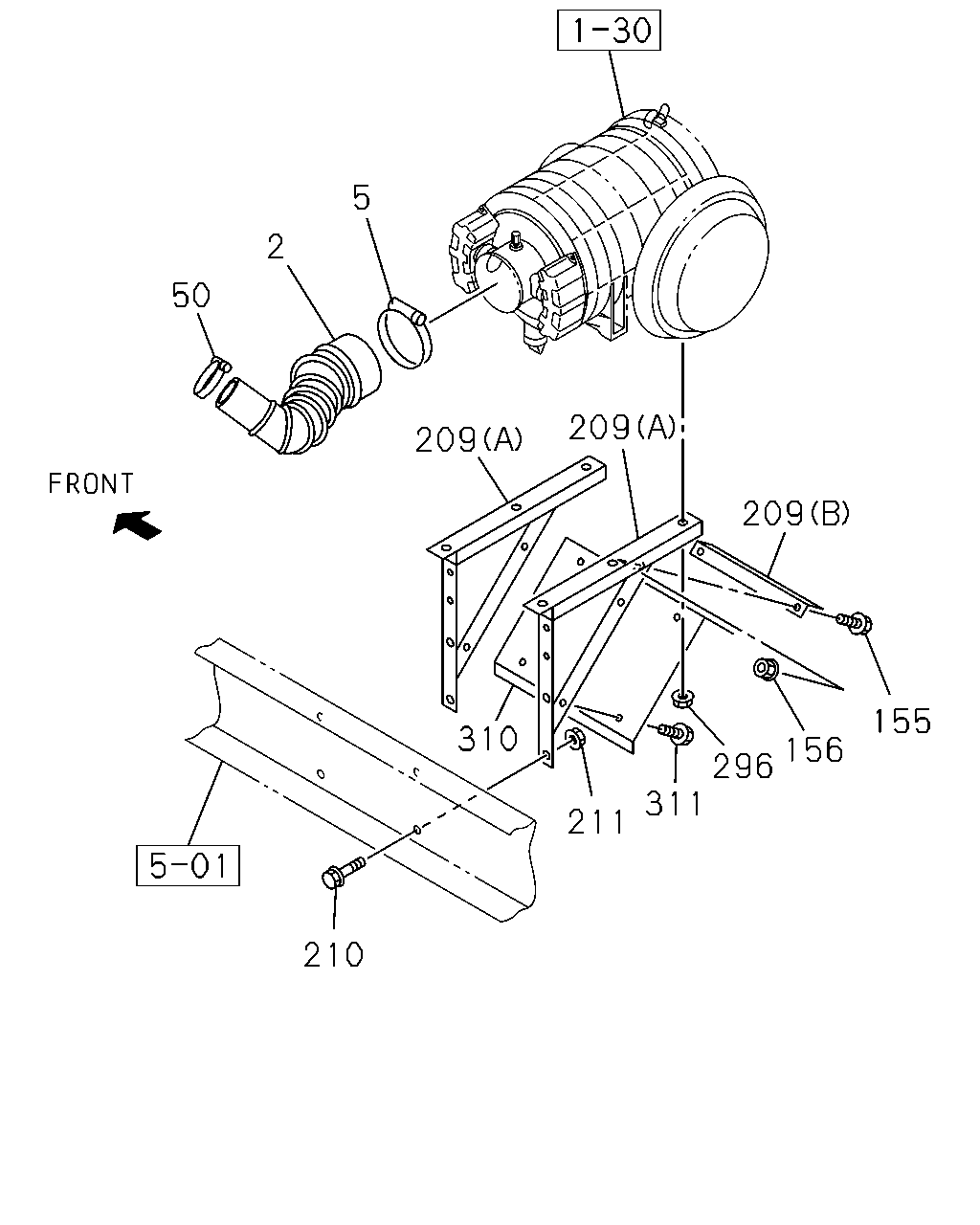

1-31 — AIR DUCT
(#34937) — 22 parça
5
2
50
209
209
209
155
310
156
296
311
211
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14232-116-0
01
1
0404-
5
CLIP; AIR DUCT
ID=155-184
1-09707-182-0
01
1
0404-
50
CLIP; JOINT HOSE
EXC. KD PREPARATORY PACK<6HF> ID=104-142
1-09707-139-0
01
1
1002-
50
CLIP; JOINT HOSE
ID=104-139
1-09707-200-0
01
1
0404-0812
50
CLIP; JOINT HOSE
ID=120-140
8-98133-367-0
01
1
0901-1001
50
CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=120-140
8-98133-367-0
01
1
1002-
155
BOLT; BRKT
M12X30 FLANGE
0-28681-230-0
02
1
0404-0512
155
BOLT; BRKT
M12X30 FLANGE
0-28651-230-0
02
1
0601-
156
NUT; BRKT
M12 FLANGE
0-91150-212-0
02
1
0404-0602
156
NUT; BRKT
M12 FLANGE
0-91180-212-0
02
1
0603-
209
BRACKET; ACL
(A) FRONT
1-53419-373-0
01
1
0404-
209
BRACKET; ACL
(A) REAR
1-53419-374-0
01
1
0404-
209
BRACKET; ACL
(B)
1-53419-375-0
01
1
0404-
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0404-0512
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
02
1
0404-0602
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
02
1
0603-
296
NUT; ACL
M8 FLANGE
0-91150-208-0
04
1
0404-0602
296
NUT; ACL
M8 FLANGE
0-91180-208-0
04
1
0603-
310
PROTECTOR; HEAT,ACL
1-22159-347-0
01
1
0404-
311
BOLT; HEAT PROTECTOR
M8X20 FLANGE
0-28680-820-0
04
1
0404-0512
311
BOLT; HEAT PROTECTOR
M8X20 FLANGE
0-28650-820-0
04
1
0601-
