Isuzu WW
▶
BUSES
▶
LV
▶
10948 - LV123/423-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#34931) — 16 parça
◀
[087A] NO.1 (12 parça)
[087A] NO.2 (4 parça)
▶

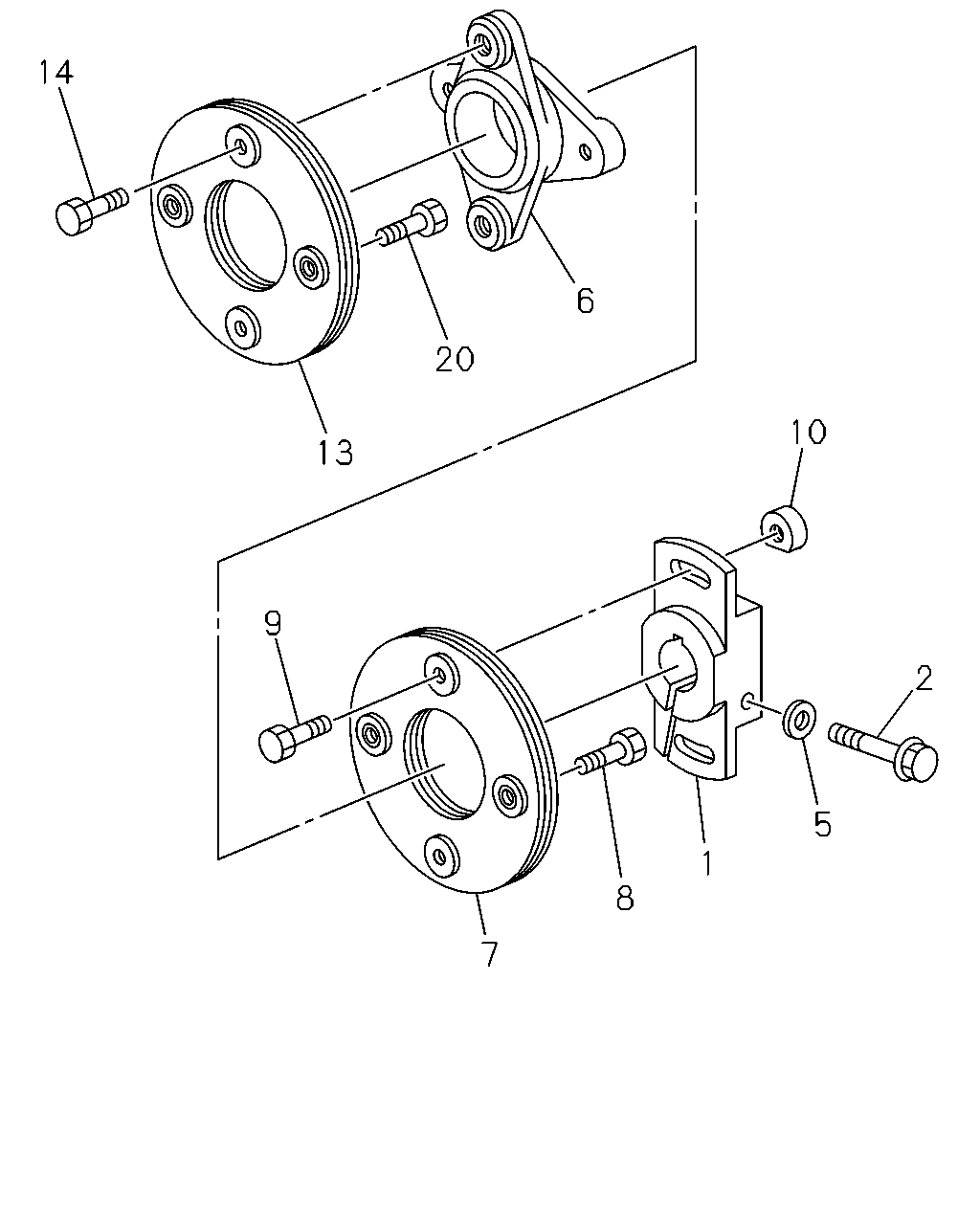

14
6
20
10
13
9
2
5
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COUPLING; INJ PUMP DRIVE
1-15781-039-0
01
1
0404-0612
1
COUPLING; INJ PUMP DRIVE
1-15781-048-0
01
1
0701-
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0404-
5
WASHER; COUPLING FIX,INJ PUMP
1-15789-021-0
01
1
0404-
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-221-0
01
1
0404-
7
PLATE; COUPLING,COUPLING SIDE
1-15619-181-0
01
1
0404-
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0404-
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-159-0
02
1
0404-
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-165-0
02
1
0404-
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0404-
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0404-
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0404-

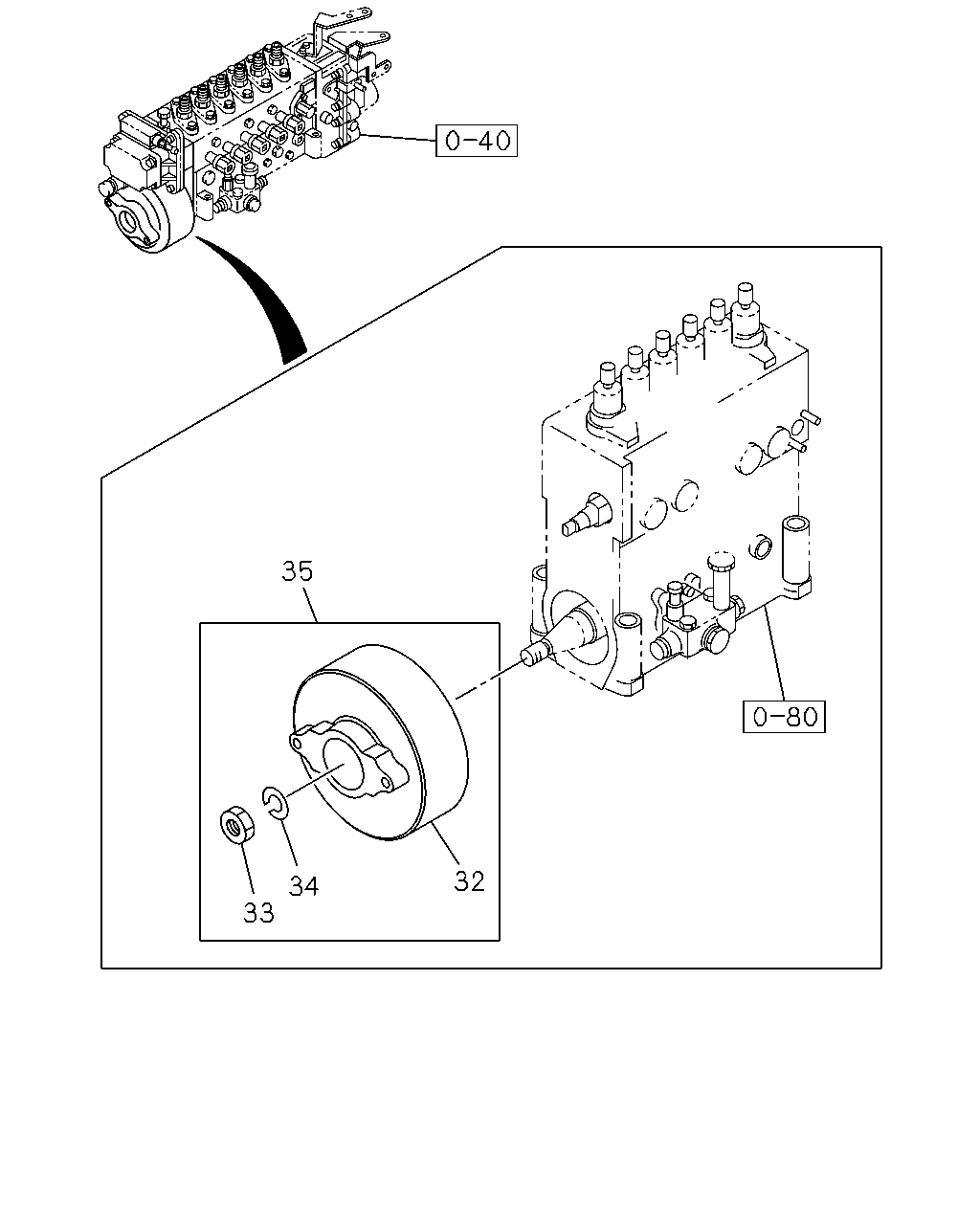

35
32
34
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
DAMPER; INJ PUMP
1-15744-024-0
01
1
0404-
33
NUT; DAMPER
1-19179-020-0
01
1
0404-
34
WASHER; DAMPER
1-19179-002-0
01
1
0404-
35
DAMPER ASM; INJ PUMP
1-15744-026-0
01
1
0404-
