0-81 — GOVERNOR; INJECTION PUMP (#34929) — 52 parça

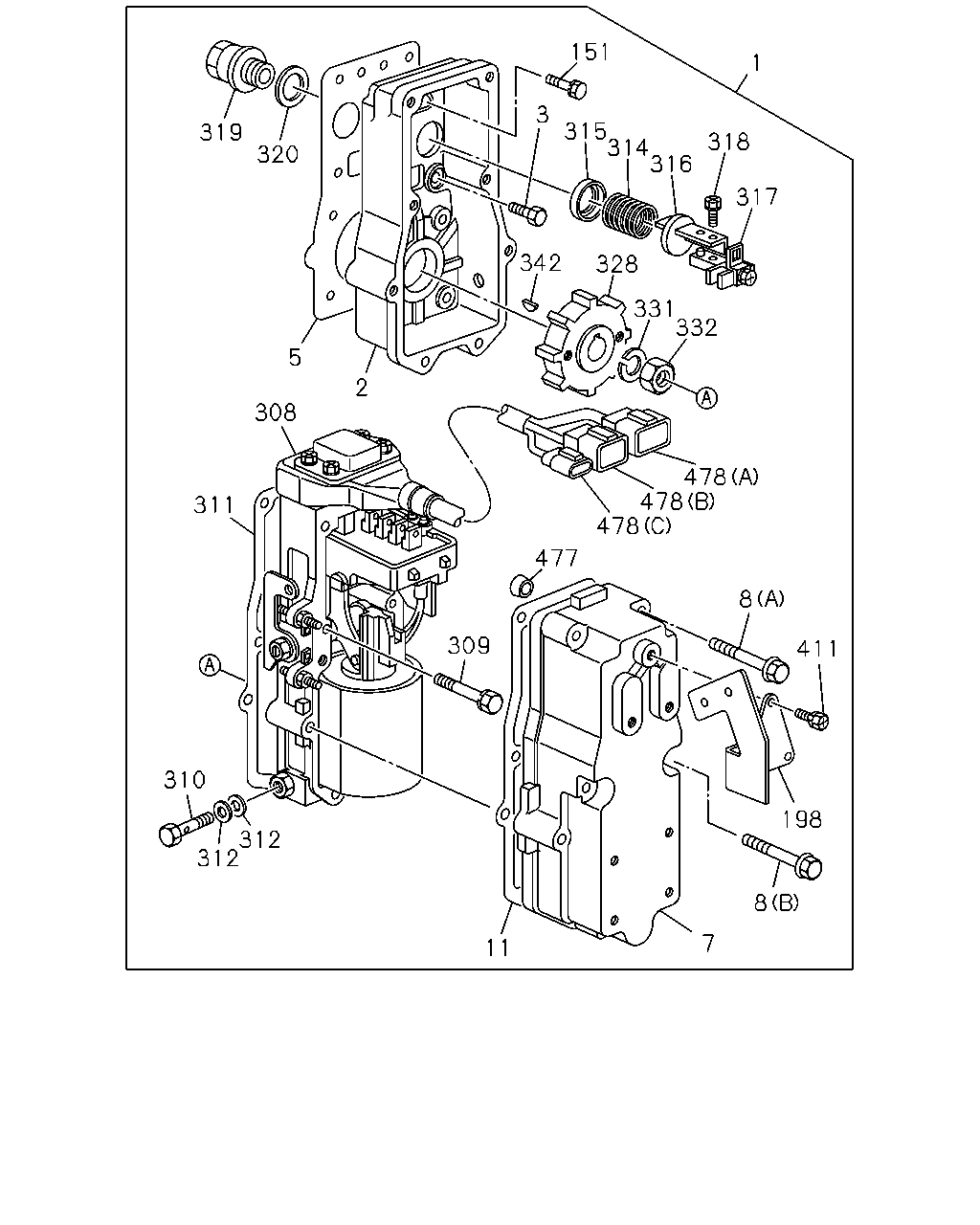

151 1 3 315 314 316 319 318 320 317 342 328 331 332 5 2 308 478 478 478 311 477 8 309 411 310 198 312 312 8 7 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15790-143-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15721-310-1	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15729-846-0	10	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-266-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15721-360-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-802-0	06	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-804-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-637-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-281-0	01	1	-
198	BRACKET; COVER ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-755-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-753-2	01	1	-
309	BOLT; ACTUATOR FIX,ELEC GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15729-535-0	02	1	-
310	BOLT; EYE,ACTUATOR,ELEC GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15729-538-0	01	1	-
311	GASKET; ACTUATOR,ELEC GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-147-0	01	1	-
312	GASKET; EYE BOLT,ACTUATOR,GOV ID=14.2 OD=19.2 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-09630-085-0	02	1	-
314	SPRING; CONT RACK,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15723-575-0	01	1	-
315	SEAT; SPRING,CONT RACK,HSG SIDE ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15723-307-0	01	1	-
316	SEAT; SPRING,CONT RACK,CONNECTOR SIDE ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15723-576-0	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=3.5 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-685-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.0 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-686-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.5 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-687-1	01	1	-
318	BOLT; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-83569-079-0	01	1	-
319	CAP; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-152-0	01	1	-
320	GASKET; CAP,CONT RACK,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15629-056-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-704-0	01	1	-
331	WASHER; LK,GEAR ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15749-007-0	01	1	-
332	NUT; GEAR ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-012-0	01	1	-
342	KEY; WOODRUFF,SHAFT 13MM ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	9-81325-030-0	01	1	-
411	BOLT; BRKT ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15619-187-0	03	1	-
477	BUSHING; GOVERNOR ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-643-0	02	1	-
478	HOUSING; PLUG,GOVERNOR (A), L=44.35 B=31.8 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-640-0	01	1	-
478	HOUSING; PLUG,GOVERNOR (B), L=44.35 B=25.6 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-641-0	01	1	-
478	HOUSING; PLUG,GOVERNOR (C), L=44.35 B=26.7 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-642-0	01	1	-

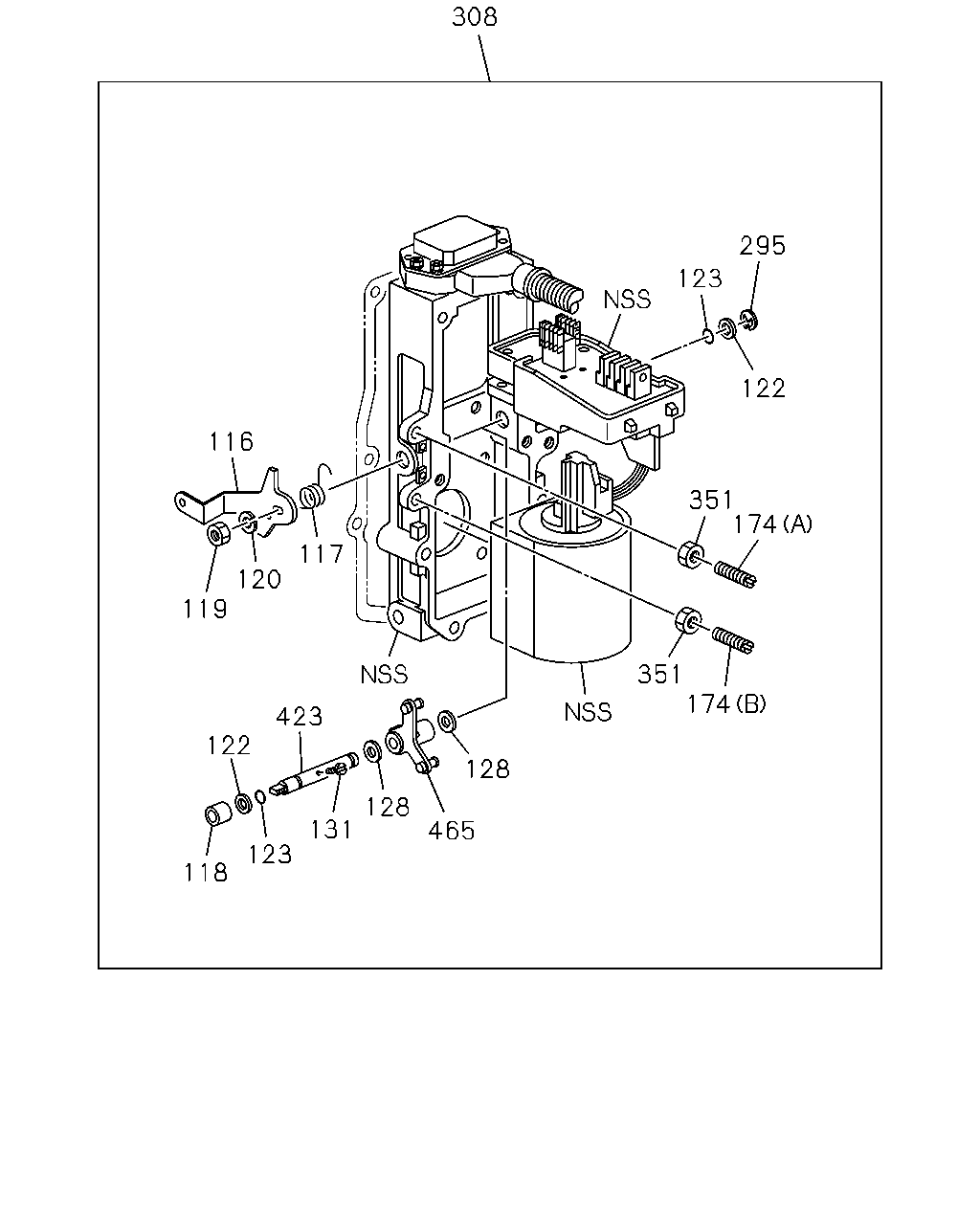

308 295 123 122 116 351 174 117 120 119 351 174 423 122 128 128 131 465 123 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15725-975-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15723-612-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-738-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15629-117-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-83579-492-0	01	1	-
122	WASHER; CONT SHAFT,GOV ID=10.5 ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	9-09164-510-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-731-0	02	1	-
128	SHIM; CONT SHAFT,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-730-0	02	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-739-0	01	1	-
174	SCREW; PLATE (A) ASM PART: B = 8-97609-726-0, C = 8-97610-929-0	1-15779-750-0	01	1	-
174	SCREW; PLATE (A) ASM PART: A = 1-15603-377-2	1-15779-829-0	01	1	-
174	SCREW; PLATE (B) ASM PART: A = 1-15603-377-2	1-15779-830-0	01	1	-
174	SCREW; PLATE (B) ASM PART: B = 8-97609-726-0, C = 8-97610-929-0	5-15729-044-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15729-723-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-753-2	01	1	-
351	NUT; SCREW ASM PART: A = 1-15603-377-2	1-15729-006-0	02	1	-
351	NUT; SCREW ASM PART: B = 8-97609-726-0, C = 8-97610-929-0	9-81325-081-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15779-729-0	01	1	-
465	LINK; GOVERNOR ASM PART: A = 1-15603-377-2, B = 8-97609-726-0, C = 8-97610-929-0	1-15725-968-0	01	1	-
