2-61 — TRANSFER CASE AND GEAR SHIFTER (#34927) — 78 parça

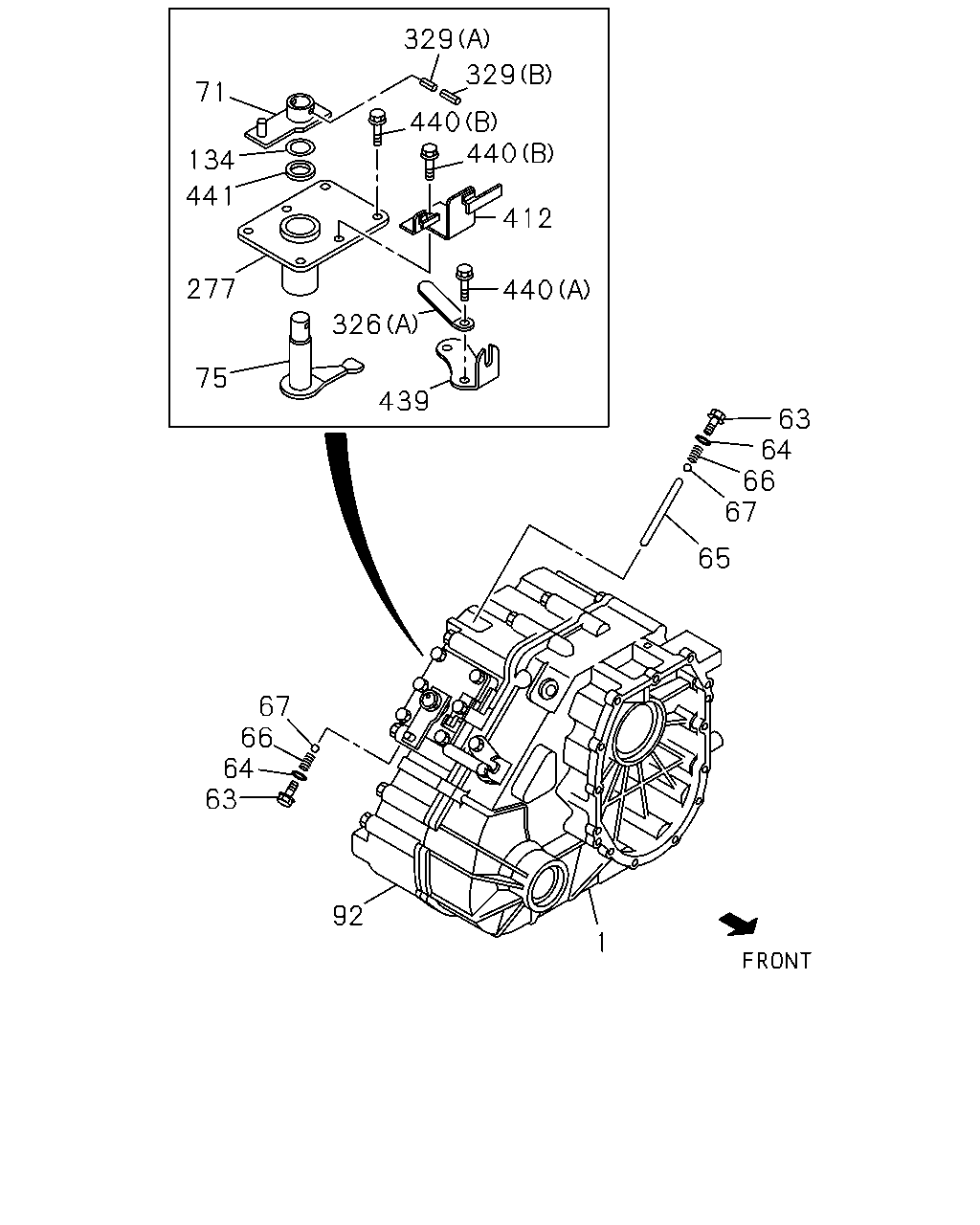

329 329 71 440 440 134 441 412 277 440 326 75 439 63 64 66 67 65 67 66 64 63 92 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.510 CASE; TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-886-0	01	1	0612-0801
1	04.510 CASE; TRANSFER	8-97326-886-0	01	1	0802-
63	04.510 PLUG; DETENT SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-926-0	02	1	0612-0801
63	04.510 PLUG; DETENT SPRING	8-97326-926-0	02	1	0802-
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510	8-97326-925-0	02	1	0612-0801
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.510	8-97326-925-0	02	1	0802-
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-924-0	01	1	0612-0801
65	04.309 ROD; INTER LOCK,SHIFT ROD	8-97326-924-0	01	1	0802-
66	04.198 SPRING; DETENT,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-927-0	02	1	0612-0801
66	04.198 SPRING; DETENT,SHIFT ROD	8-97326-927-0	02	1	0802-
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-928-0	02	1	0612-0801
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER	8-97326-928-0	02	1	0802-
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97328-674-0	01	1	0612-0801
71	04.246 LEVER ASM; L-H CONT,EXTERNAL	8-97328-674-0	01	1	0802-
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-875-1	01	1	0612-0801
75	04.246 LEVER ASM; L-H CONT,INTERNAL	8-97326-875-1	01	1	0802-
92	04.552 COVER; RR,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-884-0	01	1	0612-0801
92	04.552 COVER; RR,TRANSFER	8-97326-884-0	01	1	0802-
134	04.319 WASHER; PL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-876-0	01	1	0612-0801
134	04.319 WASHER; PL	8-97326-876-0	01	1	0802-
277	04.552 COVER; SHIFT ROD,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-879-0	01	1	0612-0801
277	04.552 COVER; SHIFT ROD,TRANSFER	8-97326-879-0	01	1	0802-
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.698 (B) ID=8	8-94107-659-0	01	1	0612-0801
326	04.128 CLIP; HARNESS 02.698 (B) ID=8	8-94107-659-0	01	1	0802-0804
326	04.128 CLIP; HARNESS 02.559 (B) ID=8	8-97329-633-0	01	1	0805-
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0612-0801
326	04.128 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0802-
329	04.107 PIN; SPRING,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97326-867-0	01	1	0612-0801
329	04.107 PIN; SPRING,SHIFT ROD (B)	8-97326-867-0	01	1	0802-
329	04.107 PIN; SPRING,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97326-868-0	01	1	0612-0801
329	04.107 PIN; SPRING,SHIFT ROD (A)	8-97326-868-0	01	1	0802-
412	04.555 BRACKET; SW CONN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97327-662-1	01	1	0612-0801
412	04.555 BRACKET; SW CONN	8-97327-662-1	01	1	0802-
439	04.555 BRACKET; SHIFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97328-672-0	01	1	0612-0801
439	04.555 BRACKET; SHIFT	8-97328-672-0	01	1	0802-
440	04.319 BOLT; W/WASHER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97326-865-0	02	1	0612-0801
440	04.319 BOLT; W/WASHER (A)	8-97326-865-0	02	1	0802-
440	04.319 BOLT; W/WASHER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97326-877-0	06	1	0612-0801
440	04.319 BOLT; W/WASHER (B)	8-97326-877-0	06	1	0802-
441	04.319 SEAL; OIL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-878-0	01	1	0612-0801
441	04.319 SEAL; OIL	8-97326-878-0	01	1	0802-

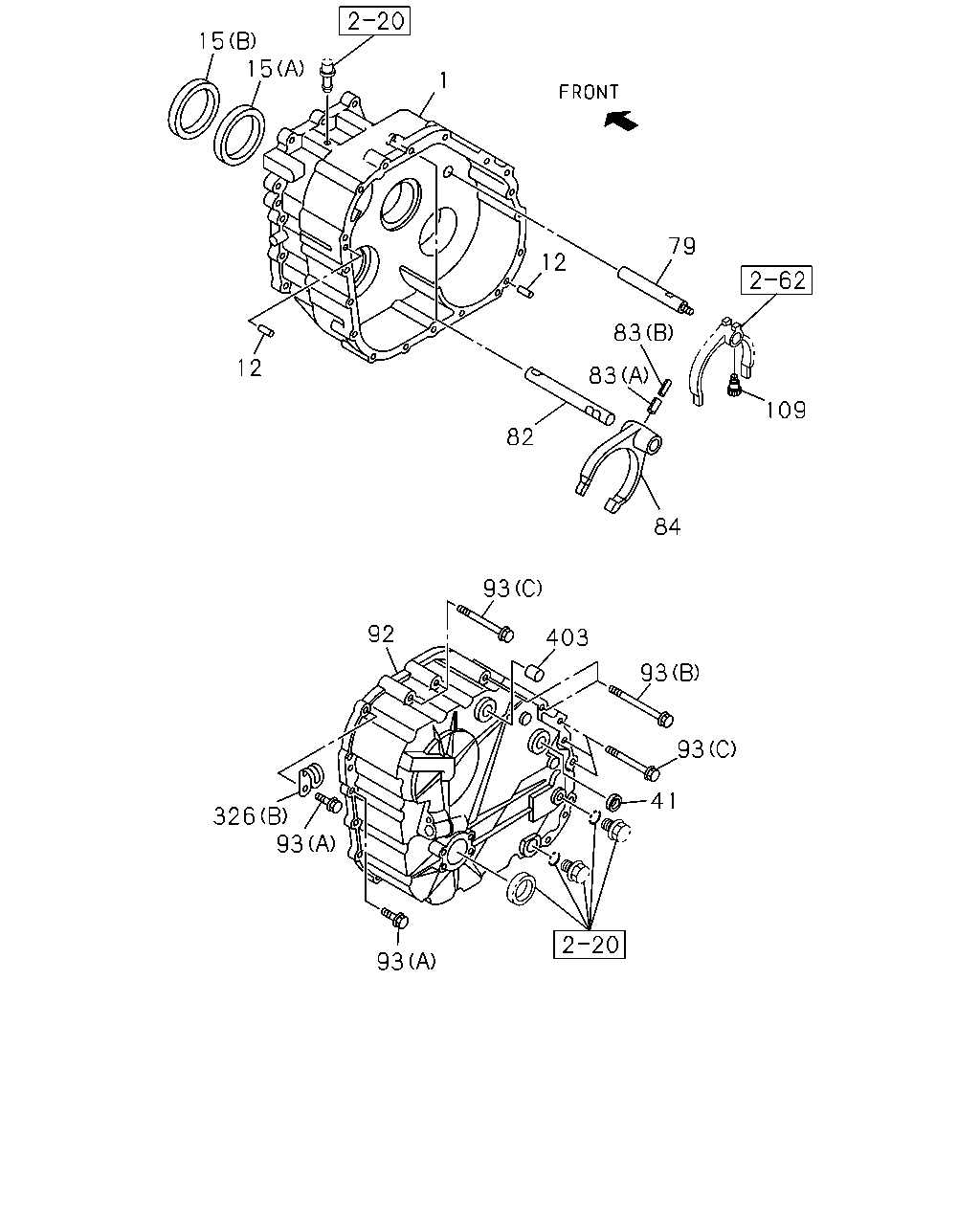

15 15 1 79 12 83 12 83 109 82 84 93 92 403 93 93 41 326 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.510 CASE; TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-886-0	01	1	0612-0801
1	04.510 CASE; TRANSFER	8-97326-886-0	01	1	0802-
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-880-0	02	1	0612-0801
12	04.510 PIN; STRAIGHT,TRANSFER CASE	8-97326-880-0	02	1	0802-
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97326-934-0	02	1	0612-0801
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (A)	8-97326-934-0	02	1	0802-
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97327-114-0	01	1	0612-0801
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (B)	8-97327-114-0	01	1	0802-
41	04.515 SEAL; OIL,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-887-0	01	1	0612-0801
41	04.515 SEAL; OIL,SHIFT ROD	8-97326-887-0	01	1	0802-
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97357-217-0	01	1	0612-0801
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE	8-97357-217-0	01	1	0802-
82	04.309 ROD; SHIFT,LOW & HIGH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-930-0	01	1	0612-0801
82	04.309 ROD; SHIFT,LOW & HIGH	8-97326-930-0	01	1	0802-
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97326-931-0	01	1	0612-0801
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK (B)	8-97326-931-0	01	1	0802-
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97326-932-0	01	1	0612-0801
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK (A)	8-97326-932-0	01	1	0802-
84	04.555 FORK; SHIFT,LOW & HIGH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-933-0	01	1	0612-0801
84	04.555 FORK; SHIFT,LOW & HIGH	8-97326-933-0	01	1	0802-
92	04.552 COVER; RR,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-884-0	01	1	0612-0801
92	04.552 COVER; RR,TRANSFER	8-97326-884-0	01	1	0802-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) M10X100 FLANGE	8-97326-881-0	02	1	0612-0801
93	04.552 BOLT; TRANSFER CASE TO RR COVER (B) M10X100 FLANGE	8-97326-881-0	02	1	0802-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) M10X70 FLANGE	8-97326-882-0	05	1	0612-0801
93	04.552 BOLT; TRANSFER CASE TO RR COVER (C) M10X70 FLANGE	8-97326-882-0	05	1	0802-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M10X40 FLANGE	8-97326-883-0	11	1	0612-0801
93	04.552 BOLT; TRANSFER CASE TO RR COVER (A) M10X40 FLANGE	8-97326-883-0	11	1	0802-
109	04.319 BOLT; TAPER,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.302	1-09052-034-2	01	1	0612-0801
109	04.319 BOLT; TAPER,TRANSFER CASE 04.302	1-09052-034-2	01	1	0802-
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.698 (B) ID=8	8-94107-659-0	01	1	0612-0801
326	04.128 CLIP; HARNESS 02.698 (B) ID=8	8-94107-659-0	01	1	0802-0804
326	04.128 CLIP; HARNESS 02.559 (B) ID=8	8-97329-633-0	01	1	0805-
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0612-0801
326	04.128 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0802-
403	04.552 PLUG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97326-929-0	01	1	0612-0801
403	04.552 PLUG	8-97326-929-0	01	1	0802-
