2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#34925) — 115 parça

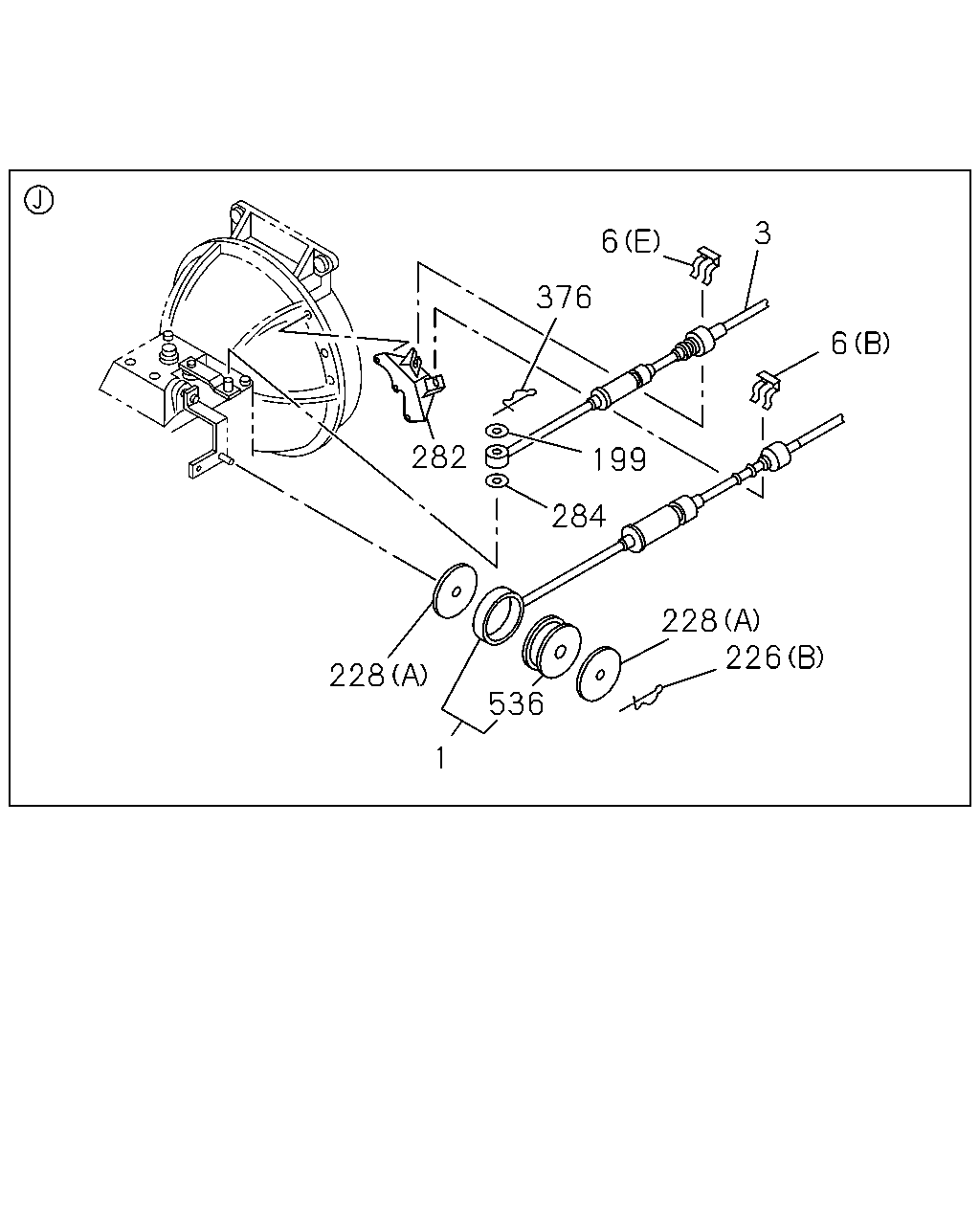

3 6 376 6 199 282 284 228 226 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0612-
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (B) ID=22.2	1-09701-209-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 00.854 (B) ID=22.2	1-09701-209-1	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97011-448-0	02	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (A)	8-97011-448-0	02	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0612-
199	04.012 WASHER; PL,SELECT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0612-
199	04.012 WASHER; PL,SELECT 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.833 (A) L=27.7	8-94111-137-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 00.833 (A) L=27.7	8-94111-137-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=23	8-94170-378-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (B) L=23	8-94170-378-0	01	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0612-
282	04.010 BRACKET; TRANS SIDE	8-97350-449-0	01	1	0612-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=8.4 OD=14	5-09550-002-0	01	1	0612-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> ID=8.4 OD=14	5-09550-002-0	01	1	0612-
376	04.047 PIN; SNAP,SELECT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) L=23	8-94170-378-0	01	1	0612-
376	04.047 PIN; SNAP,SELECT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> L=23	8-94170-378-0	01	1	0612-
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0612-

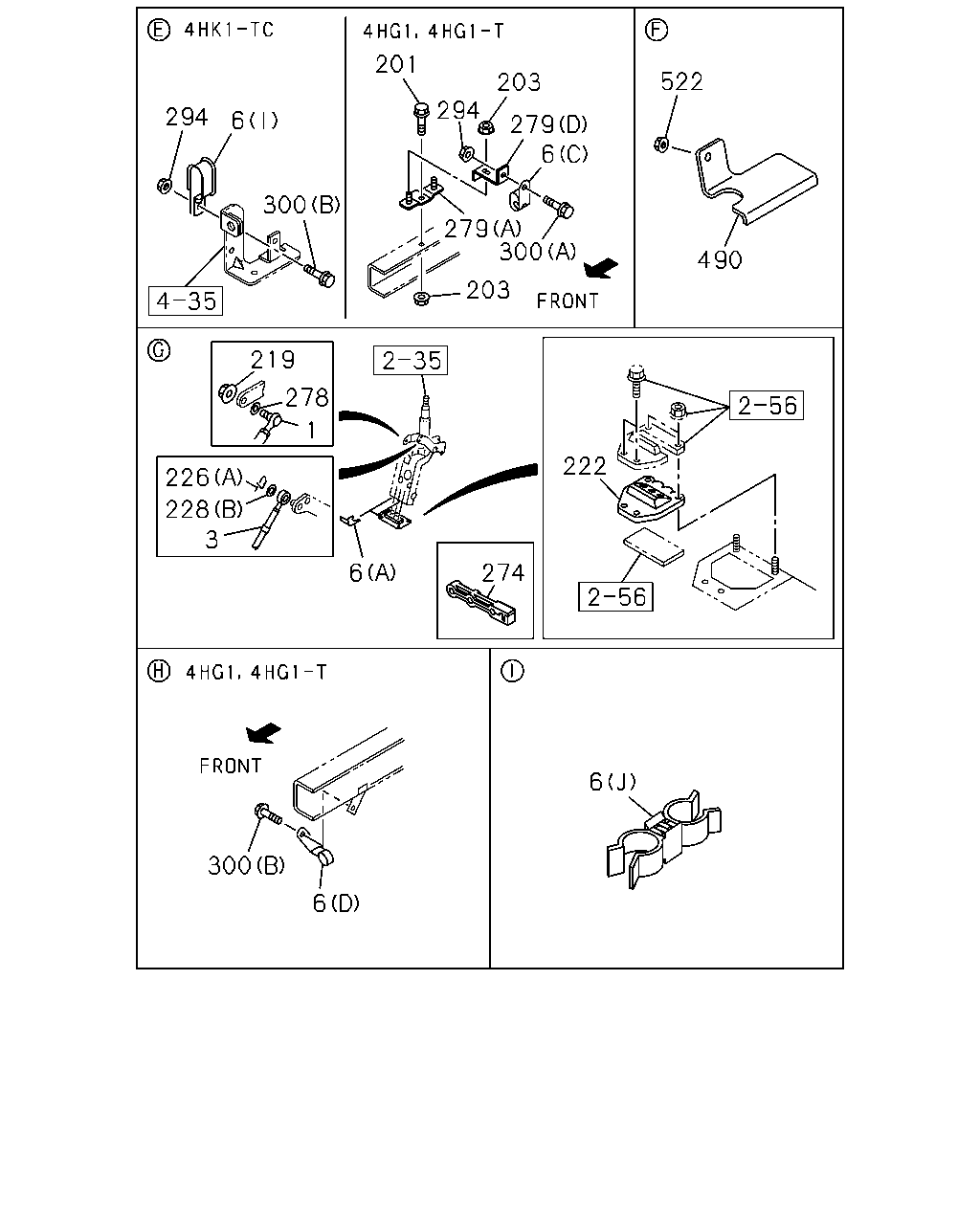

201 522 203 294 294 6 279 6 300 279 300 490 203 219 278 1 222 226 228 3 6 274 6 300 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0612-
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (B) ID=22.2	1-09701-209-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 00.854 (B) ID=22.2	1-09701-209-1	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97011-448-0	02	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (A)	8-97011-448-0	02	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0612-
201	04.032 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
219	04.047 NUT; FLANGE,SHAFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.037 M8 T=8.0	8-94363-045-0	01	1	0612-
219	04.047 NUT; FLANGE,SHAFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 04.037 M8 T=8.0	8-94363-045-0	01	1	0612-
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.833 (A) L=27.7	8-94111-137-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 00.833 (A) L=27.7	8-94111-137-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=23	8-94170-378-0	01	1	0612-
226	04.047 PIN; SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (B) L=23	8-94170-378-0	01	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0612-
228	04.047 WASHER; PL,SHIFT CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0612-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0612-
278	00.854 WASHER; LK,SHIFT WIRE 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0612-
278	00.854 WASHER; LK,SHIFT WIRE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-97350-450-1	01	1	0612-
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
300	00.854 BOLT; CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0612-
490	04.010 PROTECTOR; EDGE 4HK1-TCN ENG(RDQ)	8-97360-001-1	01	1	0612-
522	04.010 NUT; PROTECTOR 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-

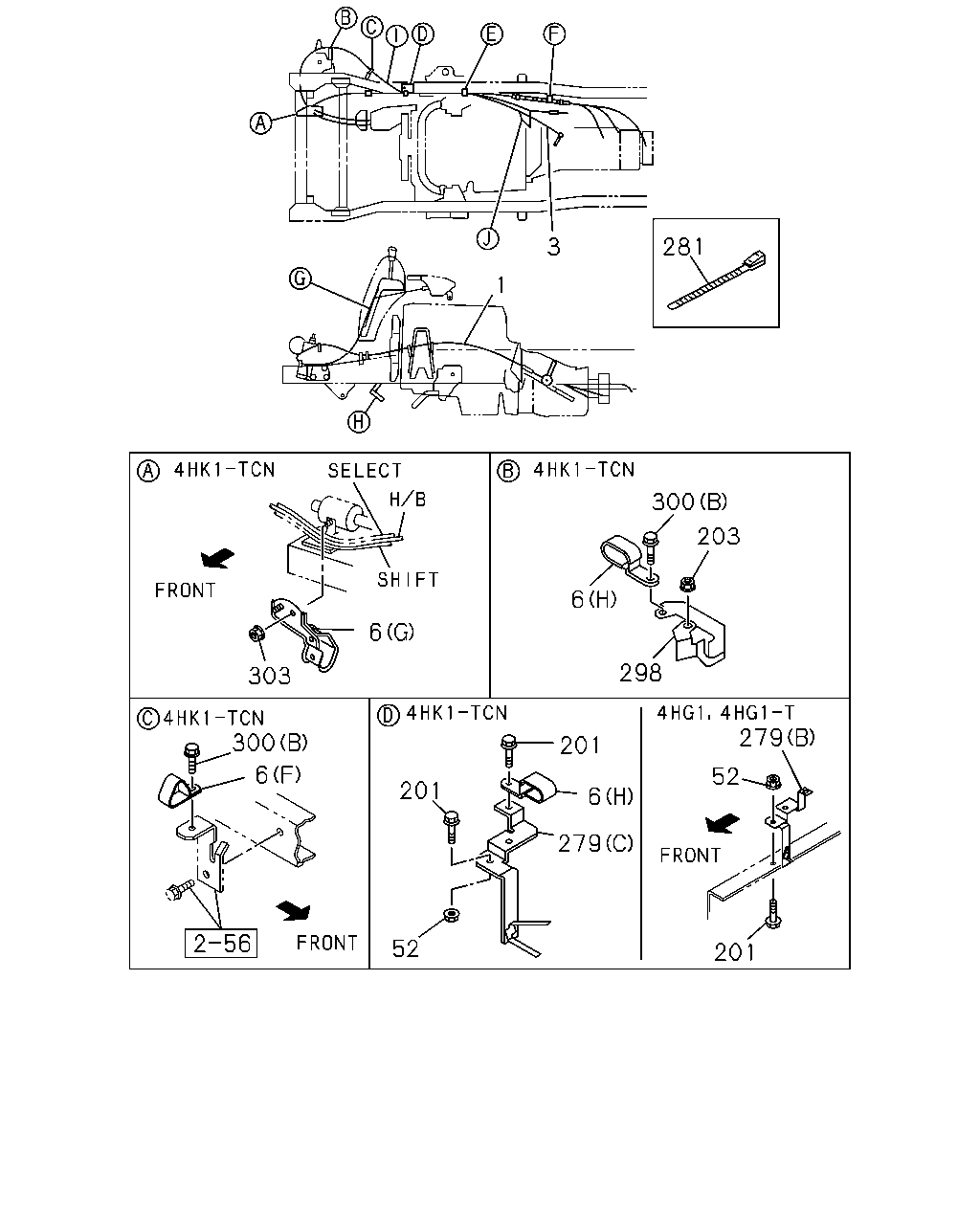

281 3 1 300 203 6 6 298 303 279 300 201 6 52 201 6 279 52 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0612-
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (B) ID=22.2	1-09701-209-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 00.854 (B) ID=22.2	1-09701-209-1	01	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97011-448-0	02	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (A)	8-97011-448-0	02	1	0612-
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0612-
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0612-
52	04.047 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
201	04.032 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0612-
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-97350-450-1	01	1	0612-
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0612-
281	04.042 CLIP; BAND 4HK1-TCN ENG(RDQ) 02.559 L=250	5-09707-030-1	03	1	0612-
298	00.854 BRACKET 4HK1-TCN ENG(RDQ)	8-97288-446-0	01	1	0612-
300	00.854 BOLT; CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0612-
303	00.855 NUT; CLIP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
