2-26 — MANUAL TRANSMISSION GEAR (#34922) — 140 parça

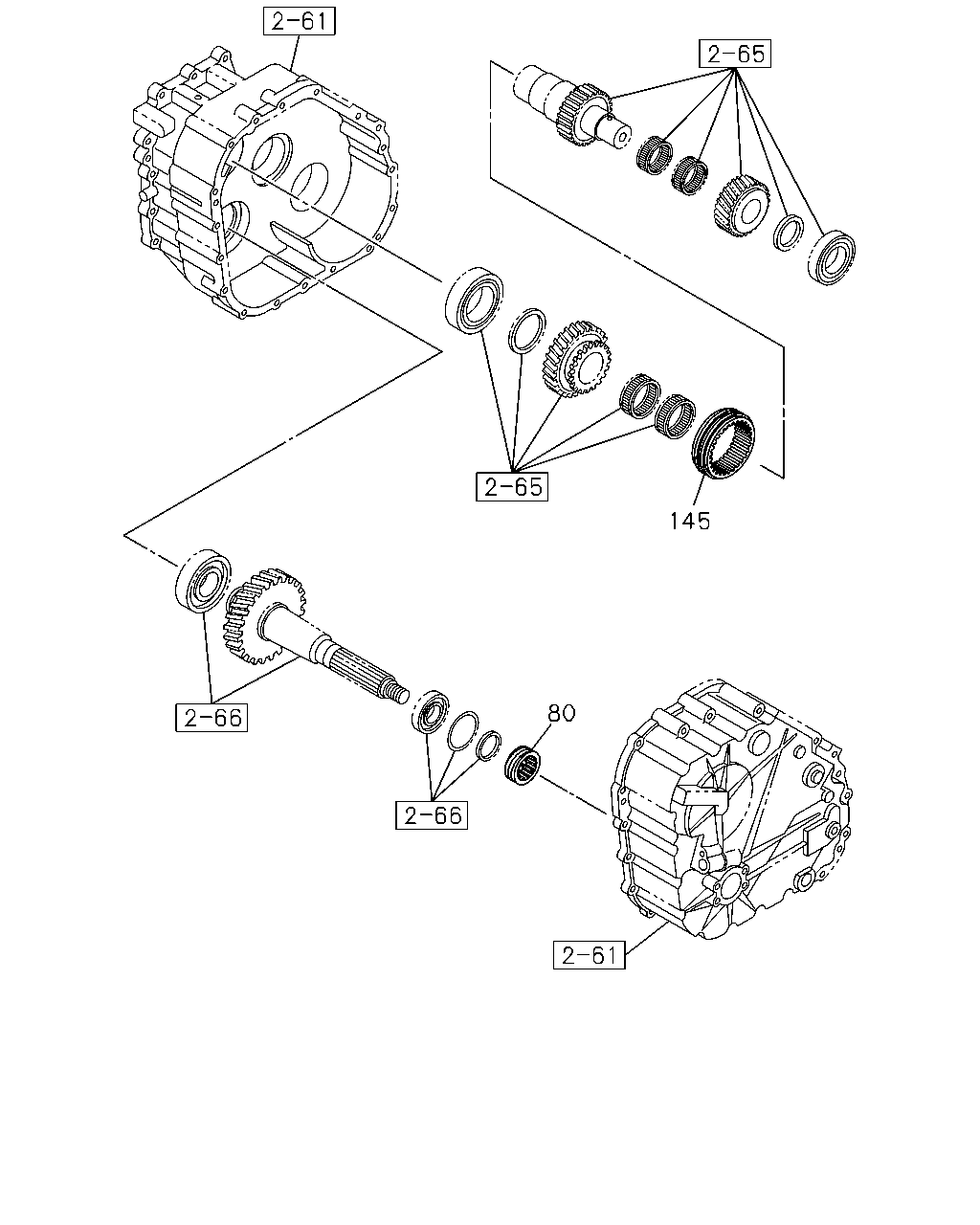

145 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	04.343 GEAR; SPD DRIVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=4	8-97318-465-0	01	1	0612-0801
80	04.343 GEAR; SPD DRIVE Z=4	8-97318-465-0	01	1	0802-
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.383 Z=45	8-97241-296-1	01	1	0612-0801
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 04.383 Z=45	8-97241-296-1	01	1	0802-

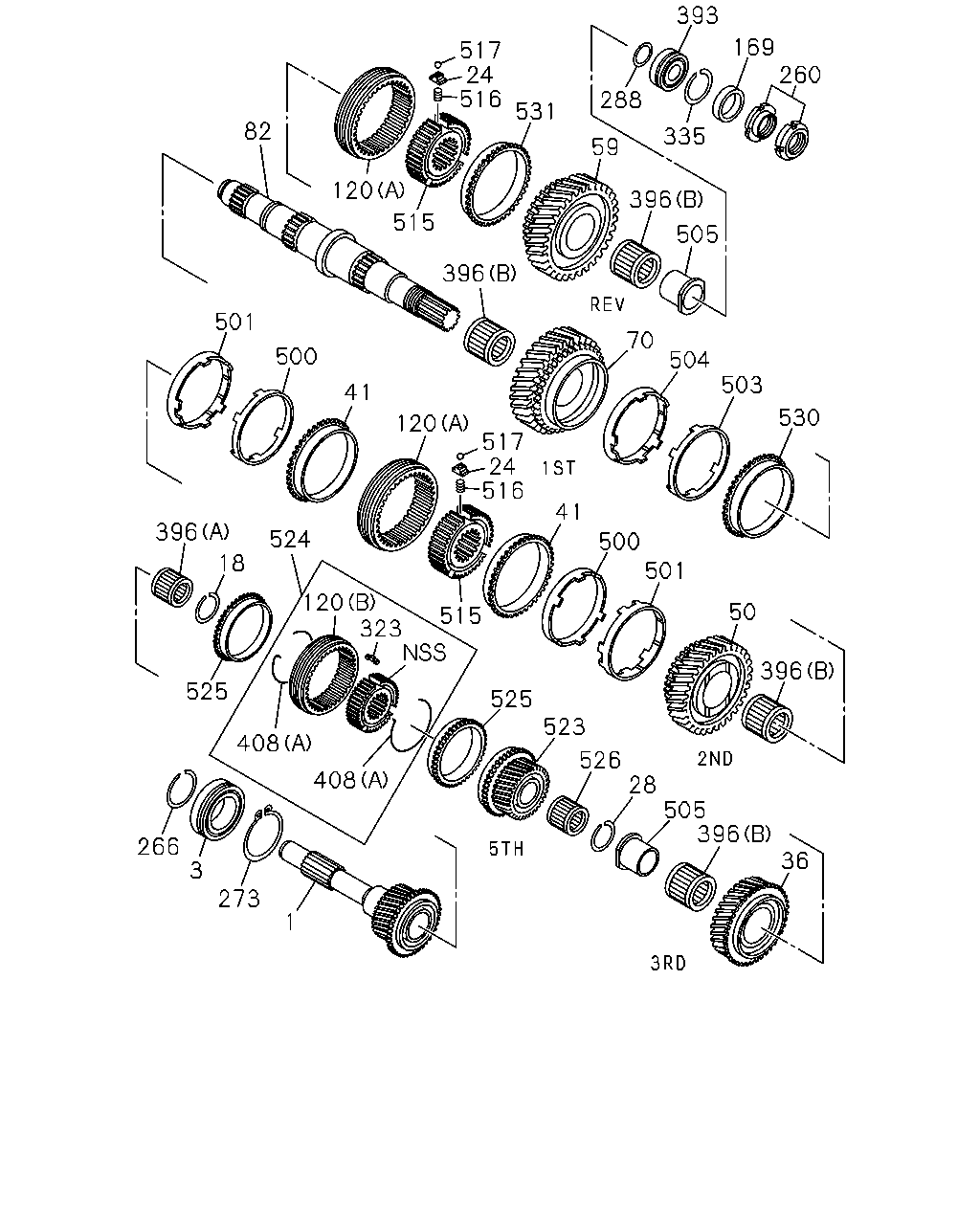

393 169 260 517 24 516 288 531 82 335 59 120 396 515 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0612-0801
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0802-
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0612-0801
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0802-
18	04.384 RING; SNAP,CLU HUB 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=1.8	8-97254-728-0	01	1	0612-0801
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0802-
24	04.383 BLOCK; INDEX,SYN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-313-1	06	1	0612-0801
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0802-
28	04.416 RING; SNAP,3RD GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=46.5 T=1.8	8-97254-743-0	01	1	0612-0801
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0802-
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0612-0801
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0802-
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97241-306-1	02	1	0612-0801
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0802-
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0612-0801
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0802-
59	04.417 GEAR; REV MAINSHAFT 4HG1 ENG(RJH) Z=41	8-97241-244-0	01	1	0612-0801
59	04.417 GEAR; REV MAINSHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) Z=41	8-97241-244-0	01	1	0802-
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) Z=41	8-97350-011-0	01	1	0612-
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0612-0801
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0802-
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0612-0801
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97314-394-1	01	1	0802-
120	04.383 SLEEVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.535 (B) Z=45	8-94421-871-1	01	1	0612-0801
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	0802-
120	04.383 SLEEVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) Z=45	8-97241-296-1	02	1	0612-0801
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0802-
169	04.419 COLLAR; MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-455-0	01	1	0612-0801
169	04.419 COLLAR; MAINSHAFT	8-97314-455-0	01	1	0802-
260	04.412 NUT; MAINSHAFT END 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-121-1	01	1	0612-0801
260	04.412 NUT; MAINSHAFT END	8-97314-121-1	01	1	0802-
266	04.525 RING; SNAP,BRG INNER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97286-916-0	01	1	0612-0801
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0802-
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-610-0	01	1	0612-0801
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0802-
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-942-0	01	1	0612-0801
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0802-
323	04.384 INSERT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94448-202-2	03	1	0612-0801
323	04.384 INSERT	8-94448-202-2	03	1	0802-
335	04.383 RING; SNAP,BEARING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-722-0	01	1	0612-0801
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0802-
393	04.352 BEARING; MAINSHAFT END 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-105-1	01	1	0612-0801
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0802-
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97253-102-1	01	1	0612-0801
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0802-
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0612-0801
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0802-
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0612-0801
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0802-
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97366-040-1	02	1	0612-0801
408	04.384 SPRING (A)	8-97366-040-1	02	1	0802-
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-309-1	02	1	0612-0801
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0802-
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-312-1	02	1	0612-0801
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0802-
503	04.383 RING; OUTSIDE,LOW & REV 4HG1 ENG(RJH)	8-97241-309-1	01	1	0612-0801
503	04.383 RING; OUTSIDE,LOW & REV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97241-309-1	01	1	0802-
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0612-
504	04.383 RING; INSIDE,LOW & REV 4HG1 ENG(RJH)	8-97241-312-1	01	1	0612-0801
504	04.383 RING; INSIDE,LOW & REV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97241-312-1	01	1	0802-
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0612-
505	04.419 COLLAR; 3RD & REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-119-2	02	1	0612-0801
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0802-
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-298-2	02	1	0612-0801
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0802-
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-835-0	06	1	0612-0801
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0802-
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-935-0	06	1	0612-0801
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0802-
523	04.395 GEAR; OD,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=22	8-97241-231-0	01	1	0612-0801
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0802-
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97366-526-0	01	1	0612-0801
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0802-
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97309-532-0	02	1	0612-0801
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0802-
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-112-0	01	1	0612-0801
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0802-
530	04.383 RING; BLOCK,LOW 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97241-306-1	01	1	0612-0801
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0802-
531	04.383 RING; BLOCK,REV 4HG1 ENG(RJH) Z=45	8-97368-343-0	01	1	0612-0801
531	04.383 RING; BLOCK,REV 4HG1-T ENG(RDP),4HG1 ENG(RJH) Z=45	8-97368-343-0	01	1	0802-
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	01	1	0612-

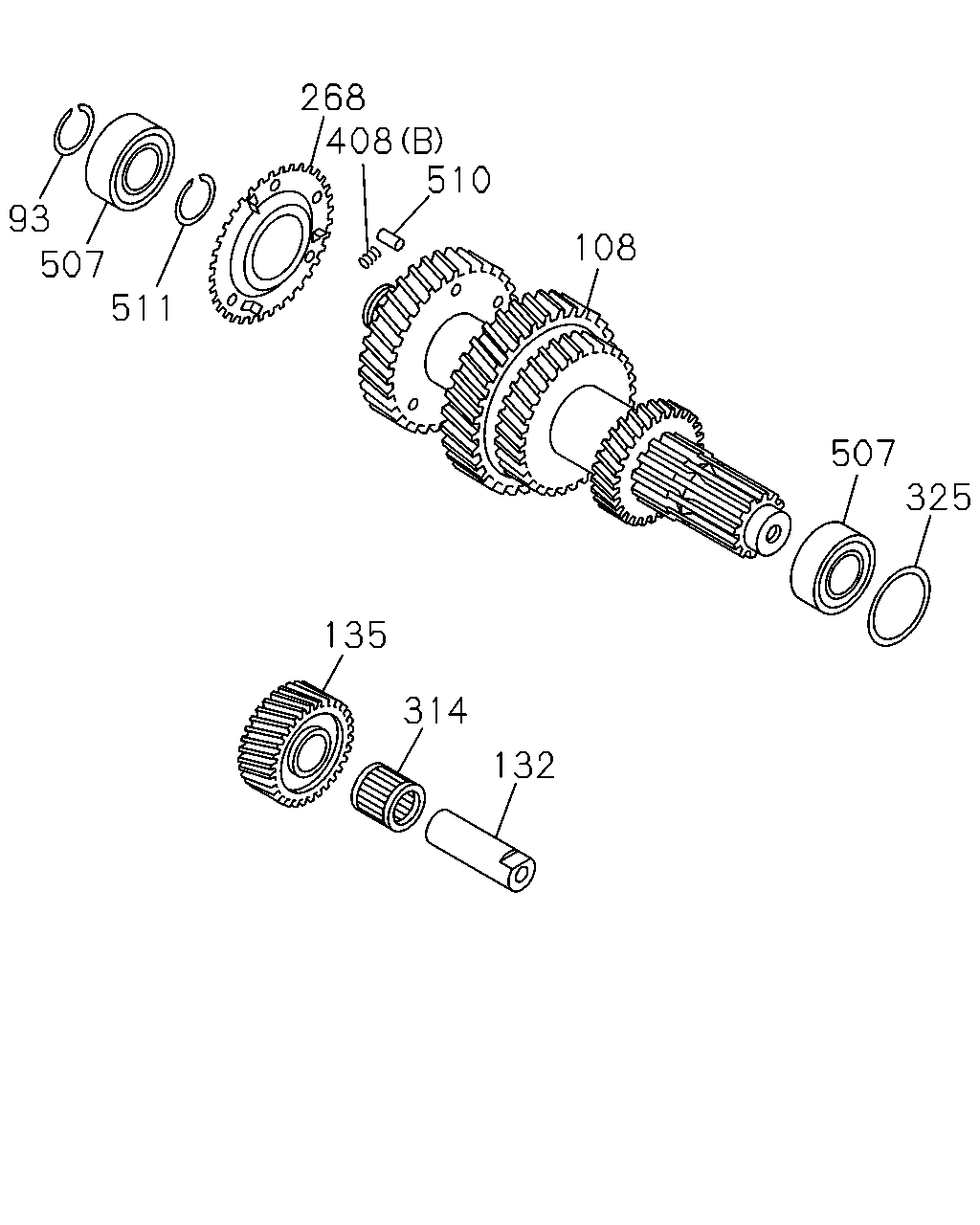

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=1.9	8-97254-734-0	01	1	0612-0801
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0802-
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=2.1	8-97254-740-0	01	1	0612-0801
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0802-
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=2.3	8-97254-742-0	01	1	0612-0801
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0802-
108	04.428 SHAFT; COUNTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45-49-33-20	8-97380-630-1	01	1	0612-0801
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0802-
132	04.433 SHAFT; REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-655-0	01	1	0612-0801
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0802-
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-98031-869-0	01	1	0612-0801
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0802-
268	04.537 PLATE; ANTI LASH,COUNTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97257-300-1	01	1	0612-0801
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0802-
314	04.419 BEARING; NEEDLE,REV GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0612-0801
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.29	8-97252-666-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.35	8-97252-667-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.41	8-97252-668-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.47	8-97252-669-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.53	8-97252-670-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.59	8-97252-671-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.65	8-97252-672-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.71	8-97252-673-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.77	8-97252-674-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.83	8-97252-675-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.89	8-97257-622-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.11	8-97306-188-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.17	8-97306-189-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0802-
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.23	8-97306-190-0	01	1	0612-0801
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0802-
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0612-0801
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0802-
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97366-040-1	02	1	0612-0801
408	04.384 SPRING (A)	8-97366-040-1	02	1	0802-
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-107-0	02	1	0612-0801
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0802-
510	04.540 PIN; STRAIGHT,ANTI LASH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.862	9-08160-825-0	03	1	0612-0801
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0802-
511	04.416 RING; SNAP,ANTI LASH PLATE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-767-0	01	1	0612-0801
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0802-
