Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27A - EXHAUST MANIFOLD
▶

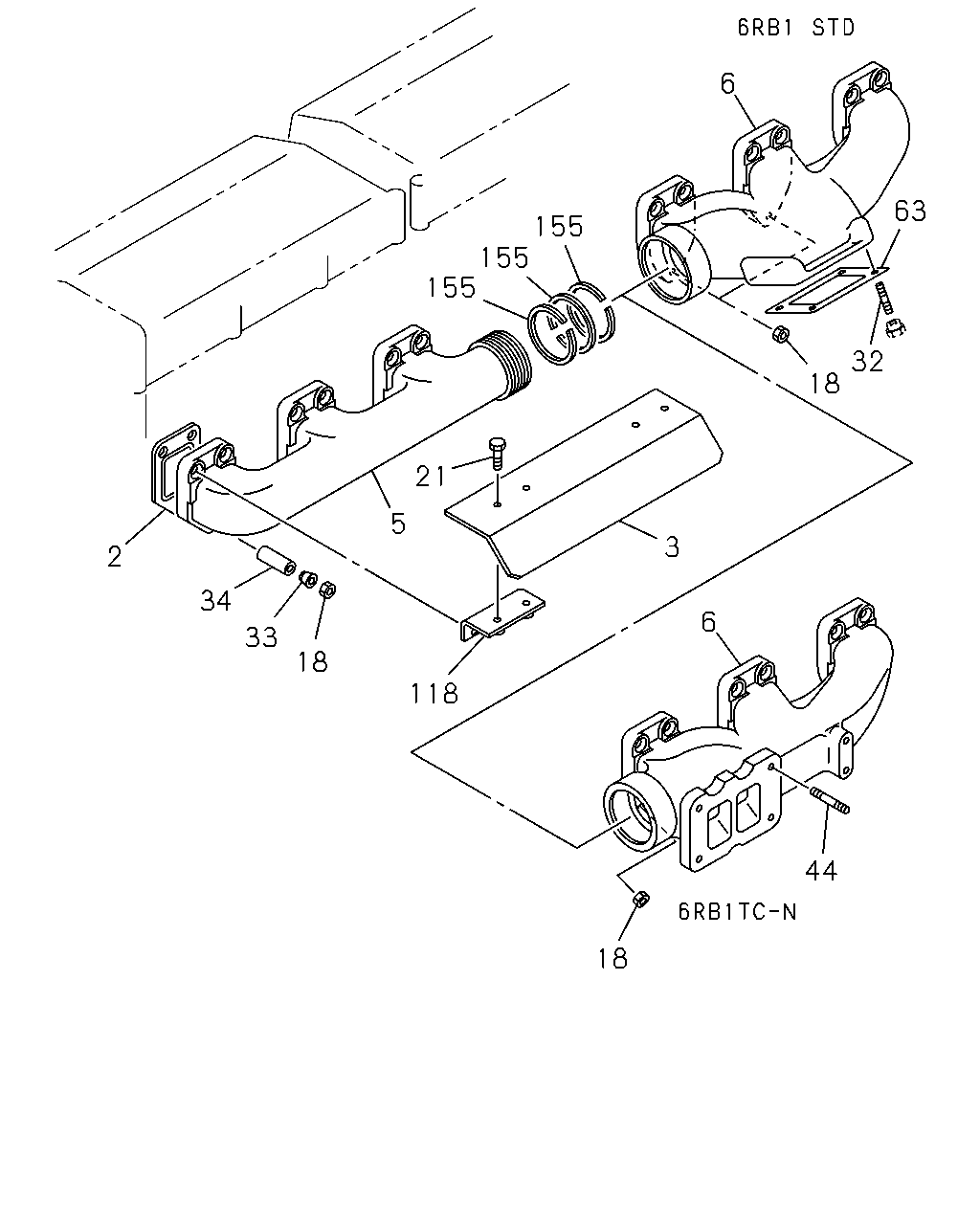

0-27A — EXHAUST MANIFOLD
(#3491) — 21 parça
Tümü
A - 6RB1 STD ENG
B - 6RB1TC-N ENG
6
63
155
155
155
32
18
21
5
3
2
34
6
33
18
118
44
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-155-0
06
1
9002-
●
●
3
PROTECTOR; HEAT,EXH MANIF
1-14181-197-0
01
1
9002-
●
5
MANIFOLD; EXH,FRT
1-14141-572-2
01
1
9002-
●
●
6
MANIFOLD; EXH,RR
1-14141-574-3
01
1
9002-
●
6
MANIFOLD; EXH,RR
1-14141-631-3
01
1
9012-
●
18
NUT; EXH MANIF
M10
9-09110-410-0
16
1
9002-9006
●
18
NUT; EXH MANIF
M10
9-09844-575-0
04
1
9002-
●
18
NUT; EXH MANIF
M10 M10
9-09844-618-0
02
1
9002-
●
18
NUT; EXH MANIF
M10
9-09110-410-0
16
1
9007-
●
18
NUT; EXH MANIF
M10
9-09110-410-0
18
1
9012-
●
21
BOLT; HEAT PROTECTOR
M10X22
9-01971-022-0
04
1
9002-9002
●
21
BOLT; HEAT PROTECTOR
M10X22 W/LK&PL WASHER
0-50141-022-0
04
1
9003-
●
32
STUD; EXH PIPE
M10X37 L=54
1-09302-079-0
04
1
9002-
●
33
WASHER; EXH MANIF
T=5.5
1-14149-042-0
16
1
9002-
●
33
WASHER; EXH MANIF
T=5.5
1-14149-042-0
18
1
9012-
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
16
1
9002-
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
18
1
9012-
●
44
STUD; TURBOCHARGER
M10X35 L=49
9-09833-043-0
04
1
9012-
●
63
GASKET; EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-117-1
01
1
9002-
●
118
BRACKET; HEAT PROTECTOR
1-14189-080-0
02
1
9002-
●
155
RING; SEAL,EXH MANIF
9-14149-026-0
03
1
9002-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
