◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51127 - NKR85(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#34904) — 15 parça

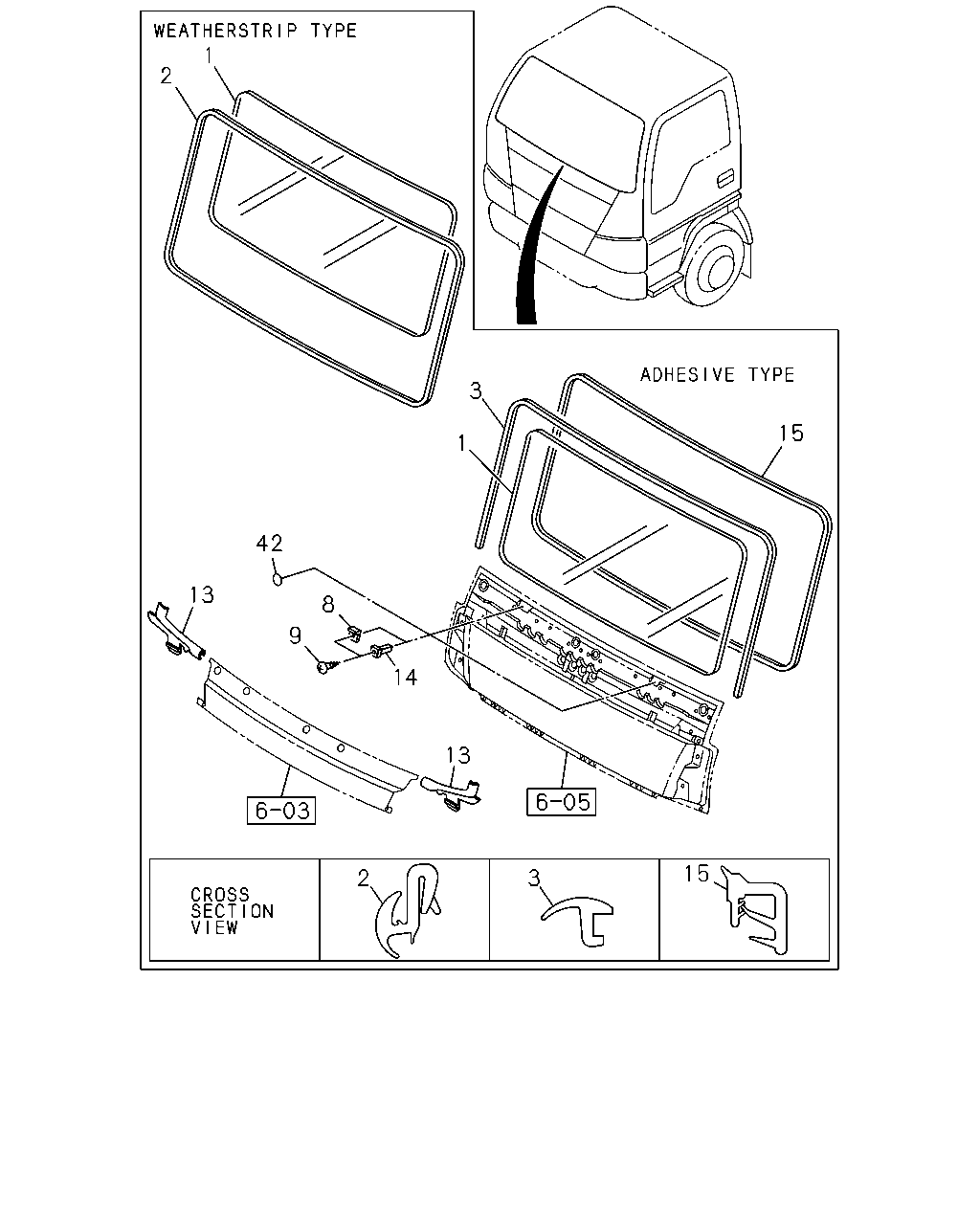

çizim 58606
1 2 3 15 1 42 13 8 9 14 13 15 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.005 GLASS; WINDSHIELD 8-97869-124-0 01 1 0609-0805 ● ●
1 16.005 GLASS; WINDSHIELD 8-97997-944-1 01 1 0806- ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-4 01 1 0609- ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-678-3 01 1 0609- ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0609-1109 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 1110- ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 0609-1109 ● ●
9 16.041 SCREW; STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 1110- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0609- ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0609- ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 0609- ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0609-1109 ● ●
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1110- ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-226-7 01 1 0609- ● ●
42 16.041 SEAL; HOLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>, KDPREPARATORY PACK VAR.4<7TV> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
