Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#349) — 540 parça

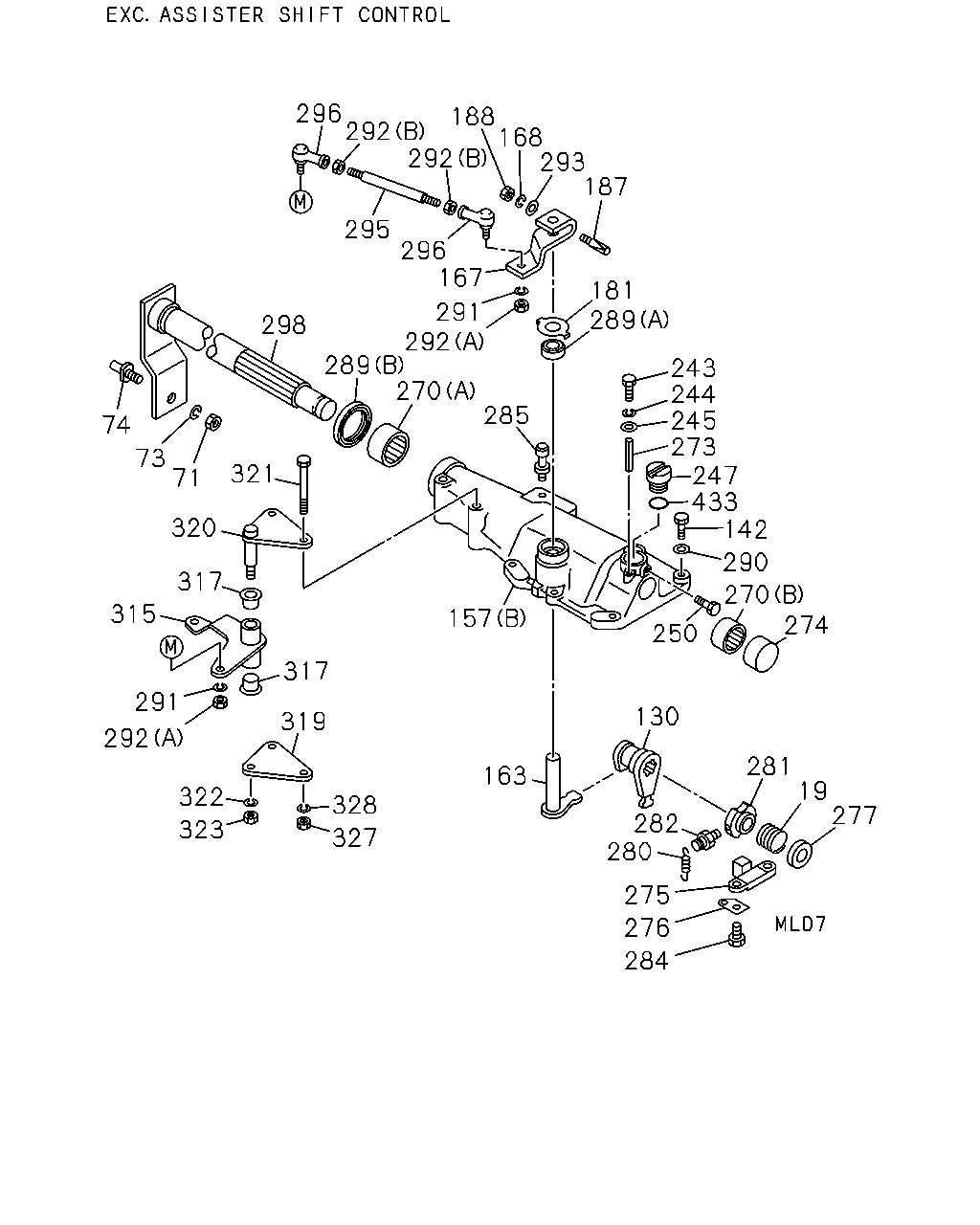

296 292 292 188 168 293 187 295 296 167 181 289 291 292 289 270 298 243 244 245 273 247 433 142 285 74 73 71 321 320 290 317 270 274 315 157 250 317 291 130 319 292 281 163 19 277 322 328 282 280 323 327 275 276 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-		●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	01	1	9206-	●	●
73	WASHER; LK,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	01	1	9202-9205	●	●
74	PIN; WIRE,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33659-115-0	01	1	9202-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-			●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-		●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35 W/LK WASHER	0-50051-035-0	02	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE	0-28181-028-0	07	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 W/LK&PL WASHER	0-50151-032-0	07	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 FLANGE	0-28181-032-0	02	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X30	1-09040-063-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35	1-09040-064-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X34	1-09040-091-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35 W/LK WASHER	0-50051-035-0	03	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 W/LK&PL WASHER	0-50151-032-0	06	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	06	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35	1-09040-064-1	02	1	9202-9205			●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X34	1-09040-091-0	02	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 FLANGE	0-28181-032-0	03	1	9206-			●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9202-			●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-		●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-			●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
181	WASHER; PL,SELECT LEVER (A) ID=18 OD=37	1-09532-007-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER ID=19 OD=40	1-09532-008-0	01	1	9202-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9202-9205	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9202-9205	●	●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4	9-09160-506-0	01	1	9202-9205	●	●
247	BUSHING ASM; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-019-0	01	1	9202-	●	●
250	SCREW; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	9-06130-618-0	01	1	9202-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-006-0	01	1	9202-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NSK	1-09811-057-0	01	1	9202-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-260-0	01	1	9202-	●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9202-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9202-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9202-		●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-		●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9202-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	9202-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9202-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9202-		●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-			●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	9202-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	9202-	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9202-9402	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-			●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9202-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9202-9205	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9202-9205	●	●
433	GASKET; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	1-09623-130-0	01	1	9202-	●	●

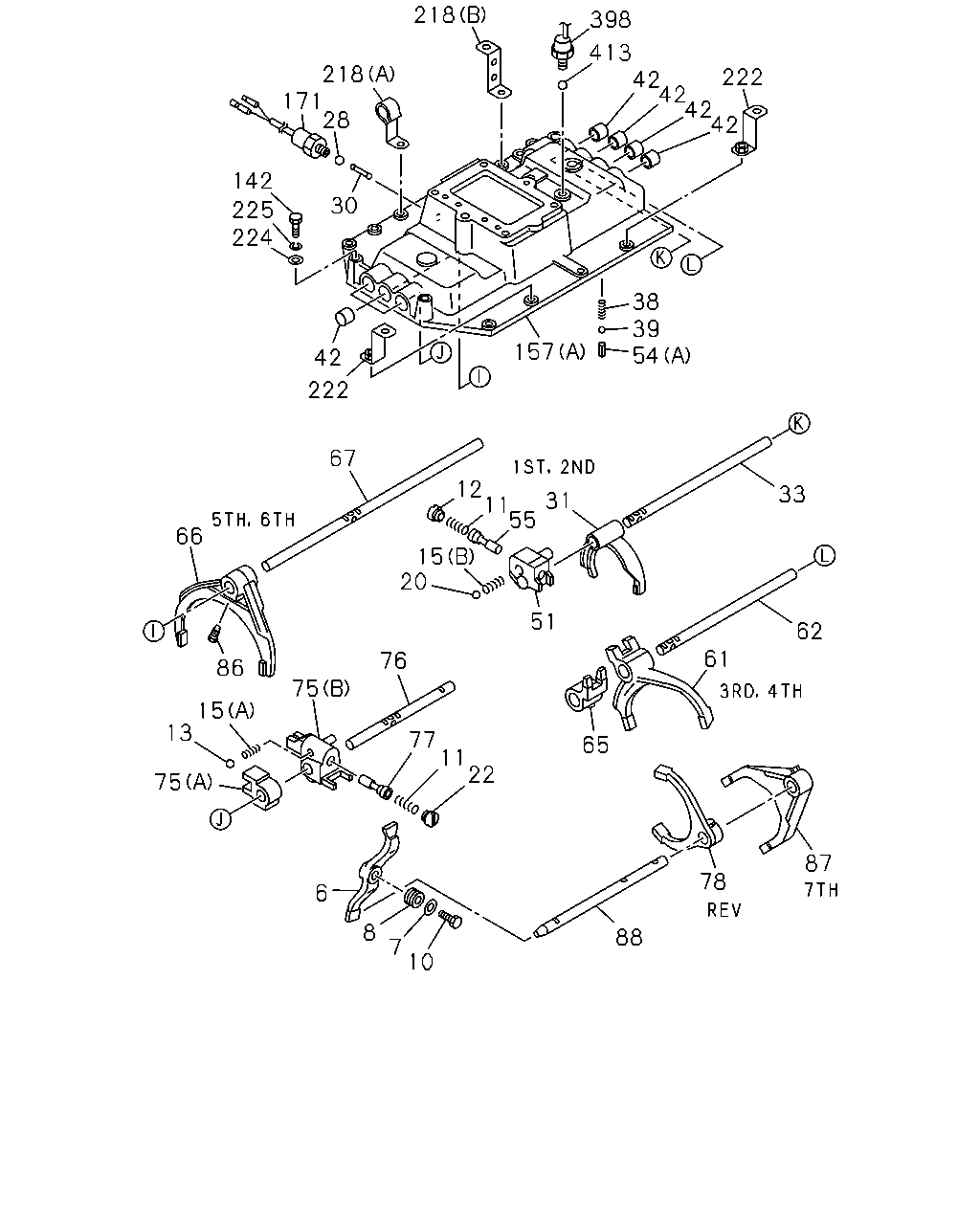

218 398 413 42 42 42 42 218 171 28 222 142 30 225 224 38 39 54 157 42 222 67 12 11 31 55 33 66 15 20 51 62 61 76 86 75 15 13 77 11 22 65 75 87 7 78 6 8 88 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY	1-33511-009-1	01	1	9202-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-		●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	9202-		●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9203		●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9202-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9202-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9202-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-		●
28	BALL; INTER LK	9-00097-010-0	05	1	9202-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9202-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-		●
38	SPRING; DETENT	1-09580-374-0	03	1	9202-			●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9202-			●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9202-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9202-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-		●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	9202-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	9202-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412		●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-2	01	1	9202-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-228-2	01	1	9202-9412		●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9501-		●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9202-		●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	9202-		●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	9202-		●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	9202-		●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	9202-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-		●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	09	1	9202-9412		●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9501-		●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	9202-		●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	9202-		●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35 W/LK WASHER	0-50051-035-0	02	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE	0-28181-028-0	07	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 W/LK&PL WASHER	0-50151-032-0	07	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 FLANGE	0-28181-032-0	02	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X30	1-09040-063-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35	1-09040-064-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X34	1-09040-091-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35 W/LK WASHER	0-50051-035-0	03	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 W/LK&PL WASHER	0-50151-032-0	06	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	06	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35	1-09040-064-1	02	1	9202-9205			●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X34	1-09040-091-0	02	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 FLANGE	0-28181-032-0	03	1	9206-			●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9202-			●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-		●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9202-			●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9202-	●	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●	●
224	WASHER; PL,QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> ID=10.5 OD=18	9-09160-510-0	01	1	9202-9205			●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-9205			●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●	●

382 383 382 192 383

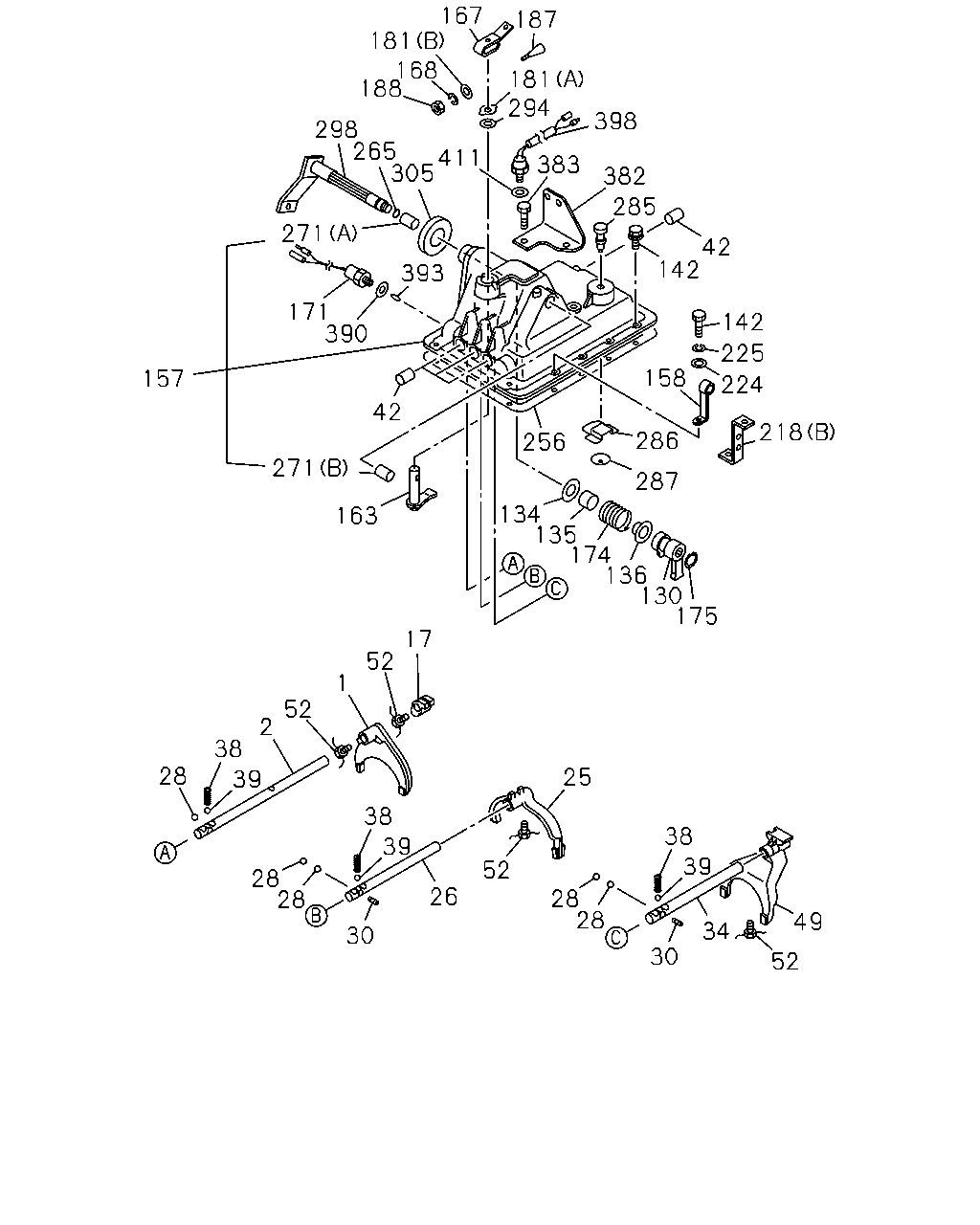

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
192	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5	9-09164-510-0	02	1	9202-9205	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-109-0	01	1	9202-	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-105-1	01	1	9202-		●
383	BOLT; BRKT,PARK BRAKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50051-020-0	02	1	9202-9205	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 W/LK WASHER	0-50051-025-0	03	1	9202-9205	●	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●	●

296 295 318 296 325 317 292 292 315 167 187 298 291 188 168 293 317 292 181 283 289 306 300 301 279 291 292 289 142 130 285 290 272 157 271 299 281 19 282 280 271 274 275 277 276 163 284 324 322 319 321 323 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-		●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-			●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-		●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35 W/LK WASHER	0-50051-035-0	02	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE	0-28181-028-0	07	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 W/LK&PL WASHER	0-50151-032-0	07	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 FLANGE	0-28181-032-0	02	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X30	1-09040-063-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35	1-09040-064-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X34	1-09040-091-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35 W/LK WASHER	0-50051-035-0	03	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 W/LK&PL WASHER	0-50151-032-0	06	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	06	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35	1-09040-064-1	02	1	9202-9205			●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X34	1-09040-091-0	02	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 FLANGE	0-28181-032-0	03	1	9206-			●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9202-			●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-		●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-			●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
181	WASHER; PL,SELECT LEVER (A) ID=18 OD=37	1-09532-007-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER ID=19 OD=40	1-09532-008-0	01	1	9202-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9202-			●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9202-			●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (D) ID=20 OD=23	1-33549-016-0	01	1	9202-	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (C) ID=28 OD=32	1-33549-104-0	01	1	9202-	●	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9202-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9202-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9202-		●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-		●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9202-		●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9202-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	9202-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9202-		●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-029-0	01	1	9202-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9202-		●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-			●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	9202-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	9202-	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9202-9402	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-			●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9202-9406	●	●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9202-9205	●	●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9202-9205	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9202-9205	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	0-16806-075-0	02	1	9202-9205	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	02	1	9206-9406	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9407-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	1-09040-072-0	02	1	9202-9205	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X72	1-09040-095-1	02	1	9206-9406	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●
318	WASHER; WAVE ASSISTER SHIFT CONTROL<WX8>	9-09855-315-0	01	1	9202-	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9202-	●	●
325	SHIM; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33659-096-0	01	1	9202-	●	●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9202-9205	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●

218 218 398 223 225 224 142 413 221 220 219 222 225 224 171 28 30 42 38 39 219 78 54 227 42 157 89 85 82 22 11 84 33 86 31 15 13 54 19 20 62 65 66 68 21 12 80 67 78 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9202-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9202-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9202-		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9202-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-		●
28	BALL; INTER LK	9-00097-010-0	05	1	9202-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9202-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-		●
38	SPRING; DETENT	1-09580-374-0	03	1	9202-			●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9202-			●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9202-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9202-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-		●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412		●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-2	01	1	9202-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-228-2	01	1	9202-9412		●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9501-		●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9202-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9202-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-		●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9202-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9202-	●
84	SLEEVE; REV	1-33516-025-0	01	1	9202-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9202-	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	09	1	9202-9412		●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9501-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9202-	●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35 W/LK WASHER	0-50051-035-0	02	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE	0-28181-028-0	07	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 W/LK&PL WASHER	0-50151-032-0	07	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 FLANGE	0-28181-032-0	02	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X30	1-09040-063-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35	1-09040-064-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X34	1-09040-091-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35 W/LK WASHER	0-50051-035-0	03	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 W/LK&PL WASHER	0-50151-032-0	06	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	06	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35	1-09040-064-1	02	1	9202-9205			●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X34	1-09040-091-0	02	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 FLANGE	0-28181-032-0	03	1	9206-			●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9202-			●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-		●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9202-			●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9202-	●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9202-9205	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9202-	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9202-9205	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9202-9205	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9202-	●
224	WASHER; PL,QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> ID=10.5 OD=18	9-09160-510-0	01	1	9202-9205			●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-9205			●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9202-	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●	●

167 181 168 188 187 181 294 398 298 265 411 305 383 382 285 271 42 142 393 171 390 142 225 158 157 224 42 218 286 256 271 287 134 135 174 136 130 175 163 17 52 1 52 2 38 28 25 39 38 38 39 39 52 28 28 26 28 28 49 34 30 30 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9202-			●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9202-			●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9202-			●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9202-			●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9202-			●
28	BALL; INTER LK	9-00097-010-0	05	1	9202-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9202-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9202-			●
38	SPRING; DETENT	1-09580-374-0	03	1	9202-			●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9202-			●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9202-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9202-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9202-			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9202-			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-			●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-		●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9202-			●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9202-			●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9202-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35 W/LK WASHER	0-50051-035-0	02	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE	0-28181-028-0	07	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 W/LK&PL WASHER	0-50151-032-0	07	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X32 FLANGE	0-28181-032-0	02	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X30	1-09040-063-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X35	1-09040-064-1	01	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> M10X34	1-09040-091-0	01	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35 W/LK WASHER	0-50051-035-0	03	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 W/LK&PL WASHER	0-50151-032-0	06	1	9202-9205			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X28 FLANGE	0-28181-028-0	06	1	9206-			●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X35	1-09040-064-1	02	1	9202-9205			●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X34	1-09040-091-0	02	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●
142	BOLT; QUAD BOX PTO CONTROL<SV6> M10X32 FLANGE	0-28181-032-0	03	1	9206-			●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9202-			●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-		●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9202-			●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-			●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-			●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9202-			●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●
174	SPRING; REV	1-09580-443-0	01	1	9202-			●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER (A) ID=18 OD=37	1-09532-007-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-			●
181	WASHER; PL,SELECT LEVER ID=19 OD=40	1-09532-008-0	01	1	9202-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-			●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9202-	●	●
224	WASHER; PL,QUAD BOX PTO CONTROL AIR LINK TYPE<SEC> ID=10.5 OD=18	9-09160-510-0	01	1	9202-9205			●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-9205			●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9202-			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9202-			●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9202-			●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9202-			●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (D) ID=20 OD=23	1-33549-016-0	01	1	9202-	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (C) ID=28 OD=32	1-33549-104-0	01	1	9202-	●	●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-			●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9202-			●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9202-			●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9202-			●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-			●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-109-0	01	1	9202-	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-105-1	01	1	9202-		●
383	BOLT; BRKT,PARK BRAKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50051-020-0	02	1	9202-9205	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 W/LK WASHER	0-50051-025-0	03	1	9202-9205	●	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9202-9208			●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-			●
393	PIN; SW	1-33534-003-0	01	1	9202-			●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9202-9208			●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
