◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51127 - NKR85(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#34898) — 23 parça

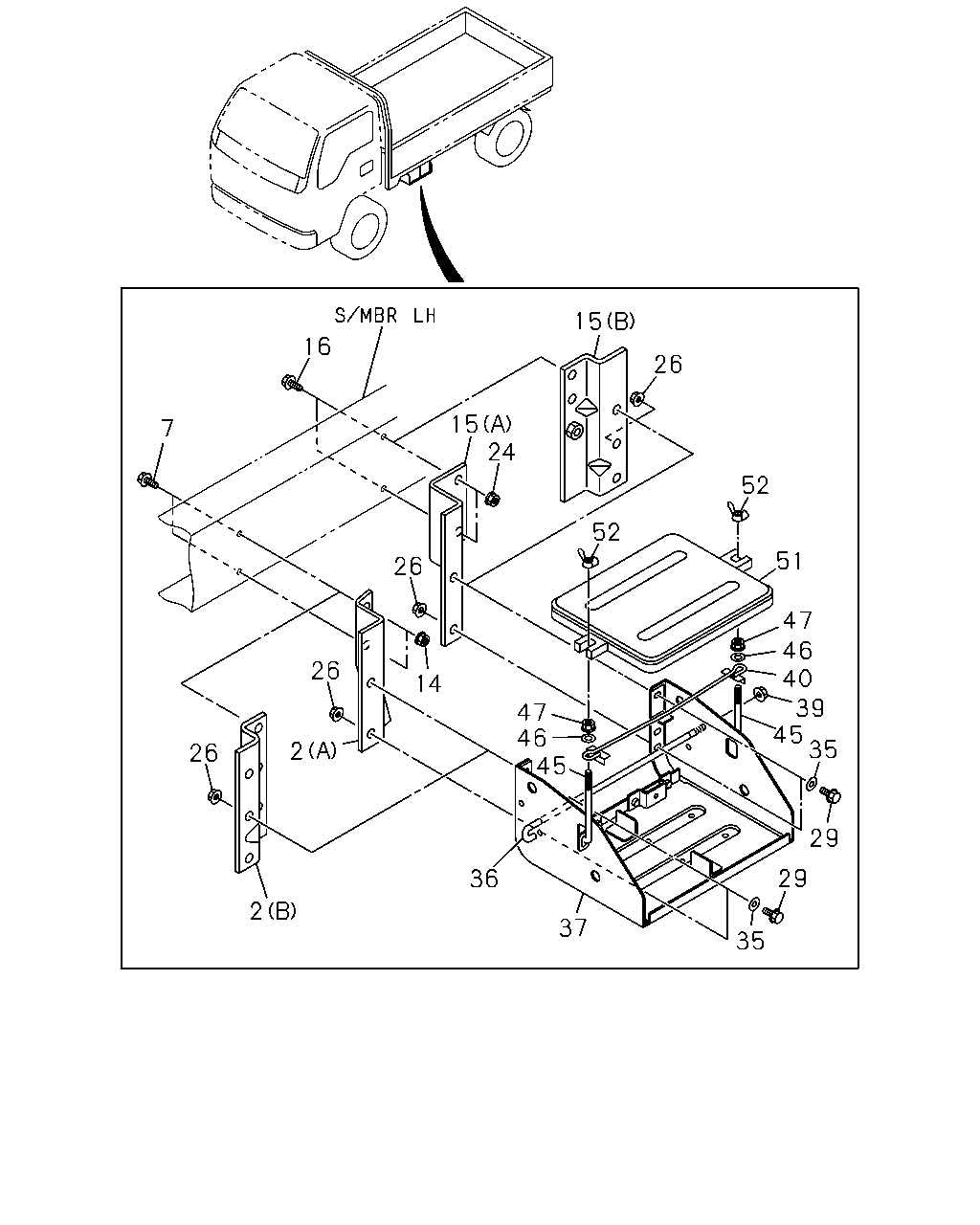

çizim 56969
15 16 26 15 24 7 52 52 51 26 47 46 40 39 45 35 26 14 47 46 45 2 26 29 29 36 2 37 35
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.333 BRACKET; BATTERY
(B) 		8-97074-506-0 01 1 0609- ●
2 02.333 BRACKET; BATTERY
(A) 		8-98029-286-0 01 1 0609- ●
7 02.333 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE 		0-28051-025-0 02 1 0609- ● ●
14 02.333 NUT; BRKT TO FRAME
04.085 M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
15 02.333 BRACKET; BATTERY
(B) 		8-94115-304-3 01 1 0609- ●
15 02.333 BRACKET; BATTERY
(A) 		8-98029-287-0 01 1 0609- ●
16 02.334 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE 		0-28051-025-0 02 1 0609- ● ●
24 02.334 NUT; BRKT TO FRAME
04.085 M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 02 1 0609- ●
26 02.334 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 0609- ●
29 02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER 		0-50541-030-0 04 1 0609- ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0609- ● ●
36 02.334 STOPPER; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		8-94145-894-0 01 1 0609- ● ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		8-97356-174-0 01 1 0609-0610 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		8-97384-068-2 01 1 0611-0612 ● ●
37 02.333 BRACKET; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		8-97384-067-2 01 1 0701- ● ●
39 02.334 NUT; STOPPER,BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0609- ● ●
40 02.335 CLAMP; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		5-53615-004-1 01 1 0609- ● ●
45 02.334 ROD; TENSION,BATTERY 9-53616-615-0 02 1 0609- ● ●
46 02.334 WASHER; PL,BATTERY TO CARRIER
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0609- ● ●
47 02.334 NUT; BRKT
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
51 02.335 COVER; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 		8-97120-747-0 01 1 0609- ● ●
52 02.335 NUT; WING,COVER FIX
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> M8 WING NUT 		0-91118-408-0 02 1 0609- ● ●
