4-80 — ROAD WHEEL (#34894) — 60 parça

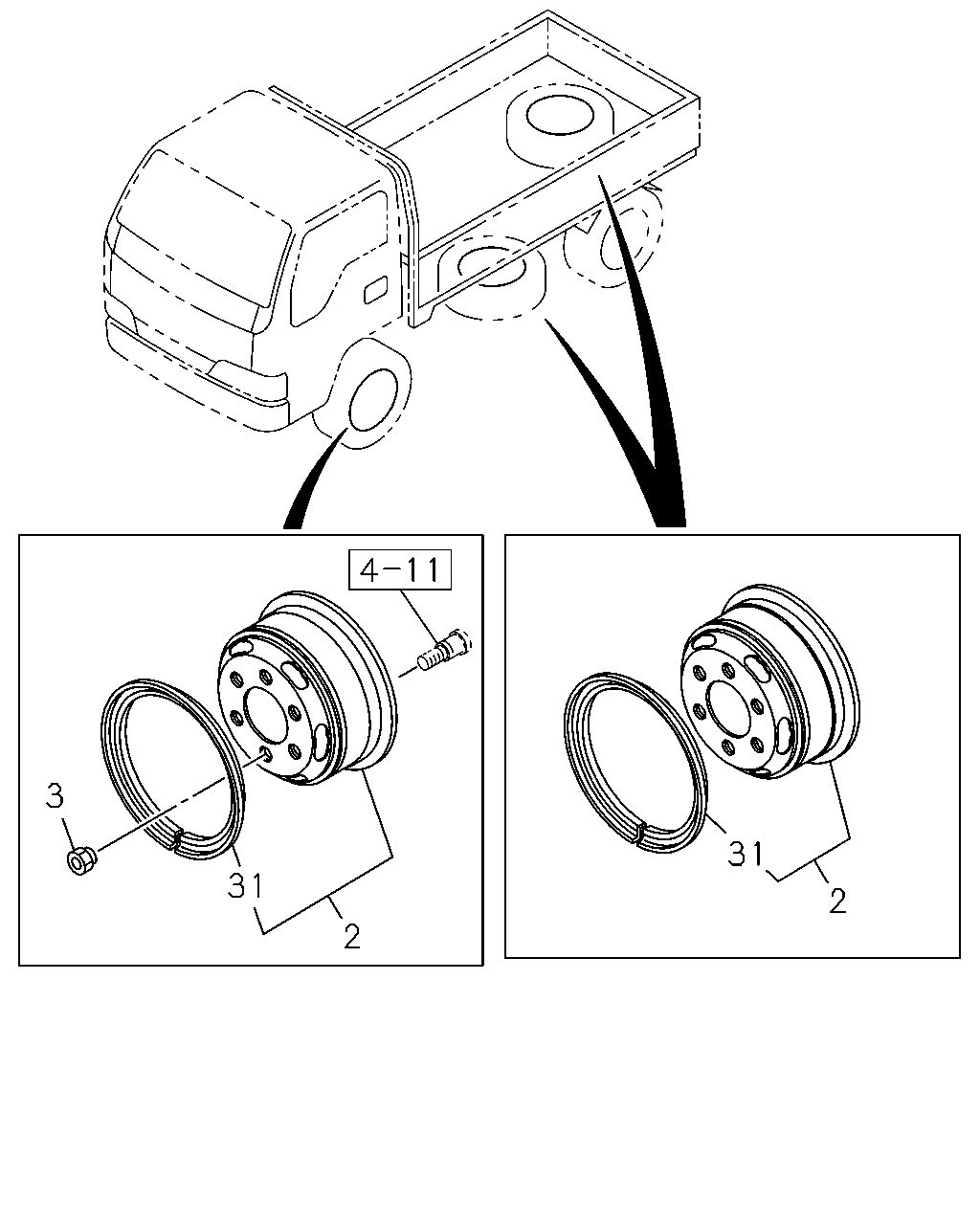

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0609-	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0609-		●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0609-		●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0609-		●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0609-		●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0609-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0609-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0609-0610		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0609-0610		●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0609-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0609-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0609-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0609-		●

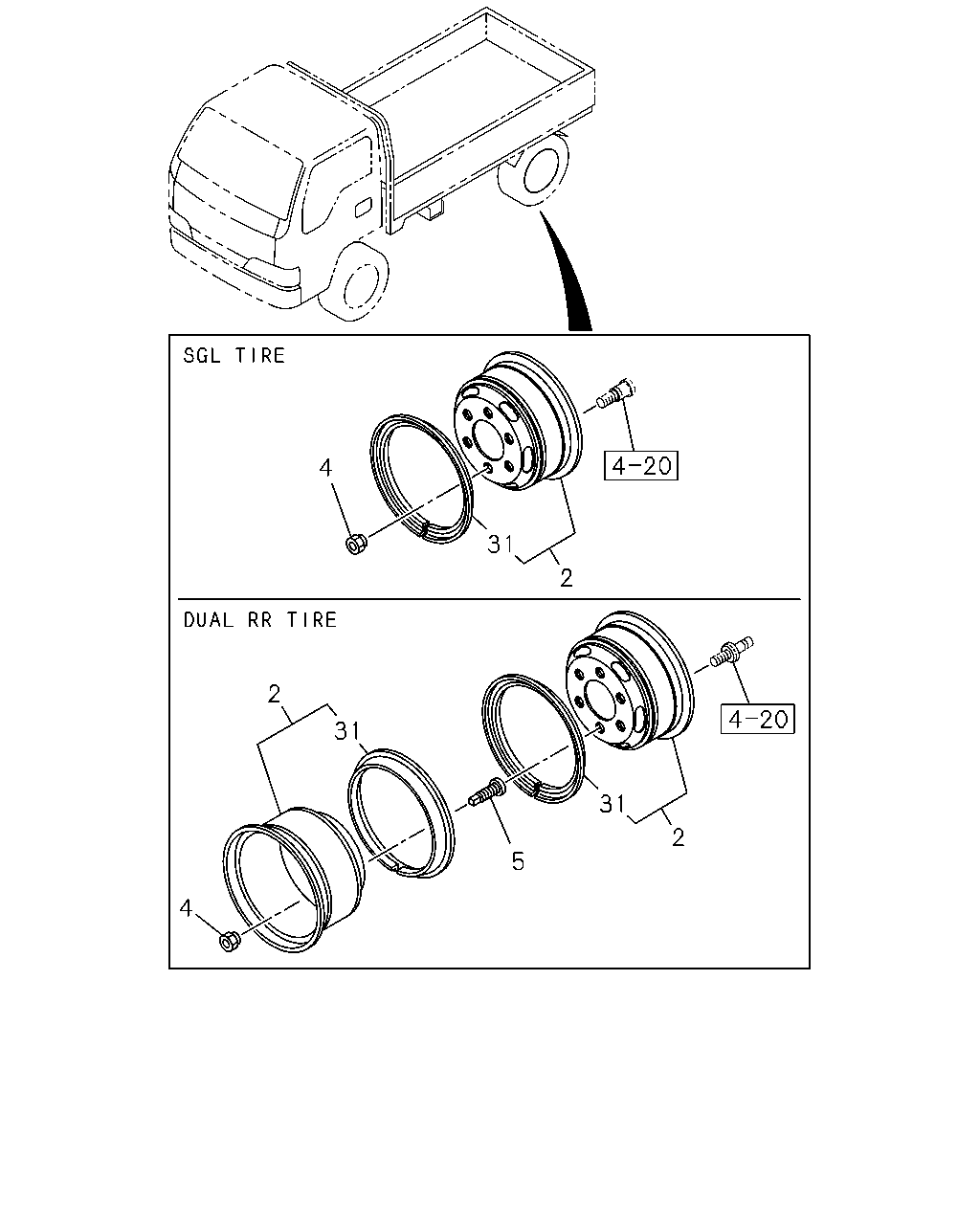

4 31 2 2 31 31 2 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	0609-	●
2	05.803 WHEEL; DISC FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	0609-	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	01	1	0609-		●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE	8-94116-198-0	06	1	0609-		●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0609-		●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0609-		●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0609-0610	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0609-0610	●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0609-0610		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-		●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0609-0610		●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0609-0610		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0609-0610		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX1 5-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0609-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0609-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	06	1	0609-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0609-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0609-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
