4-60 — REAR SUSPENSION (#34890) — 41 parça

209 15 182 209 16 180 16 15 182 1 209 182 15 15 180 209 182 209 182 1 180 209 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	0609-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-97073-224-1	02	1	0609-		●
15	07.523 SHACKLE; RR SPR (A)	8-94113-322-3	02	1	0609-	●
15	07.523 SHACKLE; RR SPR (B)	8-97033-966-1	02	1	0609-	●
15	07.523 SHACKLE; RR SPR (C)	8-94118-511-3	02	1	0609-		●
15	07.523 SHACKLE; RR SPR (D)	8-94118-512-4	02	1	0609-0611		●
15	07.523 SHACKLE; RR SPR (D)	8-97360-011-0	02	1	0612-		●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	0609-	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	0609-0611	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	0612-	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0609-0610	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0609-0611		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0612-		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0609-0610		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	02	1	0609-	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	02	1	0609-0610	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	0611-	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	04	1	0609-	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	04	1	0609-0610	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	0611-	●	●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	0609-		●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5	8-97070-925-1	02	1	0609-0611	●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5	8-98011-489-0	02	1	0612-	●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5	8-97070-925-1	04	1	0609-0611	●	●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5	8-98011-489-0	04	1	0612-	●	●
209	07.529 WASHER; PL (B) ID=19	8-97073-435-1	02	1	0609-0611		●
209	07.529 WASHER; PL (B) ID=19	8-97360-119-0	02	1	0612-		●

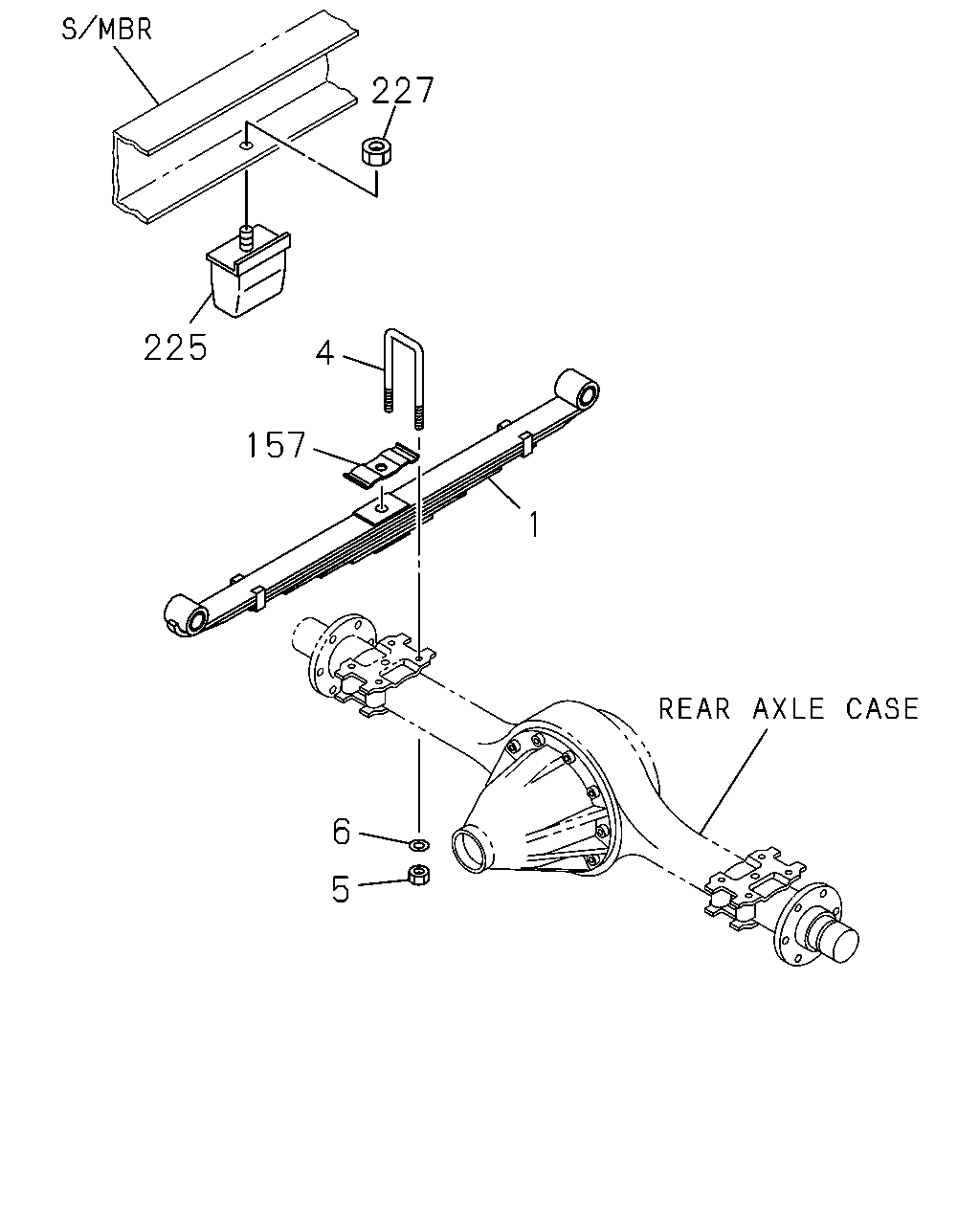

227 225 4 157 1 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	0609-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-97073-224-1	02	1	0609-		●
4	07.516 U-BOLT; RR SPR L=235	8-94127-920-3	04	1	0609-	●
4	07.516 U-BOLT; RR SPR L=265	8-94127-923-3	04	1	0609-		●
5	07.529 NUT; U-BOLT,RR SPR 07.516 M16	8-94107-767-0	08	1	0609-0611	●	●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0612-	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0609-0610	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-	●	●
157	07.518 CLAMP; UPR,RR SPR L=130 T=4.5	8-94119-069-2	02	1	0609-	●	●
225	07.535 RUBBER; CUSHION,RR SPR	8-94142-044-4	02	1	0609-	●
225	07.535 RUBBER; CUSHION,RR SPR	8-94118-510-5	02	1	0609-		●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	0609-	●	●
