2 |
07.412 SPRING ASM; LEAF,FRT

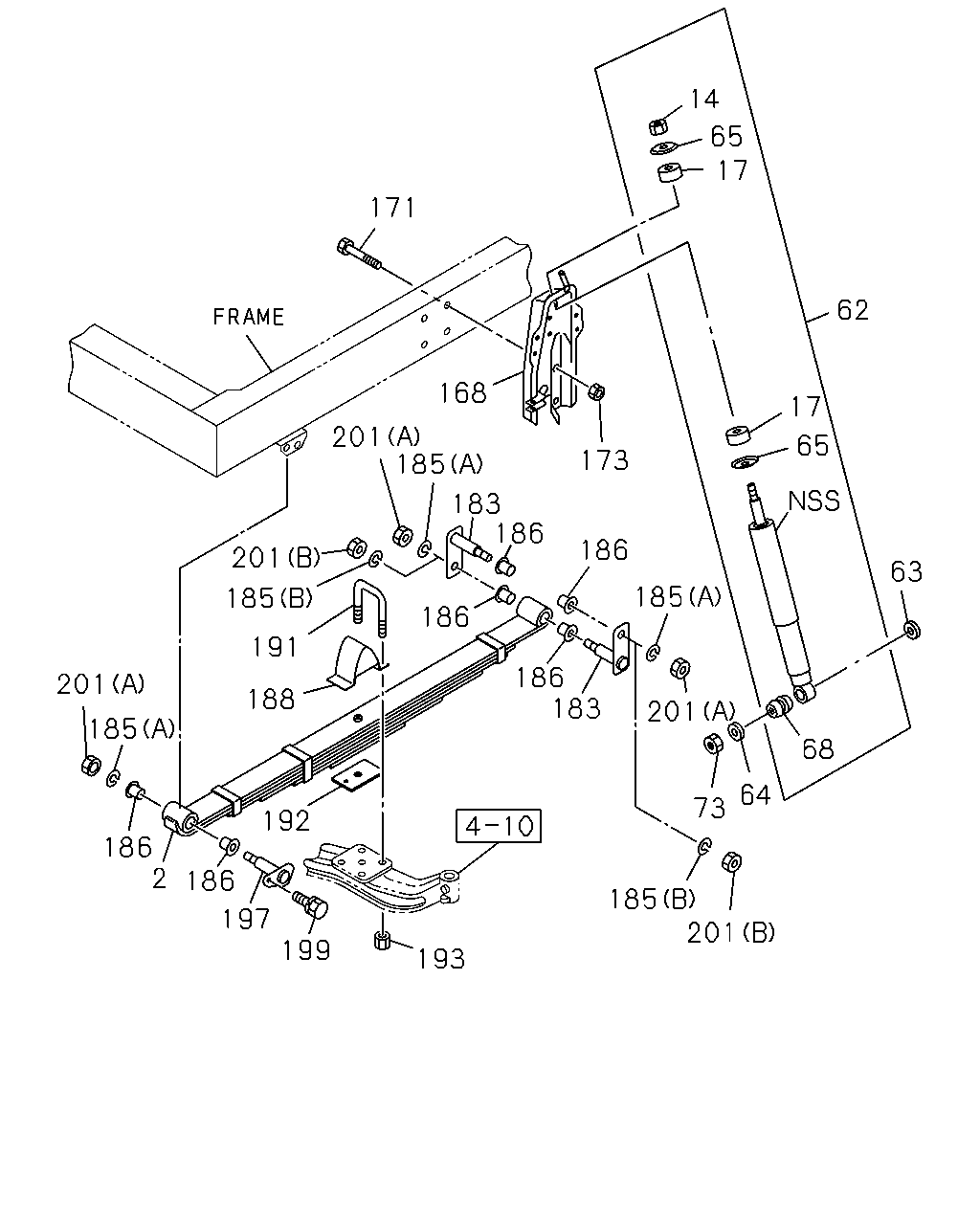

SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98042-915-0 |
01 |
1 |
0609- |
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
6-LEAF
|
8-98042-914-0 |
01 |
1 |
0609- |
● |
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
7-LEAF
|
8-98042-919-0 |
01 |
1 |
0609- |
|
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
7-LEAF
|
8-98042-916-0 |
01 |
1 |
0609- |
|
● |
| |
14 |
07.389 NUT; S/ABS,UPR
M10
|
8-94317-772-0 |
02 |
1 |
0609- |
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0609- |
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97260-214-0 |
02 |
1 |
0609- |
● |
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97253-605-0 |
02 |
1 |
0609- |
|
● |
| |
63 |
07.347 WASHER; PL,S/ABS,LWR
07.529
ID=17 OD=32
|
9-09164-616-0 |
02 |
1 |
0609-1011 |
● |
● |
| |
63 |
07.347 WASHER; PL,S/ABS,LWR
ID=17 OD=32
|
0-91614-616-0 |
02 |
1 |
1012- |
● |
● |
| |
64 |
07.347 WASHER; S/ABS,LWR
ID=12.5
|
9-51679-022-0 |
02 |
1 |
0609- |
● |
● |
| |
65 |
07.347 WASHER; S/ABS
07.245
ID=10.5 OD=38
|
9-51631-062-0 |
04 |
1 |
0609- |
● |
● |
| |
68 |
07.388 BUSHING; S/ABS
07.347
TOKICO
|
8-94224-694-0 |
02 |
1 |
0609- |
● |
● |
| |
73 |
07.347 NUT; BRKT,SHOCK
04.439
M12
|
0-91111-512-0 |
02 |
1 |
0609- |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97316-007-1 |
01 |
1 |
0609- |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97316-015-1 |
01 |
1 |
0609- |
● |
● |
| |
171 |
07.395 BOLT; S/ABS BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
08 |
1 |
0609- |
● |
● |
| |
173 |
07.395 NUT; S/ABS
04.085
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
0609- |
● |
● |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-98034-341-0 |
04 |
1 |
0609- |
● |
● |
| |
185 |
07.427 WASHER; LK,PIN
(B)
ID=16.5
|
8-98011-489-0 |
04 |
1 |
0609- |
● |
● |
| |
185 |
07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF>
07.172
(A)
ID=16.5
|
8-97070-925-1 |
02 |
1 |
0609-0611 |
● |
● |
| |
185 |
07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF>
(A)
ID=16.5
|
8-98011-489-0 |
02 |
1 |
0612- |
● |
● |
| |
186 |
07.105 BUSHING; SHACKLE
|
8-97081-531-0 |
12 |
1 |
0609- |
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-515-0 |
02 |
1 |
0609- |
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
L=125
|
8-97304-076-1 |
04 |
1 |
0609- |
● |
● |
| |
192 |
07.436 PIECE; DIST
07.425
|
8-94249-413-1 |
02 |
1 |
0609- |
● |
|
| |
193 |
07.417 NUT; U BOLT
M14 FLANGE
|
8-94137-483-0 |
08 |
1 |
0609-0610 |
● |
● |
| |
193 |
07.417 NUT; U BOLT
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0611- |
● |
● |
| |
197 |
07.427 PIN; FRT SPR,FRT
|
8-94117-900-1 |
02 |
1 |
0609- |
● |
● |
| |
199 |
07.427 BOLT
00.029
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0609- |
● |
● |
| |
201 |
07.427 NUT; PIN LK
06.509
(B)
M16
|
0-91110-516-0 |
04 |
1 |
0609- |
● |
● |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
06.509
(A)
M16
|
0-91110-516-0 |
02 |
1 |
0609- |
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
07.529
(A)
M16 FLANGE
|
8-97147-389-0 |
02 |
1 |
0609-0610 |
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
(A)
M16 FLANGE
|
8-97360-125-0 |
02 |
1 |
0611- |
● |
● |
