Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22B - ENGINE MOUNTING
▶

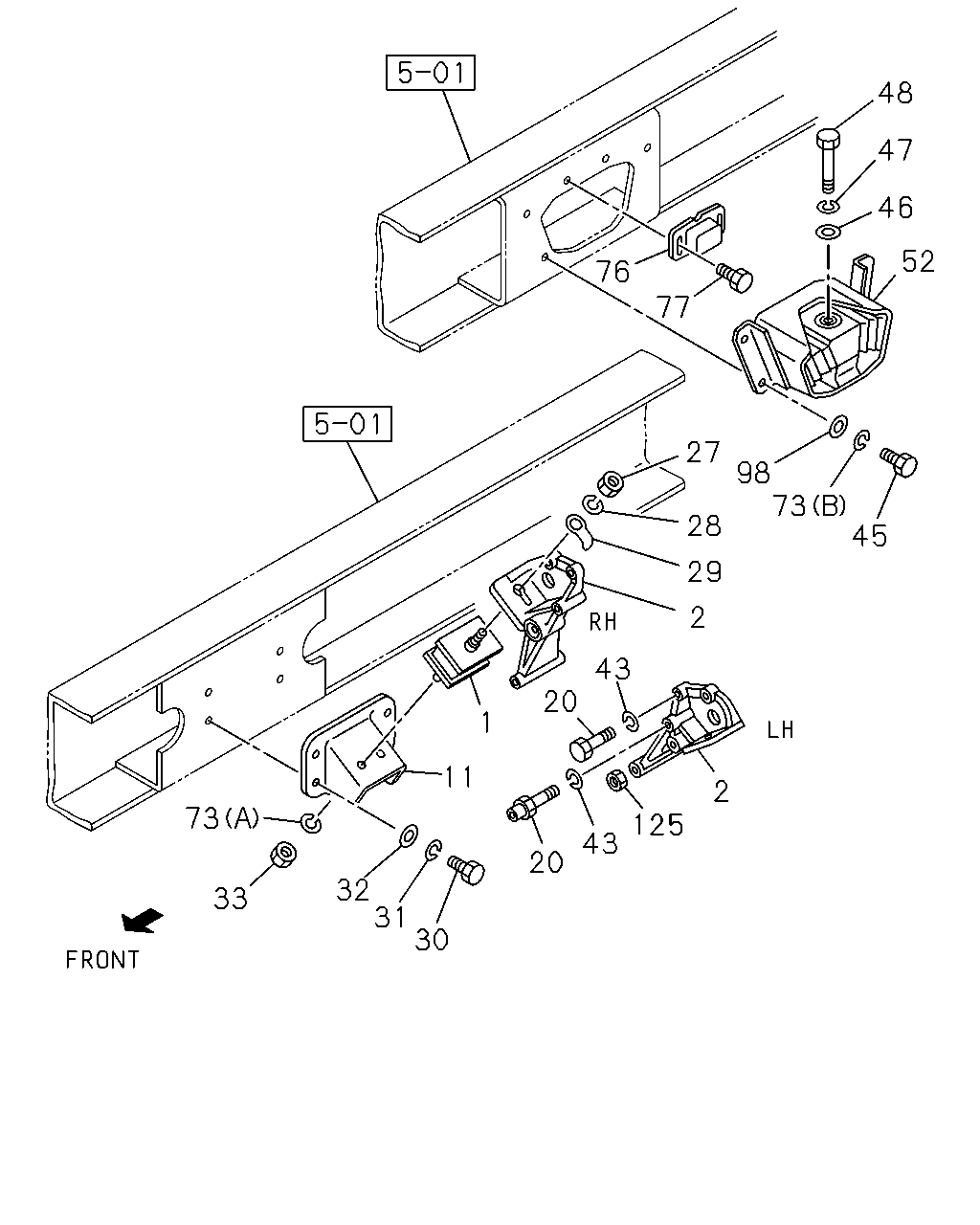

0-22B — ENGINE MOUNTING
(#3488) — 31 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
48
47
46
76
52
77
27
98
73
45
28
29
2
43
20
1
11
2
73
125
43
20
32
31
30
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
9002-
●
●
2
FOOT; ENG
1-11771-153-1
01
1
9002-9407
●
●
2
FOOT; ENG
1-11771-213-0
01
1
9408-9410
●
●
2
FOOT; ENG
1-11771-218-1
01
1
9411-
●
●
2
FOOT; ENG
1-11771-152-0
01
1
9002-9410
●
●
2
FOOT; ENG
1-11771-217-1
01
1
9411-
●
●
11
BRACKET; CUSHION RUBBER,FRT
1-53211-103-1
02
1
9002-
●
●
20
BOLT; ENG FOOT
M18X80
1-09020-119-1
06
1
9002-9109
●
20
BOLT; ENG FOOT
M14X110
1-09020-007-0
01
1
9002-
●
●
20
BOLT; ENG FOOT
M10X17,M14X110 L=136
1-09020-115-0
01
1
9002-
●
●
20
BOLT; ENG FOOT
M14X45
9-92361-445-0
04
1
9002-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
9-99110-418-0
02
1
9002-
●
●
28
WASHER; LK,SUPPORT BRKT
ID=18.2
9-09150-518-0
02
1
9002-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
9002-
●
●
30
BOLT; BRKT TO FRAME
M14X35
9-92061-435-0
08
1
9002-
●
●
31
WASHER; LK,BRKT TO FRAME
ID=14.2
9-09150-814-0
08
1
9002-
●
●
32
WASHER; PL,BRKT TO FRAME
ID=15 OD=26
9-09164-514-0
08
1
9002-
●
●
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
9002-
●
●
43
WASHER; ENG FOOT
ID=14.2
1-09503-050-0
06
1
9002-
●
●
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
9-92061-440-0
08
1
9002-
●
●
46
WASHER; PL,CUSHION TO ENG,RR
9-09164-622-0
02
1
9002-
●
●
47
WASHER; LK,CUSHION RUBBER
ID=22.5
9-09150-622-0
02
1
9002-
●
●
48
BOLT; CUSHION RUBBER TO ENG
M22X105
9-09804-230-1
02
1
9002-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-236-3
02
1
9002-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2
9-09150-514-0
04
1
9002-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2
9-09150-614-0
08
1
9002-
●
●
76
STOPPER; ENG MTG RUBBER
1-53229-035-1
02
1
9002-
●
●
77
BOLT; STOPPER
M8X20
9-01970-820-0
04
1
9002-9005
●
77
BOLT; STOPPER
M8X20 W/LK&PL WASHER
0-50140-820-0
04
1
9006-
●
●
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
9-09651-069-0
08
1
9002-
●
●
125
NUT; ENG FOOT
M10 FLANGE
0-91150-110-0
01
1
9002-
●
