Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#34874) — 49 parça

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0609-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0609-	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0609-	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0609-	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0609-	●	●

116 12 203 12 12 13 39 39 184 39 165 39 39 175 162 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0609-	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0609-0705	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0706-0911	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	0609-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0609-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	0609-	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0609-	●	●
116	04.931 HOSE; VAC,M/VAC	8-97314-597-1	01	1	0609-	●	●
162	04.931 HOSE; VAC	8-97078-785-0	01	1	0609-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0609-	●	●
165	04.686 BOLT; BRKT 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0609-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0609-	●	●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	0609-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0609-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0609-	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	0609-	●	●

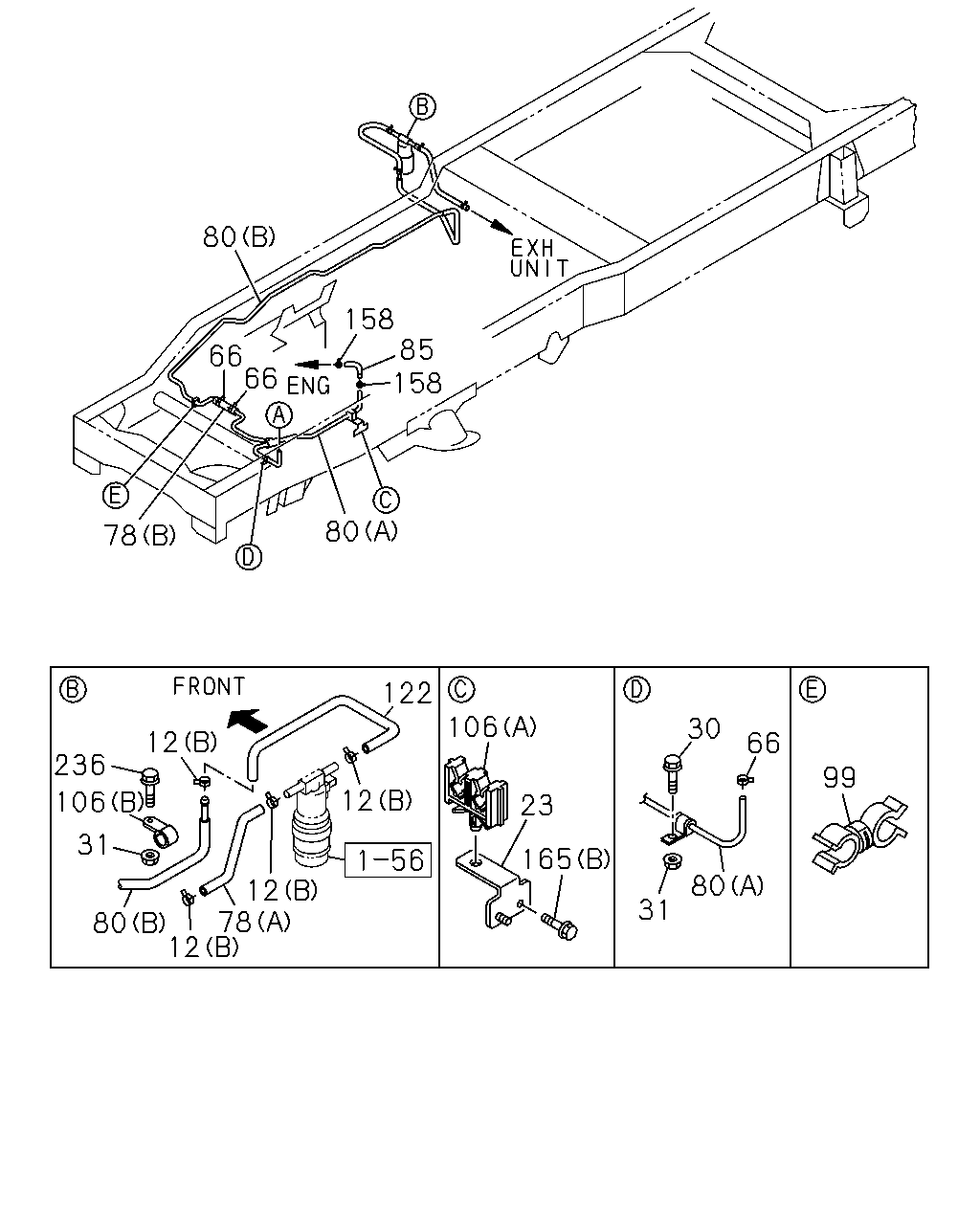

80 158 85 158 66 66 80 78 122 106 30 12 66 236 99 12 106 23 31 165 80 12 80 78 12 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0609-	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0609-0705	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0706-0911	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●	●
23	04.686 BRACKET; VAC PIPE	8-98000-460-1	01	1	0609-	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0609-	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0609-	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0609-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0609-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (A) L=350 SERVICED BY L=3000	0-08258-300-0	01	1	0609-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0609-0712	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98095-815-0	01	1	0801-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (A) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0609-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98042-870-0	01	1	0609-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98000-323-2	01	1	0609-	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98042-871-0	01	1	0609-		●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0609-	●	●
99	04.930 CLIP; VAC HOSE TO VAC HOSE 02.559 ID=16.5 & 16.5	8-94473-320-0	01	1	0609-	●	●
106	04.930 CLIP; PIPE (B) ID=13 L=20	0-95235-232-0	01	1	0609-	●	●
106	04.930 CLIP; PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0609-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0609-	●	●
158	04.681 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	0609-0911	●	●
158	04.681 CLIP; HOSE 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0609-	●	●
165	04.686 BOLT; BRKT 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0609-	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0609-0705	●
