3-55 — BRAKE PIPING; OIL,REAR (#34872) — 11 parça

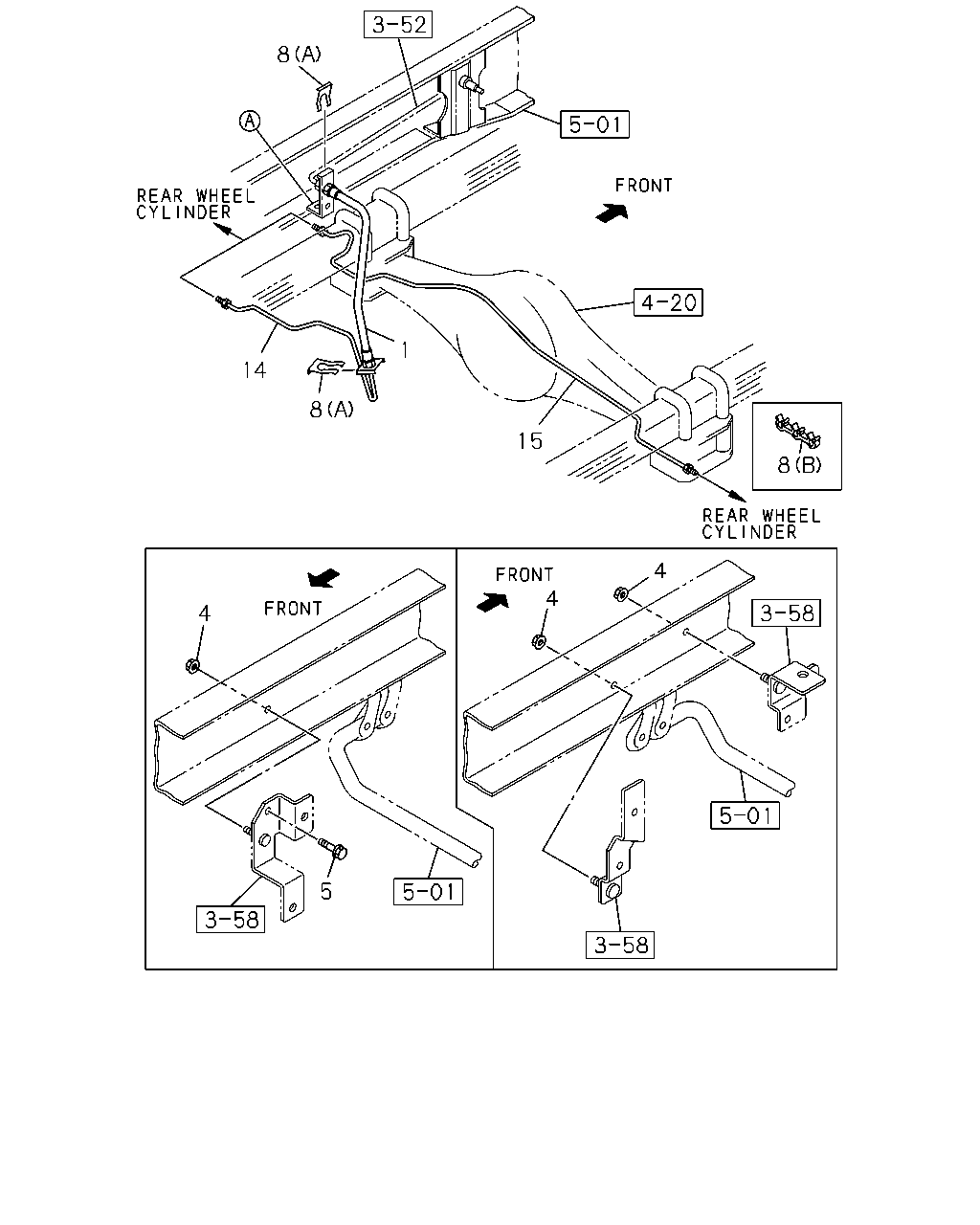

çizim 58901
8 1 14 8 15 8 4 4 4 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0609- ●
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0609- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M6 FLANGE 		0-91180-106-0 03 1 0609- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0609- ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 0609-0610 ● ●
8 04.686 CLIP; RR BRK
(A) 		8-97360-054-0 02 1 0611- ● ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 0609- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97306-902-0 01 1 0609- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0609- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97047-813-2 01 1 0609- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97034-530-0 01 1 0609- ●
